2017 TOYOTA GT86 Owners Manual (in English)

217
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)

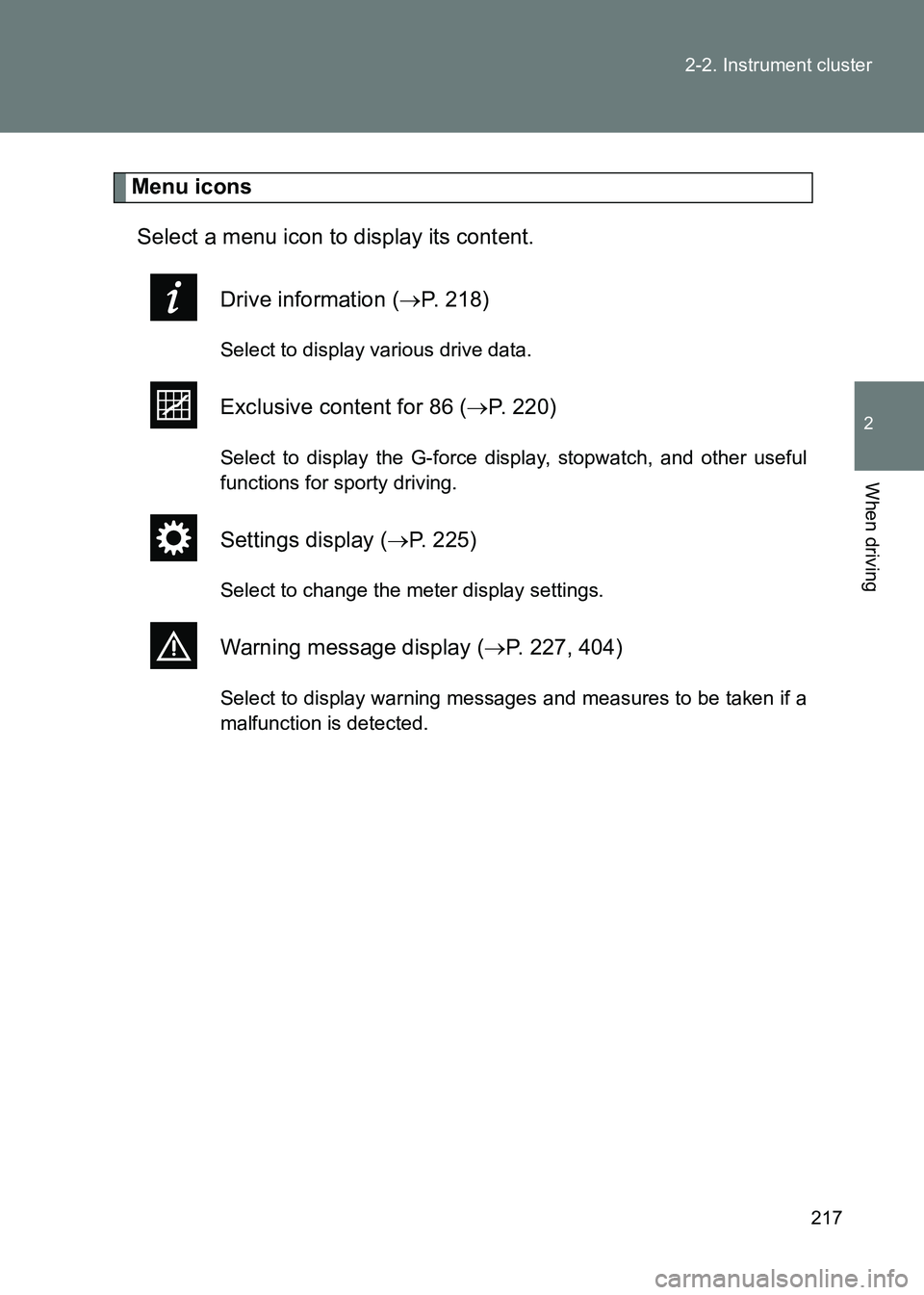

Menu icons
Select a menu icon to display its content.
Drive information ( →P. 218)
Select to display various drive data.
Exclusive content for 86 ( →P. 220)
Select to display the G-force display, stopwatch, and other useful
functions for sporty driving.
Settings display ( →P. 225)
Select to change the meter display settings.
Warning message display ( →P. 227, 404)
Select to display warning messages and measures to be taken if a
malfunction is detected.

218
2-2. Instrument cluster
86_EE (OM18071E)
Drive information ( )
■ Drive information (page 1)
Current fuel consumption
Displays the current rate of fuel
consumption.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Driving range
Displays the estimated maximum
distance that can be driven with
the quantity of fuel remaining.
●Pressing and holding will reset the average fuel consump-
tion.
● Use the displayed fuel consumption as a reference.
● This distance is computed based on your average fuel con-
sumption. As a result, the actual distance that can be driven may
differ from that displayed.
● When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the “ENGINE START STOP” switch off. If
the vehicle is refueled without turning the “ENGINE START
STOP” switch off, the display may not be updated.

219
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
■
Drive information (page 2)
Average vehicle speed
Displays the average vehicle
speed since display was reset.
Driving time
Displays the cumulative time the
vehicle has been driven since dis-
play was reset.
Driving distance
Displays the cumulative distance
the vehicle has been driven since
display was reset.
●Pressing and holding will reset the average vehicle speed/
driving time/driving distance.
■ Drive information (page 3)
Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
If the engine coolant temperature
gauge needle/indicator enters the
red zone, a buzzer will sound and
a warning message will be dis-
played.
Engine oil temperature gauge
Displays the engine oil tempera-
ture.
Vo l t m e t e r
Displays the charging voltage.
As voltage displayed may
be different from the actual
battery voltage, use the volt-
meter as a guideline.

220
2-2. Instrument cluster
86_EE (OM18071E)
●

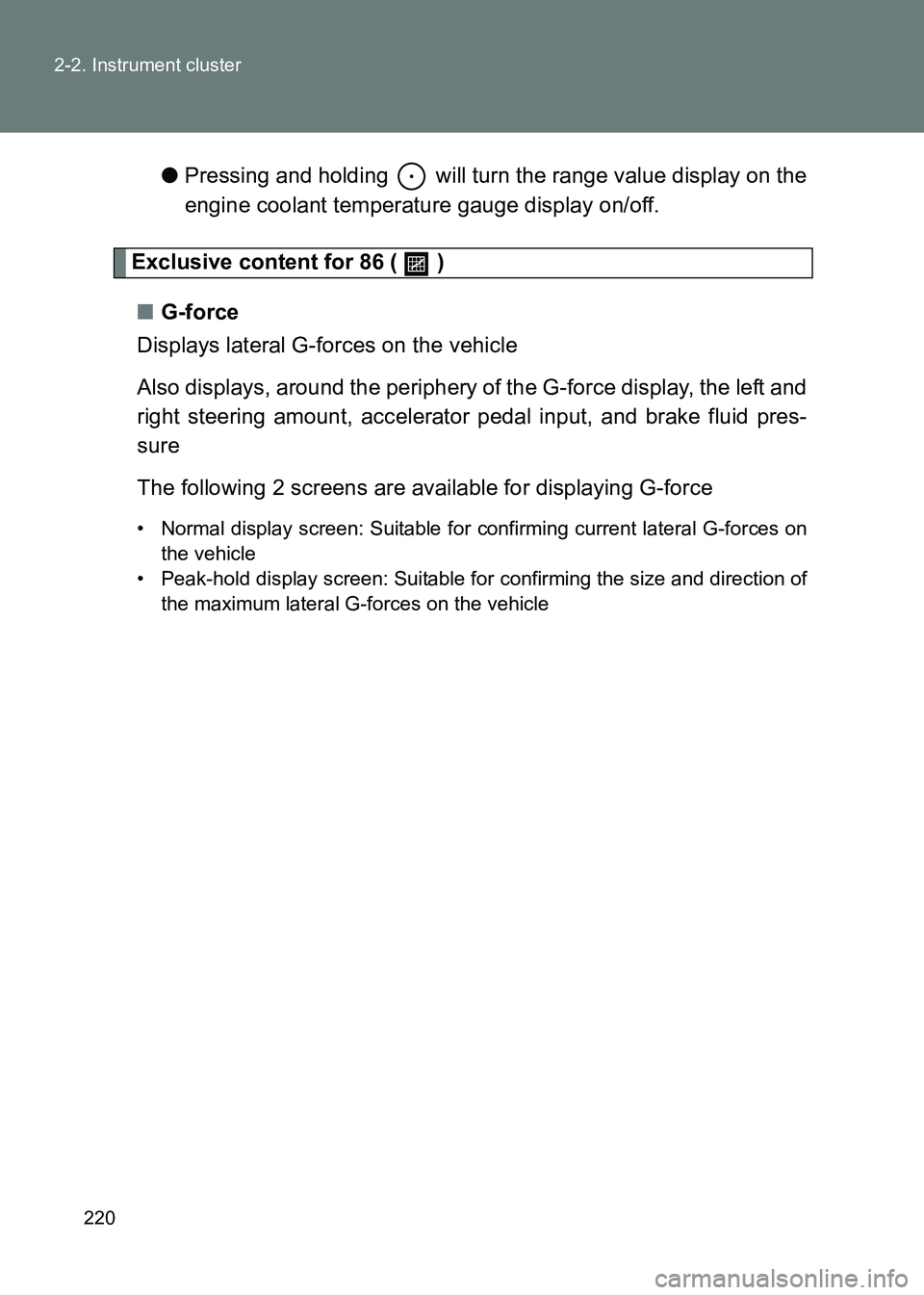

Pressing and holding will turn the range value display on the
engine coolant temperature gauge display on/off.
Exclusive content for 86 ( )
■ G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and
right steering amount, accelerator pedal input, and brake fluid pres-
sure
The following 2 screens are available for displaying G-force
• Normal display screen: Suitable for confirming current lateral G-forces on the vehicle
• Peak-hold display screen: Suitable for confirming the size and direction of the maximum lateral G-forces on the vehicle

221
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
●

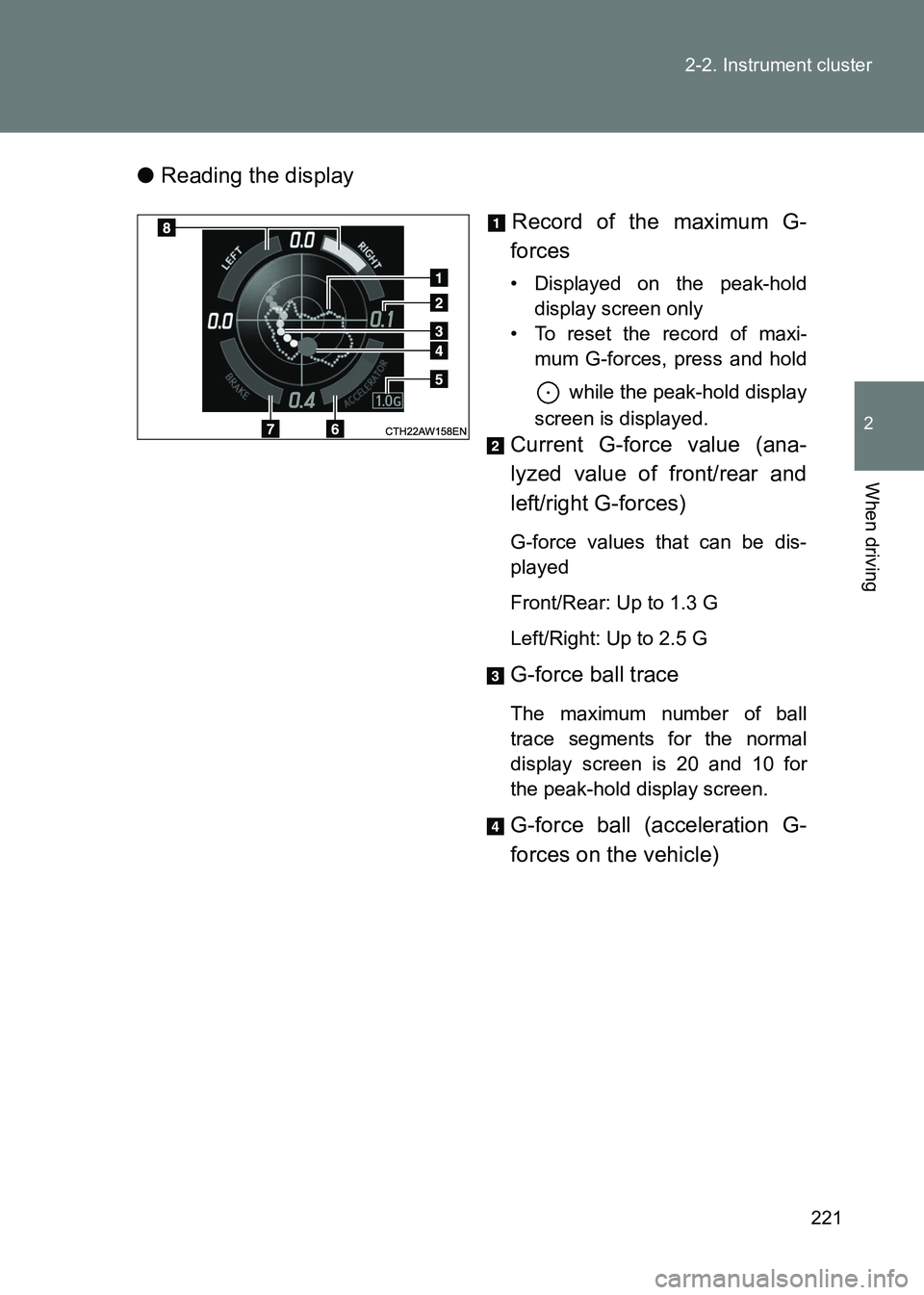

Reading the display
Record of the maximum G-
forces
• Displayed on the peak-hold display screen only
• To reset the record of maxi- mum G-forces, press and hold
while the peak-hold display
screen is displayed.
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
G-force values that can be dis-
played
Front/Rear: Up to 1.3 G
Left/Right: Up to 2.5 G
G-force ball trace
The maximum number of ball
trace segments for the normal
display screen is 20 and 10 for
the peak-hold display screen.
G-force ball (acceleration G-
forces on the vehicle)

222
2-2. Instrument cluster
86_EE (OM18071E)
Scale of the G-force display
The scale of the record of the
maximum G-forces and G-force
ball trace can be changed
between 1.0 G and 0.5 G by
pressing and holding while
the normal display screen is dis-
played.
Accelerator pedal input
Brake fluid pressure
Steering amount
If the steering wheel is turned
completely to the left or right, the
bottom side of the gauge on the
corresponding side will be illumi-
nated in red.
This display is intended for use as a guideline. Depending on factors such as
the road surface condition, temperature and vehicle speed, the display may
not show the actual condition of the vehicle.
■ Power and torque curve
Power output
Torque
Current engine speed
The vertical bar will slide laterally
according to the current engine
speed.
This chart is intended for reference only and does not show the actual
engine torque or output.

223
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
■

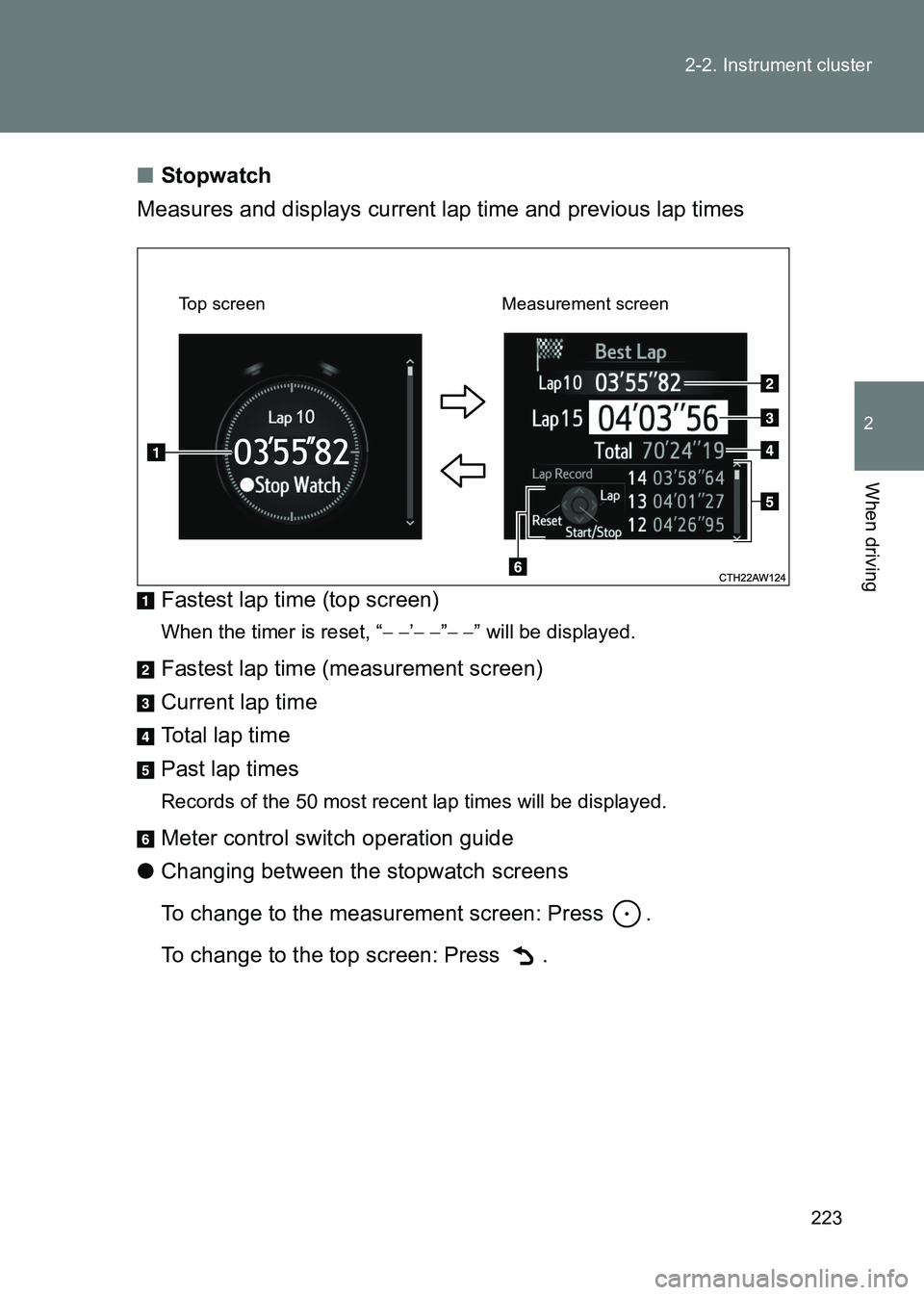

Stopwatch
Measures and displays current lap time and previous lap times
Fastest lap time (top screen)
When the timer is reset, “ − −’− − ”− − ” will be displayed.
Fastest lap time (measurement screen)
Current lap time
Total lap time
Past lap times
Records of the 50 most recent lap times will be displayed.
Meter control switch operation guide
● Changing between the stopwatch screens
To change to the measurement screen: Press .
To change to the top screen: Press .
Top screen Measurement screen

224
2-2. Instrument cluster
86_EE (OM18071E)
●

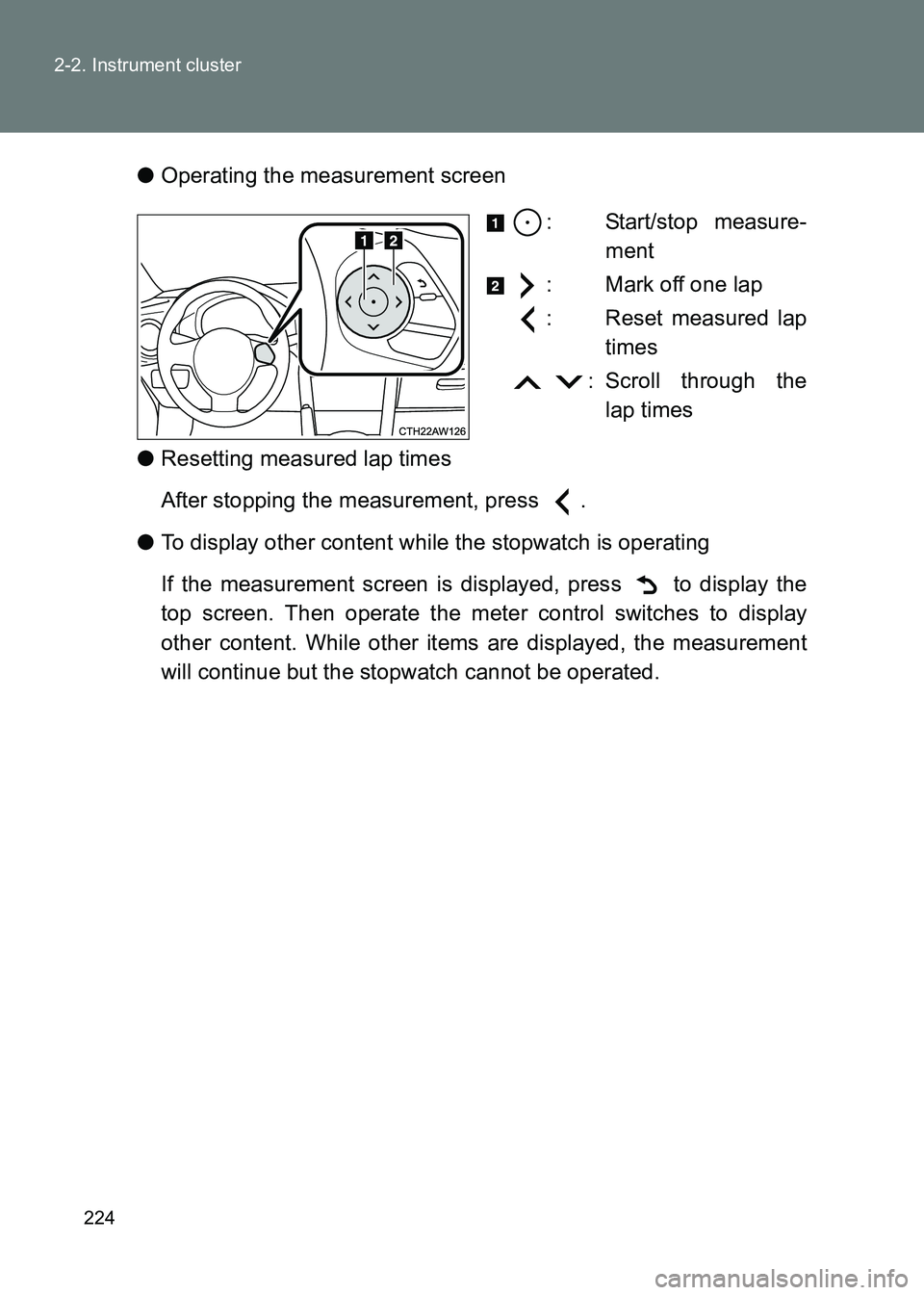

Operating the measurement screen
: Start/stop measure-ment
: Mark off one lap
: Reset measured lap times
: Scroll through the lap times
● Resetting measured lap times
After stopping the measurement, press .
● To display other content while the stopwatch is operating
If the measurement screen is displayed, press to display the
top screen. Then operate the meter control switches to display
other content. While other items are displayed, the measurement
will continue but the stopwatch cannot be operated.
