2017 TOYOTA GT86 Owners Manual (in English)

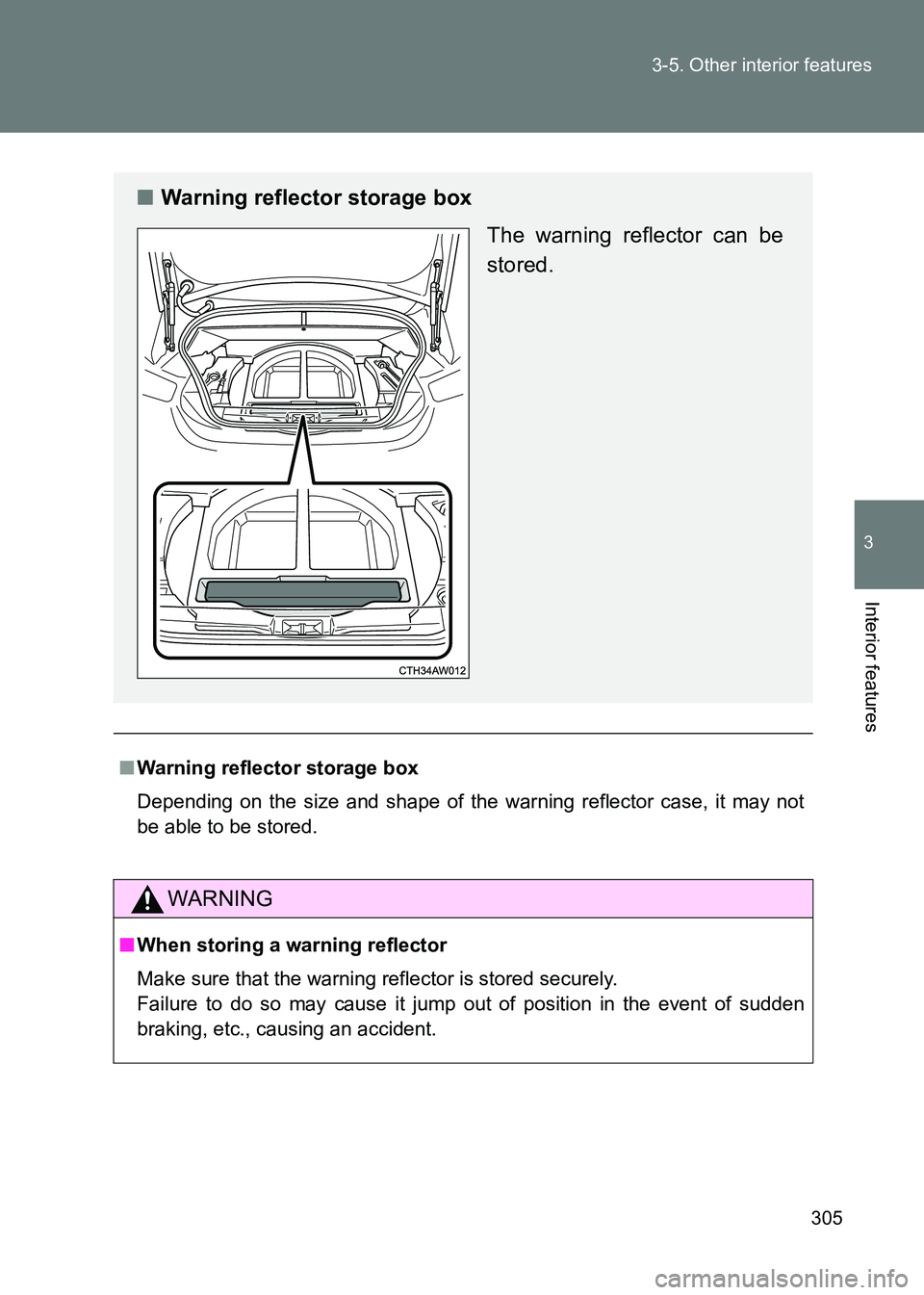

305
3-5. Other interior features
3
Interior features
86_EE (OM18071E)
■
Warning reflector storage box
Depending on the size and shape of the warning reflector case, it may not
be able to be stored.
WARNING
■When storing a warning reflector
Make sure that the warning reflector is stored securely.
Failure to do so may cause it jump out of position in the event of sudden
braking, etc., causing an accident.
■ Warning reflector storage box
The warning reflector can be
stored.

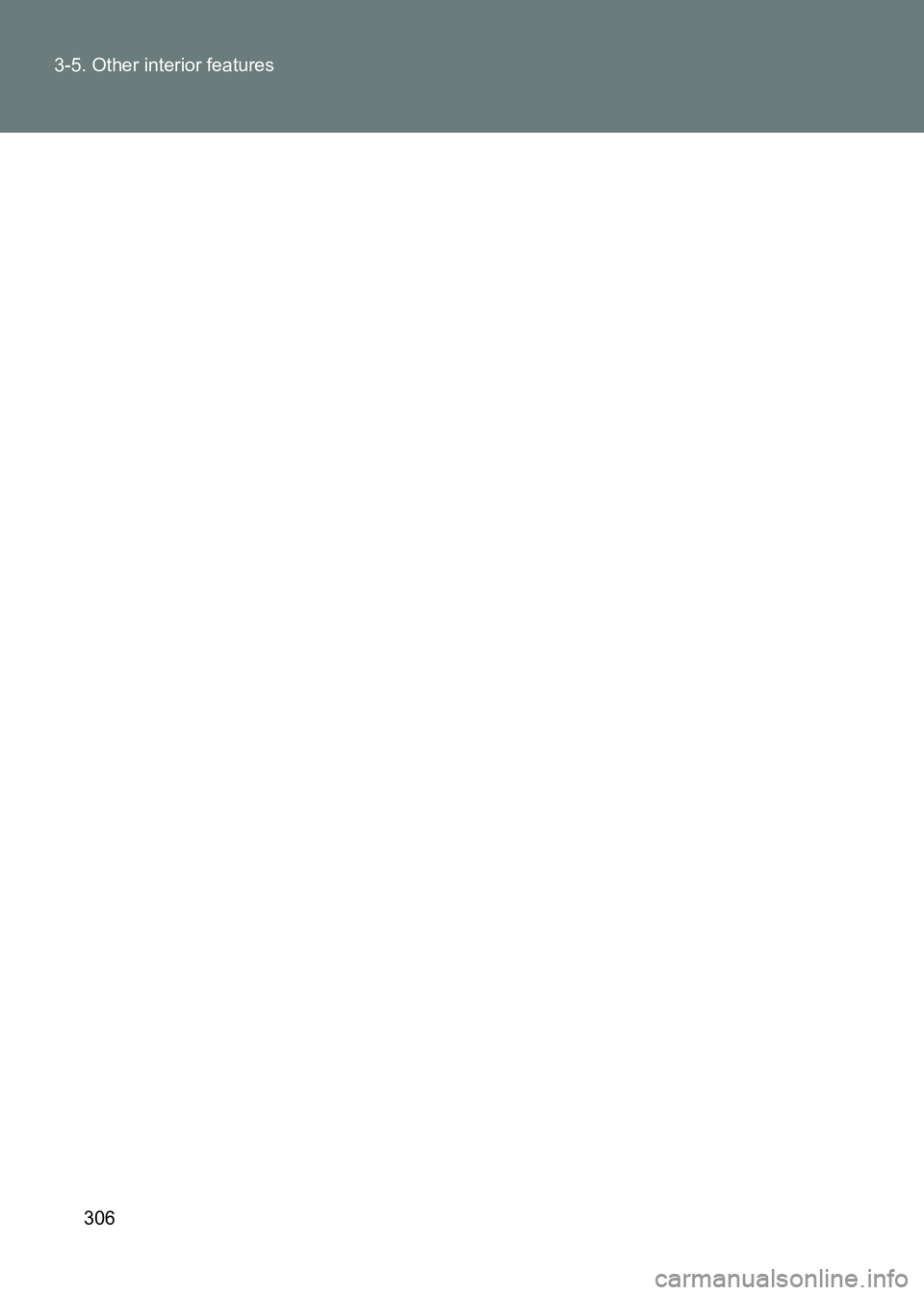

306
3-5. Other interior features
86_EE (OM18071E)

4Maintenance and care
307
86_EE (OM18071E)
4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 308
Cleaning and protecting the vehicle interior .......... 312
Cleaning and protecting the Alcantara
® area ........ 316
4-2. Maintenance Maintenance requirements................... 318
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 321
Hood ................................. 324
Positioning a floor jack ...... 326
Engine compartment......... 328
Tires .................................. 341
Tire inflation pressure ....... 352
Wheels .............................. 354
Air conditioning filter ......... 357
Wireless remote control/ electronic key battery...... 360
Checking and replacing fuses ............................... 364
Light bulbs ........................ 372

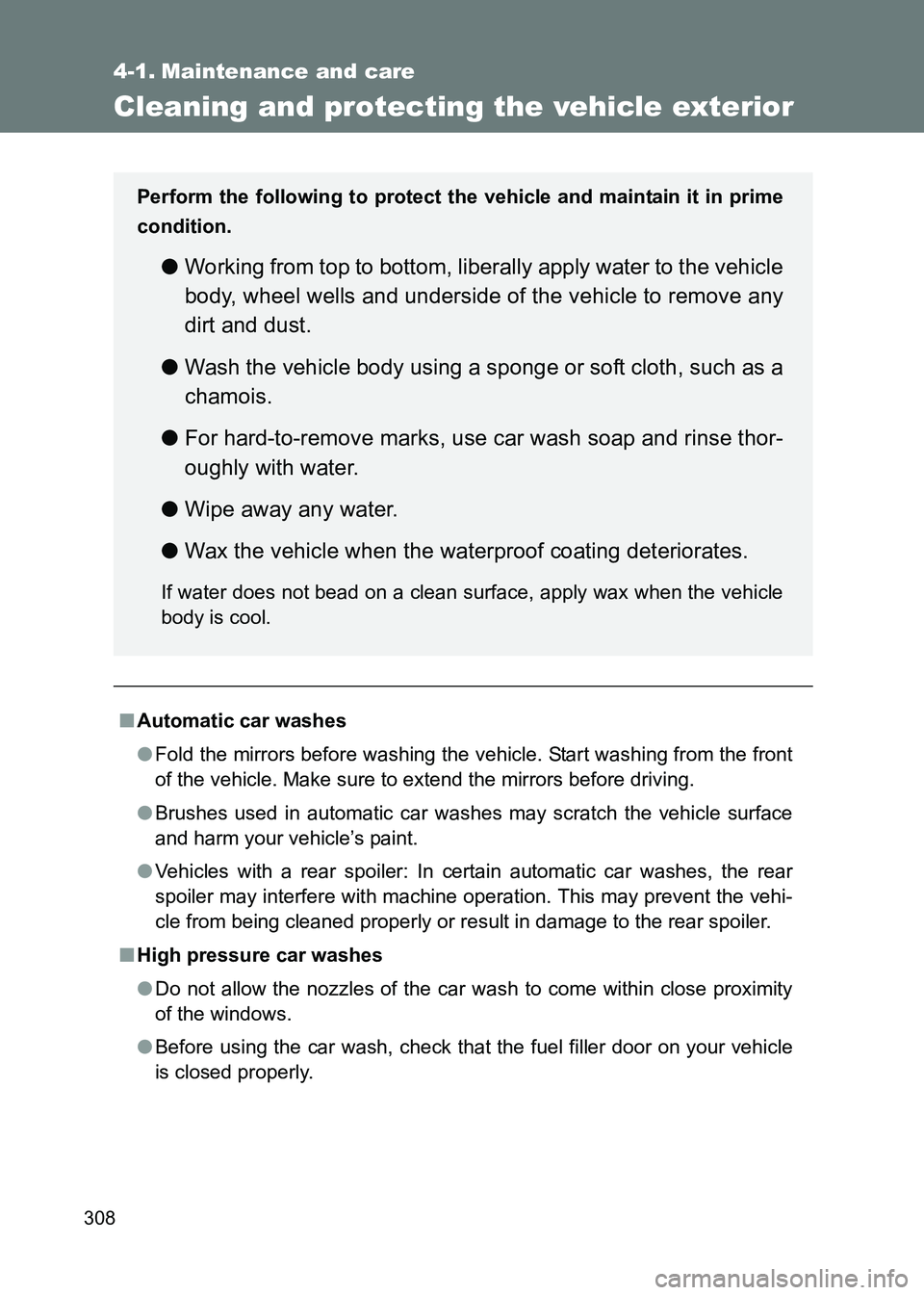

308
86_EE (OM18071E)
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front
of the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
● Vehicles with a rear spoiler: In certain automatic car washes, the rear
spoiler may interfere with machine operation. This may prevent the vehi-
cle from being cleaned properly or resu lt in damage to the rear spoiler.
■ High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity
of the windows.
● Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
Perform the following to protect the
vehicle and maintain it in prime
condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

309
4-1. Maintenance and care
4
Maintenance and care
86_EE (OM18071E)
■
Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners. Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Parts containing resin such as the bumper
Do not scrub with abrasive cleaners.
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■ Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes and rear bumper diffusers to
become quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers
until they have cooled sufficiently, as touching hot exhaust pipes and rear
bumper diffusers can cause burns.

310
4-1. Maintenance and care
86_EE (OM18071E)
NOTICE
■
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Protective film for side sill plates (if equipped)
Make sure to remove the protective film. Failure to do so may cause rust,
depending on conditions.
■ Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.

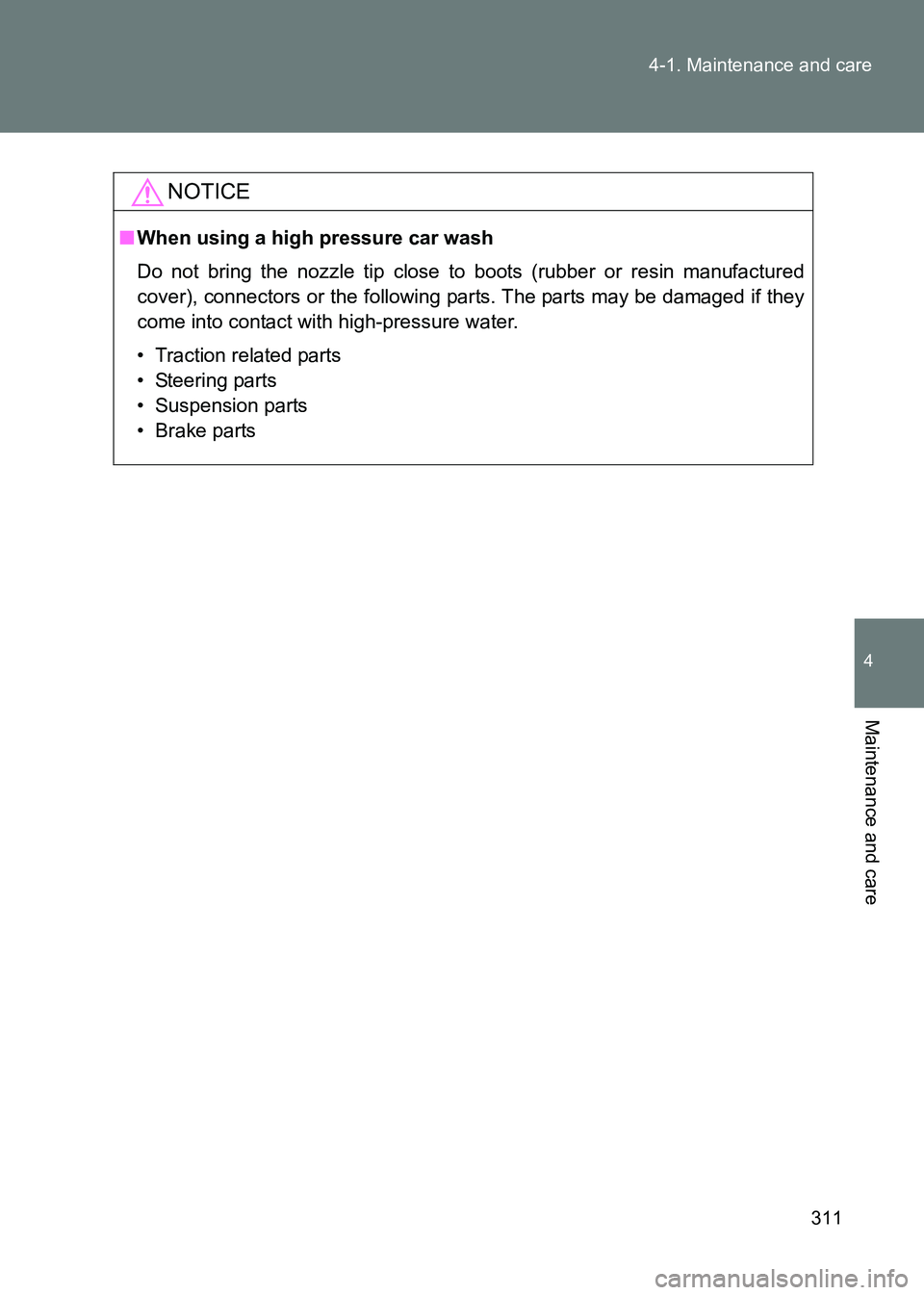

311
4-1. Maintenance and care
4
Maintenance and care
86_EE (OM18071E)
NOTICE
■
When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if they
come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
•Brake parts

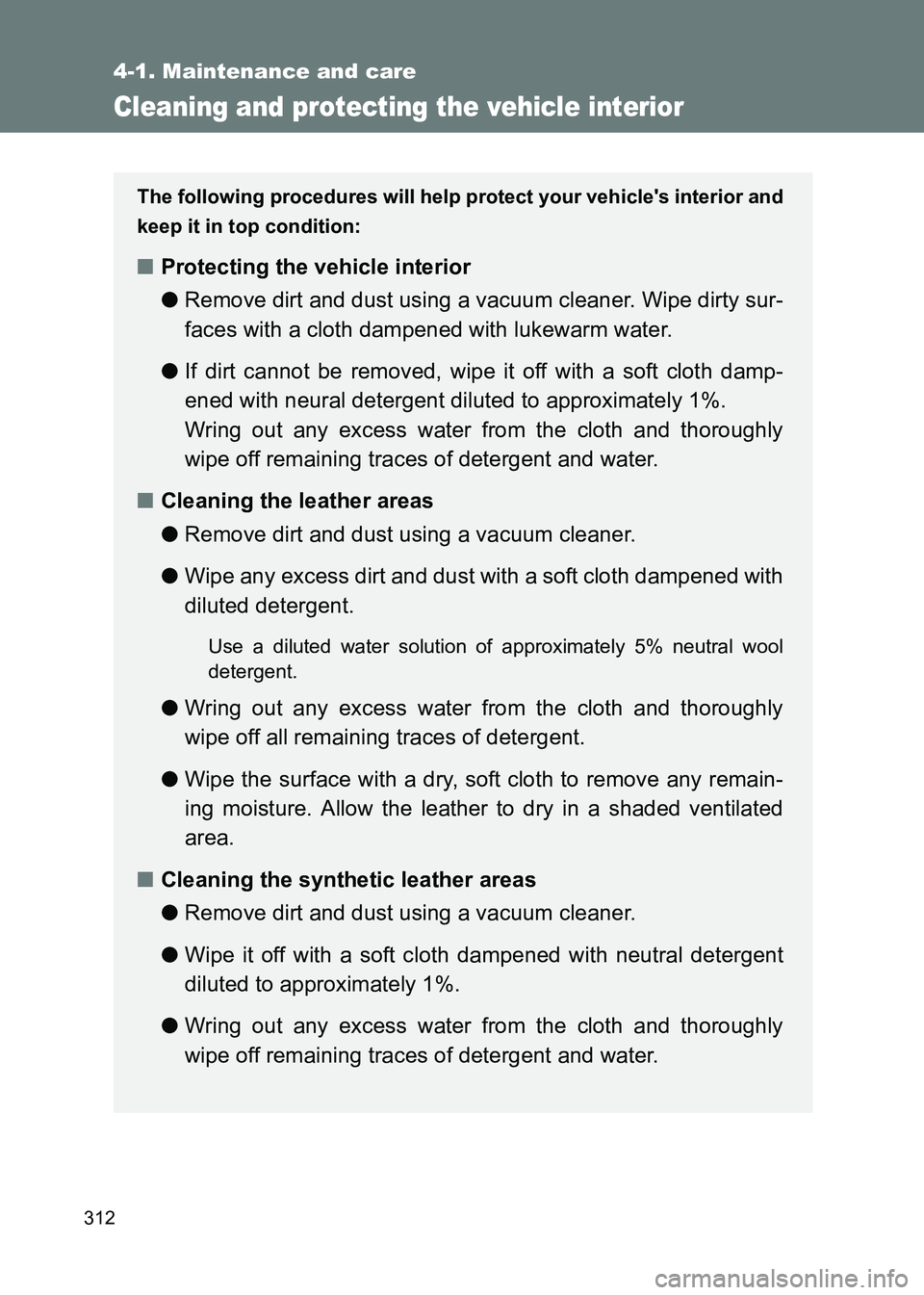

312
4-1. Maintenance and care
86_EE (OM18071E)
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle's interior and
keep it in top condition:
■Protecting the vehicle interior
●Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
● If dirt cannot be removed, wipe it off with a soft cloth damp-
ened with neural detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly
wipe off remaining traces of detergent and water.
■ Cleaning the leather areas
●Remove dirt and dust using a vacuum cleaner.
● Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool
detergent.
●Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded ventilated
area.
■ Cleaning the synthetic leather areas
●Remove dirt and dust using a vacuum cleaner.
● Wipe it off with a soft cloth dampened with neutral detergent
diluted to approximately 1%.
● Wring out any excess water from the cloth and thoroughly
wipe off remaining traces of detergent and water.
