2017 TOYOTA GT86 Owners Manual (in English)

5

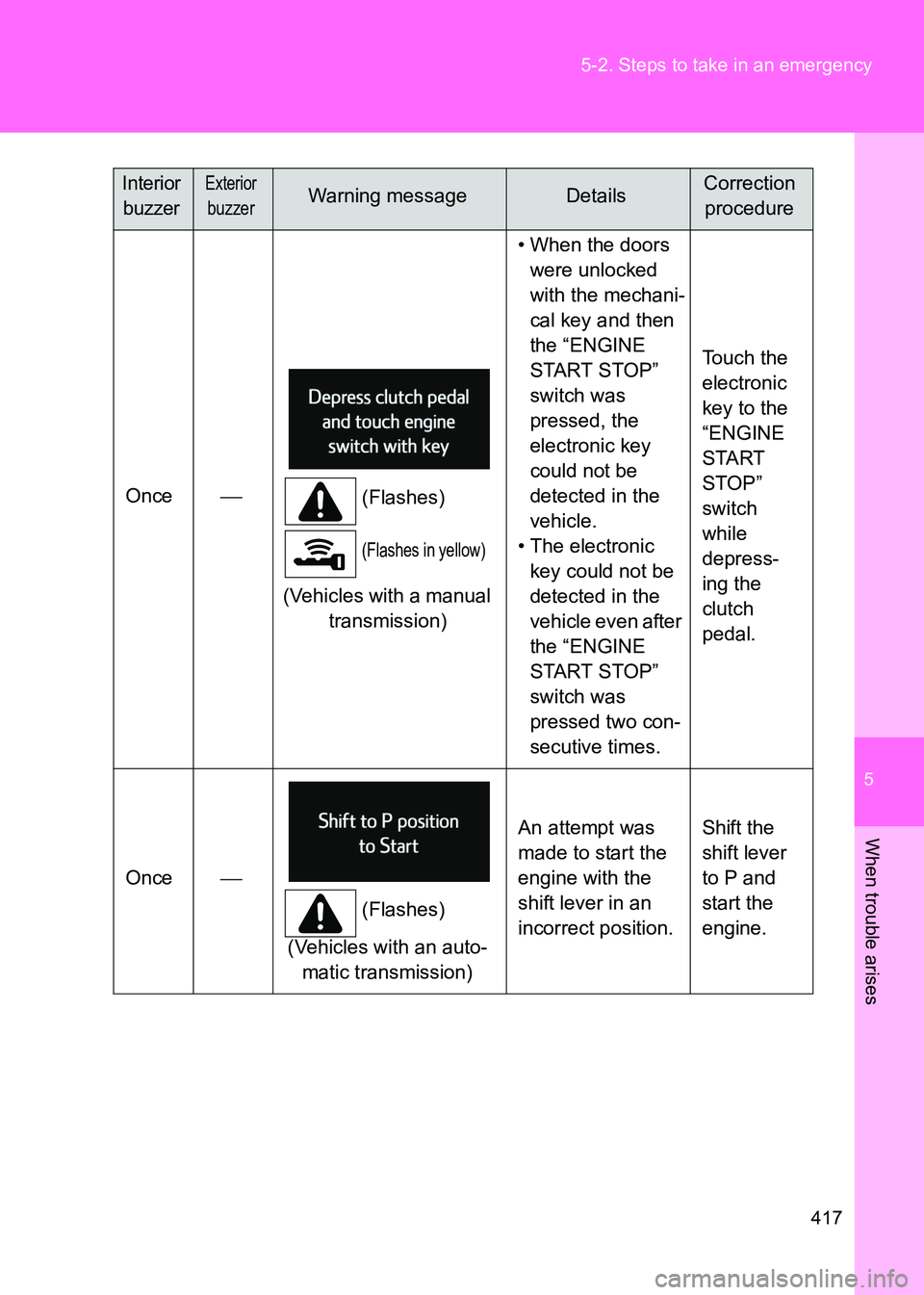

417
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Flashes in yellow)
(Vehicles with a manual
transmission) • When the doors
were unlocked
with the mechani-
cal key and then
the “ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the “ENGINE
START STOP”
switch was
pressed two con-
secutive times. Touch the
electronic
key to the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) An attempt was
made to start the
engine with the
shift lever in an
incorrect position.
Shift the
shift lever
to P and
start the
engine.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

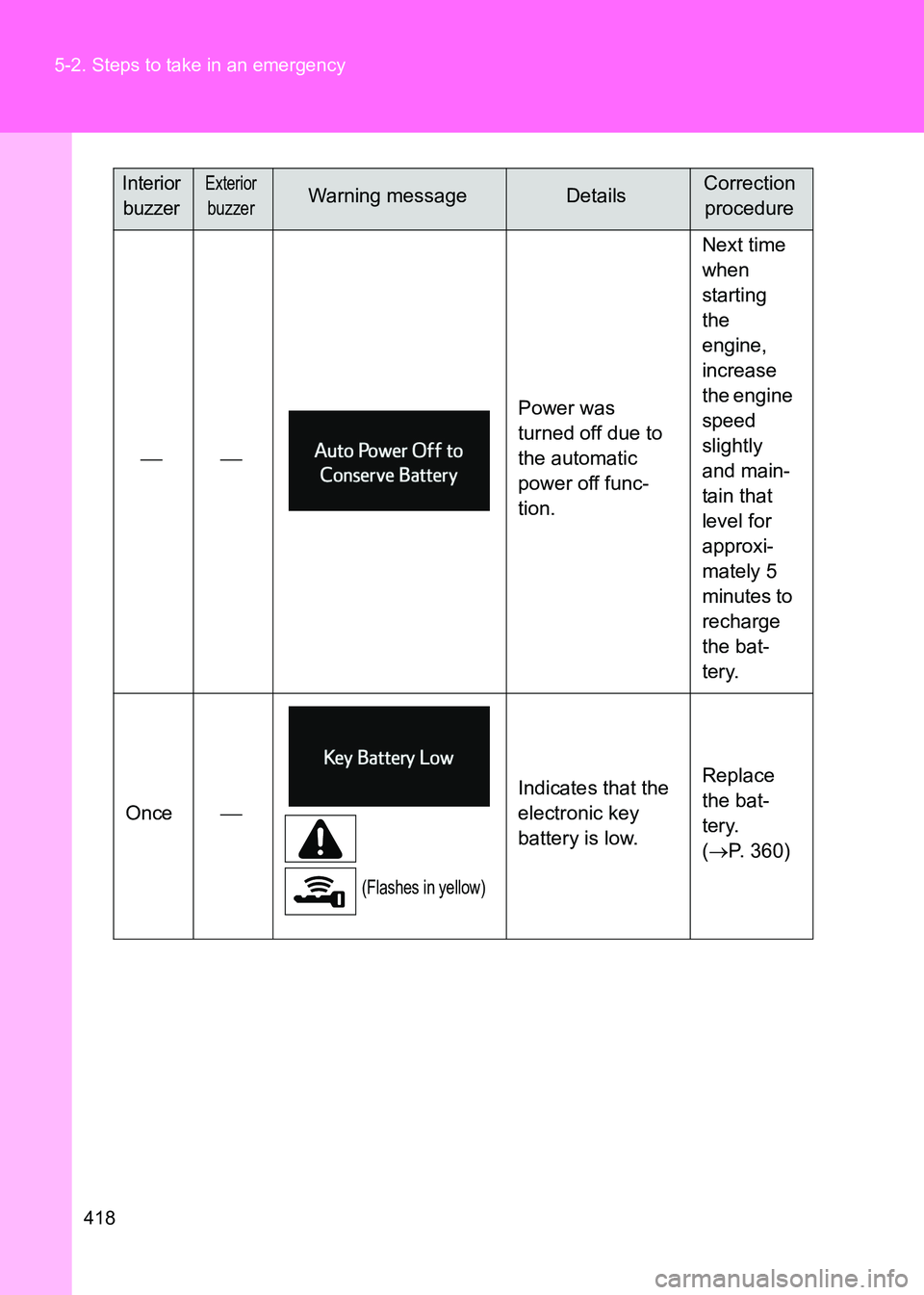

418
5-2. Steps to take in an emergency
86_EE (OM18071E)

Power was
turned off due to
the automatic
power off func-
tion.Next time
when
starting
the
engine,
increase
the engine
speed
slightly
and main-
tain that
level for
approxi-
mately 5
minutes to
recharge
the bat-
tery.
Once 
(Flashes in yellow)
Indicates that the
electronic key
battery is low. Replace
the bat-
tery.
(
→ P. 360)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5

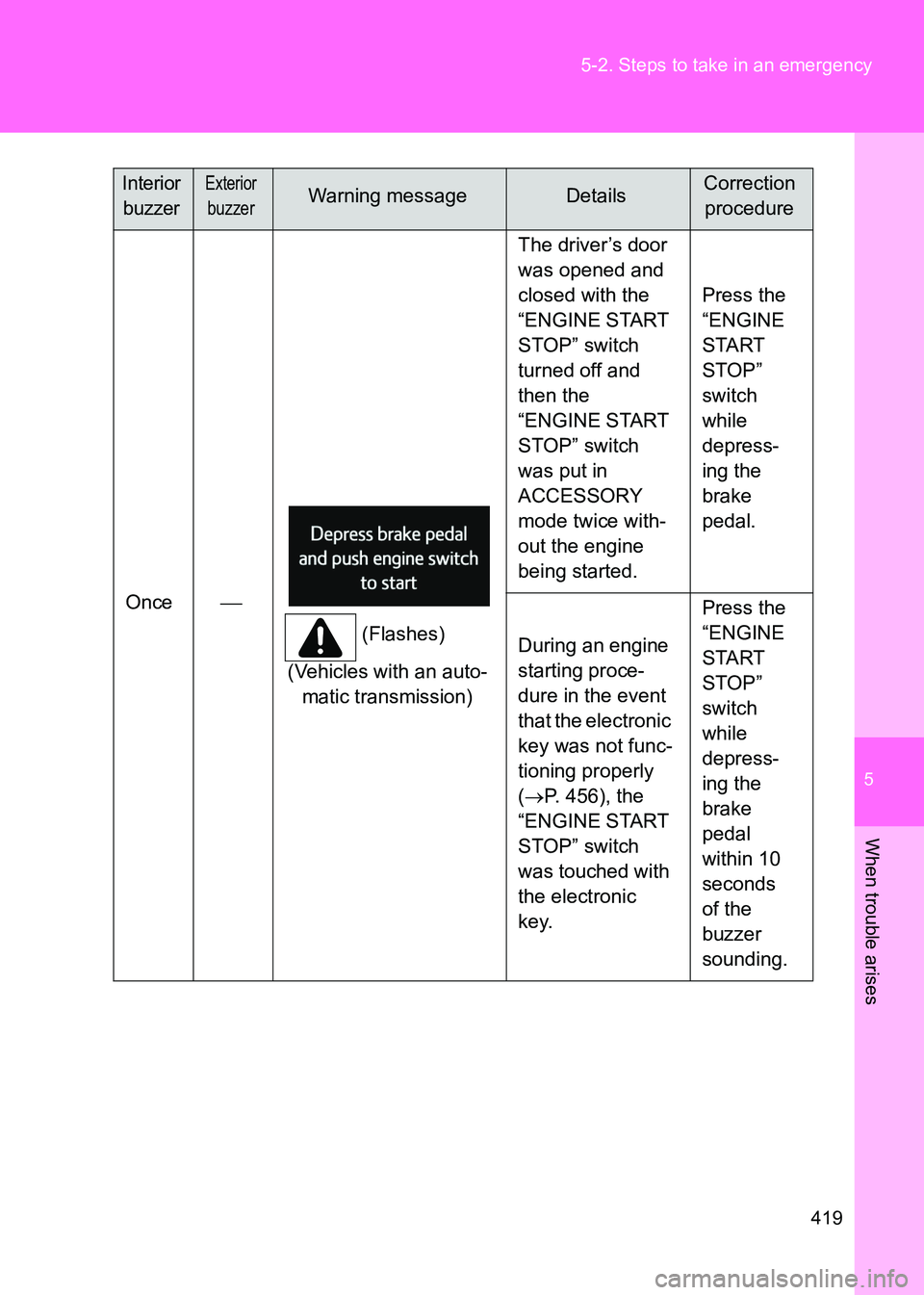

419
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Vehicles with an auto- matic transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started.
Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
( → P. 456), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal
within 10
seconds
of the
buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

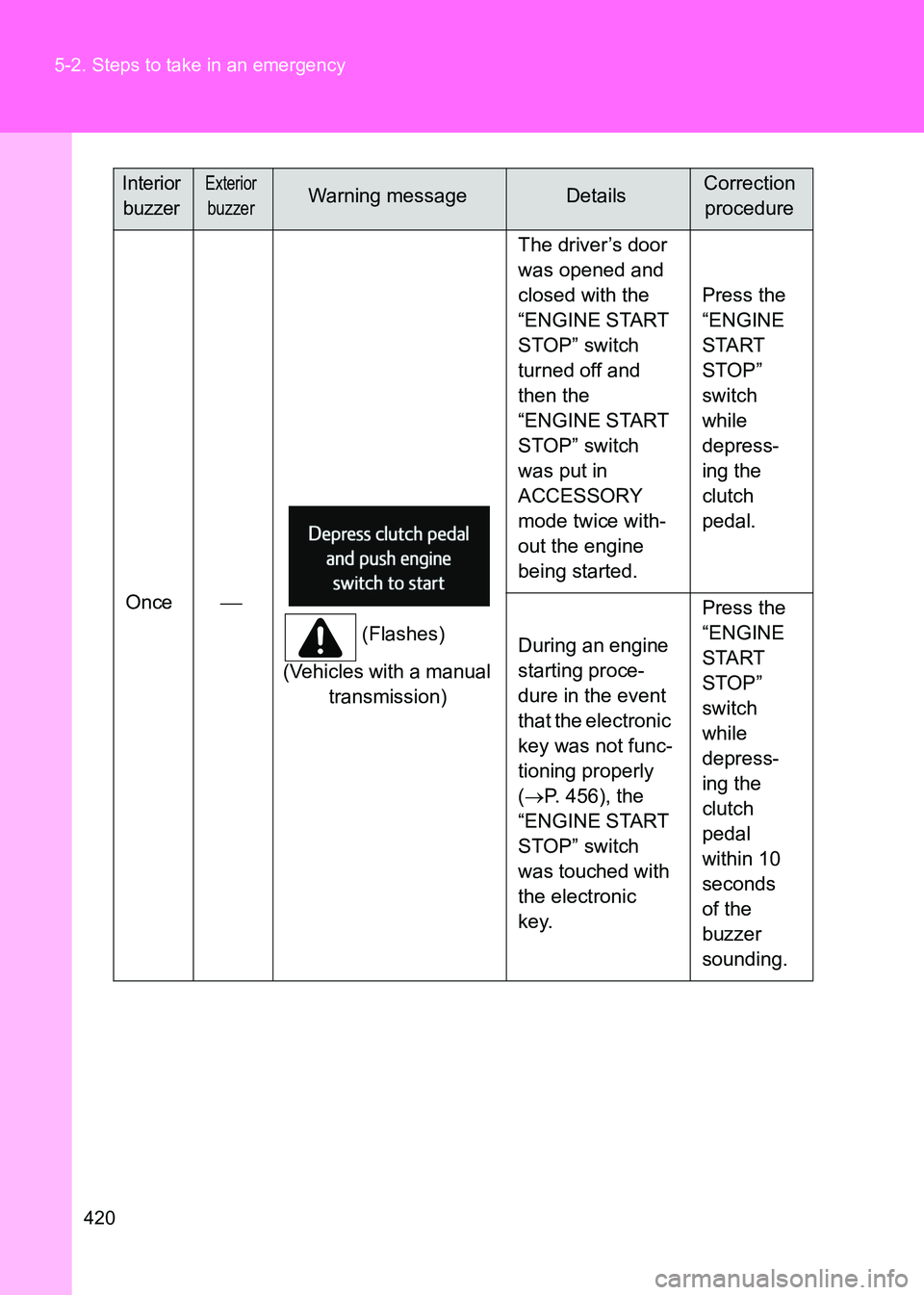

420
5-2. Steps to take in an emergency
86_EE (OM18071E)
Once

(Flashes)
(Vehicles with a manual transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started.
Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
( → P. 456), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal
within 10
seconds
of the
buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5

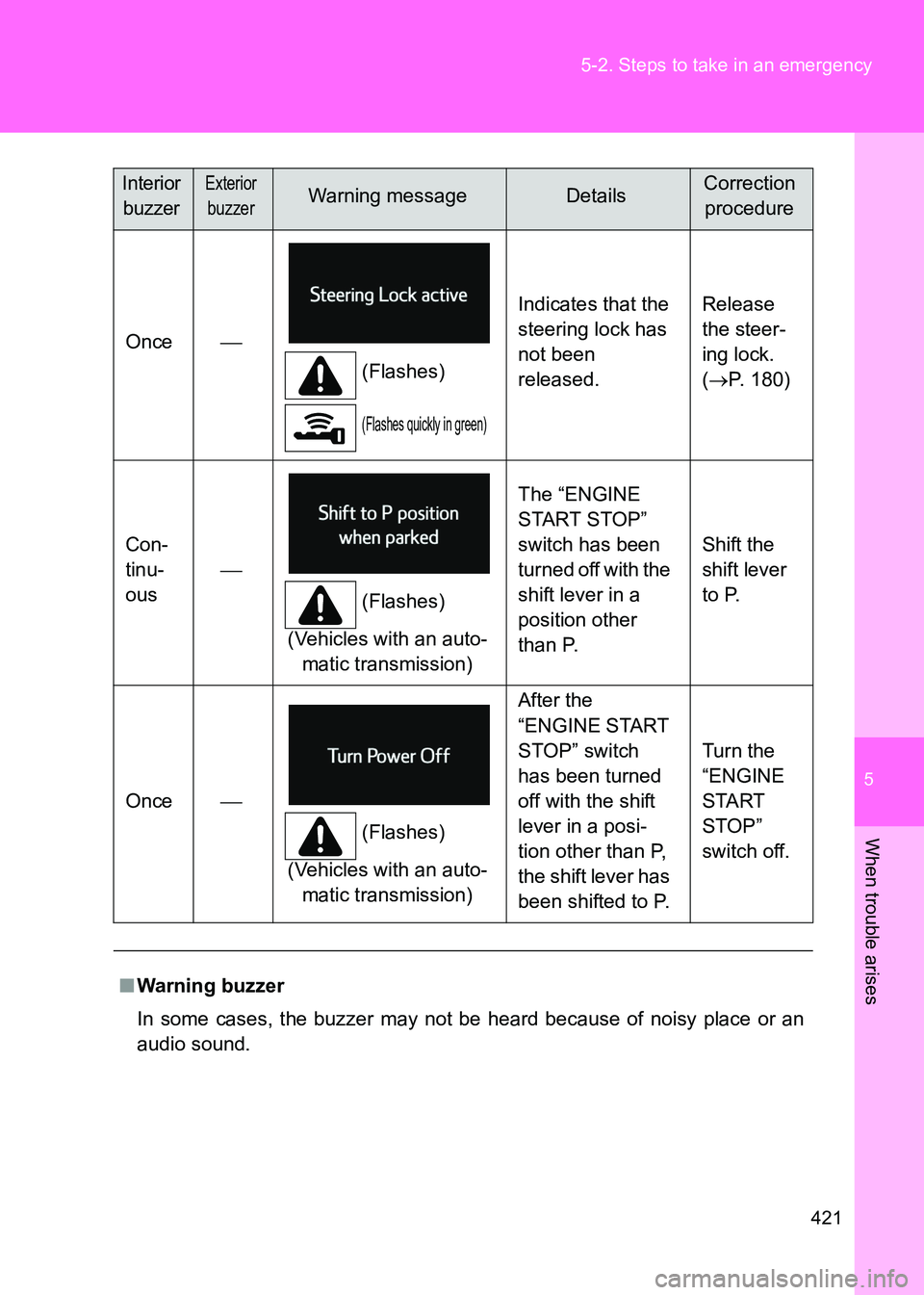

421
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Flashes quickly in green)
Indicates that the
steering lock has
not been
released. Release
the steer-
ing lock.
(
→ P. 180)
Con-
tinu-
ous 
(Flashes)
(Vehicles with an auto- matic transmission) The “ENGINE
START STOP”
switch has been
turned off with the
shift lever in a
position other
than P.
Shift the
shift lever
to P.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) After the
“ENGINE START
STOP” switch
has been turned
off with the shift
lever in a posi-
tion other than P,
the shift lever has
been shifted to P.
Turn the
“ENGINE
START
STOP”
switch off.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

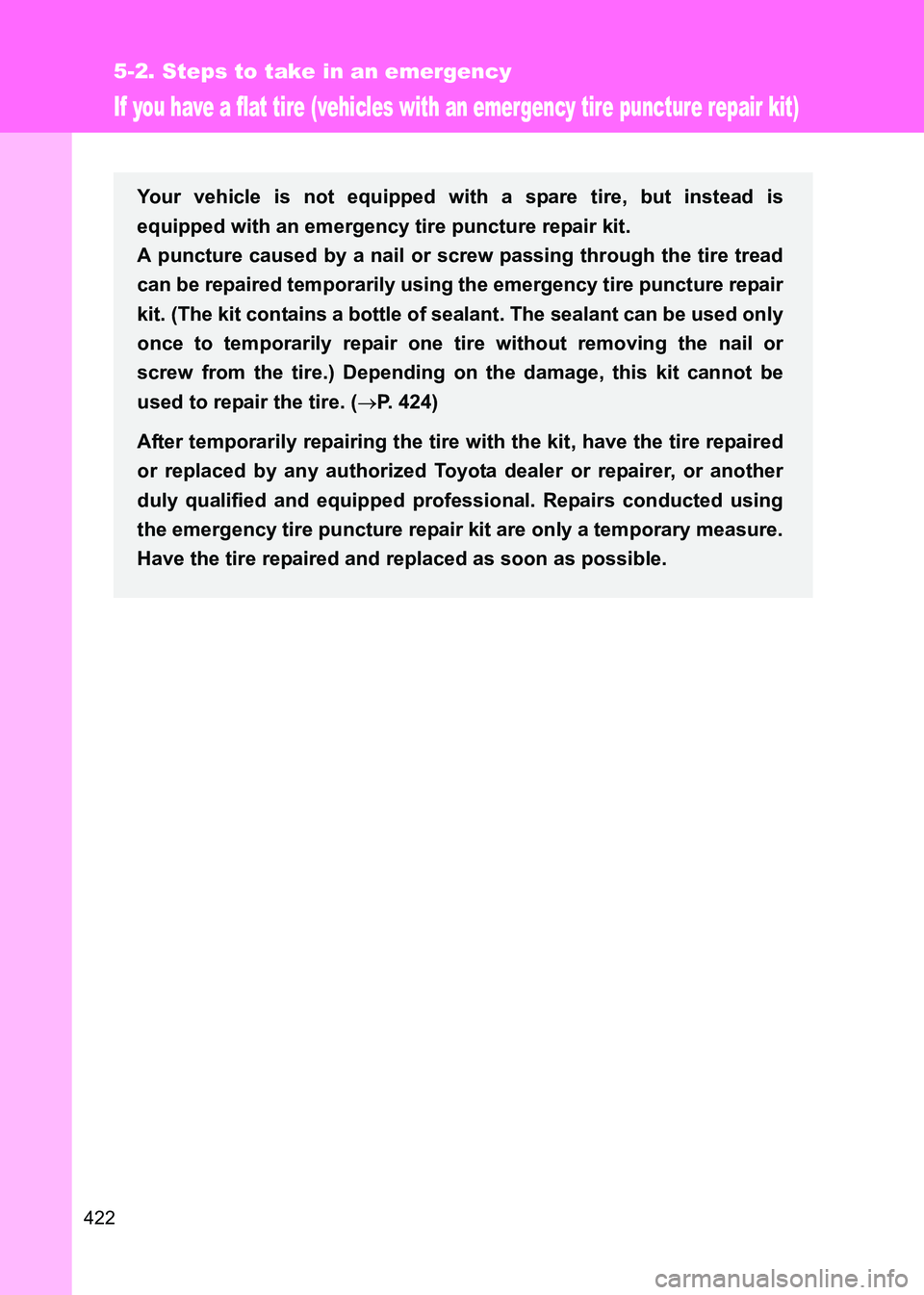

422
5-2. Steps to take in an emergency
86_EE (OM18071E)
If you have a flat tire (vehicles with an emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) Depending on the damage, this kit cannot be
used to repair the tire. ( →P. 424)
After temporarily repairing the tire with the kit, have the tire repaired
or replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. Repairs conducted using
the emergency tire puncture repair kit are only a temporary measure.
Have the tire repaired and replaced as soon as possible.

5

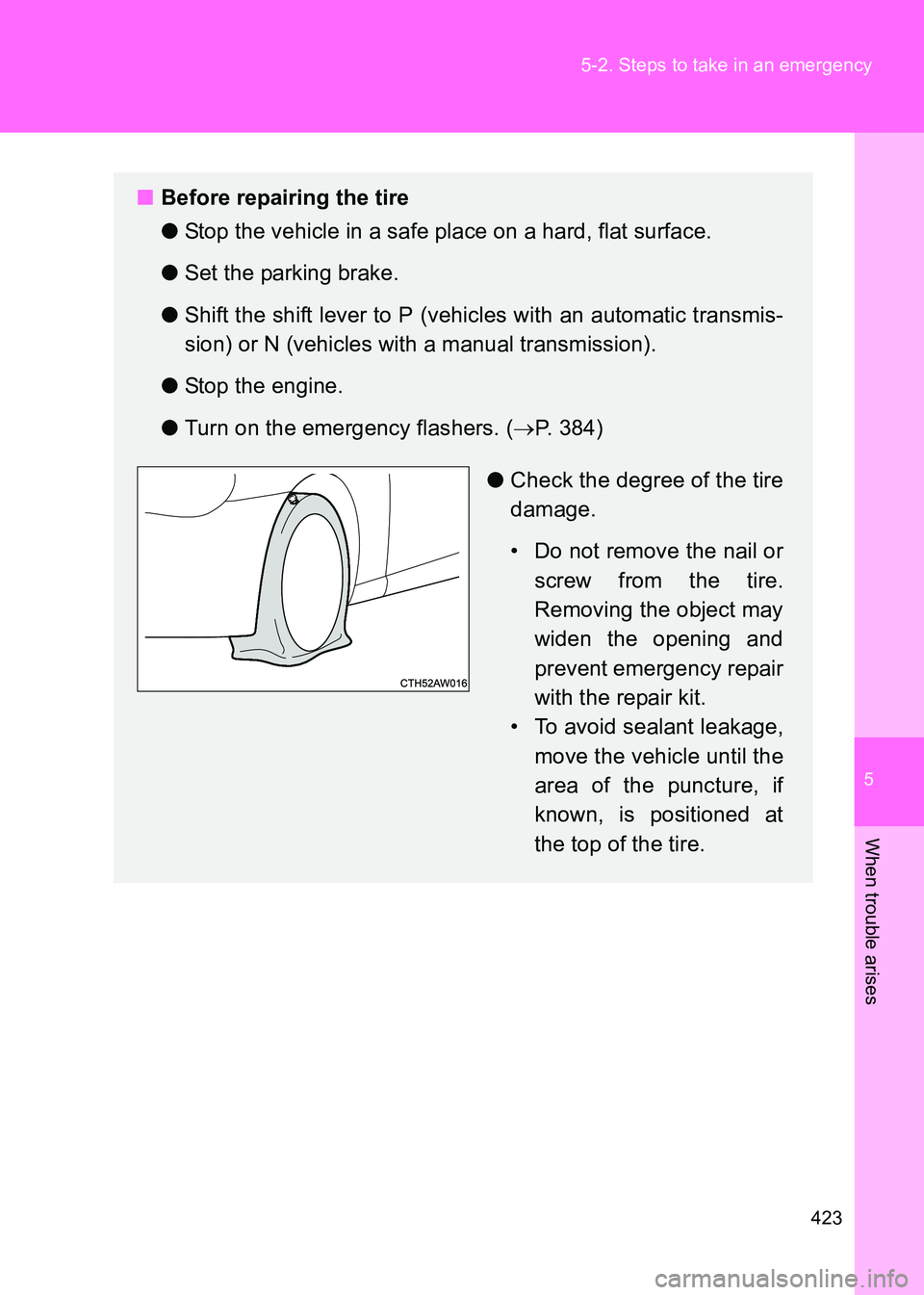

423
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
■
Before repairing the tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicles with an automatic transmis-
sion) or N (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 384)
● Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire.
Removing the object may
widen the opening and
prevent emergency repair
with the repair kit.
• To avoid sealant leakage,
move the vehicle until the
area of the puncture, if
known, is positioned at
the top of the tire.

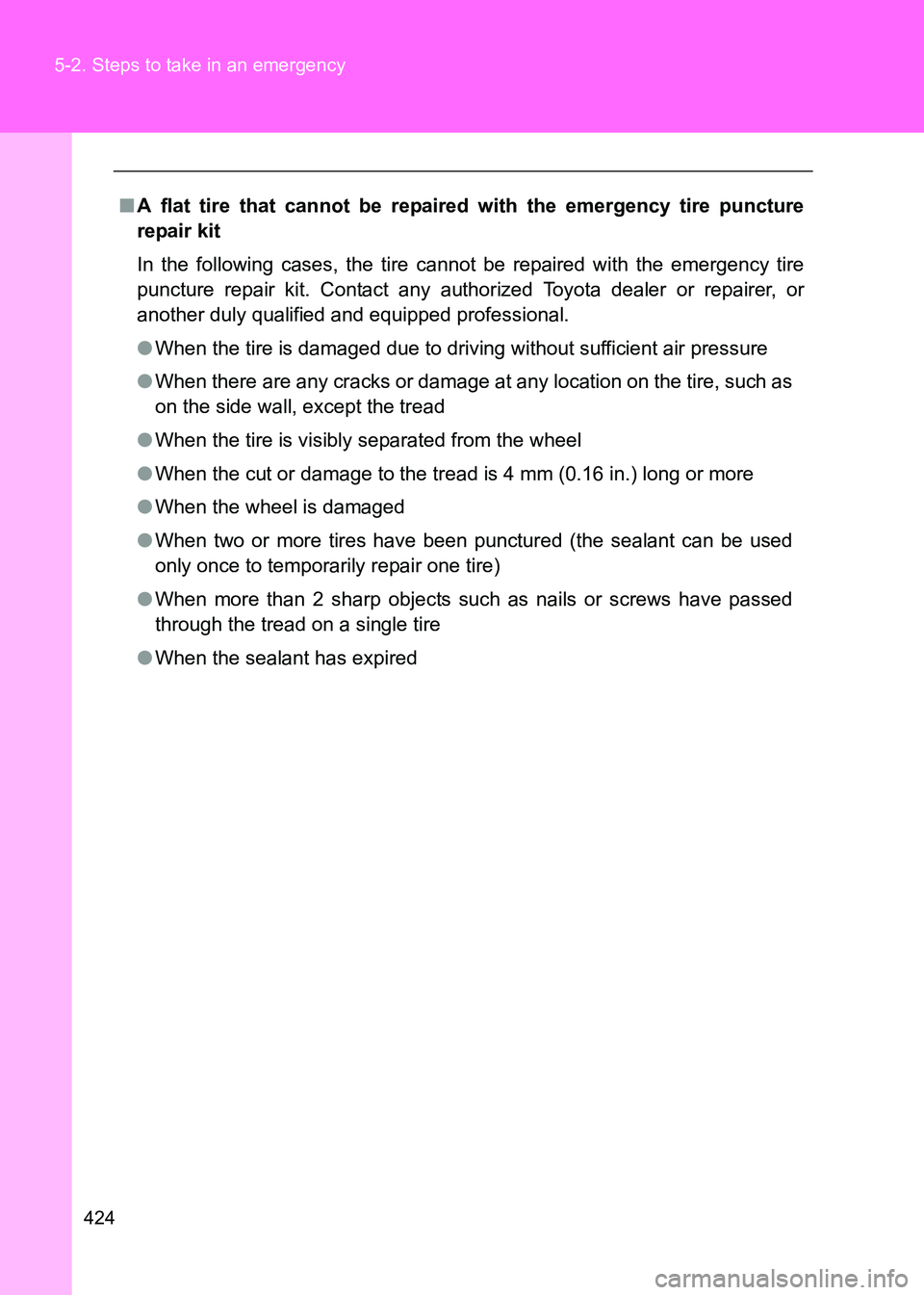

424
5-2. Steps to take in an emergency
86_EE (OM18071E)
■
A flat tire that cannot be repaired with the emergency tire puncture
repair kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured (the sealant can be used
only once to temporarily repair one tire)
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
