2017 TOYOTA GT86 Owners Manual (in English)

481
6-1. Specifications
6
Vehicle specifications
86_EE (OM18071E)
Automatic transmission
*: The fluid capacity is provided as a reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
■Differential gear oil
Using a differential gear oil other than “Toyota Genuine Differential Gear Oil”
may cause occurrences of rattling noises and vibrations while idling and
poor fuel consumption.
Never use different brands together.
Fluid capacity* 7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid type TOYOTA Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.

482
6-1. Specifications
86_EE (OM18071E)

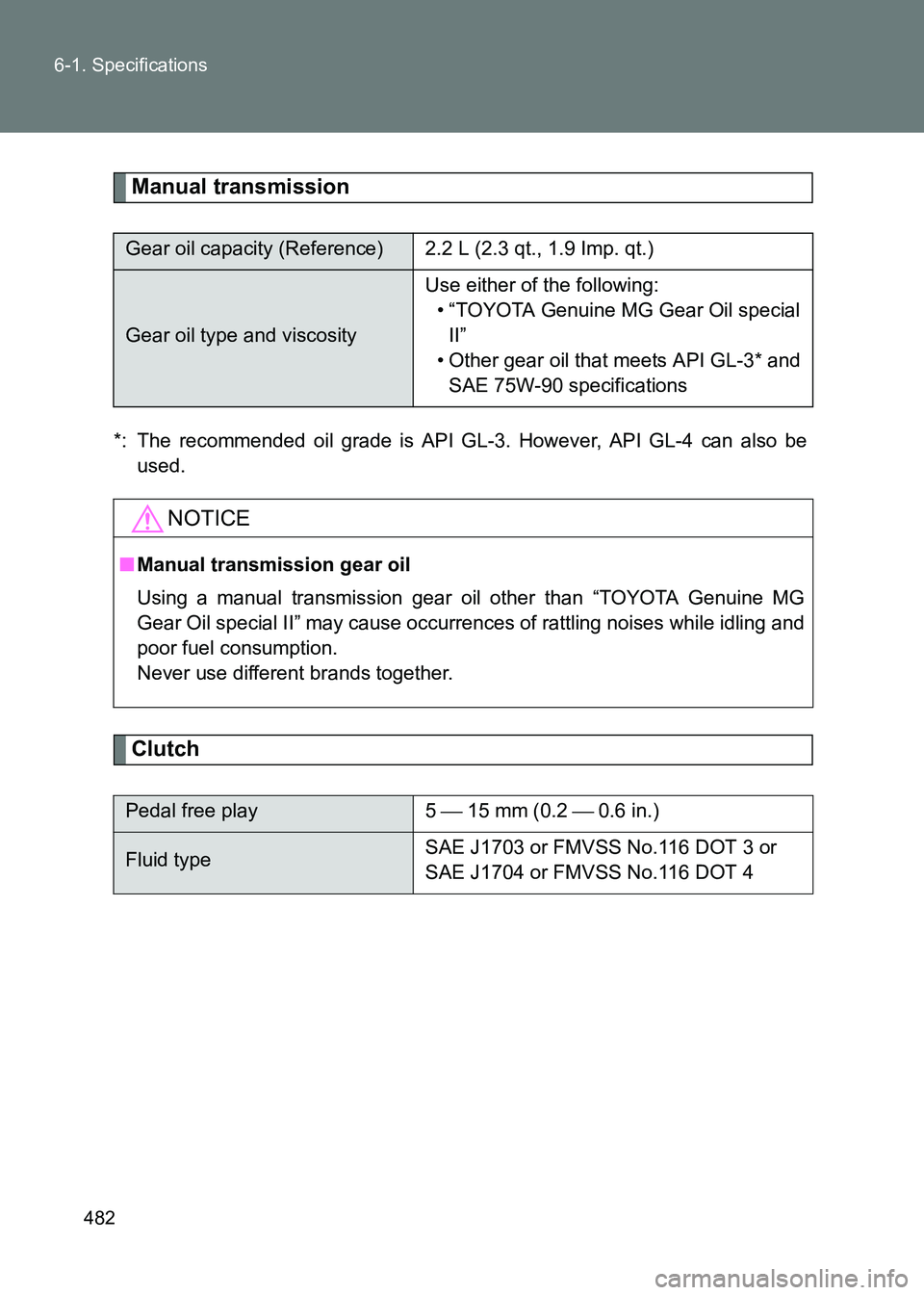

Manual transmission
*: The recommended oil grade is API GL-3. However, API GL-4 can also be
used.
Clutch
Gear oil capacity (Reference) 2.2 L (2.3 qt., 1.9 Imp. qt.)
Gear oil type and viscosity Use either of the following:
• “TOYOTA Genuine MG Gear Oil special II”
• Other gear oil that meets API GL-3* and SAE 75W-90 specifications
NOTICE
■ Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises while idling and
poor fuel consumption.
Never use different brands together.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

483
6-1. Specifications
6
Vehicle specifications
86_EE (OM18071E)
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,45.0 lbf).
Steering
Tires and wheels
Pedal clearance*155.0 mm (2.16 in.) min.
Pedal free play 0.5  2.7 mm (0.020  0.106 in.)
Parking brake lever travel*27  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)
Tire size205/55R16 91V, 215/45R17 87W,
T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size
16
× 6 1/2 J, 17 × 7 J, 16 × 4T (compact
spare)
Wheel nut torque 120 N•m (12.2 kgf•m, 89 ft•lbf)

484
6-1. Specifications
86_EE (OM18071E)

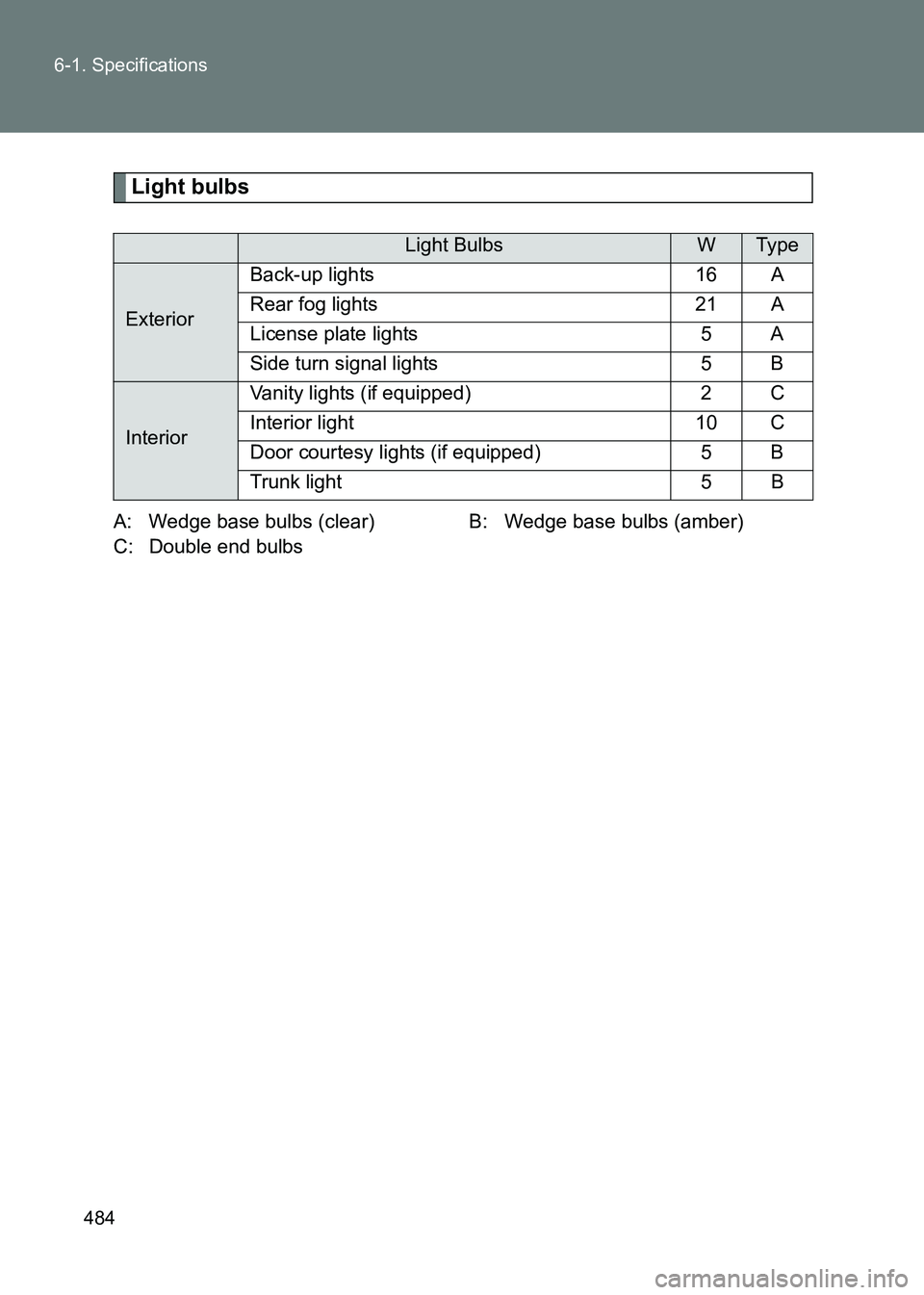

Light bulbs
A: Wedge base bulbs (clear) B: Wedge base bulbs (amber)
C: Double end bulbs
Light BulbsWTy p e
Exterior
Back-up lights 16 A
Rear fog lights 21 A
License plate lights 5 A
Side turn signal lights 5 B
InteriorVanity lights (if equipped) 2 C
Interior light 10 C
Door courtesy lights (if equipped) 5 B
Trunk light 5 B

485
6-1. Specifications
6
Vehicle specifications
86_EE (OM18071E)
Fuel infor mation
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 98 or higher. If 98 RON
fuel is not readily available in your area, unleaded gasoline with an
octane rating of 95 RON may be used with no detriment to engine
durability or driveability. However, you may notice a slight decrease
in maximum engine performance
and you may hear some knocking
(pinking) of an engine while using 95 RON fuel. Use of 95 RON fuel
will not affect your warranty coverage.

486
6-1. Specifications
86_EE (OM18071E)

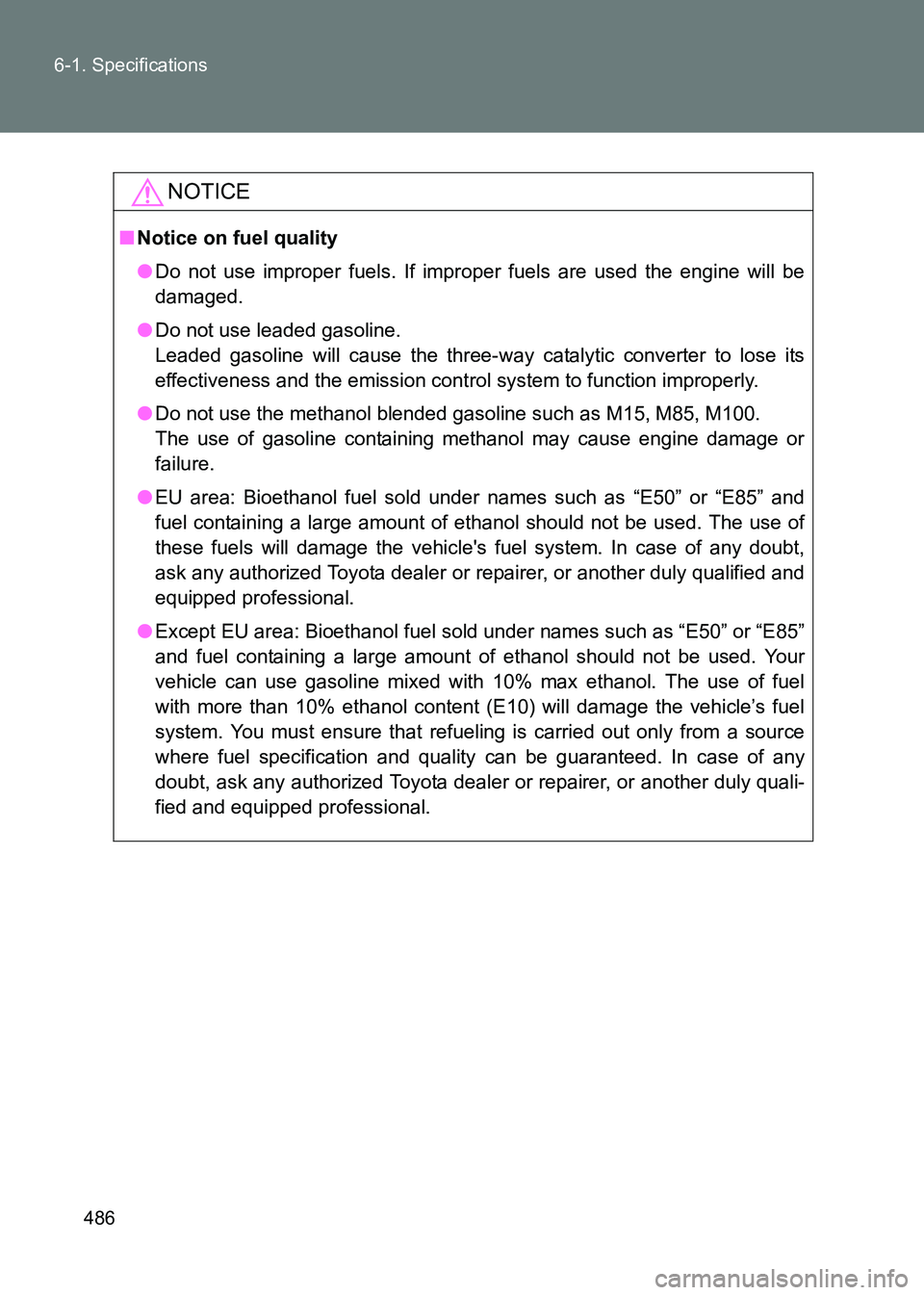

NOTICE
■
Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle's fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.

487
6
Vehicle specifications
86_EE (OM18071E)

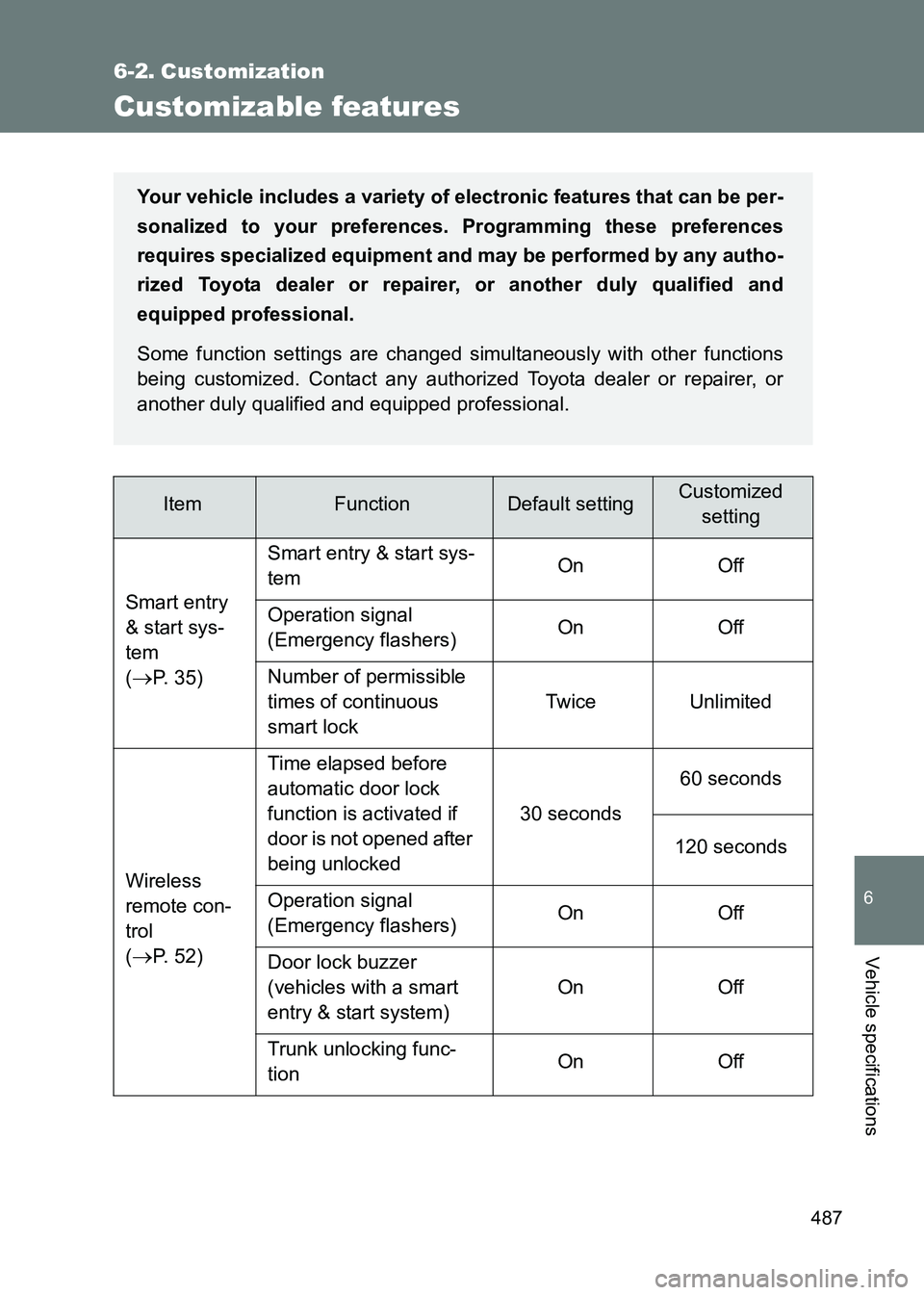

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart entry
& start sys-
tem
(
→P. 35) Smart entry & start sys-
tem
On Off
Operation signal
(Emergency flashers) On Off
Number of permissible
times of continuous
smart lock Twice Unlimited
Wireless
remote con-
trol
(
→P. 52) Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
30 seconds
60 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Door lock buzzer
(vehicles with a smart
entry & start system) On Off
Trunk unlocking func-
tion On Off
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

488
6-2. Customization
86_EE (OM18071E)
Wireless
remote con-
trol
(
→P. 52)
Trunk unlocking opera-
tion
Push and hold
(short) Push and hold
(long)
One short push Two short pushes
Emergency
brake signal
(
→P. 246) Operation signal
(Emergency flashers)
On Off
Automatic
light control
system
( → P. 231) Light sensor sensitivity ±0% -40% to +40%
Lights
(
→P. 231) Time that the low beam
headlights are on when
the vehicle is parked
30 seconds60 seconds
90 seconds
120 seconds
Rear window
defogger
(
→P. 282) Time elapsed before
the rear window defog-
ger turn off (vehicles
with an automatic air
conditioning system)
15 minutes Continue
Illumination
(
→P. 286) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
off On Off
Interior light illumination
upon approach (vehi-
cles with a smart entry
& start system) On Off
Interior light illumination On Off
ItemFunctionDefault settingCustomized setting
