2017 TOYOTA GT86 Owners Manual (in English)

5

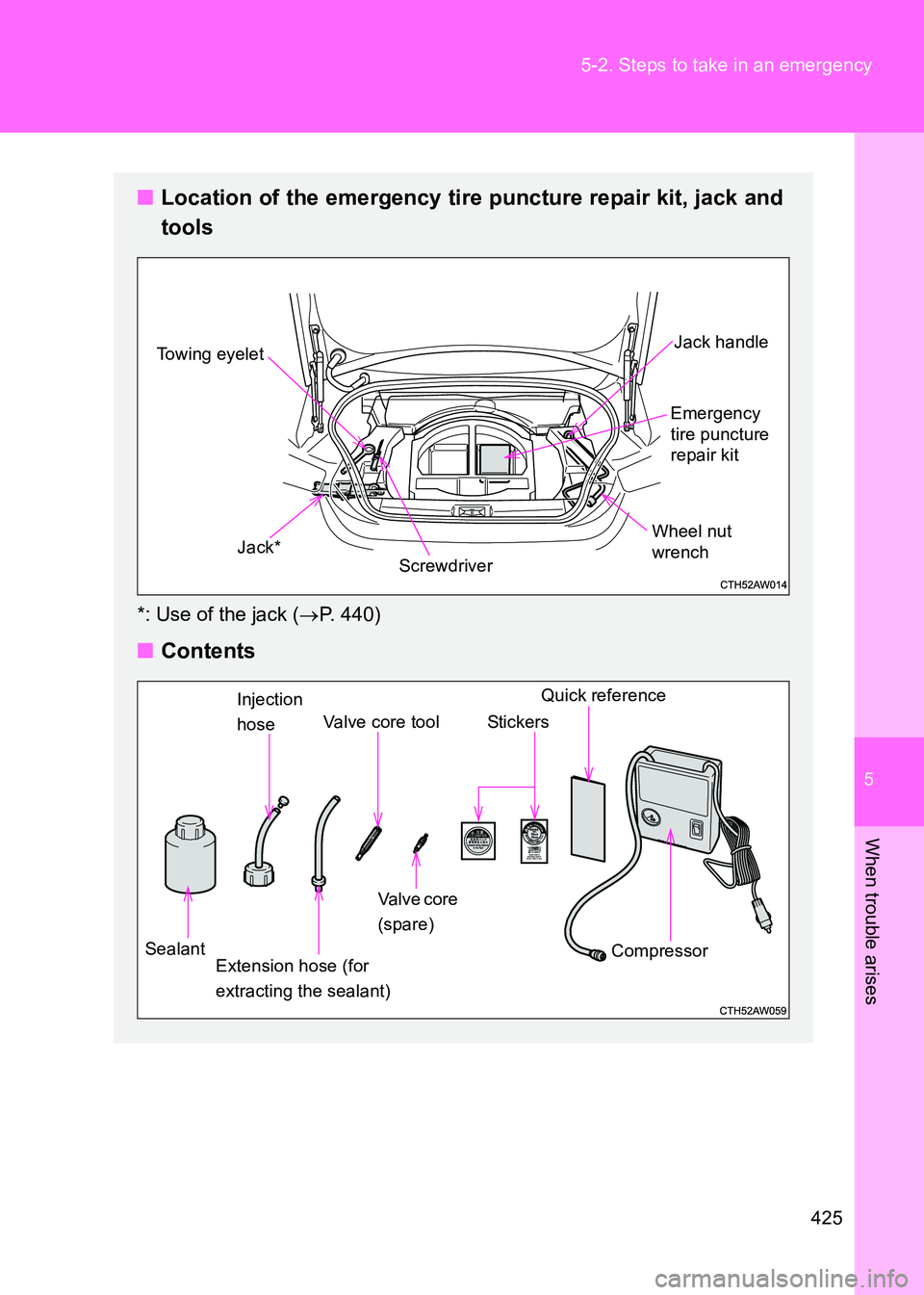

425
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
■
Location of the emergency tire puncture repair kit, jack and
tools
*: Use of the jack ( →P. 440)
■ Contents
Screwdriver Emergency
tire puncture
repair kit
Jack handle
Towing eyelet
Jack* Wheel nut
wrench
SealantInjection
hose
Va l v e c o r e t o o l
Valve core
(spare) Compressor
Stic kers
Extension hose (for
extracting the sealant)
Quick reference

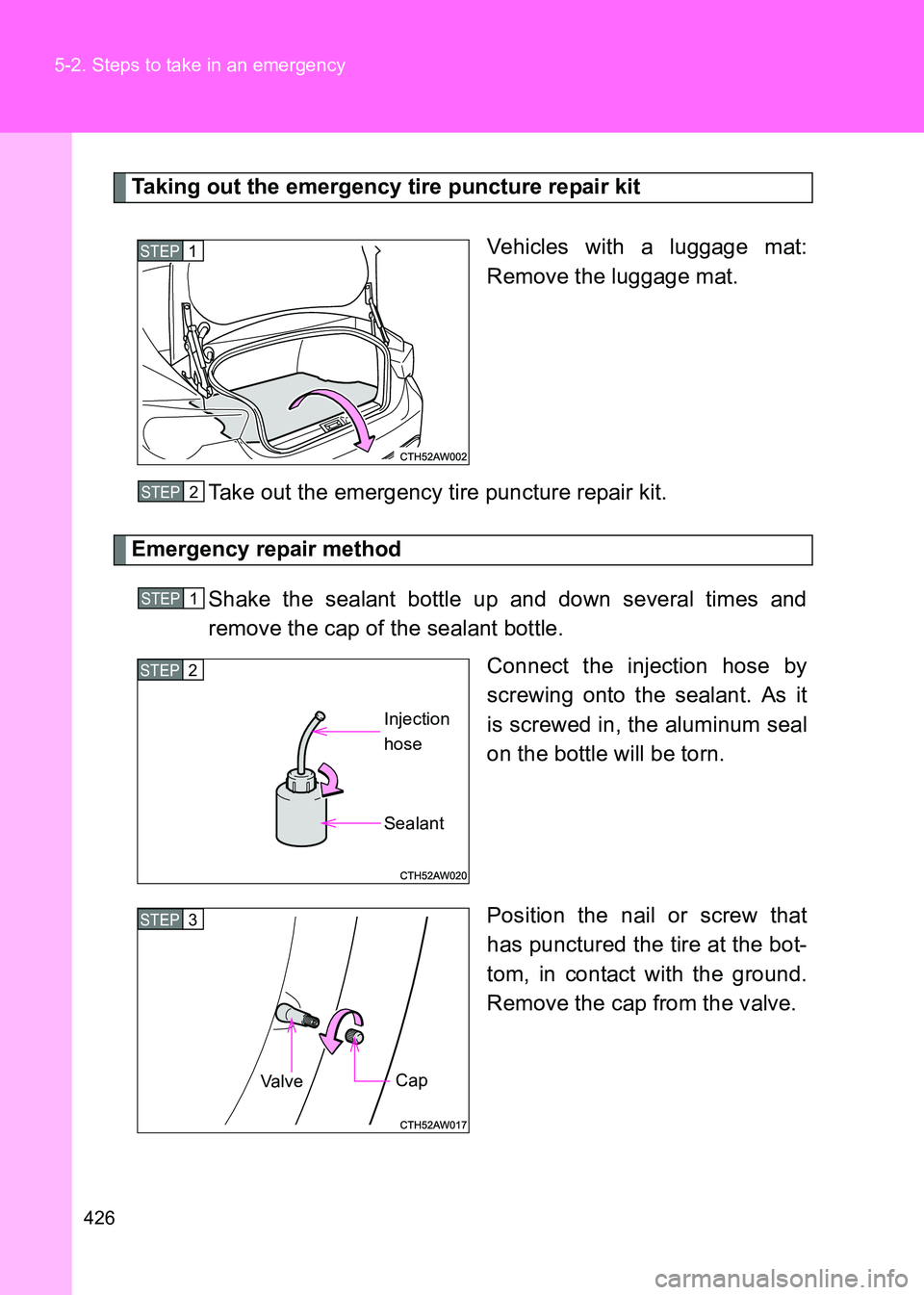

426
5-2. Steps to take in an emergency
86_EE (OM18071E)
Taking out the emergency tire puncture repair kit
Vehicles with a luggage mat:
Remove the luggage mat.
Take out the emergency tire puncture repair kit.
Emergency repair method Shake the sealant bottle up and down several times and
remove the cap of the sealant bottle. Connect the injection hose by
screwing onto the sealant. As it
is screwed in, the aluminum seal
on the bottle will be torn.
Position the nail or screw that
has punctured the tire at the bot-
tom, in contact with the ground.
Remove the cap from the valve.
STEP 1
STEP 2
STEP 1
STEP 2
Injection
hose
Sealant
STEP 3
Va l v eCap

5

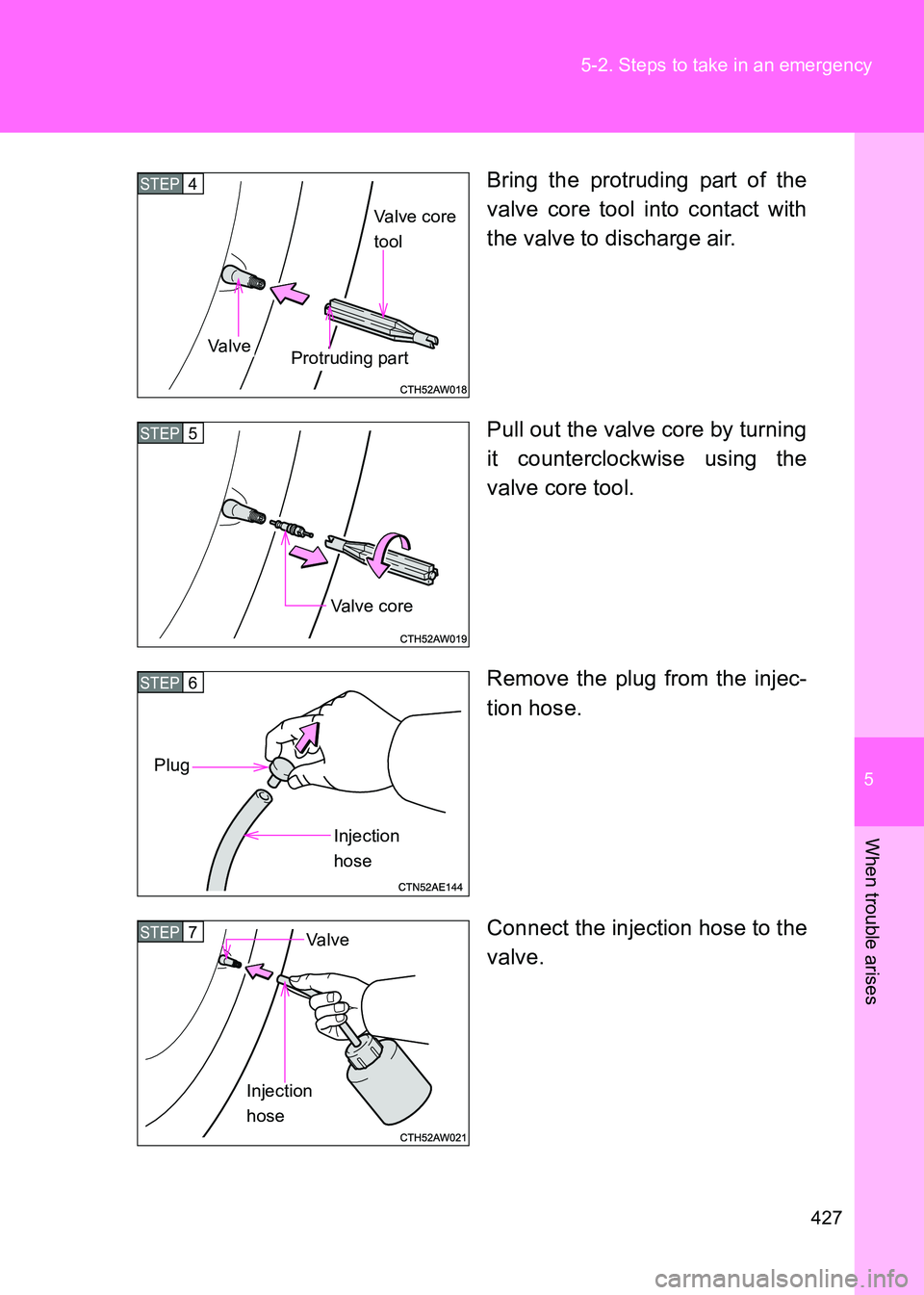

427
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Bring the protruding part of the
valve core tool into contact with
the valve to discharge air.
Pull out the valve core by turning
it counterclockwise using the
valve core tool.
Remove the plug from the injec-
tion hose.
Connect the injection hose to the
valve.
STEP 4
Va l v eProtruding part
Valve core
tool
STEP 5
Va l v e c o r e
STEP 6
Plug
Injection
hose
STEP 7 Va l v e
Injection
hose

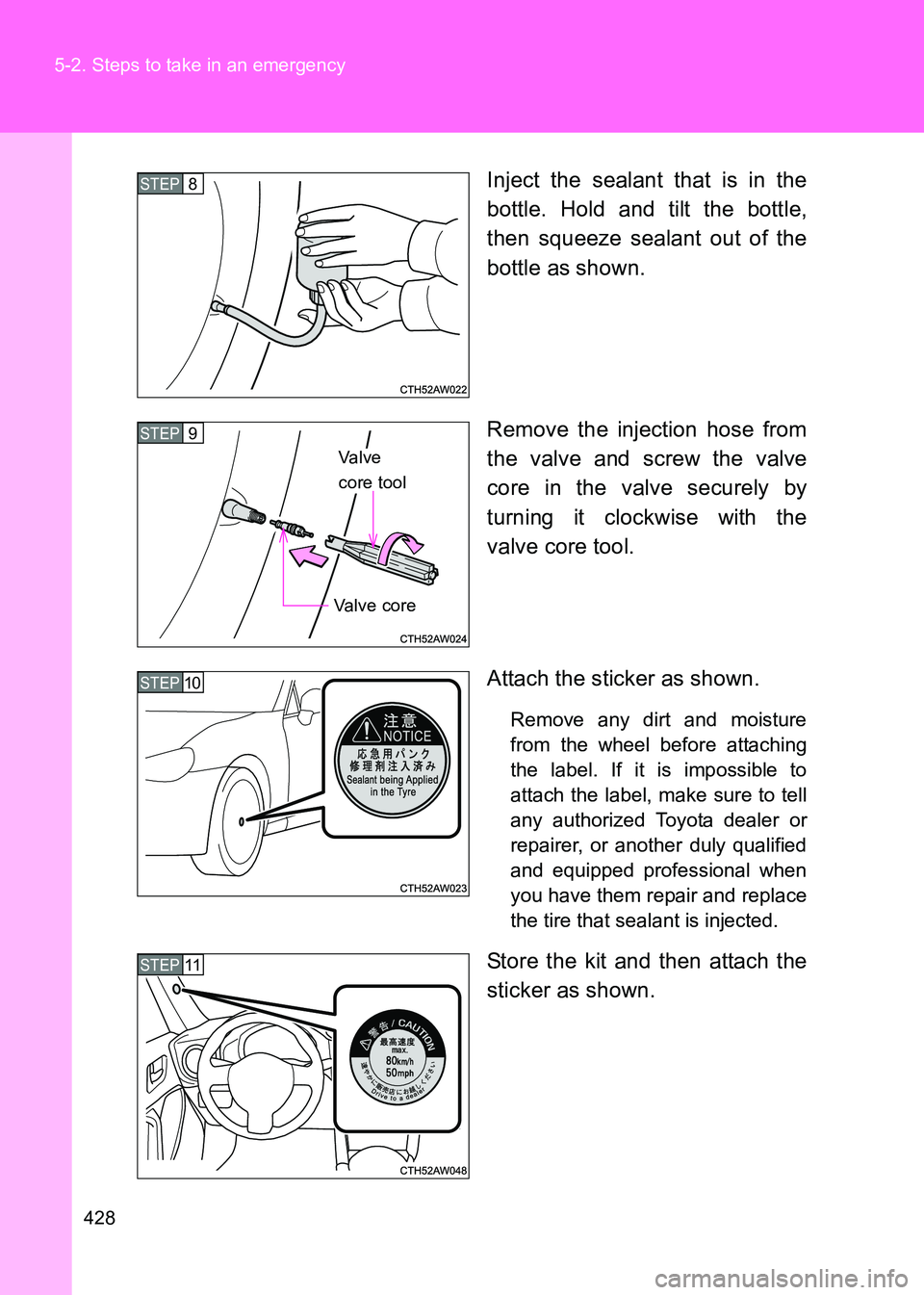

428
5-2. Steps to take in an emergency
86_EE (OM18071E)
Inject the sealant that is in the
bottle. Hold and tilt the bottle,
then squeeze sealant out of the
bottle as shown.
Remove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core tool.
Attach the sticker as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Store the kit and then attach the
sticker as shown.
STEP 8
STEP 9
Va l v e
core tool
Va l v e c o r e
STEP 10
STEP11

5

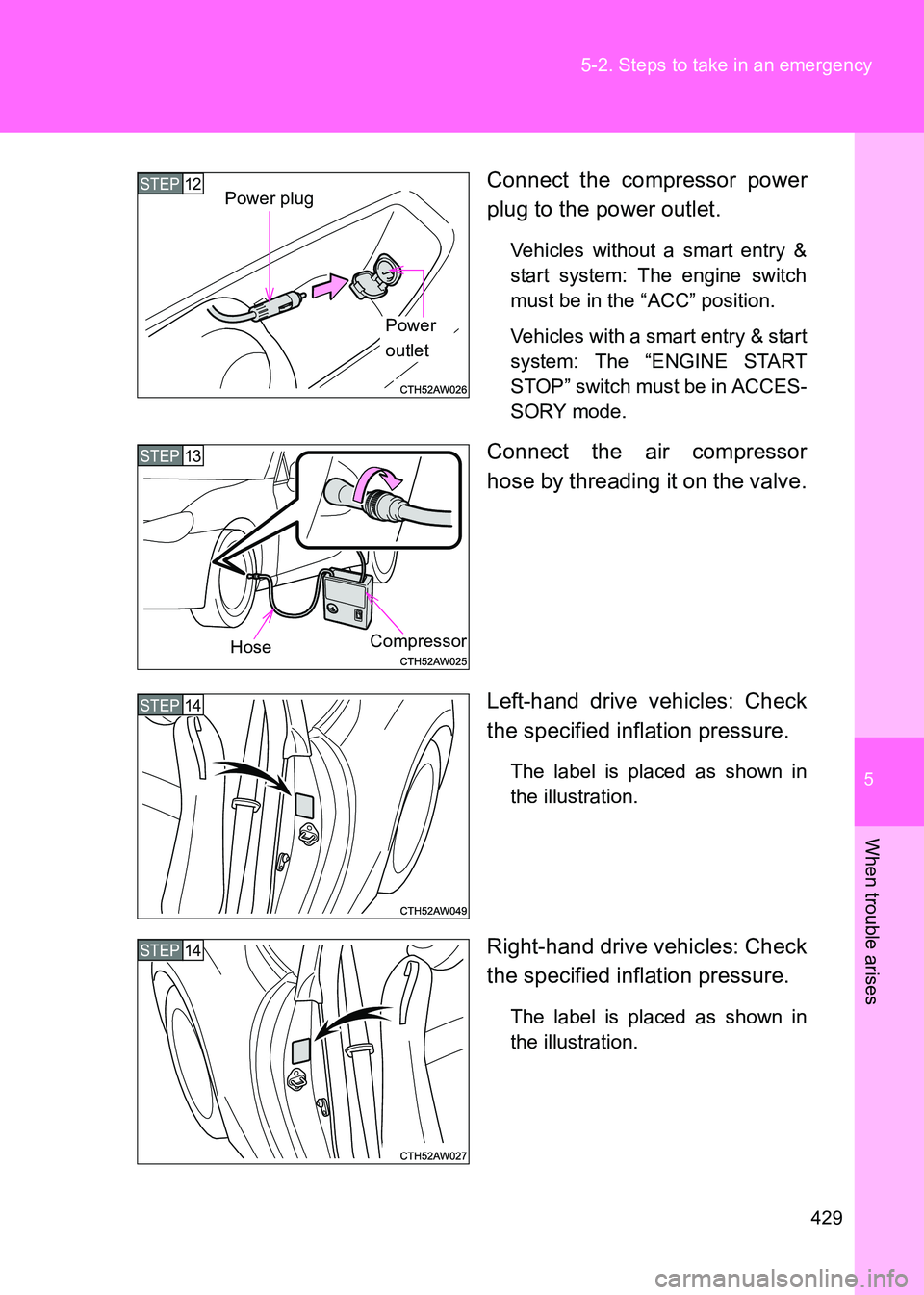

429
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Connect the compressor power
plug to the power outlet.
Vehicles without a smart entry &
start system: The engine switch
must be in the “ACC” position.
Vehicles with a smart entry & start
system: The “ENGINE START
STOP” switch must be in ACCES-
SORY mode.
Connect the air compressor
hose by threading it on the valve.
Left-hand drive vehicles: Check
the specified inflation pressure.
The label is placed as shown in
the illustration.
Right-hand drive vehicles: Check
the specified inflation pressure.
The label is placed as shown in
the illustration.
Power
outlet
STEP12Power plug
STEP13
CompressorHose
STEP14
STEP14

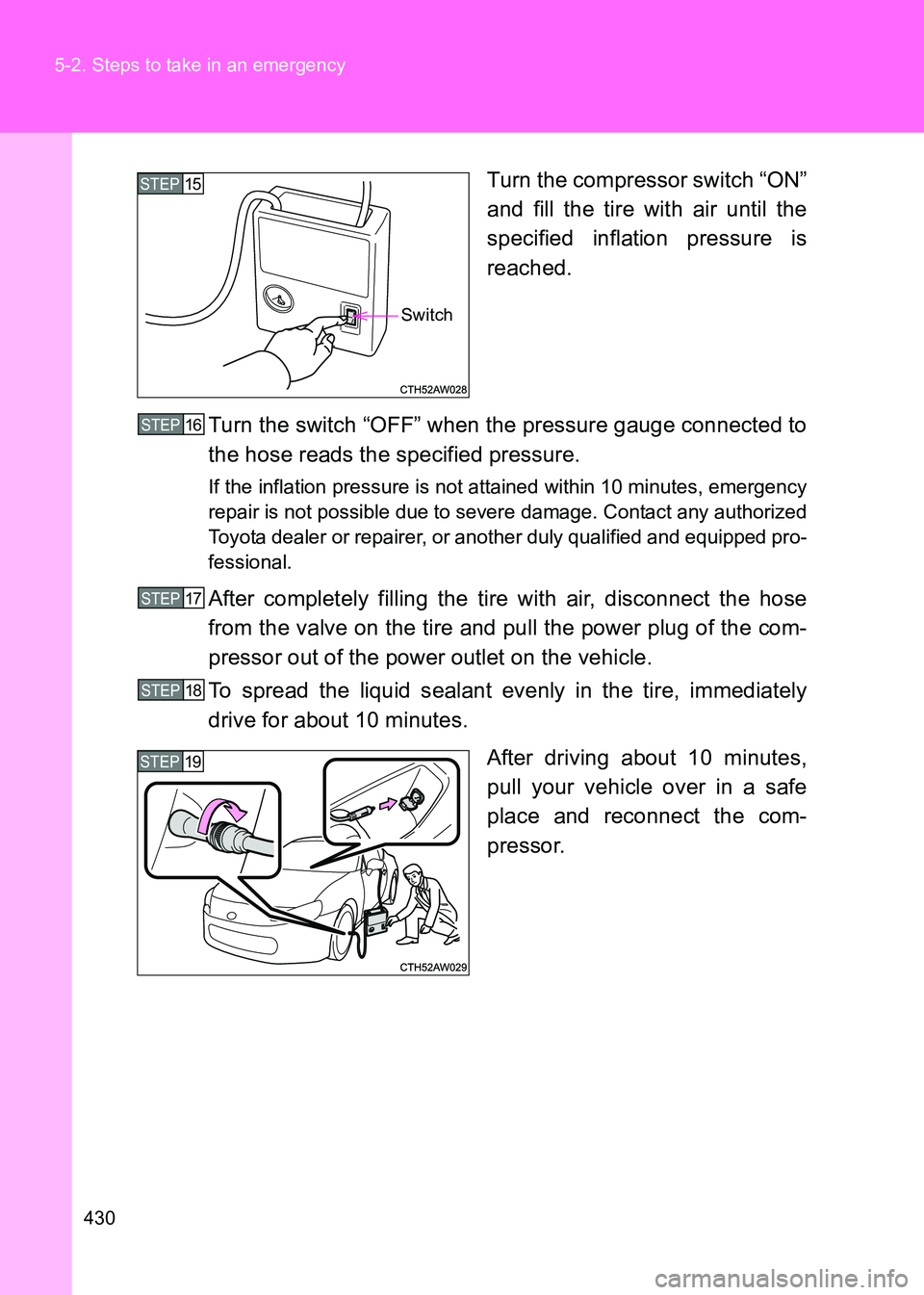

430
5-2. Steps to take in an emergency
86_EE (OM18071E)
Turn the compressor switch “ON”
and fill the tire with air until the
specified inflation pressure is
reached.
Turn the switch “OFF” when the pressure gauge connected to
the hose reads the specified pressure.
If the inflation pressure is not attained within 10 minutes, emergency
repair is not possible due to severe damage. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
After completely filling the tire with air, disconnect the hose
from the valve on the tire and pull the power plug of the com-
pressor out of the power outlet on the vehicle.
To spread the liquid sealant evenly in the tire, immediately
drive for about 10 minutes. After driving about 10 minutes,
pull your vehicle over in a safe
place and reconnect the com-
pressor.
STEP15
Switch
STEP16
STEP17
STEP18
STEP19

5

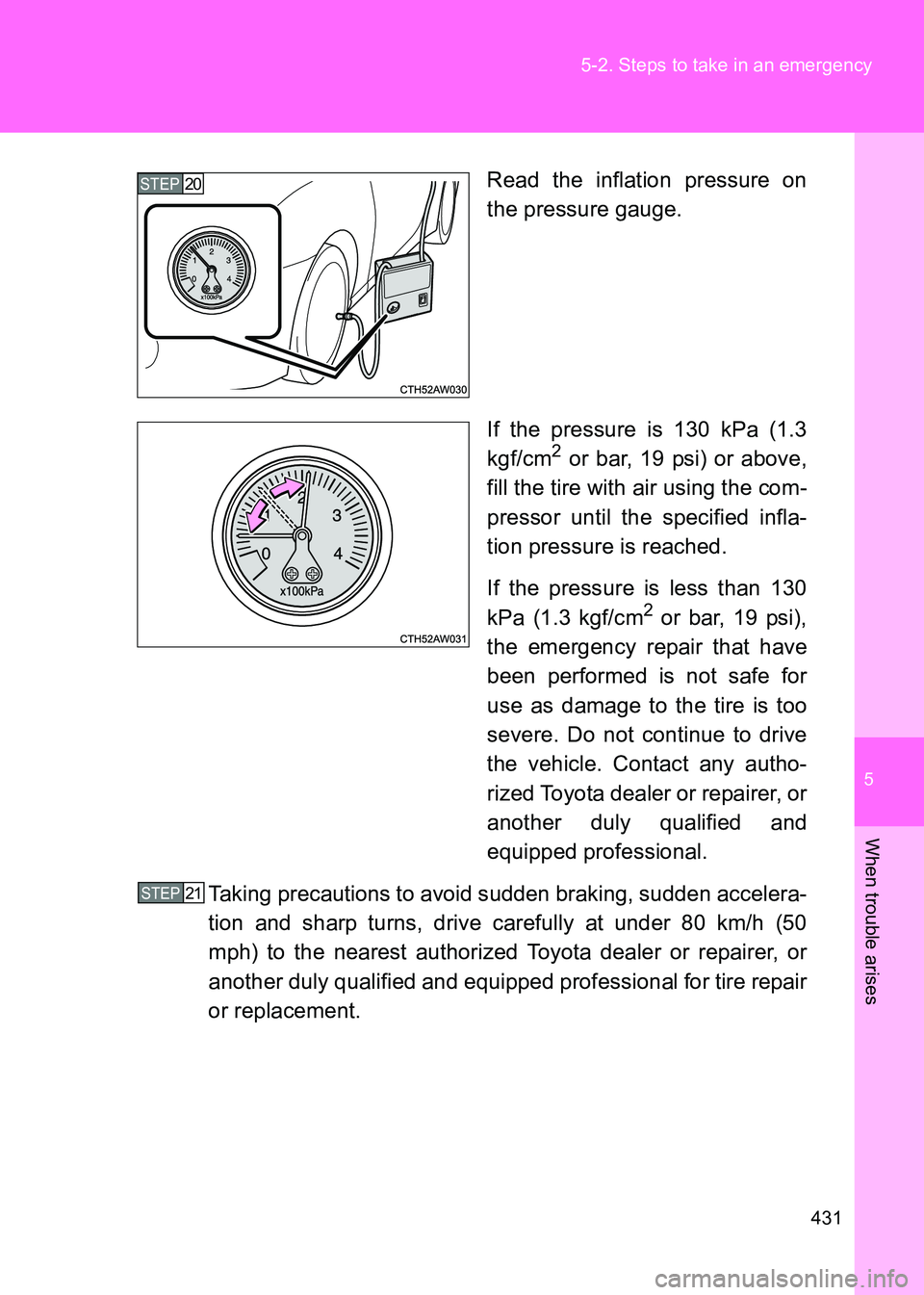

431
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Read the inflation pressure on
the pressure gauge.
If the pressure is 130 kPa (1.3
kgf/cm
2 or bar, 19 psi) or above,
fill the tire with air using the com-
pressor until the specified infla-
tion pressure is reached.
If the pressure is less than 130
kPa (1.3 kgf/cm
2 or bar, 19 psi),
the emergency repair that have
been performed is not safe for
use as damage to the tire is too
severe. Do not continue to drive
the vehicle. Contact any autho-
rized Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Taking precautions to avoid sudden braking, sudden accelera-
tion and sharp turns, drive carefully at under 80 km/h (50
mph) to the nearest authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for tire repair
or replacement.
STEP20
STEP21

432
5-2. Steps to take in an emergency
86_EE (OM18071E)
■
After a tire is repaired with the emergency tire puncture repair kit
●The tire pressure warning valve and transmitter should be replaced.
● Even if the tire inflation pressure is at the recommended level, the tire
pressure warning light may come on/flash.
■ Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry
date has already passed. Otherwise, repairs conducted using the emer-
gency tire puncture repair kit may not be performed properly.
■ Emergency tire puncture repair kit
●The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The compressor is reusable.
● The sealant can be used when the outside temperature is -40°C (-40°F)
or more.
● The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than
the original ones, or for any other purposes.
● The sealant has a limited lifespan. The expiry date is marked on the bot-
tle. The bottle of sealant should be replaced with a new bottle before the
expiry date. Contact any authorized To yota dealer or repairer, or another
duly qualified and equipped professional for replacement.
● If the sealant gets on your clothes, it may stain.
● If the sealant adheres to a wheel or the surface of the vehicle body, the
stain may not be removable if it is not cleaned at once. Immediately wipe
away the sealant with a wet cloth.
● During operation of the repair kit, a loud operation noise is produced.
This does not indicate a malfunction.
● Do not use to check or to adjust the tire pressure.
