5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 2
STEP 3
STEP 4
STEP 5

442
5-2. Steps to take in an emergency
86_EE (OM18071E)

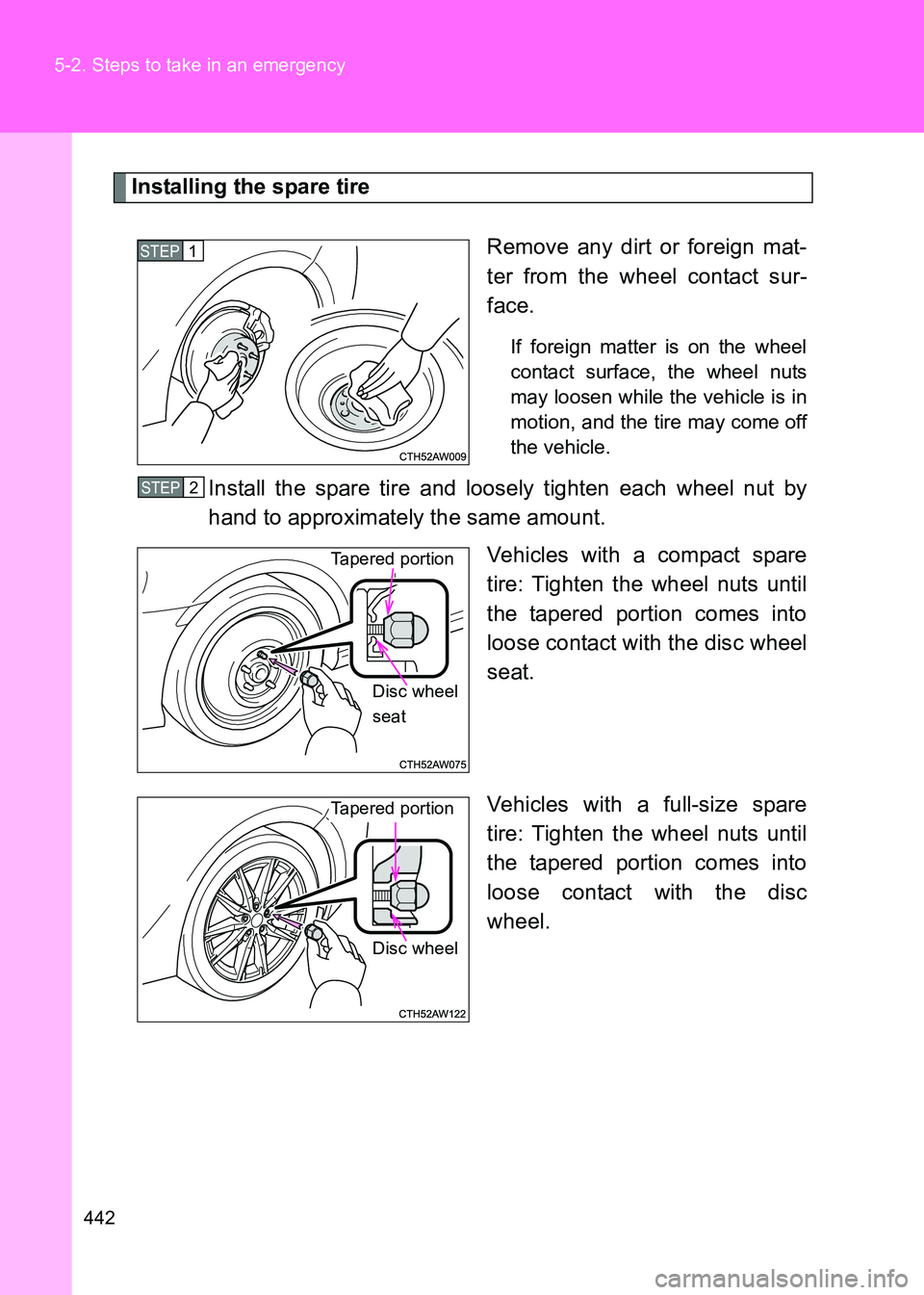

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the spare tire and loosely tighten each wheel nut by
hand to approximately the same amount.Vehicles with a compact spare
tire: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc wheel
seat.
Vehicles with a full-size spare
tire: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
Disc wheel
Tapered portion

5
443
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)

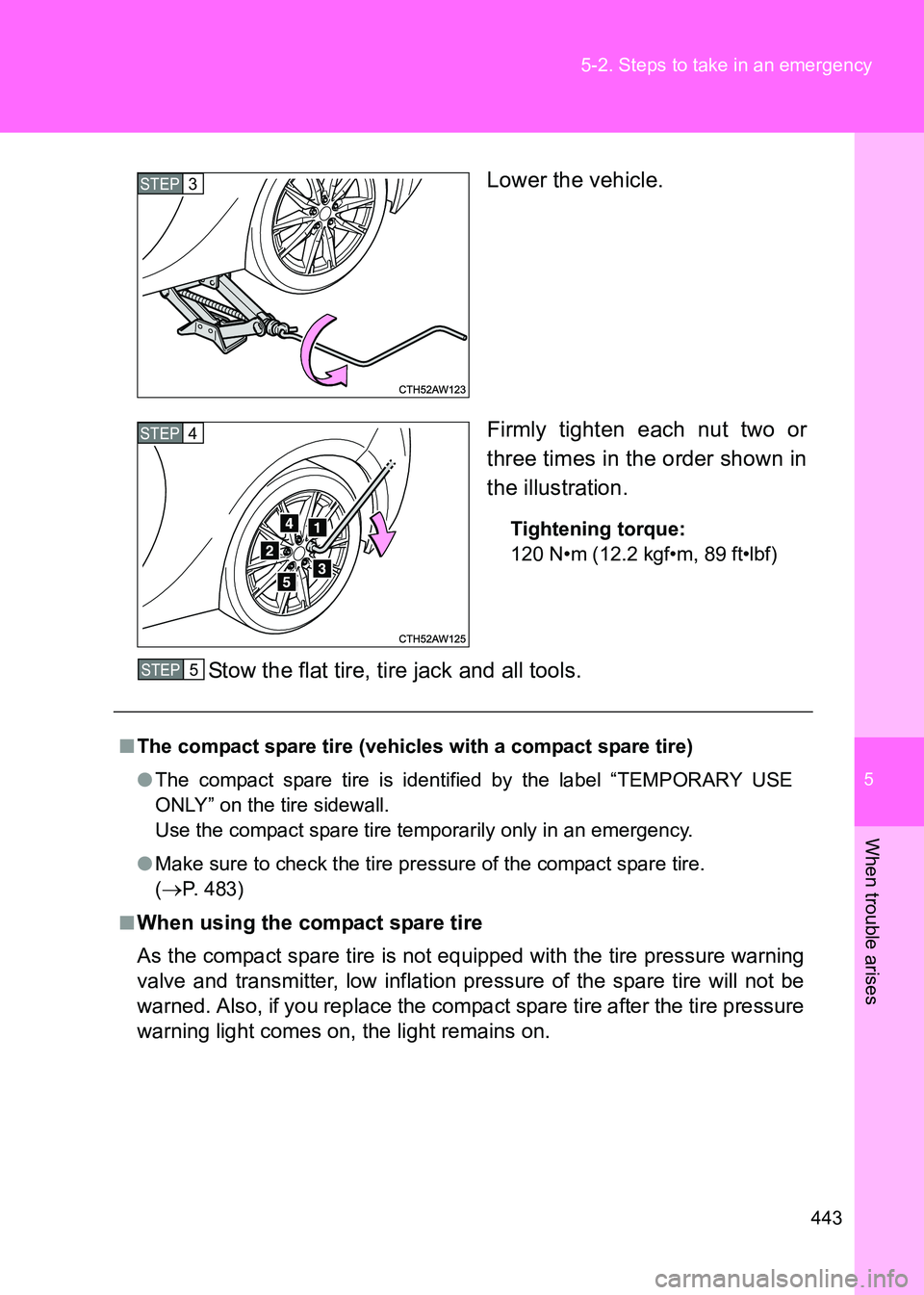

Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
120 N•m (12.2 kgf•m, 89 ft•lbf)
Stow the flat tire, tire jack and all tools.
STEP 3
STEP 4
■
The compact spare tire (vehicles with a compact spare tire)
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
● Make sure to check the tire pressure of the compact spare tire.
(
→P. 483)
■
When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
warned. Also, if you replace the compact spare tire after the tire pressure
warning light comes on, the light remains on.
STEP 5

444
5-2. Steps to take in an emergency
86_EE (OM18071E)
■

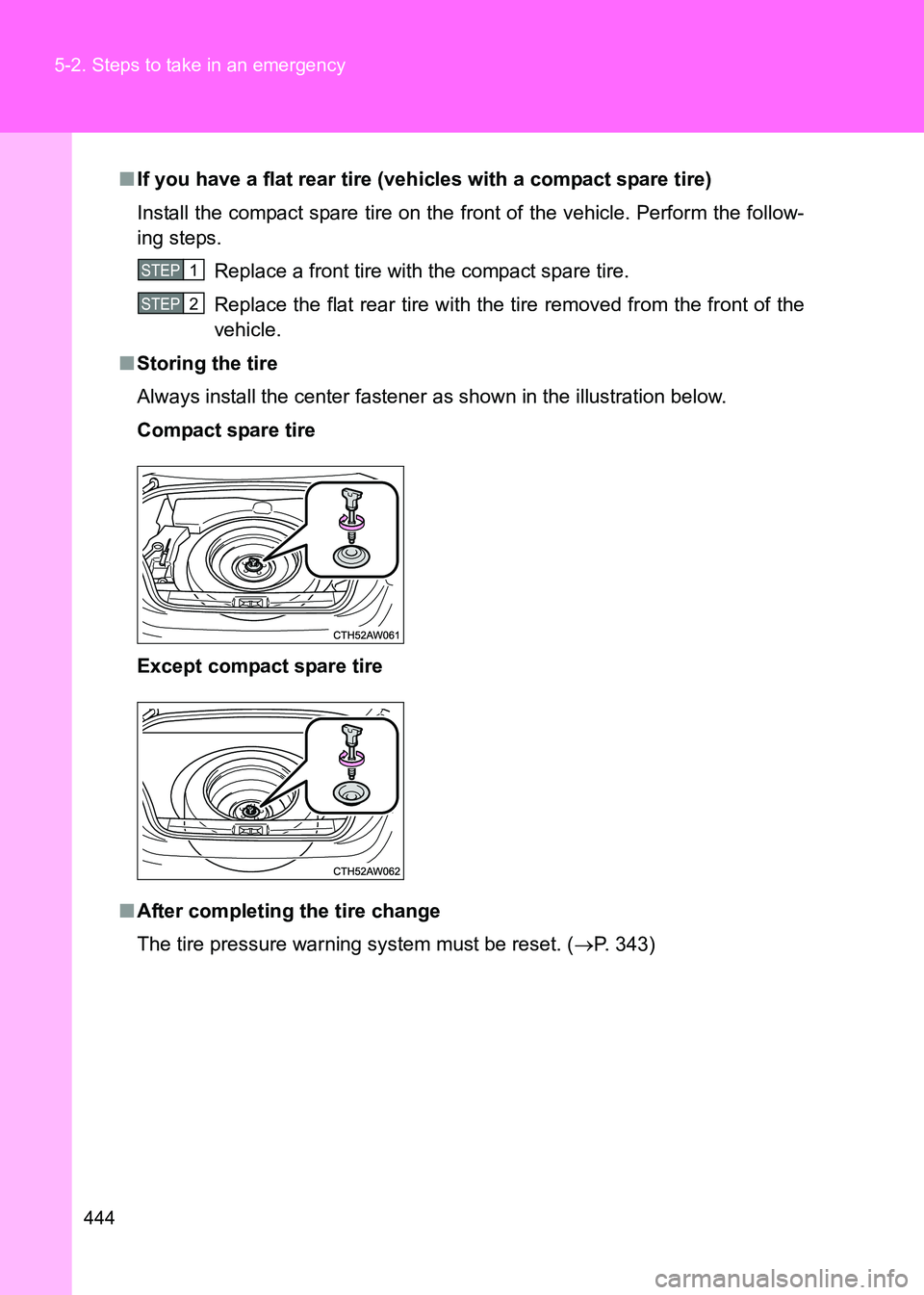

If you have a flat rear tire (veh icles with a compact spare tire)
Install the compact spare tire on the front of the vehicle. Perform the follow-
ing steps. Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the
vehicle.
■ Storing the tire
Always install the center fastener as shown in the illustration below.
Compact spare tire
Except compact spare tire
■ After completing the tire change
The tire pressure warning system must be reset. ( →P. 343)
STEP 1
STEP 2

5
445
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
■
Certification for the jack

446
5-2. Steps to take in an emergency
86_EE (OM18071E)

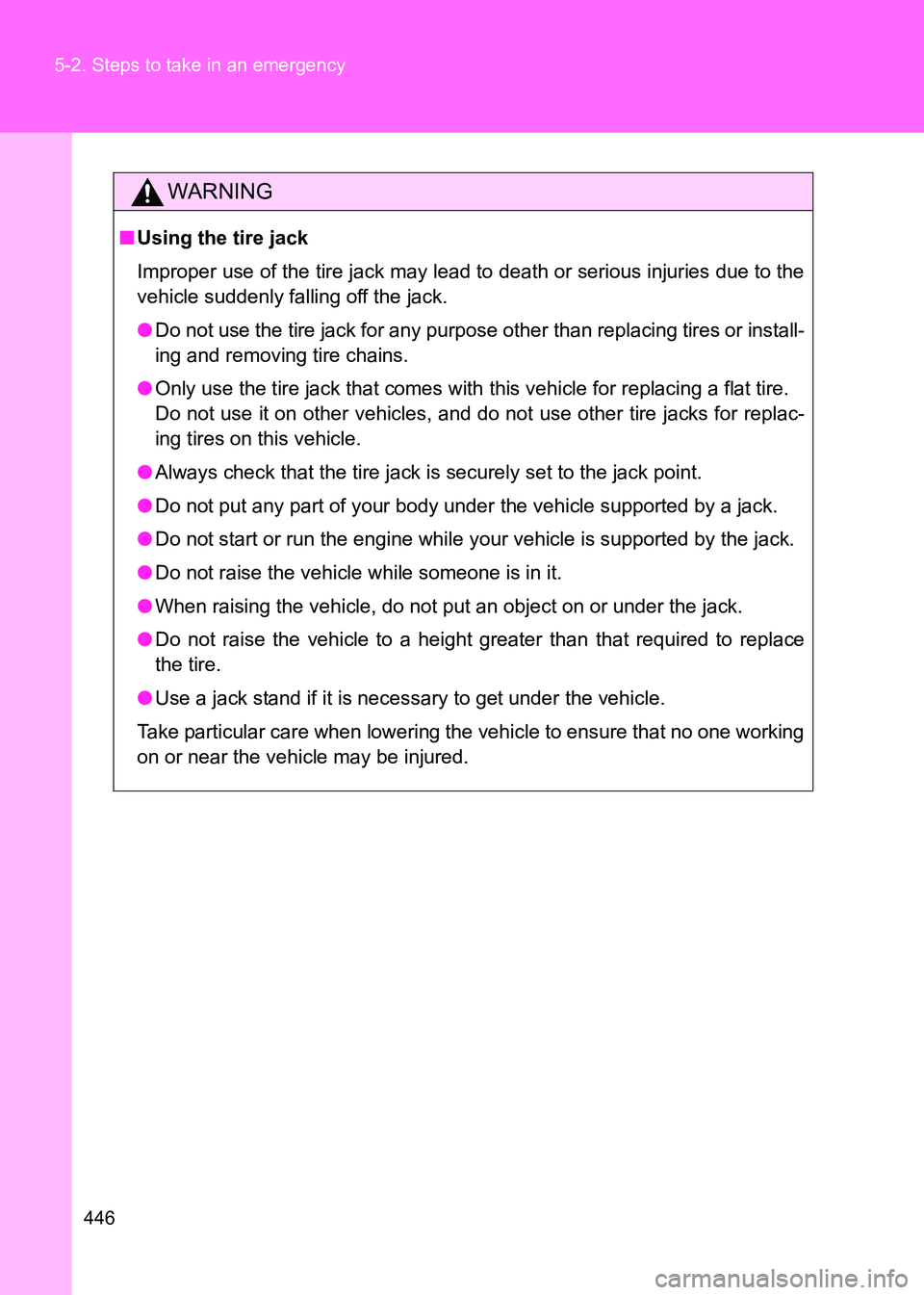

WARNING
■
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Always check that the tire jack is securely set to the jack point.
● Do not put any part of your body under the vehicle supported by a jack.
● Do not start or run the engine while your vehicle is supported by the jack.
● Do not raise the vehicle while someone is in it.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle may be injured.

5
447
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
WARNING
■

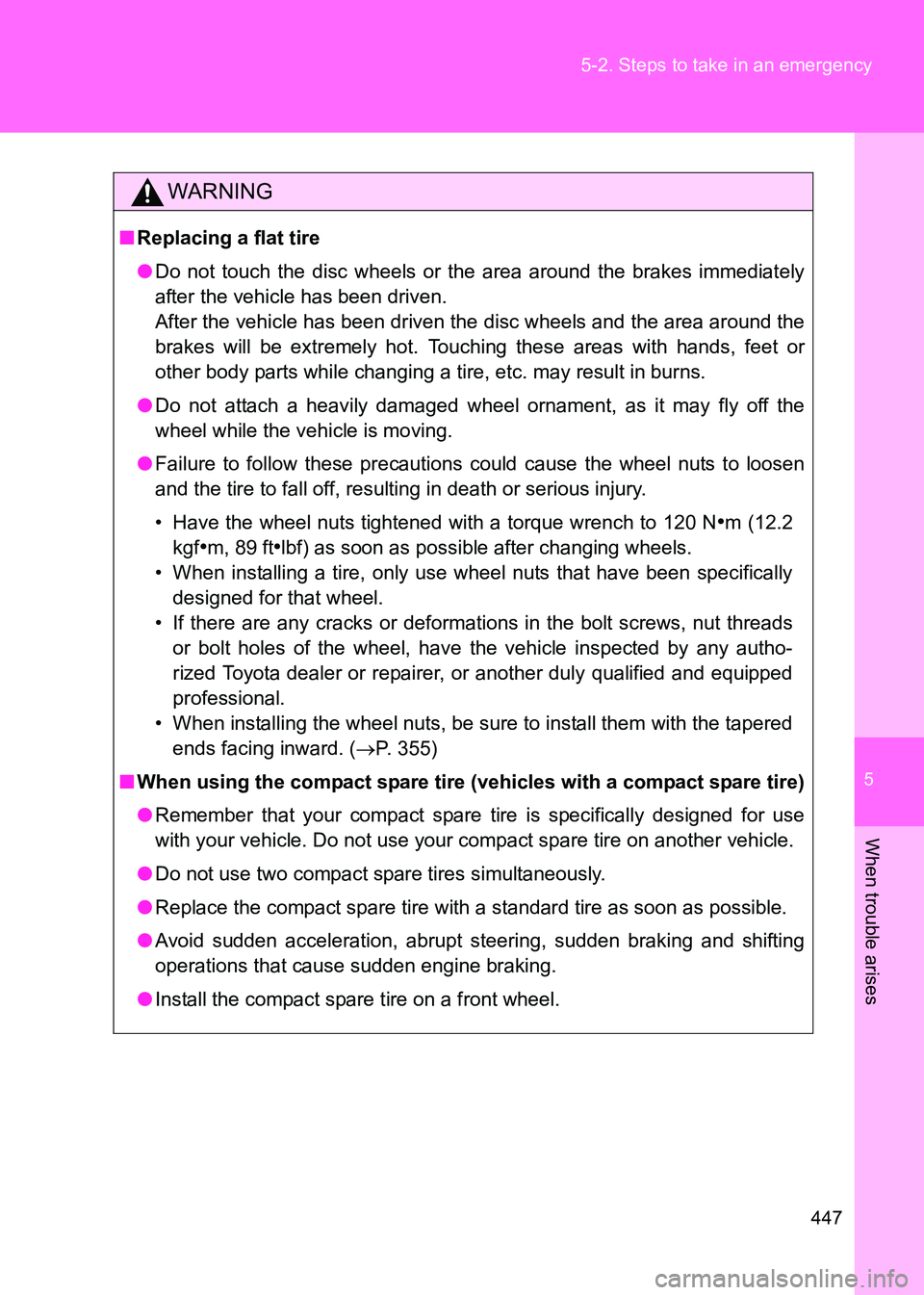

Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
● Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 120 N
•m (12.2
kgf
•m, 89 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( →P. 355)
■ When using the compact spare tire (vehicles with a compact spare tire)
●Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
● Do not use two compact spare tires simultaneously.
● Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Install the compact spare tire on a front wheel.

448
5-2. Steps to take in an emergency
86_EE (OM18071E)
WARNING
■
When storing the compact spare tire (vehicles with a compact spare
tire)
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■ Speed limit when using the compact spare tire (vehicles with a com-
pact spare tire)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.
■ When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
●ABS & Brake assist
● VSC
● TRC
●
EPS
● Cruise control (if equipped)
● LSD (if equipped)
