2017 NISSAN GT-R Owners Manual


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
0-10Illustrated table of contents
GUID-44AA478F-51D0-499B-9A42-EC36A5D1576E
JVC0579X
1. Fuse/fusible link holder (P.8-24)
2. Battery (P.8-17)
3. Engine oil filler cap (P.8-13)
4. Engine oil dipstick (P.8-13)
5. Brake fluid reservoir (P.8-15)
6. Air cleaner (P.8-21)7. Power steering fluid reservoir (P.8-14)
8. Radiator filler cap (P.8-10)
9. Coolant reservoir cap (pressure type) (P.8-10)
10. Coolant reservoir (P.8-10)
11. Window washer fluid reservoir (P.8-16) ITEMS
GT-R SPECIFIED FLUIDS
Engine oil Mobil 1 (0W-40)*1
Transmission oil Genuine NISSAN Transmission
Oil R35 Special
Differential oil
(front and rear) Differential Oil R35 COMPE-
TITION type 2189E
Brake fluid Genuine NISSAN Brake Fluid
R35 Special II*2
*1: Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and
durability if other 0W-40 synthetic oil is used.
If Mobil 1 (0W-40) is not available, Mobil 1
(10W-40) (100% synthetic) may be used;
however, some performance loss may be
noticed.
*2: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid and
NISSAN cannot ensure proper operation of the
vehicle if other brake fluid is used.
ENGINE COMPARTMENT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-51B7C3A8-BBEA-4142-A313-89A7B5E77D7E
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light 2-25
Anti-lock Braking System
(ABS) warning light2-26
Brake warning light
2-26
Charge warning light2-27
Engine oil pressure warning
light2-27
Intelligent Key warning light
2-27
Low tire pressure warning light2-27
Master warning light2-29
Seat belt warning light2-29
Supplemental air bag warning
light2-30
Transmission warning light
2-30Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-31Indicator
light Name
PageCruise main switch indicator
light 2-31
Cruise set switch indicator light
2-31
Exterior light indicator2-31
Front passenger air bag status
light2-31
High beam indicator light
2-31
Malfunction Indicator Light
(MIL)2-32
Turn signal/hazard indicator
lights
2-32
Vehicle Dynamic Control (VDC)
off indicator light2-32
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
0-12Illustrated table of contents
MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
MEMO
Illustrated table of contents0-13


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

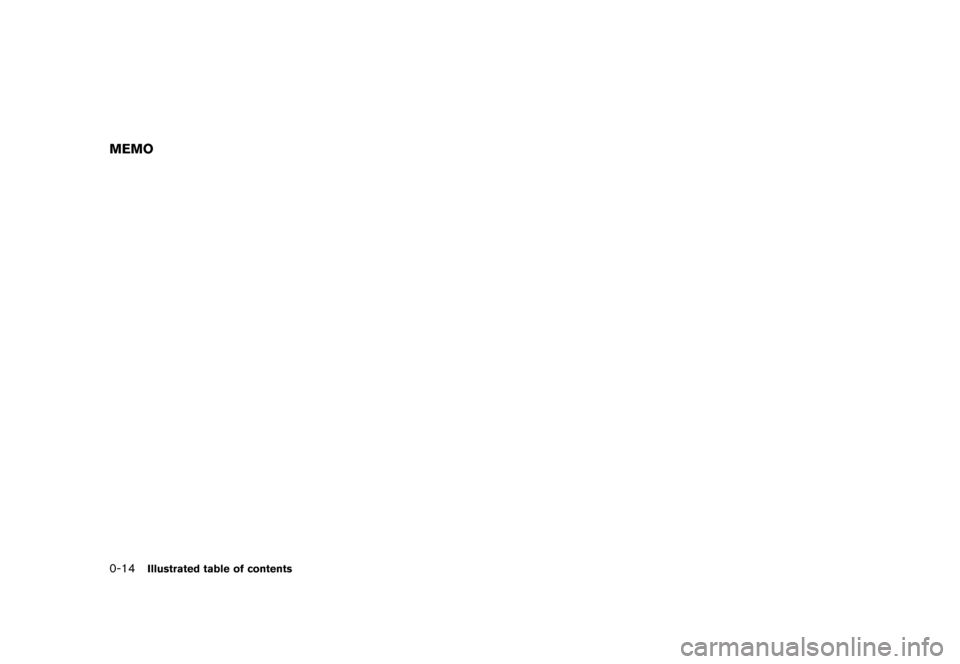

0-14Illustrated table of contents
MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1 Safety Ð Seats, seat belts and supple-mental restraint system
Seats ............................................................................\
................... 1-2
Front seats ............................................................................\
... 1-3
Head restraints/headrests ....
...................................................... 1-5
Seat belts ....
........................................................................\
........... 1-6
Precautions on seat belt usage ....
...................................... 1-6
Pregnant women .................................................................... 1-9
Injured persons ....................................................................... 1-9
Three-point type seat belt with retractor ......................... 1-9
Seat belt extenders ....
......................................................... 1-12
Seat belt maintenance ....................................................... 1-13
Child safety ....
........................................................................\
..... 1-13
Infants ....
........................................................................\
......... 1-14
Small children ....
................................................................... 1-14
Larger children ..................................................................... 1-14
Child restraints ....
....................................................................... 1-16
Precautions on child restraints ........................................ 1-16
Lower Anchors and Tethers for CHildren
System (LATCH) ................................................................. 1-18
Rear-facing child restraint installation
using LATCH ........................................................................ 1-20 Rear-facing child restraint installation using the
seat belts
....
........................................................................\
. 1-22
Forward-facing child restraint installation
using LATCH ...................................................................... 1-24
Forward-facing child restraint installation using the
seat belts ....
........................................................................\
. 1-27
Booster seats ....
................................................................. 1-30
Supplemental restraint system ....
.......................................... 1-34
Precautions on supplemental restraint system ....
...... 1-34
NISSAN Advanced Air Bag System
(front seats) ........................................................................ 1-40
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ....................................... 1-44
Seat belts with pretensioners (front seats) ....
............ 1-45
Supplemental air bag warning labels .......................... 1-46
Supplemental air bag warning light ............................. 1-47
Repair and replacement procedure ............................. 1-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

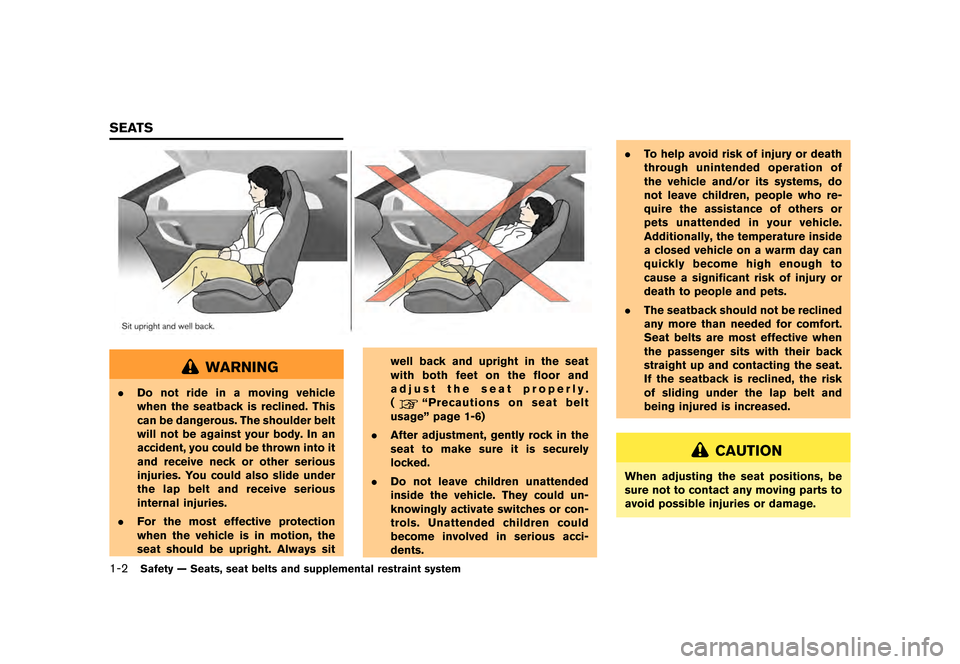

1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-D989AACB-AF6A-4AE6-A086-B5AABC47A446
GPR0031
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat properly.
(ªPrecautions on seat belt
usageº page 1-6)
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits with their back
straight up and contacting the seat.
If the seatback is reclined, the risk
of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries or damage.
SEATS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
NOTICE
Make sure the front seatback does not
contact the rear seat when reclining the
seat. When the front seat is reclined to
the rearmost position, it may contact
the rear seat. This may cause an
indentation in the seatback.
JVR0011X
FRONT SEATSGUID-FBA6B286-11CC-4381-B064-08E5DFE59179
Front power seat adjustmentGUID-4698FDE2-2635-4972-83DE-3C650E04A058Operating tips
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Safety Ð Seats, seat belts and supplemental restraint system1-3
