1-12Safety Ð Seats, seat belts and supplemental restraint system
Checking seat belt operationGUID-5FF210C6-685D-44A7-93DA-171DBA4167B9Seat belt retractors are designed to lock seat
belt movement by two separate methods:
.When the belt is pulled quickly from the
retractor.
. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward
quickly. The retractor should lock and
restrict further belt movement.
If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a GT-R certified NISSAN dealer.
GPC0048
Shoulder belt arm (for front seats)GUID-E951CA27-1FF9-4060-BDAF-5F9EA3342F3DBefore fastening the seat belt, adjust the
shoulder belt arm to the lock position where
the belt fits snugly on the shoulder. The arm can
also be folded down to allow rear seat
passengers easier access.
Pulling the arm forward will allow an easy access
to the belt.
SEAT BELT EXTENDERSGUID-2B114D8F-5D08-4666-8ACB-2253E777761DIf, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8
in (200 mm) of length and may be used for either
the driver or front passenger seating position. It
is recommended you see a GT-R certified
NISSAN dealer for assistance with purchasing
an extender if an extender is required.
WARNING
. Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with the
NISSAN seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal
injury in the event of an accident.
. Never use seat belt extenders to
install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured in a


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
collision or a sudden stop.

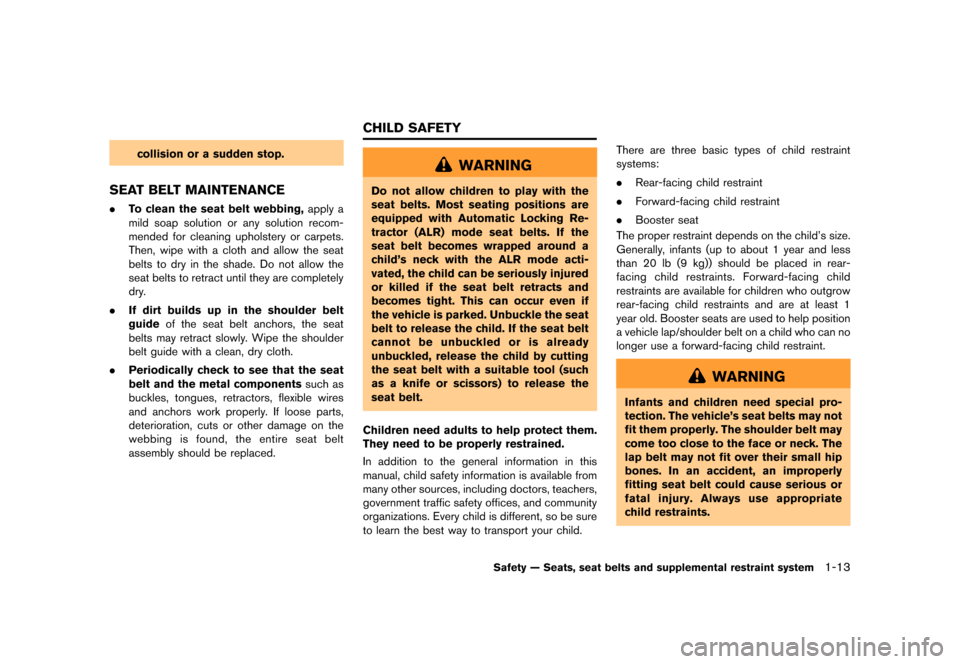

SEAT BELT MAINTENANCEGUID-E3B4EBF9-7010-4274-9B3F-C84BFF4CAEFA.To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then, wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.
. If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.
. Periodically check to see that the seat
belt and the metal components such as
buckles, tongues, retractors, flexible wires
and anchors work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt
assembly should be replaced.
GUID-A6D31E94-C717-41B5-961E-4C88C1E91746
WARNING
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child's neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. If the seat belt
cannot be unbuckled or is already
unbuckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child. There are three basic types of child restraint
systems:
.
Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child's size.
Generally, infants (up to about 1 year and less
than 20 lb (9 kg)) should be placed in rear-
facing child restraints. Forward-facing child
restraints are available for children who outgrow
rear-facing child restraints and are at least 1
year old. Booster seats are used to help position
a vehicle lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.
WARNING
Infants and children need special pro-
tection. The vehicle's seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
Safety Ð Seats, seat belts and supplemental restraint system1-13
CHILD SAFETY


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-14Safety Ð Seats, seat belts and supplemental restraint system
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children.
(
ªChild restraintsº page 1-16)
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor and
Tethers for CHildren) system or with the vehicle
seat belt. (
ªChild restraintsº page 1-16)
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. (
ªSupplemental restraint systemº
page 1-34)
INFANTSGUID-1C98AC07-35F0-4C3F-BD23-57D772394BF4Infants up to at least one year old should be
placed in a rear-facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer's instructions for instal-
lation and use.
SMALL CHILDRENGUID-264DB4CD-5605-4BBA-A146-1DC314130AA4Children that are over 1 year old and weigh at
least 20 lb (9 kg) should remain in a rear-facing
child restraint as long as possible up to the
height or weight limit of the child restraint.
Children who outgrow the height or weight limit
of the rear-facing child restraint and are at least
1 year old should be secured in a forward-facing
child restraint with a harness. Refer to the
manufacturer's instructions for minimum and
maximum weight and height recommendations.
NISSAN recommends that small children be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer's
instructions for installation and use.
LARGER CHILDRENGUID-A382489B-3EA8-495B-84AF-1756D106A7D5Children should remain in a forward-facing child
restraint with a harness until they reach the
maximum height or weight limit allowed by the
child restraint manufacturer.
Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child
restraint, NISSAN recommends that the child be
placed in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snugly across
the lower hips or upper thighs, not the abdomen.
A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
A booster seat should be used until the child
can pass the seat belt fit test below:
.
Are the child's back and hips against the
vehicle seatback?
. Is the child able to sit without slouching?
. Do the child's knees bend easily over the
front edge of the seat with feet flat on the
floor?
. Can the child safely wear the seat belt (lap
belt low and snug across the hips and
shoulder belt across mid-chest and
shoulder)?
. Is the child able to use the properly adjusted
head restraint/headrest?


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

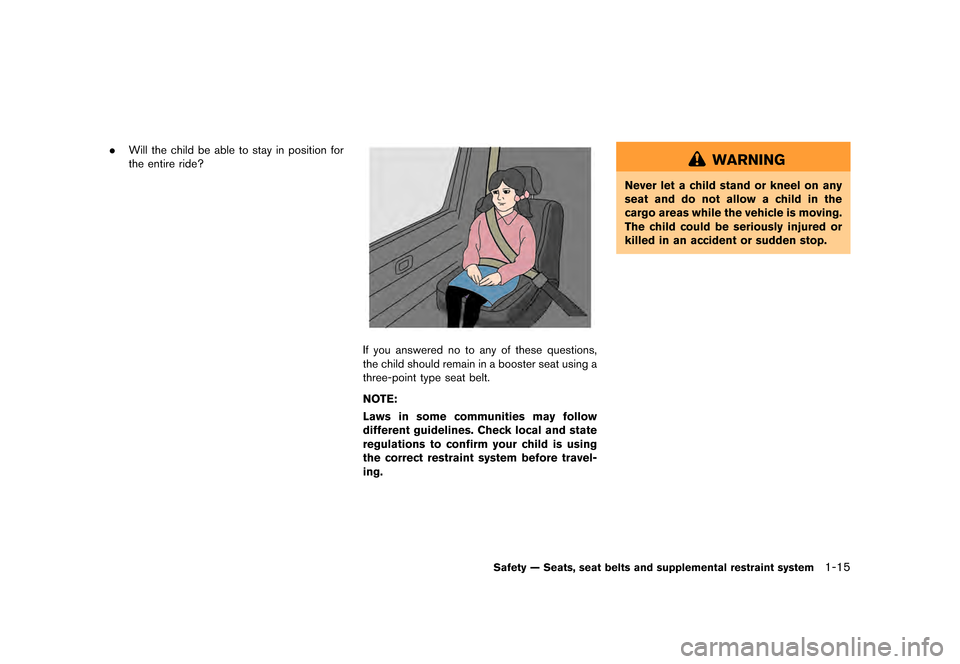

.Will the child be able to stay in position for
the entire ride?
JVR0489X
If you answered no to any of these questions,
the child should remain in a booster seat using a
three-point type seat belt.
NOTE:
Laws in some communities may follow
different guidelines. Check local and state
regulations to confirm your child is using
the correct restraint system before travel-
ing.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.
Safety Ð Seats, seat belts and supplemental restraint system1-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-16Safety Ð Seats, seat belts and supplemental restraint system
GUID-E69771B5-5321-4B55-9CA7-FE8865CC62D8
GPR0037
GPR0038

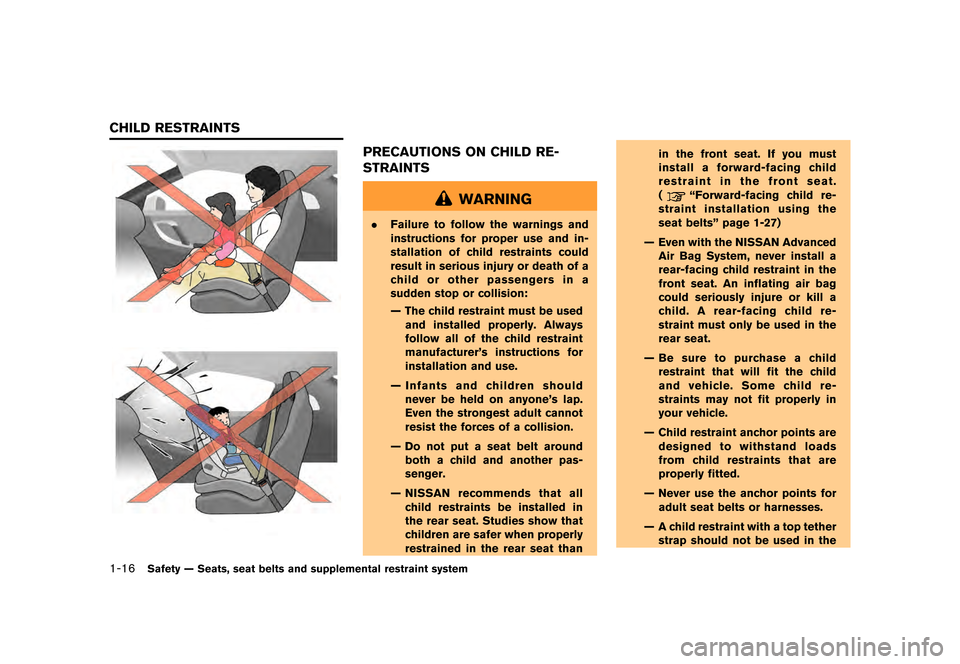

PRECAUTIONS ON CHILD RE-
STRAINTS
GUID-6923ED87-B7D9-43EB-90C3-42F89BA0FB07
WARNING
.Failure to follow the warnings and
instructions for proper use and in-
stallation of child restraints could
result in serious injury or death of a
child or other passengers in a
sudden stop or collision:
Ð The child restraint must be used
and installed properly. Always
follow all of the child restraint
manufacturer's instructions for
installation and use.
Ð Infants and children should never be held on anyone's lap.
Even the strongest adult cannot
resist the forces of a collision.
Ð Do not put a seat belt around both a child and another pas-
senger.
Ð NISSAN recommends that all child restraints be installed in
the rear seat. Studies show that
children are safer when properly
restrained in the rear seat than in the front seat. If you must
install a forward-facing child
restraint in the front seat.
(
ªForward-facing child re-
straint installation using the
seat beltsº page 1-27)
Ð Even with the NISSAN Advanced Air Bag System, never install a
rear-facing child restraint in the
front seat. An inflating air bag
could seriously injure or kill a
child. A rear-facing child re-
straint must only be used in the
rear seat.
Ð Be sure to purchase a child restraint that will fit the child
and vehicle. Some child re-
straints may not fit properly in
your vehicle.
Ð Child restraint anchor points are designed to withstand loads
from child restraints that are
properly fitted.
Ð Never use the anchor points for adult seat belts or harnesses.
Ð A child restraint with a top tether strap should not be used in the
CHILD RESTRAINTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
front passenger seat.
Ð Keep seatbacks as upright as possible after fitting the child
restraint.
Ð Infants and children should al- ways be placed in an appropri-
ate child restraint while in the
vehicle.
. When the child restraint is not in
use, keep it secured with the LATCH
system or a seat belt. In a sudden
stop or collision, loose objects can
injure occupants or damage the
vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating
surface and buckles before placing a
child in the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for CHil-
dren) system. Some child restraints include rigid
or webbing-mounted attachments that can be connected to these anchors. (See
ªLower
Anchors and Tethers for CHildren System
(LATCH)º page 1-18.)
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
. Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
. Check the child restraint in your vehicle to
be sure it is compatible with the vehicle's
seat and seat belt system.
. If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child's height and weight.
Always follow all recommended procedures.
. If the combined weight of the child and child
restraint is less than 65 lbs (29.5 kg) , you
may use either the LATCH anchors or the
seat belt to install the child restraint (not
both at the same time) . .
If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg) , use
the vehicle's seat belt (not the lower
anchors) to install the child restraint.
. Be sure to follow the child restraint manu-
facturer's instructions for installation.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle.
Safety Ð Seats, seat belts and supplemental restraint system1-17


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-18Safety Ð Seats, seat belts and supplemental restraint system
GPR0039
LATCH label location
Lower Anchors and Tethers for
CHildren System (LATCH)
GUID-7F47D579-F99A-4ADA-956E-51A53943D349Your vehicle is equipped with special anchor
points that are used with the LATCH (Lower
Anchors and Tethers for CHildren) system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint unless the combined weight of the
child and child restraint exceeds 65 lbs (29.5
kg) . If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg) , use the
vehicle's seat belt (not the lower anchors) toinstall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.
LATCH lower anchorGUID-25F6365D-E595-4BC7-ADE6-D276ADFE78B6
WARNING
Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:
.
Attach LATCH system compatible
child restraints only at the locations
shown in the illustration.
. Inspect the lower anchors by insert-
ing your fingers into the lower
anchor area. Feel to make sure
there are no obstructions over the
anchors such as seat belt webbing
or seat cushion material. The child
restraint will not be secured prop-
erly if the lower anchors are ob-
structed.
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re- straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed
in a collision.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0040
LATCH lower anchor location
LATCH lower anchor locationGUID-6EAE05C8-F835-4A01-B2AA-39BD41A8DF76The LATCH lower anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH anchors.
WARNING
The GT-R has seats and seat belts for
four occupants, two in the front seats
and two in the rear seats. Never use the
rear console as a seating position or for
a child restraint.
GPR0041
LATCH webbing-mounted attachment
Installing child restraint LATCH
lower anchor attachments
GUID-4B8C0A8F-12FE-4564-9C5B-311A1A99A9DFLATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.
GPR0042
LATCH rigid-mounted attachment
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
Safety Ð Seats, seat belts and supplemental restraint system1-19
