1-28Safety Ð Seats, seat belts and supplemental restraint system
GPR0054
Forward-facing Ð step 3
3. Route the seat belt tongue through the childrestraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer's
instructions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. (
ªInstalling top tether strapº
page 1-30) Do not install child restraints
that require the use of a top tether strap in
seating positions that do not have a top
tether anchor.
GPR0055
Forward-facing Ð step 4
4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
GPR0056
Forward-facing Ð step 5
5. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0057
Forward-facing Ð step 6
6. Remove any additional slack from the seatbelt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.
7. Tighten the tether strap according to the manufacturer's instructions to remove any
slack.
GPR0058
Forward-facing Ð step 8
8. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm) ,
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 2
through 8.
Safety Ð Seats, seat belts and supplemental restraint system1-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-30Safety Ð Seats, seat belts and supplemental restraint system
JVR0495X
Forward-facing Ð step 10
10. If the child restraint is installed in the frontpassenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light
should illuminate. If this light
is not illuminated, see ªFront passenger air
bag and status lightº in this section. Move
the child restraint to another seating
position. It is recommended you have the
system checked by a GT-R certified
NISSAN dealer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
JVR0059X
Installing top tether strapGUID-041CEB19-401F-4852-AB4A-A6334F8DC203The child restraint top tether strap must be used
when installing the child restraint with the seat
belts.
First, secure the child restraint with the seat belt.
1. Flip up the anchor cover from the anchor point which is located directly behind the
child restraint.
2. Position the top tether strap over the top of the seatback.
3. Secure the tether strap to the tether anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint
installation procedure steps earlier in this section before tightening the tether strap.
If you have any questions when installing a
top tether strap, it is recommended you
consult a GT-R certified NISSAN dealer for
details.
BOOSTER SEATSGUID-3F8B846F-53D4-49EA-BFA5-1D1D43874EAA
Precautions on booster seatsGUID-9892AB26-BD80-4EA4-82A9-02C71645C65B
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:
. Make sure the shoulder portion of
the belt is away from the child's face
and neck and the lap portion of the
belt does not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child's
arm.
. A booster seat must only be in-
stalled in a seating position that has
a lap/shoulder belt.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0044
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
.Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
. Check the booster seat in your vehicle to be
sure it is compatible with the vehicle's seat
and seat belt system.
GPR0064
.Make sure the child's head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child's ears. For example, if a
low back booster seat
*1is chosen, the
vehicle seatback must be at or above the
center of the child's ears. If the seatback is
lower than the center of the child's ears, a
high back booster seat
*2should be used.
. If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
GPR0065
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Safety Ð Seats, seat belts and supplemental restraint system1-31


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-32Safety Ð Seats, seat belts and supplemental restraint system

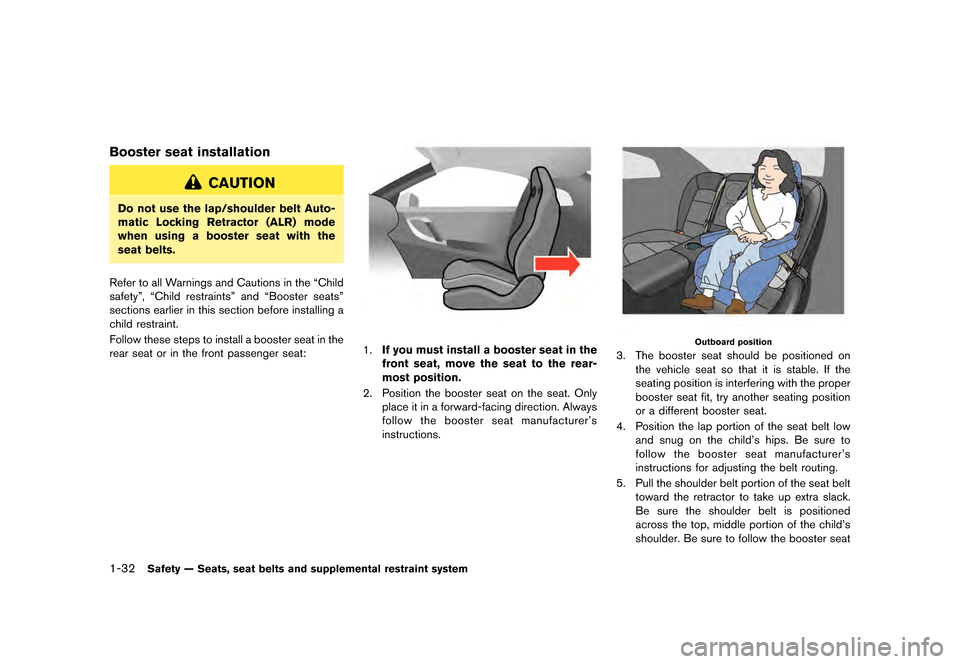

Booster seat installationGUID-7A9AFD1B-464E-45AA-89CF-53F226F5F1E2
CAUTION
Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the
seat belts.
Refer to all Warnings and Cautions in the ªChild
safetyº, ªChild restraintsº and ªBooster seatsº
sections earlier in this section before installing a
child restraint.
Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:
GPR0053
1. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direction. Always
follow the booster seat manufacturer's
instructions.
GPR0065
Outboard position
3. The booster seat should be positioned onthe vehicle seat so that it is stable. If the
seating position is interfering with the proper
booster seat fit, try another seating position
or a different booster seat.
4. Position the lap portion of the seat belt low and snug on the child's hips. Be sure to
follow the booster seat manufacturer's
instructions for adjusting the belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child's
shoulder. Be sure to follow the booster seat


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
manufacturer's instructions for adjusting the
belt routing.
GPR0067

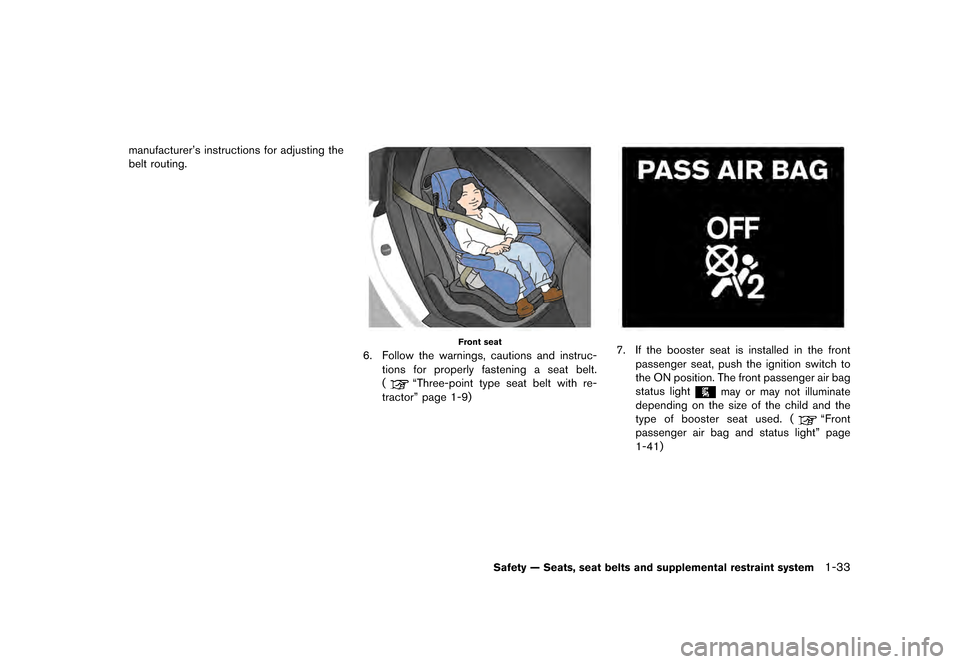

Front seat
6. Follow the warnings, cautions and instruc-tions for properly fastening a seat belt.
(
ªThree-point type seat belt with re-
tractorº page 1-9)
JVR0495X
7. If the booster seat is installed in the front passenger seat, push the ignition switch to
the ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. (
ªFront
passenger air bag and status lightº page
1-41)
Safety Ð Seats, seat belts and supplemental restraint system1-33


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-34Safety Ð Seats, seat belts and supplemental restraint system
GUID-155F14E5-23E6-49AD-93CC-E222C01E22C6
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
GUID-628617B1-BEBB-45EC-95BA-BABB1B5F3DAEThis Supplemental Restraint System (SRS)
section contains important information concern-
ing the following systems:
.Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
. Front seat-mounted side-impact supple-
mental air bag
. Roof-mounted curtain side-impact supple-
mental air bag
. Seat belt pretensioner
Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest area of the
driver and front passenger in certain side impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is impacted.
Roof-mounted curtain side-impact supple-
mental air bag system: This system can help
cushion the impact force to the head of occupants in the front seating positions in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted.
These supplemental restraint systems are de-
signed to
supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (
ªSeat beltsº page 1-6)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
SUPPLEMENTAL RESTRAINT
SYSTEM


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0068

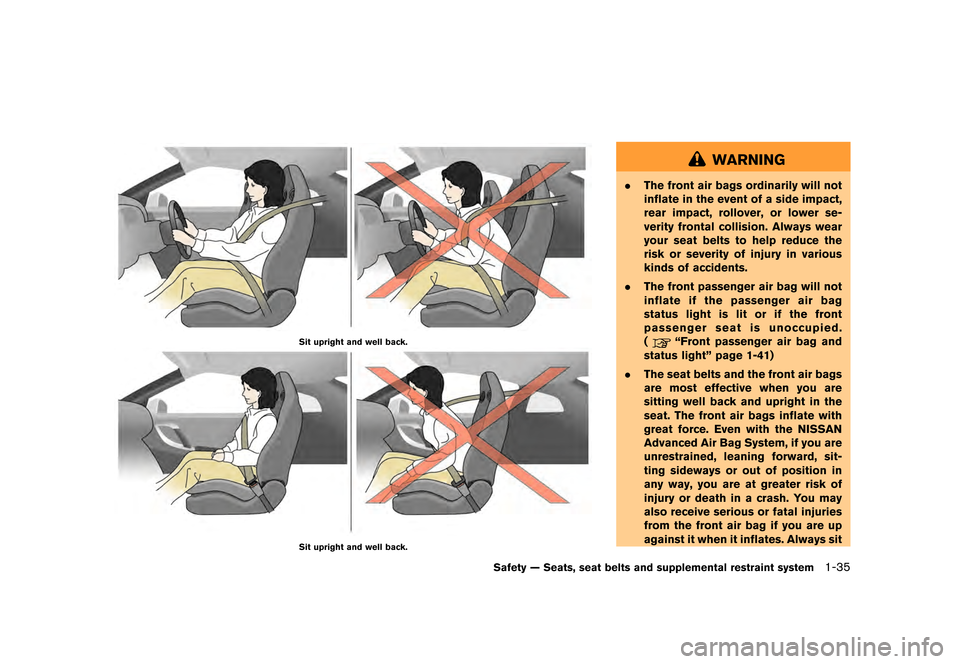

Sit upright and well back.
GPR0069
Sit upright and well back.
WARNING
.The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower se-
verity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.
. The front passenger air bag will not
inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied.
(
ªFront passenger air bag and
status lightº page 1-41)
. The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat. The front air bags inflate with
great force. Even with the NISSAN
Advanced Air Bag System, if you are
unrestrained, leaning forward, sit-
ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit
Safety Ð Seats, seat belts and supplemental restraint system1-35
