3-20Pre-driving checks and adjustments
GUID-0633F229-B467-45FE-9103-B35DC296FEAF
WARNING
.Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
(
ªExhaust gas (carbon monox-
ide)º page 5-3)
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the trunk closed, when
not in use, and prevent children's
access to Intelligent Keys.
GPC0019
TRUNK OPEN REQUEST SWITCHGUID-6E708169-EF6F-43B6-BFE4-7D9D7F9345CEThe trunk lid can be opened by pushing the
trunk open request switch
*Awhen the
Intelligent Key is within the operating range of
the trunk lock/unlock function regardless of the
inside lock knob position. (
ªIntelligent Key
systemº page 3-8)
JVP0441X
TRUNK LID RELEASE SWITCHGUID-7B424ABE-FD89-4A74-8791-DD50E9330050Press the trunk lid release switch to unlock the
trunk.
TRUNK


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVP0442X
TRUNK RELEASE POWER CANCEL
SWITCH
GUID-C3F10B46-4564-438B-8821-D0ED479D7D74When the switch located inside the glove box is
in the OFF position
*1, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid release switch, the trunk
open request switch or the TRUNK button on
the Intelligent Key.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with you. (
ªValet hand-offº page 3-3)
To connect the power to the trunk lid, push the
switch to the ON position
*2.
JVP0007X
Except for carbon trunk lid models
JVP0274X
For carbon trunk lid models
Pre-driving checks and adjustments3-21


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-22Pre-driving checks and adjustments
OPENING AND CLOSING THE
TRUNK
GUID-65C1E9C7-D2DB-4A24-AD4B-3F102183F9DDWhen opening the trunk, first unlock it then lift
up the trunk lid so that it is fully open.
When closing the trunk, lower the trunk lid and
press it until it is securely locked in place. The
strap
*A(except for carbon trunk lid models) or
the handle
*B(for carbon trunk lid models) can
be used when the trunk lid is dirty.
NOTICE
. Open and close the trunk without
grasping the rear spoiler. Grasping
the rear spoiler to open or close the
trunk may damage the spoiler.
. Do not leave the key inside the
trunk.
NOTE:
. To prevent the Intelligent Key from
being accidentally locked in the trunk,
lockout protection is equipped with the
Intelligent Key system. When the trunk
lid is closed with the Intelligent Key
inside the trunk, the outside buzzer will
sound and the trunk will open. .
The trunk of this vehicle is slightly
more difficult to close than an ordinary
vehicle (particularly when the vehicle is
new) . This is because the trunk rigidity
has been increased to handle the high
load on the rear spoiler during vehicle
operation. This does not indicate that
there is a malfunction. Check that the
trunk is securely locked.GPC0053
EMERGENCY TRUNK LID RELEASEGUID-21818568-6A48-432A-B44E-C863C437E102
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk lid securely latched, when not in
use, and prevent children's access to
Intelligent Keys.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

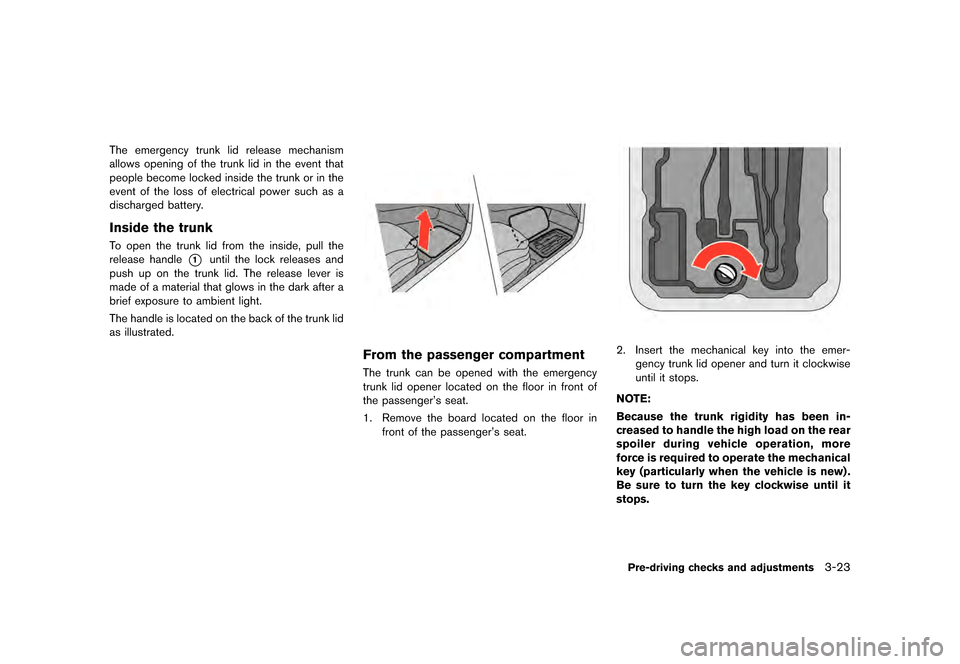

The emergency trunk lid release mechanism
allows opening of the trunk lid in the event that
people become locked inside the trunk or in the
event of the loss of electrical power such as a
discharged battery.
Inside the trunkGUID-93736B9C-28AB-4898-BD8D-0AAD68A7372ETo open the trunk lid from the inside, pull the
release handle
*1until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle is located on the back of the trunk lid
as illustrated.
GPC0023
From the passenger compartmentGUID-FDFAD64C-52EB-4425-A1C3-0748D66F3055The trunk can be opened with the emergency
trunk lid opener located on the floor in front of
the passenger's seat.
1. Remove the board located on the floor in front of the passenger's seat.
GPC0024
2. Insert the mechanical key into the emer-gency trunk lid opener and turn it clockwise
until it stops.
NOTE:
Because the trunk rigidity has been in-
creased to handle the high load on the rear
spoiler during vehicle operation, more
force is required to operate the mechanical
key (particularly when the vehicle is new) .
Be sure to turn the key clockwise until it
stops.
Pre-driving checks and adjustments3-23


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-24Pre-driving checks and adjustments
GUID-21A15616-63E9-4EF9-8AA6-AB1104EDD26DThe fuel-filler door is located on the right and
rear side of the vehicle.
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on. .
Never pour fuel into the throttle
body to attempt to start your vehi-
cle.
. Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
Ð Always place the container on
the ground when filling.
Ð Do not use electronic devices when filling.
Ð Keep the pump nozzle in contact with the container while you are
filling it.
Ð Use only approved portable fuel containers for flammable liquid.
NOTICE
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
. Insert the cap straight into the fuel- filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the
Malfunction Indicator
Light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, it is
recommended you have the vehicle
inspected by a GT-R certified
NISSAN dealer.
(
ªMalfunction Indicator Light
(MIL)º page 2-32)
. This vehicle includes a system that
can supply fuel even during high-G
(gravity) turns. The fuel tank pres-
sure is higher when the vehicle is
hot. If the vehicle is refueled when
the vehicle is hot, the fuel pump may
automatically shut off before the
tank is full. This does not indicate
that there is a malfunction.
FUEL-FILLER DOOR


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
OPENING THE FUEL-FILLER DOORGUID-E42331B5-4C69-47DB-9209-AF5C9E8128241. Unlock the fuel-filler door by using one of thefollowing operations.
.Push the door handle request switch
with the Intelligent Key carried with you.
.Push the UNLOCK button on the In-
telligent Key.
.Push the power door lock switch to the
UNLOCK position.
GPC0031
2. Press the rear side of the fuel-filler door to release the door lock, and open the door.
SPA2601
3. Turn the cap*1slowly counterclockwise to
remove it.
During refueling, place the cap on the inside
of the door
*2.
CLOSING THE FUEL-FILLER DOORGUID-1C34BC20-0EA9-440E-B444-36CD0F4CEE1F1. Turn the cap clockwise until a single click
sound is heard.
2. Close the door. Lock the fuel-filler door by using one of the following operations.
. Push the door handle request switch with
the Intelligent Key carried with you.
. Push the LOCK button on the Intelligent
Key.
Pre-driving checks and adjustments3-25


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-26Pre-driving checks and adjustments
.Push the power door lock switch to the
LOCK position.
NOTE:
After a single click is heard and the cap is
released it may move slightly. This is not a
malfunction.GUID-E04A7D41-5E84-41FE-9EB3-C93A0BB45A48
WARNING
. Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver's air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
GPC0034
TILT/TELESCOPIC STEERING COL-
UMN
GUID-D9D1CAA1-1304-4460-A91F-66CDCAF2A2EC
Tilt adjustmentGUID-13D7AAB7-7F4B-4860-AF59-09CA0B0DF856This adjusts up/down the position of the
steering wheel.
1. Press lever
*Adown*1.
2. Move the steering wheel up/down
*2and
stop it in an appropriate position.
3. Lift up lever
*Ato lock the steering wheel in
position
*3.
STEERING WHEEL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPC0035

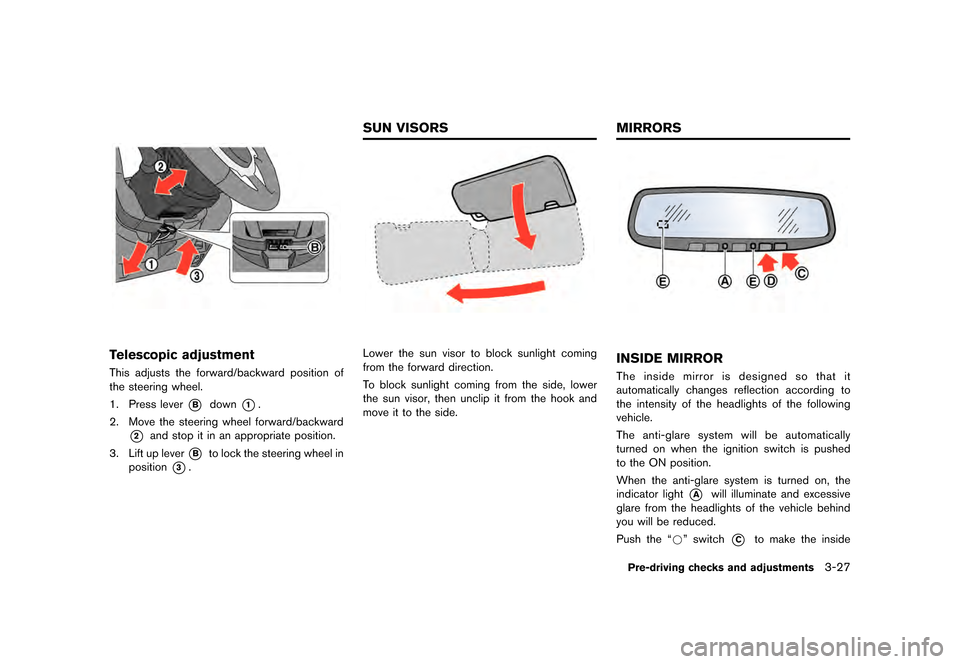

Telescopic adjustmentGUID-D95E02D8-F9A2-4DDE-AACE-FFD2717536EEThis adjusts the forward/backward position of
the steering wheel.
1. Press lever
*Bdown*1.
2. Move the steering wheel forward/backward
*2and stop it in an appropriate position.
3. Lift up lever
*Bto lock the steering wheel in
position
*3.
GUID-86A7CDD6-6378-498A-8130-F86FE7672682
GEC0001
Lower the sun visor to block sunlight coming
from the forward direction.
To block sunlight coming from the side, lower
the sun visor, then unclip it from the hook and
move it to the side.
GUID-8A538B66-EC24-4EDB-9944-98AD45B85945
GPC0050
INSIDE MIRRORGUID-768F94B5-487A-4A7D-9282-BD6981380E00The inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the ª*º switch
*Cto make the inside
Pre-driving checks and adjustments3-27
SUN VISORS MIRRORS
