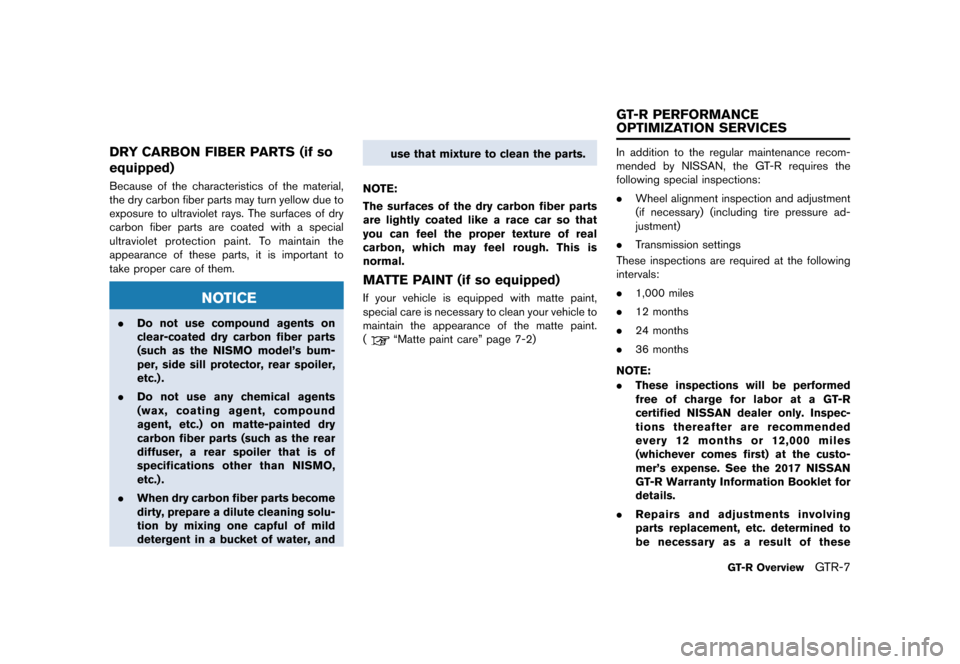

DRY CARBON FIBER PARTS (if so
equipped)
GUID-A5D66EC9-0E37-4FF9-8085-2F65570AF800Because of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu-
tion by mixing one capful of mild
detergent in a bucket of water, and use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.
MATTE PAINT (if so equipped)GUID-BF917B14-61A0-4A17-8901-FD06A89D8180If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
(
ªMatte paint careº page 7-2)
GUID-DECA80D5-2F0D-4E71-9C55-2DBC1BDC8DC9In addition to the regular maintenance recom-
mended by NISSAN, the GT-R requires the
following special inspections:
. Wheel alignment inspection and adjustment
(if necessary) (including tire pressure ad-
justment)
. Transmission settings
These inspections are required at the following
intervals:
. 1,000 miles
. 12 months
. 24 months
. 36 months
NOTE:
. These inspections will be performed
free of charge for labor at a GT-R
certified NISSAN dealer only. Inspec-
tions thereafter are recommended
every 12 months or 12,000 miles
(whichever comes first) at the custo-
mer's expense. See the 2017 NISSAN
GT-R Warranty Information Booklet for
details.
. Repairs and adjustments involving
parts replacement, etc. determined to
be necessary as a result of these
GT-R OverviewGTR-7
GT-R PERFORMANCE
OPTIMIZATION SERVICES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-8GT-R Overview
inspections are performed at the cus-
tomer's expense.
. See the 2017 NISSAN GT-R Warranty
Information Booklet for significant lim-
itations, exclusions and possible void-
ing of your warranty resulting from
failure to have these necessary inspec-
tions, repairs and/or adjustments per-
formed.
. See the 2017 NISSAN GT-R Service and
Maintenance Guide for a detailed ex-
planation of the GT-R Performance
Optimization Services.

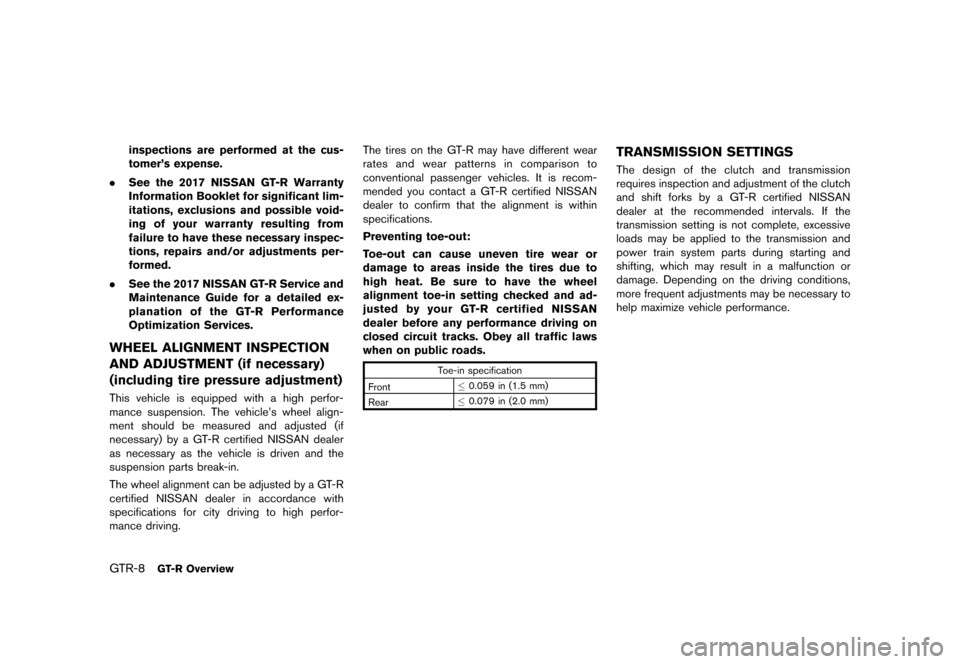

WHEEL ALIGNMENT INSPECTION
AND ADJUSTMENT (if necessary)
(including tire pressure adjustment)
GUID-0CDF0D6E-5F2A-4B1E-B66E-3CB1C85B9A7FThis vehicle is equipped with a high perfor-
mance suspension. The vehicle's wheel align-
ment should be measured and adjusted (if
necessary) by a GT-R certified NISSAN dealer
as necessary as the vehicle is driven and the
suspension parts break-in.
The wheel alignment can be adjusted by a GT-R
certified NISSAN dealer in accordance with
specifications for city driving to high perfor-
mance driving. The tires on the GT-R may have different wear
rates and wear patterns in comparison to
conventional passenger vehicles. It is recom-
mended you contact a GT-R certified NISSAN
dealer to confirm that the alignment is within
specifications.
Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \024
0.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
TRANSMISSION SETTINGSGUID-62FE55B6-F107-48E8-B057-B9C43E33C951The design of the clutch and transmission
requires inspection and adjustment of the clutch
and shift forks by a GT-R certified NISSAN
dealer at the recommended intervals. If the
transmission setting is not complete, excessive
loads may be applied to the transmission and
power train system parts during starting and
shifting, which may result in a malfunction or
damage. Depending on the driving conditions,
more frequent adjustments may be necessary to
help maximize vehicle performance.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-16738C6C-70CF-44B1-AFCF-2FC869A769A2
NOTICE
Follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced vehicle performance.
Please observe the following types of driving
until the mileage shown below has been
reached.
Until 300 miles (500 km):
. Do not depress the accelerator pedal more
than halfway and avoid rapid acceleration.
. Drive with the engine speed kept at less
than 3,500 RPM.
. Avoid unnecessary quick steering, abrupt
braking and driving on poor roads.
300 to 600 miles (500 to 1,000 km):
. Avoid rapid acceleration in a low gear (1st to
3rd gears) with the accelerator pedal fully
depressed. Depress the pedal slowly.
. Avoid unnecessary quick steering and
abrupt braking. .
Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
600 to 1,200 miles (1,000 to 2,000 km):
. Drive with the engine speed kept relatively
high with the shift lever in the
&Mposition.
Shifting is recommended between 1st and
4th gears.
. Avoid unnecessary quick steering and
abrupt braking.
. Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
Even though the mileage reaches over 1,200
miles (2,000 km) , the clutch may take longer to
properly engage if the vehicle is mainly driven in
town at a low speed. NISSAN recommends
breaking in the clutch at a GT-R certified
NISSAN dealer. Always perform the transmis-
sion setting after breaking in the clutch. If the
transmission setting is not complete, excessive
loads may be applied to the transmission and
power train system parts during starting and
shifting, which may result in a malfunction or
damage.
WHEEL ALIGNMENTGUID-3A4A9631-D406-416A-9181-05D24295E68BDo not adjust the wheel alignment until the
mileage reaches 1,000 miles (1,600 km). Until
then, the suspension may not engage enough
and the height may be higher.
However, make sure to adjust the alignment
after 1,000 miles (1,600 km) .
The wheel alignment can be adjusted by a GT-R
certified NISSAN dealer in accordance with
specifications for city driving to high perfor-
mance driving.
The tires on the GT-R may have different wear
rates and wear patterns in comparison to
conventional passenger vehicles. It is recom-
mended you contact a GT-R certified NISSAN
dealer to confirm that the alignment is within
specifications.
GT-R OverviewGTR-9

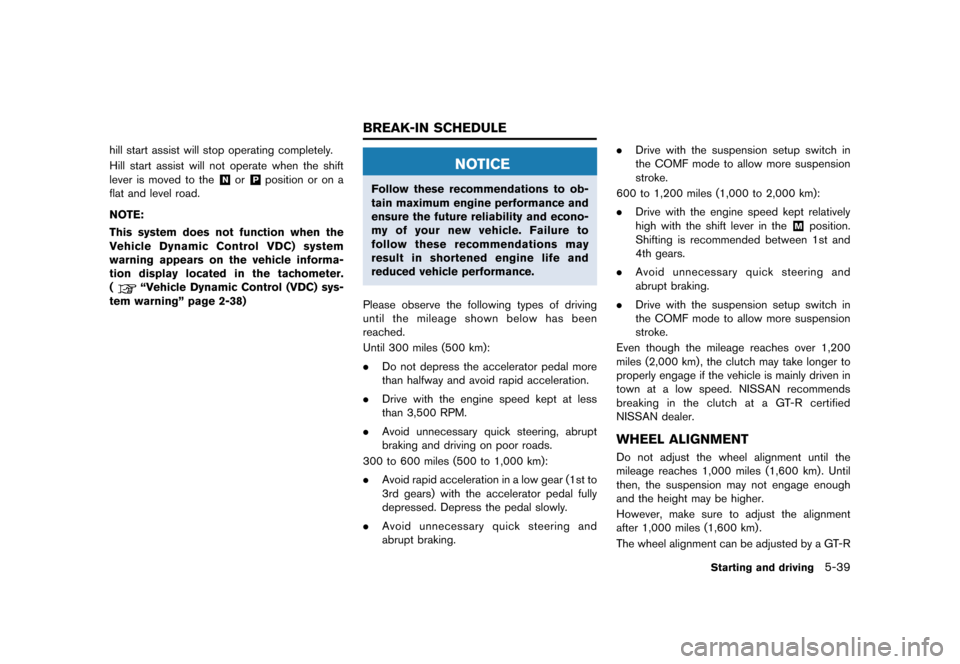

BREAK-IN SCHEDULE


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
performance driving.
.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the areas surrounding of the cata-
lytic converter for heat deterioration.
. Always perform the transmission setting.
After that, adjust the clutch clearance so
that the clearance is less than the clearance
used for daily driving. Your GT-R certified
NISSAN dealer has the necessary informa-
tion and equipment to set the clutch
clearance to the correct specification. The
clearance used for daily driving increases
clutch heat generated during Performance
Driving. This leads to an increase in tem-
perature of the transmission oil. In addition, a
more direct shifting feel can be obtained by
reducing the clutch clearance for Perfor-
mance Driving. The clutch clearance should
be reset to the daily driving specification
after Performance Driving. It is recom-
mended you see a GT-R certified NISSAN
dealer for information.NOTICE
Failure to have the clutch properly
adjusted before performance driving
may cause the transmission oil tem-
perature to increase which may cause
transmission damage.

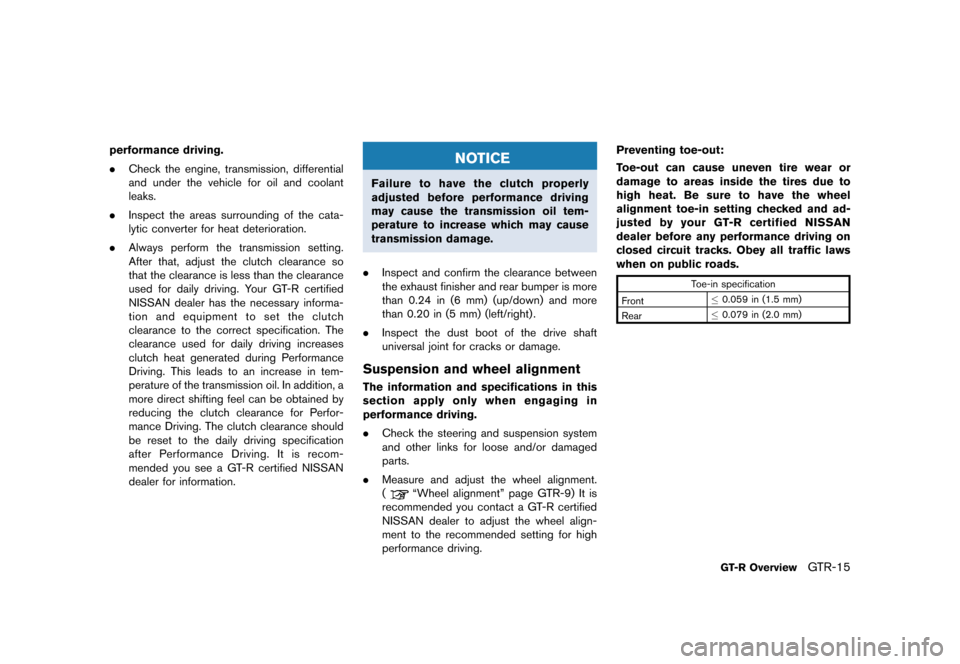

. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
Suspension and wheel alignmentGUID-54A24DDC-5371-47E4-A29D-23C634F0898DThe information and specifications in this
section apply only when engaging in
performance driving.
.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment.
(
ªWheel alignmentº page GTR-9) It is
recommended you contact a GT-R certified
NISSAN dealer to adjust the wheel align-
ment to the recommended setting for high
performance driving. Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \024
0.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
GT-R OverviewGTR-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-22GT-R Overview

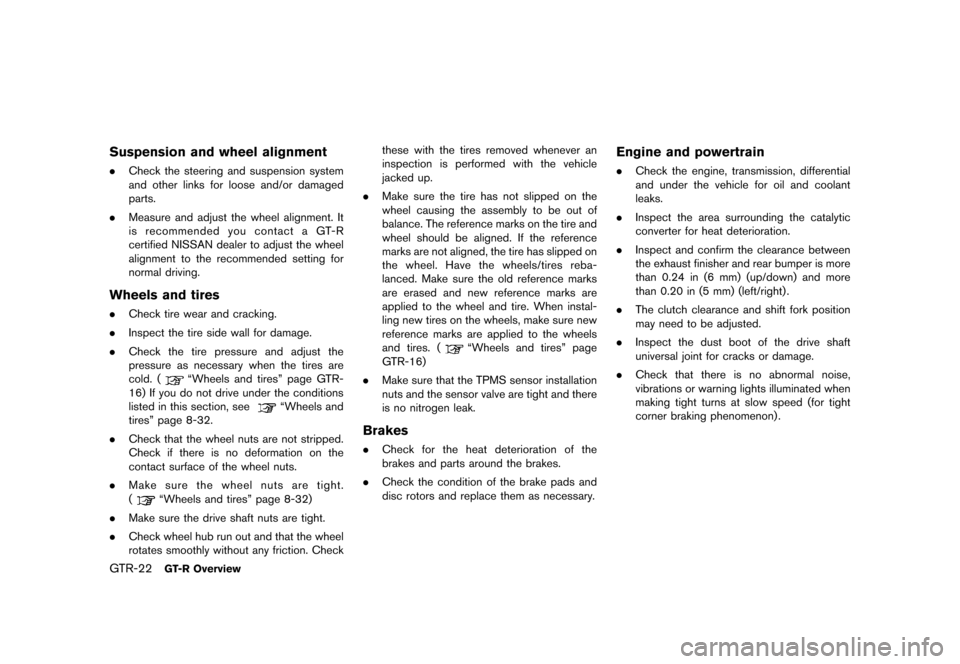

Suspension and wheel alignmentGUID-717B8FCC-38D9-49B8-900D-CE3AC60083CD.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment. It
is recommended you contact a GT-R
certified NISSAN dealer to adjust the wheel
alignment to the recommended setting for
normal driving.
Wheels and tiresGUID-DF739C54-232F-4D22-8411-3447FCC6AF9E.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page GTR-
16) If you do not drive under the conditions
listed in this section, see
ªWheels and
tiresº page 8-32.
. Check that the wheel nuts are not stripped.
Check if there is no deformation on the
contact surface of the wheel nuts.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires. (
ªWheels and tiresº page
GTR-16)
. Make sure that the TPMS sensor installation
nuts and the sensor valve are tight and there
is no nitrogen leak.
BrakesGUID-9F9BF18B-725B-4D67-9B77-FE9C5E2B01AC.Check for the heat deterioration of the
brakes and parts around the brakes.
. Check the condition of the brake pads and
disc rotors and replace them as necessary.
Engine and powertrainGUID-6D6A93B6-167E-482B-B7DB-6E5B685097F5.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the area surrounding the catalytic
converter for heat deterioration.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. The clutch clearance and shift fork position
may need to be adjusted.
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
. Check that there is no abnormal noise,
vibrations or warning lights illuminated when
making tight turns at slow speed (for tight
corner braking phenomenon) .


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

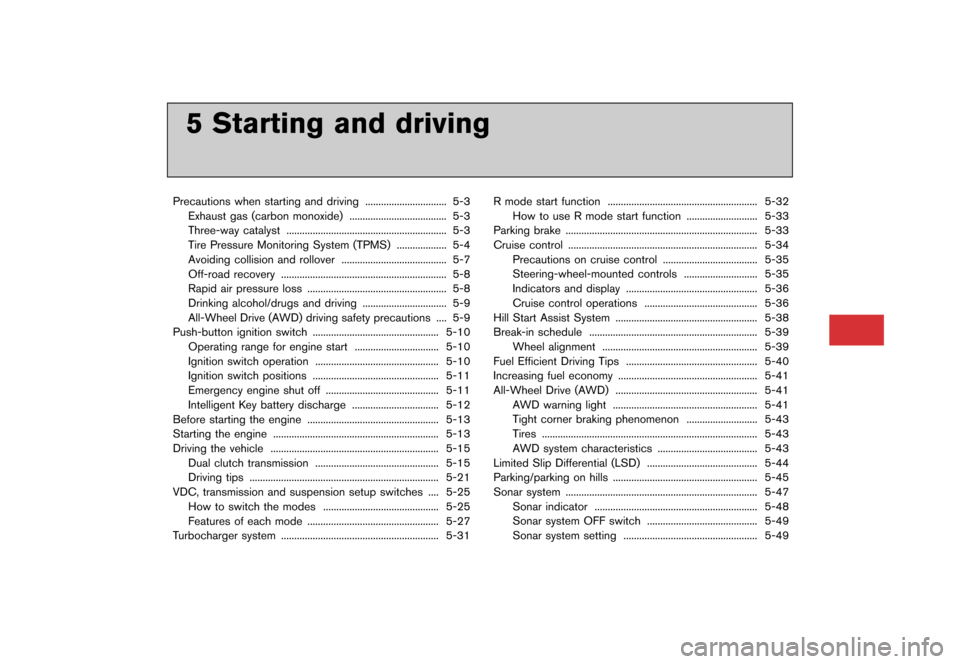

5 Starting and driving
Precautions when starting and driving................................... 5-3
Exhaust gas (carbon monoxide) ....
..................................... 5-3
Three-way catalyst ................................................................. 5-3
Tire Pressure Monitoring System (TPMS) ....
................... 5-4
Avoiding collision and rollover ............................................ 5-7
Off-road recovery ................................................................... 5-8
Rapid air pressure loss ....
..................................................... 5-8
Drinking alcohol/drugs and driving ....
................................ 5-9
All-Wheel Drive (AWD) driving safety precautions ....
.... 5-9
Push-button ignition switch ....
................................................ 5-10
Operating range for engine start .................................... 5-10
Ignition switch operation ................................................... 5-10
Ignition switch positions .................................................... 5-11
Emergency engine shut off ....
........................................... 5-11
Intelligent Key battery discharge ..................................... 5-12
Before starting the engine ...................................................... 5-13
Starting the engine ................................................................... 5-13
Driving the vehicle .................................................................... 5-15
Dual clutch transmission ................................................... 5-15
Driving tips ............................................................................\
5-21
VDC, transmission and suspension setup switches ....
.... 5-25
How to switch the modes ................................................ 5-25
Features of each mode ....
.................................................. 5-27
Turbocharger system ....
............................................................ 5-31 R mode start function
............................................................. 5-32
How to use R mode start function ....
........................... 5-33
Parking brake ....
........................................................................\
. 5-33
Cruise control ....
........................................................................\
5-34
Precautions on cruise control ....
.................................... 5-35
Steering-wheel-mounted controls ................................ 5-35
Indicators and display ...................................................... 5-36
Cruise control operations ............................................... 5-36
Hill Start Assist System ....
...................................................... 5-38
Break-in schedule .................................................................... 5-39
Wheel alignment ............................................................... 5-39
Fuel Efficient Driving Tips ...................................................... 5-40
Increasing fuel economy ....
..................................................... 5-41
All-Wheel Drive (AWD) .......................................................... 5-41
AWD warning light ........................................................... 5-41
Tight corner braking phenomenon ............................... 5-43
Tires ....
........................................................................\
.......... 5-43
AWD system characteristics ....
...................................... 5-43
Limited Slip Differential (LSD) .............................................. 5-44
Parking/parking on hills ....
....................................................... 5-45
Sonar system ....
........................................................................\
. 5-47
Sonar indicator .................................................................. 5-48
Sonar system OFF switch .............................................. 5-49
Sonar system setting ....................................................... 5-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
hill start assist will stop operating completely.
Hill start assist will not operate when the shift
lever is moved to the
&Nor&Pposition or on a
flat and level road.
NOTE:
This system does not function when the
Vehicle Dynamic Control VDC) system
warning appears on the vehicle informa-
tion display located in the tachometer.
(
ªVehicle Dynamic Control (VDC) sys-
tem warningº page 2-38)
GUID-D6223DEC-E503-4824-AF95-56C96903CD3E
NOTICE
Follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced vehicle performance.

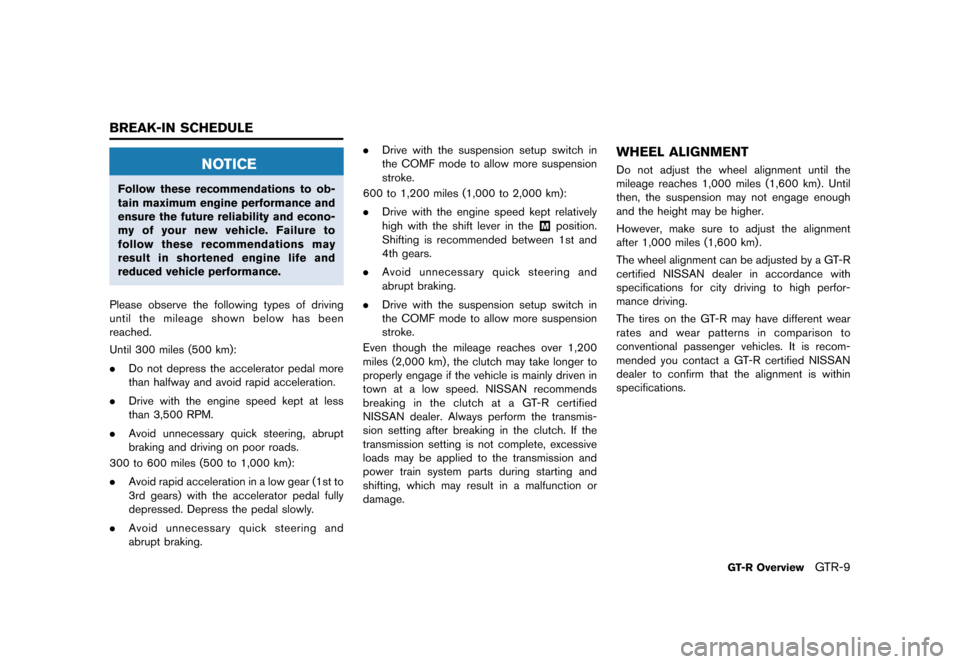

Please observe the following types of driving
until the mileage shown below has been
reached.
Until 300 miles (500 km):
. Do not depress the accelerator pedal more
than halfway and avoid rapid acceleration.
. Drive with the engine speed kept at less
than 3,500 RPM.
. Avoid unnecessary quick steering, abrupt
braking and driving on poor roads.
300 to 600 miles (500 to 1,000 km):
. Avoid rapid acceleration in a low gear (1st to
3rd gears) with the accelerator pedal fully
depressed. Depress the pedal slowly.
. Avoid unnecessary quick steering and
abrupt braking. .
Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
600 to 1,200 miles (1,000 to 2,000 km):
. Drive with the engine speed kept relatively
high with the shift lever in the
&Mposition.
Shifting is recommended between 1st and
4th gears.
. Avoid unnecessary quick steering and
abrupt braking.
. Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
Even though the mileage reaches over 1,200
miles (2,000 km) , the clutch may take longer to
properly engage if the vehicle is mainly driven in
town at a low speed. NISSAN recommends
breaking in the clutch at a GT-R certified
NISSAN dealer.
WHEEL ALIGNMENTGUID-521F5854-07A2-4AA7-8ABC-458B6FD6D6B7Do not adjust the wheel alignment until the
mileage reaches 1,000 miles (1,600 km). Until
then, the suspension may not engage enough
and the height may be higher.
However, make sure to adjust the alignment
after 1,000 miles (1,600 km) .
The wheel alignment can be adjusted by a GT-R
Starting and driving5-39
BREAK-IN SCHEDULE
