2017 NISSAN GT-R buttons


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

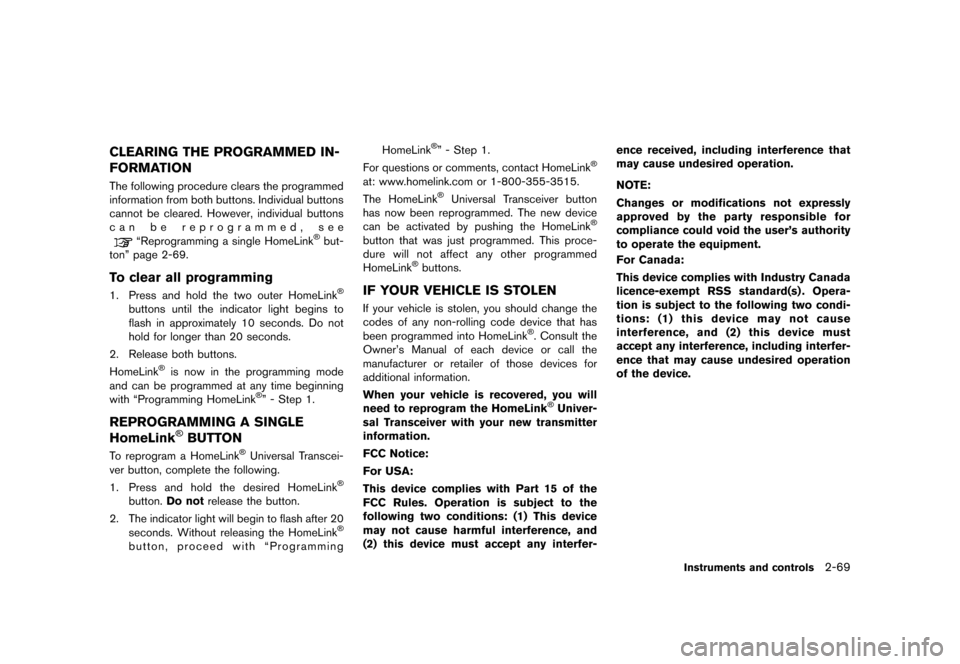

CLEARING THE PROGRAMMED IN-
FORMATION
GUID-AEA9A6F7-0ACF-4AED-9153-A2742F0F899DThe following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see
ªReprogramming a single HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-8Pre-driving checks and adjustments
NOTICE
Do not grasp the door pockets to open
and close the doors. Doing so may
damage the pockets.
GUID-D1815B87-3909-4C50-9EE8-0317B45F9BF7
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The Federal Aviation
Agency (FAA) advises the radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
. The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions. In such cases, correct the
operating conditions before using the In-
telligent Key function or use the mechanical
key.
Ð When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
Ð When in possession of wireless equip- ment, such as a cellular telephone,
transceiver, and CB radio.
Ð When the Intelligent Key is in contact with or covered by metallic materials.
INTELLIGENT KEY SYSTEM


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-12Pre-driving checks and adjustments
Opening trunk lid:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push the trunk open request switch*Afor
more than 1 second.
2. The trunk will unlatch. An outside chime will sound four times.
3. Raise the trunk lid to open the trunk.
NOTE:
. To prevent the Intelligent Key from
being accidentally locked in the trunk,
lockout protection is equipped with the
Intelligent Key system.
. When the trunk lid is closed with the
Intelligent Key inside the trunk, the
outside buzzer will sound and the trunk
will open.
Battery saver systemGUID-91EFC3C5-A7AD-45AD-B005-9912B60918E5When all the following conditions are met for a
period of time, the battery saver system will cut
off the power supply to prevent battery dis-
charge.
.The ignition switch is in the ACC position,
and
. All doors are closed, and
. The shift lever is in the
&Pposition.
REMOTE KEYLESS ENTRY SYSTEMGUID-1BAEFAAE-3F26-4329-A023-6C2581610361It is possible to lock/unlock all doors, fuel-filler
door, and activate the panic alarm by pushing
the buttons on the Intelligent Key.
NOTE:
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
Remote keyless entry operating
range
GUID-5E1F84D7-C1B0-48CB-BA95-21FAE7476E67The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.)
The lock and unlock buttons on the Intelligent
Key will not operate when:
.the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m) .
. the Intelligent Key battery runs down.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, approach
the vehicle to about 3 ft (1 m) from the door.
GPC0052
Remote keyless entry operationGUID-EDC7B50D-43D5-4AB4-8FF4-5C616D932354
NOTE:
. When the driver's door is locked or
unlocked, the fuel-filler door is auto-
matically locked or unlocked at the
same time.
. When you lock or unlock the doors or
the trunk lid, the hazard indicator will
flash and the horn (or the outside
chime) will sound as a confirmation.
(
ªSetting hazard indicator and
horn modeº page 3-13)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Locking doors:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Move the shift lever to the&Pposition, push
the ignition switch to the OFF position, and
make sure you carry the Intelligent Key with
you.
2. Close all the doors.
3. Push the LOCK
button*1on the
Intelligent Key.
4. All the doors will lock.
5. The hazard indicator flashes twice and the horn chirps once.
NOTE:
. Doors will lock with the Intelligent Key
while the ignition switch is in the ACC
or ON position.
. Doors will not lock with the Intelligent
Key while any door is open.
Unlocking doors:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push the UNLOCKbutton*2on the
Intelligent Key once.
2. The hazard indicator flashes once. The
driver's door will unlock.
3. Push the UNLOCK
button*2on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically unless one of the following operations is performed within 1
minute after pushing the UNLOCK button on the
Intelligent Key while the doors are locked. If
during this 1-minute time period, the UNLOCK
button on the Intelligent Key is pushed, all doors
will be locked automatically after another 1
minute.
.
Opening any door
. Pushing the ignition switch
Opening trunk lid:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push the TRUNKbutton*3on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*4on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the Intelligent Key
are pushed. (Note: the panic button
should be pushed for more than 1 second to turn the panic alarm off.)
SETTING HAZARD INDICATOR AND
HORN MODE
GUID-07DEE234-66C5-4B99-B726-352548B56F15This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
When you lock/unlock the doors, the hazard
indicator will flash and the horn (or the outside
chime) will sound as a confirmation.
The following descriptions show how the hazard
indicator and horn will activate when locking/
unlocking the doors and how the horn feature
can be deactivated.
Pre-driving checks and adjustments3-13


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Hazard indicator modeGUID-726602F9-E1FB-4DB9-B75D-07B8D463DAFB
DOOR LOCK DOOR UNLOCKTRUNK UNLOCK
Intelligent Key system
(Using door handle request
switch or trunk open request switch) HAZARD -
twice HAZARD - none HAZARD - none
Remote keyless entry sys- tem
(Using
,orbutton) HAZARD -
twice HAZARD - none HAZARD - none
Switching procedureGUID-64A2F78A-C474-415A-9CE6-85F8D747589DThe horn beep feature can be deactivated with
the following procedures.
1. Push the LOCK
and UNLOCK
buttons simultaneously for more than 2
seconds.
2. The hazard indicator flashes 3 times.
3. The horn beep feature will be deactivated (Hazard indicator mode) .
4. To reactivate the horn beep feature (Hazard indicator and horn mode) , push the buttons
once more. The hazard indicator flashes
once and the horn beeps once.
NOS2390
Pre-driving checks and adjustments3-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
4-12Display screen, heater, air conditioner and audio systems
zone control button will come on. To turn off
the passenger's side temperature control,
push the DUAL zone control button.
Heating (A/C OFF):
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The air conditioner does not activate in this
mode. Only use this mode when you need to
heat the vehicle.
1. Push the AUTO button on. (The indicator light on the button will illuminate.)
2. If the indicator light on the A/C button is turned on, push the A/C button. (The
indicator light will turn off.)
3. Turn the temperature control dial on the driver's side to set the desired temperature.
.The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
.Do not set the temperature lower than
the outside air temperature or the system
may not work properly.
.Not recommended if windows fog up.
4. You can individually set driver's and front passenger's side temperature using each
temperature control dial. When the DUAL
zone control button is pushed or passen-
ger's side temperature control dial is turned,
the DUAL indicator light will come on. To turn off the passenger's side temperature
control, push the DUAL zone control button.
Dehumidified defrosting or defogging:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push thefront defroster button on. (The
indicator light on the button will come on.)
2. Turn the temperature control dial on the driver's side to set the desired temperature.
.To quickly remove ice from the outside of
the windows, use the
fan speed
control button to set the fan speed to
maximum.
.As soon as possible after the windshield
is clean, push the AUTO button to return
to the automatic mode.
When the
front defroster button is pushed,
the air conditioner will automatically be turned
on at outside temperatures above 368F (28C) to
defrost the windshield, and the air recirculation
mode will automatically be turned off. Outside
air is drawn into the passenger compartment to
improve the defrosting performance.
Manual operationGUID-30F047BE-C865-4A7A-B732-C613CB8070B7
Fan speed control:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Push thefan speed control button to
manually control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed. Air intake control:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9.
Push theair recirculation button to
recirculate interior air inside the vehicle. The
indicator light on the button will come
on.
. Push the
outside air circulation button
to draw outside air into the passenger
compartment. The
indicator light on
the button will come on.
. To switch to automatic control mode, push
and hold the
air recirculation button or
the
outside air circulation button
(whichever indicator light is illuminated) for
about 2 seconds. The indicator lights (both
air recirculation and outside air circulation
buttons) will flash twice, and then the air
intake will be controlled automatically.
Air flow control:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Push the MODE button repeatedly to change
the air flow mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors and the foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and footoutlets.
