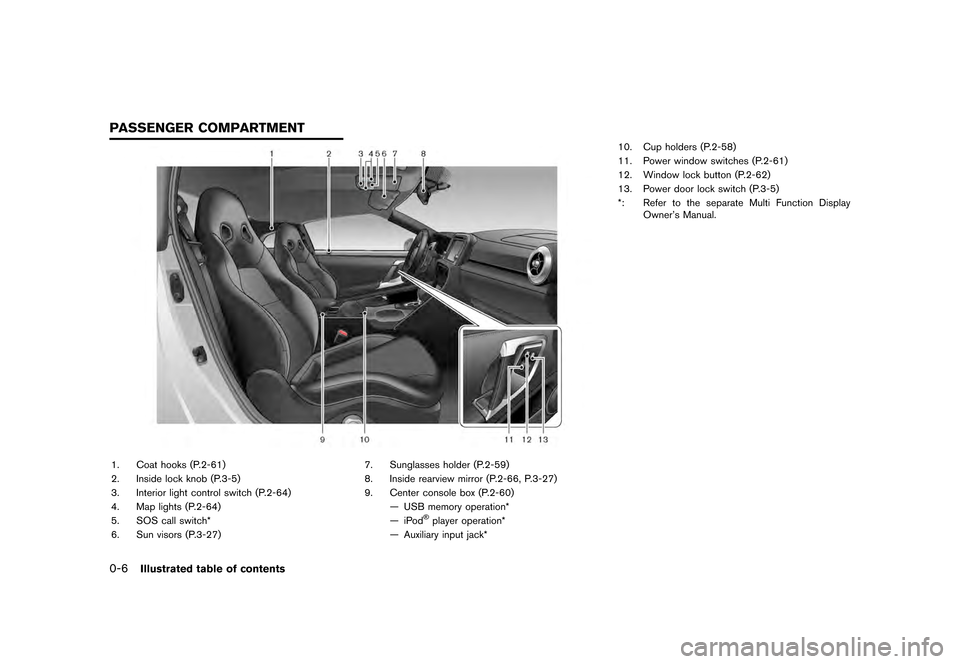

0-6Illustrated table of contents
GUID-29D36A68-B252-4B14-87BC-67A3B26D06AB
JVC0923X
1. Coat hooks (P.2-61)
2. Inside lock knob (P.3-5)
3. Interior light control switch (P.2-64)
4. Map lights (P.2-64)
5. SOS call switch*
6. Sun visors (P.3-27)7. Sunglasses holder (P.2-59)
8. Inside rearview mirror (P.2-66, P.3-27)
9. Center console box (P.2-60)
Ð USB memory operation*
Ð iPod
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-60Instruments and controls
JVI1464X
GLOVE BOXGUID-82CE5C2D-7F3D-4F59-B569-AD7C24D964A3
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
Pull the knob toward you to open the glove box.
To close the glove box, press the lid forward until
it locks in place.
JVI1465X
Use the mechanical key to lock*1and unlock
*2the glove box. (ªMechanical keyº page
3-3)
The mechanical key stops when it is inserted
approximately halfway in.
GEC0007
CONSOLE BOXGUID-E7E4F929-20D0-41B9-9DCA-197EDCD2A091Lift up the lock knob*1to open the lid.
To close the center console box, press on the lid
until it locks in place.
NOTE:
The console box contains a power outlet
(except for NISMO models) or a USB
(Universal Serial Bus) connection port (for
NISMO models) . This USB connection port
is reserved for future use for features that
have yet to be developed. Do not use for
unapproved USB devices.
