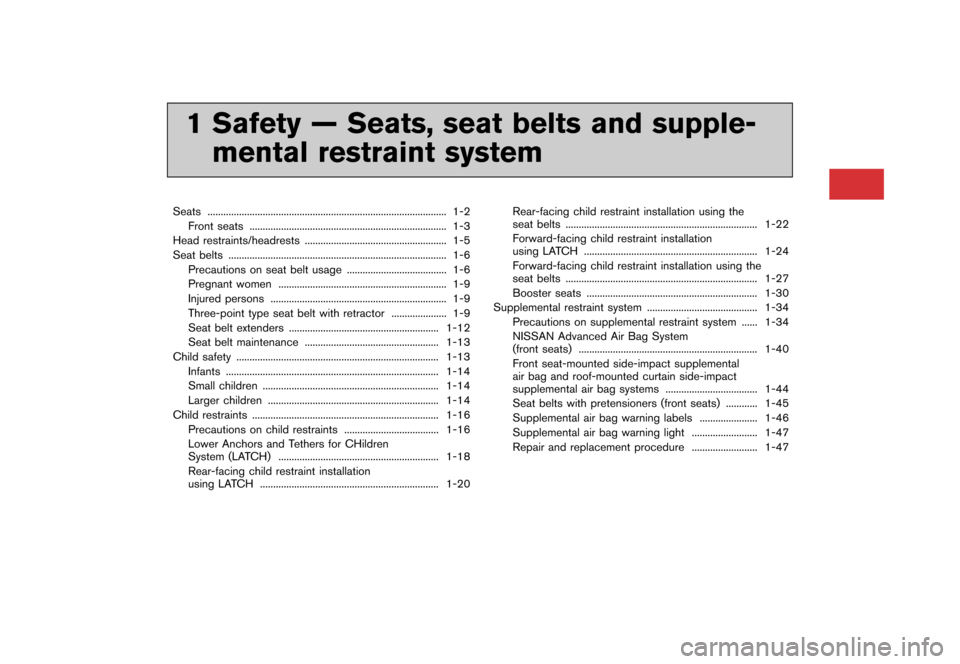

1 Safety Ð Seats, seat belts and supple-mental restraint system
Seats ............................................................................\
................... 1-2
Front seats ............................................................................\
... 1-3
Head restraints/headrests ....
...................................................... 1-5
Seat belts ....
........................................................................\
........... 1-6
Precautions on seat belt usage ....
...................................... 1-6
Pregnant women .................................................................... 1-9
Injured persons ....................................................................... 1-9
Three-point type seat belt with retractor ......................... 1-9
Seat belt extenders ....
......................................................... 1-12
Seat belt maintenance ....................................................... 1-13
Child safety ....
........................................................................\
..... 1-13
Infants ....
........................................................................\
......... 1-14
Small children ....
................................................................... 1-14
Larger children ..................................................................... 1-14
Child restraints ....
....................................................................... 1-16
Precautions on child restraints ........................................ 1-16
Lower Anchors and Tethers for CHildren
System (LATCH) ................................................................. 1-18
Rear-facing child restraint installation
using LATCH ........................................................................ 1-20 Rear-facing child restraint installation using the
seat belts
....
........................................................................\
. 1-22
Forward-facing child restraint installation
using LATCH ...................................................................... 1-24
Forward-facing child restraint installation using the
seat belts ....
........................................................................\
. 1-27
Booster seats ....
................................................................. 1-30
Supplemental restraint system ....
.......................................... 1-34
Precautions on supplemental restraint system ....
...... 1-34
NISSAN Advanced Air Bag System
(front seats) ........................................................................ 1-40
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ....................................... 1-44
Seat belts with pretensioners (front seats) ....
............ 1-45
Supplemental air bag warning labels .......................... 1-46
Supplemental air bag warning light ............................. 1-47
Repair and replacement procedure ............................. 1-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVR0172X

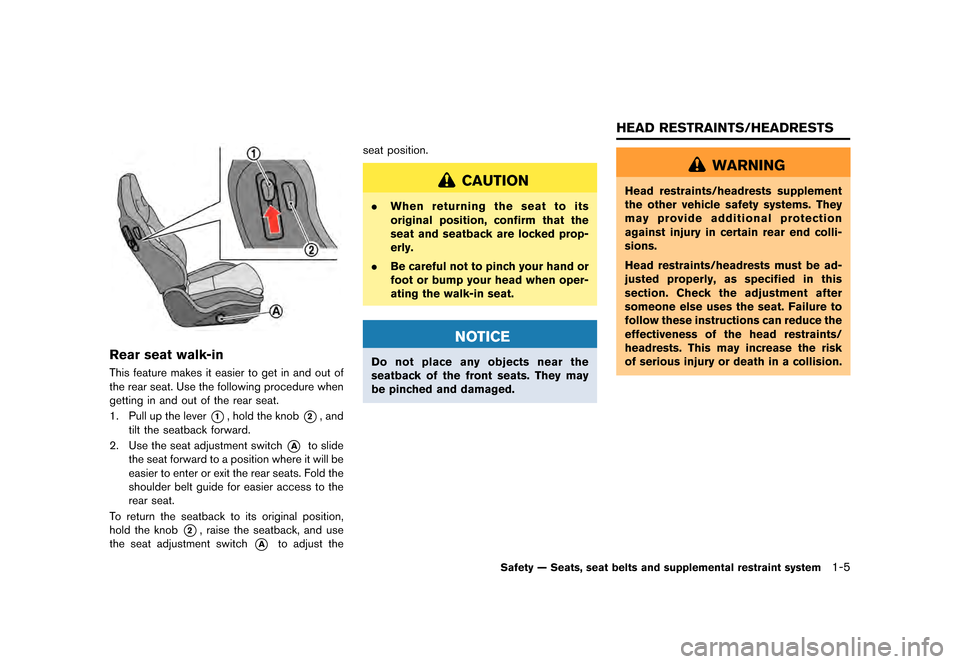

Rear seat walk-inGUID-9FCD4C3B-351D-4DCA-866D-2BE071D77007This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
1. Pull up the lever
*1, hold the knob*2, and
tilt the seatback forward.
2. Use the seat adjustment switch
*Ato slide
the seat forward to a position where it will be
easier to enter or exit the rear seats. Fold the
shoulder belt guide for easier access to the
rear seat.
To return the seatback to its original position,
hold the knob
*2, raise the seatback, and use
the seat adjustment switch
*Ato adjust the seat position.
CAUTION
.
When returning the seat to its
original position, confirm that the
seat and seatback are locked prop-
erly.
. Be careful not to pinch your hand or
foot or bump your head when oper-
ating the walk-in seat.
NOTICE
Do not place any objects near the
seatback of the front seats. They may
be pinched and damaged.
GUID-5EC5F9C2-F1CC-4995-A1C1-9ADD739874C1
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions.
Head restraints/headrests must be ad-
justed properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Failure to
follow these instructions can reduce the
effectiveness of the head restraints/
headrests. This may increase the risk
of serious injury or death in a collision.
Safety Ð Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-6Safety Ð Seats, seat belts and supplemental restraint system
JVR0323X

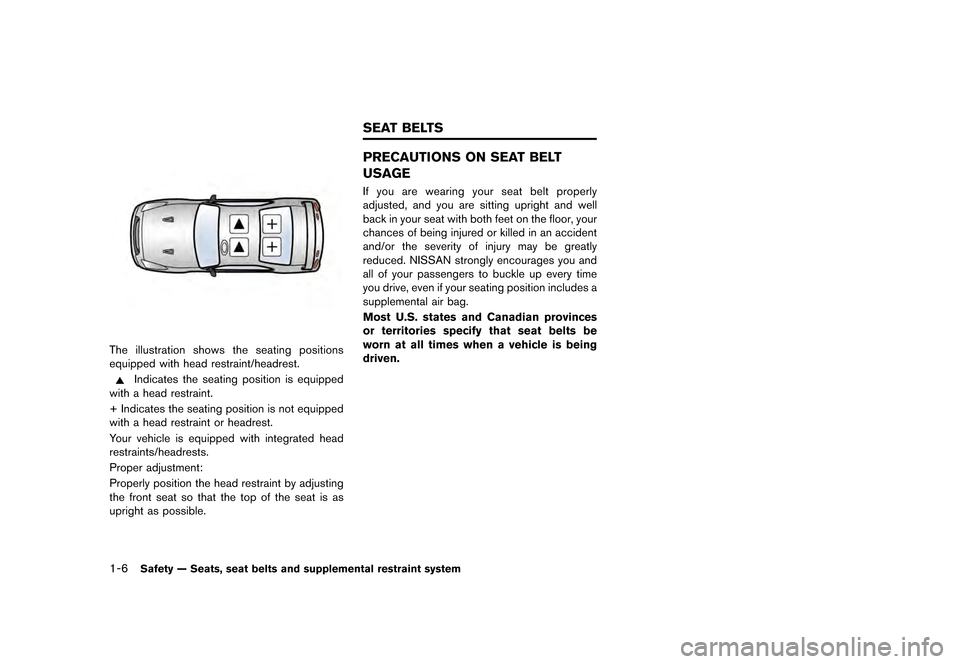

The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
Your vehicle is equipped with integrated head
restraints/headrests.
Proper adjustment:
Properly position the head restraint by adjusting
the front seat so that the top of the seat is as
upright as possible.
GUID-C453EF6E-1052-4728-A223-765A745C3856
PRECAUTIONS ON SEAT BELT
USAGE
GUID-D7A4A9F8-7D03-408A-AF60-2A20FAC75001If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SEAT BELTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-14Safety Ð Seats, seat belts and supplemental restraint system

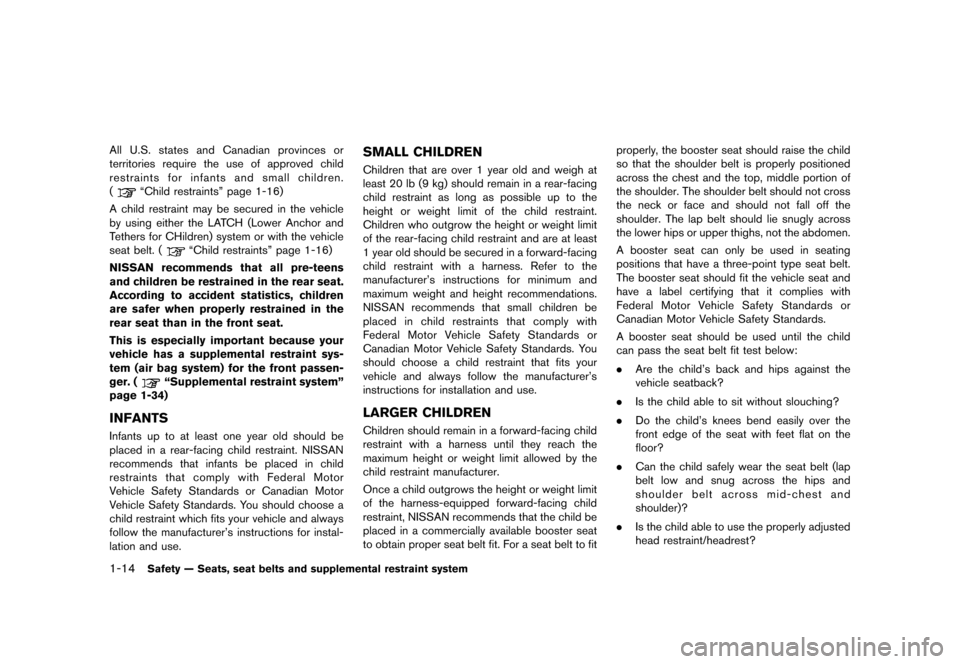

All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children.
(
ªChild restraintsº page 1-16)
A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor and
Tethers for CHildren) system or with the vehicle
seat belt. (
ªChild restraintsº page 1-16)
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. (
ªSupplemental restraint systemº
page 1-34)
INFANTSGUID-1C98AC07-35F0-4C3F-BD23-57D772394BF4Infants up to at least one year old should be
placed in a rear-facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer's instructions for instal-
lation and use.
SMALL CHILDRENGUID-264DB4CD-5605-4BBA-A146-1DC314130AA4Children that are over 1 year old and weigh at
least 20 lb (9 kg) should remain in a rear-facing
child restraint as long as possible up to the
height or weight limit of the child restraint.
Children who outgrow the height or weight limit
of the rear-facing child restraint and are at least
1 year old should be secured in a forward-facing
child restraint with a harness. Refer to the
manufacturer's instructions for minimum and
maximum weight and height recommendations.
NISSAN recommends that small children be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer's
instructions for installation and use.
LARGER CHILDRENGUID-A382489B-3EA8-495B-84AF-1756D106A7D5Children should remain in a forward-facing child
restraint with a harness until they reach the
maximum height or weight limit allowed by the
child restraint manufacturer.
Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child
restraint, NISSAN recommends that the child be
placed in a commercially available booster seat
to obtain proper seat belt fit. For a seat belt to fit properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the
shoulder. The lap belt should lie snugly across
the lower hips or upper thighs, not the abdomen.
A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
A booster seat should be used until the child
can pass the seat belt fit test below:
.
Are the child's back and hips against the
vehicle seatback?
. Is the child able to sit without slouching?
. Do the child's knees bend easily over the
front edge of the seat with feet flat on the
floor?
. Can the child safely wear the seat belt (lap
belt low and snug across the hips and
shoulder belt across mid-chest and
shoulder)?
. Is the child able to use the properly adjusted
head restraint/headrest?
