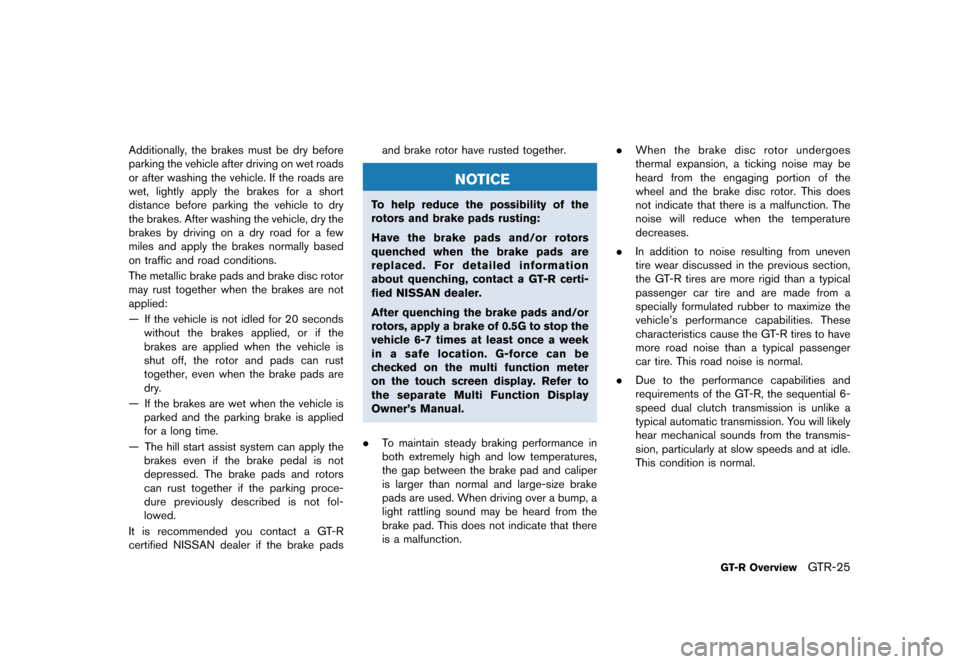

Additionally, the brakes must be dry before
parking the vehicle after driving on wet roads
or after washing the vehicle. If the roads are
wet, lightly apply the brakes for a short
distance before parking the vehicle to dry
the brakes. After washing the vehicle, dry the
brakes by driving on a dry road for a few
miles and apply the brakes normally based
on traffic and road conditions.
The metallic brake pads and brake disc rotor
may rust together when the brakes are not
applied:
Ð If the vehicle is not idled for 20 secondswithout the brakes applied, or if the
brakes are applied when the vehicle is
shut off, the rotor and pads can rust
together, even when the brake pads are
dry.
Ð If the brakes are wet when the vehicle is parked and the parking brake is applied
for a long time.
Ð The hill start assist system can apply the brakes even if the brake pedal is not
depressed. The brake pads and rotors
can rust together if the parking proce-
dure previously described is not fol-
lowed.
It is recommended you contact a GT-R
certified NISSAN dealer if the brake pads and brake rotor have rusted together.
NOTICE
To help reduce the possibility of the
rotors and brake pads rusting:
Have the brake pads and/or rotors
quenched when the brake pads are
replaced. For detailed information
about quenching, contact a GT-R certi-
fied NISSAN dealer.
After quenching the brake pads and/or
rotors, apply a brake of 0.5G to stop the
vehicle 6-7 times at least once a week
in a safe location. G-force can be
checked on the multi function meter
on the touch screen display. Refer to
the separate Multi Function Display
Owner's Manual.
. To maintain steady braking performance in
both extremely high and low temperatures,
the gap between the brake pad and caliper
is larger than normal and large-size brake
pads are used. When driving over a bump, a
light rattling sound may be heard from the
brake pad. This does not indicate that there
is a malfunction. .
When the brake disc rotor undergoes
thermal expansion, a ticking noise may be
heard from the engaging portion of the
wheel and the brake disc rotor. This does
not indicate that there is a malfunction. The
noise will reduce when the temperature
decreases.
. In addition to noise resulting from uneven
tire wear discussed in the previous section,
the GT-R tires are more rigid than a typical
passenger car tire and are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. These
characteristics cause the GT-R tires to have
more road noise than a typical passenger
car tire. This road noise is normal.
. Due to the performance capabilities and
requirements of the GT-R, the sequential 6-
speed dual clutch transmission is unlike a
typical automatic transmission. You will likely
hear mechanical sounds from the transmis-
sion, particularly at slow speeds and at idle.
This condition is normal.
GT-R OverviewGTR-25


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

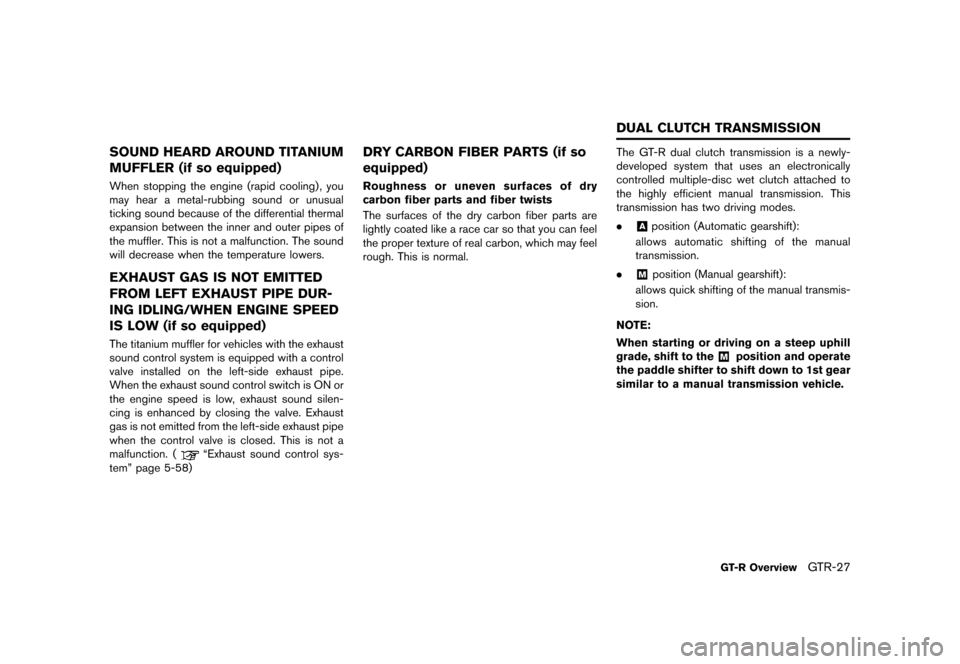

SOUND HEARD AROUND TITANIUM
MUFFLER (if so equipped)
GUID-3D6A36AC-35D0-429E-A25B-64BE52267EDAWhen stopping the engine (rapid cooling) , you
may hear a metal-rubbing sound or unusual
ticking sound because of the differential thermal
expansion between the inner and outer pipes of
the muffler. This is not a malfunction. The sound
will decrease when the temperature lowers.
EXHAUST GAS IS NOT EMITTED
FROM LEFT EXHAUST PIPE DUR-
ING IDLING/WHEN ENGINE SPEED
IS LOW (if so equipped)
GUID-B888B87B-C622-4885-BBEB-1AE26168370BThe titanium muffler for vehicles with the exhaust
sound control system is equipped with a control
valve installed on the left-side exhaust pipe.
When the exhaust sound control switch is ON or
the engine speed is low, exhaust sound silen-
cing is enhanced by closing the valve. Exhaust
gas is not emitted from the left-side exhaust pipe
when the control valve is closed. This is not a
malfunction. (
ªExhaust sound control sys-
temº page 5-58)
DRY CARBON FIBER PARTS (if so
equipped)
GUID-362B4E4E-C187-4858-A8A5-0C4269F48697Roughness or uneven surfaces of dry
carbon fiber parts and fiber twists
The surfaces of the dry carbon fiber parts are
lightly coated like a race car so that you can feel
the proper texture of real carbon, which may feel
rough. This is normal.
GUID-08C4CDAB-367E-4CFA-A36B-ADDE97035C59The GT-R dual clutch transmission is a newly-
developed system that uses an electronically
controlled multiple-disc wet clutch attached to
the highly efficient manual transmission. This
transmission has two driving modes.
.
&Aposition (Automatic gearshift):
allows automatic shifting of the manual
transmission.
.
&Mposition (Manual gearshift):
allows quick shifting of the manual transmis-
sion.
NOTE:
When starting or driving on a steep uphill
grade, shift to the
&Mposition and operate
the paddle shifter to shift down to 1st gear
similar to a manual transmission vehicle.
GT-R OverviewGTR-27
DUAL CLUTCH TRANSMISSION


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
TRANSMISSION OPERATION CHARACTERISTICSGUID-DC9FD7D2-9CD4-46F9-AFB8-A7B5A93B4FE1
MechanismOperation characteristics
Base Manual transmission
.The GT-R transmission design is different from transmissions used in conventional passenger cars. The GT-R uses a transmission gear
design, light flywheel and a dry sump lubrication system to provide maximum vehicle performance. Because the GT-R Transmission design
is different, noises may be louder. When the transmission temperature is high, rattling, shaking and jarring noises may be heard.
.Clattering noises may be heard while shifting..Appropriate gaps are provided between gears to achieve smooth gear rotation and steady tooth surface lubrication under the high-load
driving condition. However, this causes a rattling noise.
.If the shift lever is moved from&Rto&A
F&Mposition, or&A
F&Mto&Rposition before the vehicle stops, you may not be able to shift gear
or it may take longer to shift gear. Make sure to depress the brake pedal and check that the vehicle has stopped before shifting.
Multiple-disc wet clutch
.When stopping the vehicle with the shift lever in the&Ror&A
F&Mposition, be sure to firmly depress the brake pedal. The vehicle may
slowly move if the brake pedal is not depressed.
.Avoid depressing the brake and accelerator pedals at the same time. Depressing the brake and accelerator pedals at the same time could
cause the clutch to overheat and accelerate deterioration.
.When the vehicle is stopped on a hill, do not hold the vehicle in place by depressing the accelerator pedal. Doing so may cause the clutch
to overheat and result in transmission damage. Use the brakes to prevent the vehicle from moving.
Electronic oil pressure
control The following conditions are caused due to changes in fluid viscosity as a result of temperature changes.
.When the transmission oil is extremely cold or extremely hot, the transmission may feel like it is slipping during shifts or there may be hard
shifts. This is normal. Transmission shifting should return to normal when the transmission oil returns to normal operating temperatures.
.When the transmission oil temperature is extremely cold, the time required to run a system check may increase. During the system check,
the shift lever must stay in the&Pposition. Move the shift lever after turning off the system check display. Also, it is normal to hear clicking
noises during the transmission systems check.
Changing modes
.The higher shift speeds in the&Mposition may result in shift shock and jerkiness when starting or shifting..The quickest shifting in the R mode with the transmission in the&Mposition is available when the engine speed is high. However, the
transmission may shift more slowly when the engine speed is low.
Mechanical Limited Slip
Differential (LSD) If the vehicle accelerates from a stop with the steering wheel turned half a turn in cold temperatures, the inner wheel tire may slip and some
noise or vibration may be heard. This phenomenon occurs because the viscosity of the differential oil becomes thicker and the Limited Slip
Differential (LSD) operates with increasing load. When the steering wheel is returned to the straight ahead position or the differential oil warms
up, the noise and vibration decrease.
GT-R OverviewGTR-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

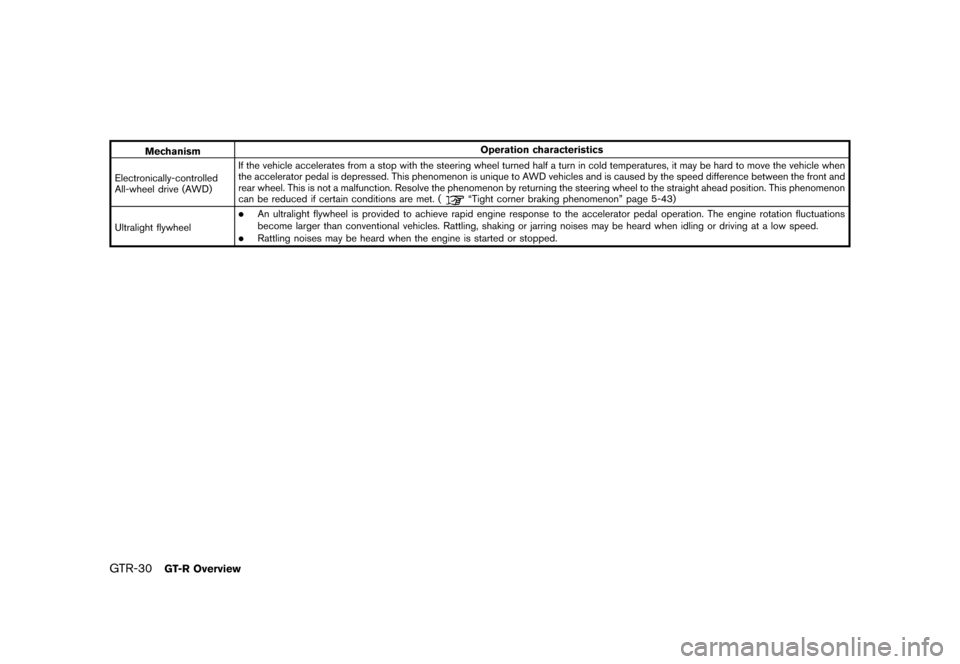

GTR-30GT-R Overview
MechanismOperation characteristics
Electronically-controlled
All-wheel drive (AWD) If the vehicle accelerates from a stop with the steering wheel turned half a turn in cold temperatures, it may be hard to move the vehicle when
the accelerator pedal is depressed. This phenomenon is unique to AWD vehicles and is caused by the speed difference between the front and
rear wheel. This is not a malfunction. Resolve the phenomenon by returning the steering wheel to the straight ahead position. This phenomenon
can be reduced if certain conditions are met. (
ªTight corner braking phenomenonº page 5-43)
Ultralight flywheel
.An ultralight flywheel is provided to achieve rapid engine response to the accelerator pedal operation. The engine rotation fluctuations
become larger than conventional vehicles. Rattling, shaking or jarring noises may be heard when idling or driving at a low speed.
.Rattling noises may be heard when the engine is started or stopped.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0113X
NOTE:
The engine oil level can be displayed after
the ªOIL LEVEL OKº display turns off or
while the engine is started and running.
(
ªMaintenanceº page 2-20)
JVI0114X
When the oil level is lowGUID-5A341160-9C38-41BC-BB50-34D19EBD78DAIf the message shown above is displayed, the
engine oil level is low.
Warm up the engine in a level location. After at
least 5 minutes have passed since engine stop,
use the engine oil dipstick to check the oil level.
(
ªEngine oilº page 8-13)
If the oil level is low, it is recommended you have
additional engine oil added, or the oil changed,
at a GT-R certified NISSAN dealer.
NOTICE
If the vehicle is in a location that is not
level, accurate measurement of the oil
level may not be possible. If ªOIL LEVEL
LOW º is displayed, but the level shown
by the oil dipstick is normal, move the
vehicle to a level location and stop the
engine. After at least 5 minutes have
passed, open the driver's door and push
the ignition switch back to ON. If the
ªOIL LEVEL LOWº message appears
again, have engine oil added or the oil
changed.
Instruments and controls2-13


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
checked, and if necessary repaired, by a GT-R
certified NISSAN dealer promptly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning lightGUID-133A62B2-7E8B-4EF3-9103-A37320F99DAEIf the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, it is
recommended you see a GT-R certified NISSAN
dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
GUID-D66D6512-DD02-407A-B4CC-E2B0D6F8CFBBThis light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
ªEngine oil level displayº page 2-12)
(
ªChecking engine oil levelº page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-25C0AA6B-82C8-42D5-8984-4E4E27CAAB43After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, it is
recommended you contact a GT-R certified
NISSAN dealer for repair as soon as possible.
Low tire pressure warning lightGUID-BB3B0771-5818-4948-9BC3-7EB1194EB378Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
Instruments and controls2-27


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0072X

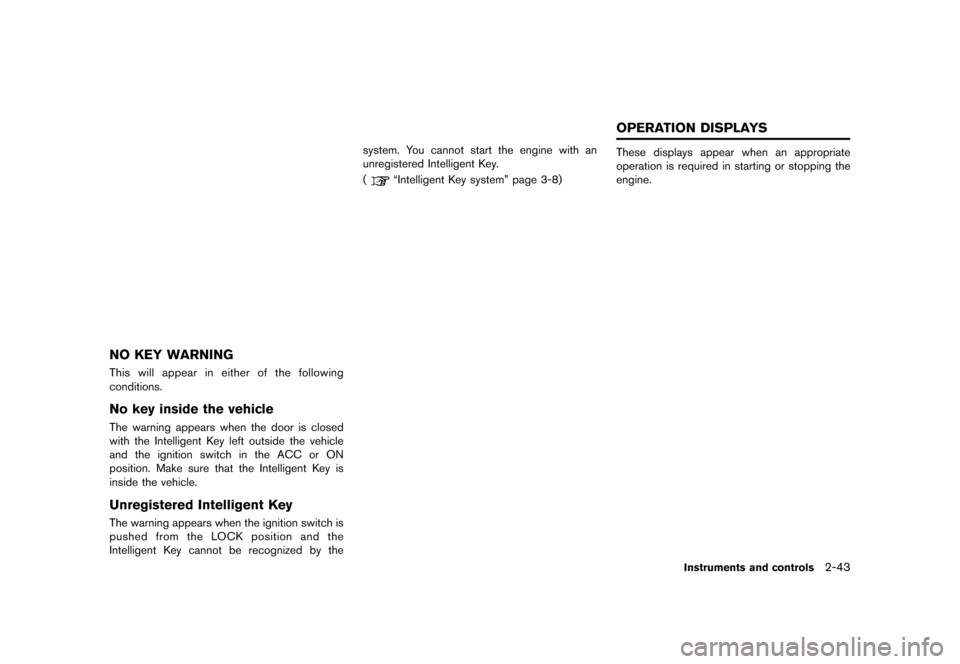

NO KEY WARNINGGUID-C743FC36-2E48-4434-9D40-A60E75999F3AThis will appear in either of the following
conditions.
No key inside the vehicleGUID-DB6FD108-20A8-45A3-8786-D06E653CE40AThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent KeyGUID-B83F80AA-04F8-4F8E-928C-DB8711C04A15The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by thesystem. You cannot start the engine with an
unregistered Intelligent Key.
(
ªIntelligent Key systemº page 3-8)
GUID-25CBCCB0-E450-4CEB-9314-F90D4BA72FDBThese displays appear when an appropriate
operation is required in starting or stopping the
engine.
Instruments and controls2-43
OPERATION DISPLAYS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-44Instruments and controls
JVI0073X

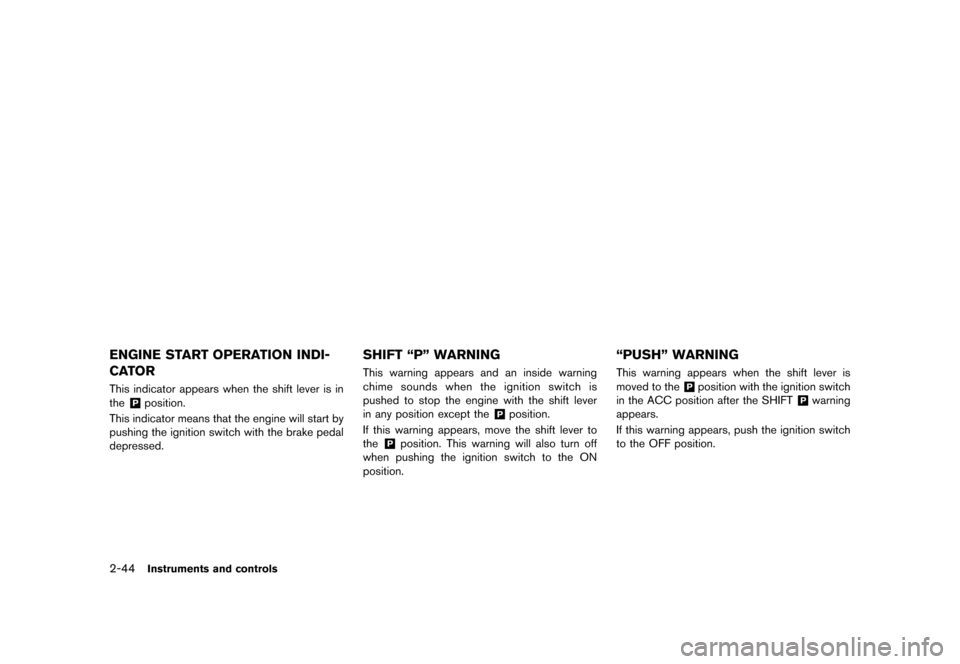

ENGINE START OPERATION INDI-
CATOR
GUID-68E40FAE-E058-4710-9C7F-60EF16AAF526This indicator appears when the shift lever is in
the
&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
JVI0074X
SHIFT ªPº WARNINGGUID-1602D9FC-05F9-4F65-BB75-5795D1C85A36This warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition switch to the ON
position.
JVI0075X
ªPUSHº WARNINGGUID-203EDB28-19A1-411B-8EFE-2BEA7CCE2478This warning appears when the shift lever is
moved to the
&Pposition with the ignition switch
in the ACC position after the SHIFT
&Pwarning
appears.
If this warning appears, push the ignition switch
to the OFF position.
