2017 NISSAN GT-R wipers


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-925DD6A2-027E-428E-AB55-F68828C0CD40

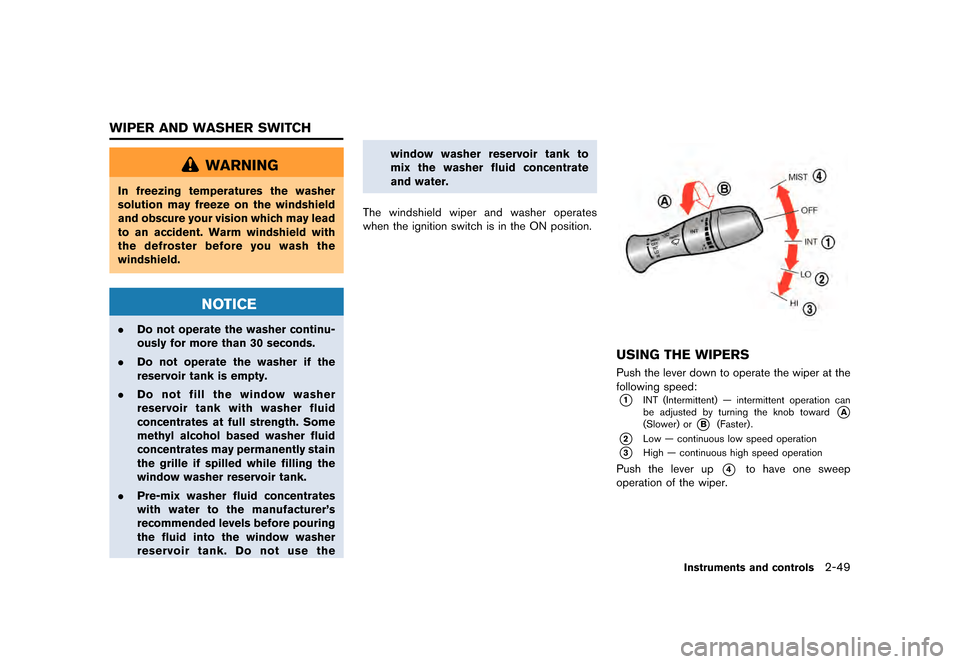

WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
NOTICE
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the window washer reservoir tank to
mix the washer fluid concentrate
and water.
The windshield wiper and washer operates
when the ignition switch is in the ON position.JVI0900X
USING THE WIPERSGUID-DB8B6C4A-934E-4C12-945C-49339BBE8208Push the lever down to operate the wiper at the
following speed:
*1INT (Intermittent) Ð intermittent operation can
be adjusted by turning the knob toward*A(Slower) or*B(Faster) .
*2Low Ð continuous low speed operation
*3High Ð continuous high speed operation
Push the lever up*4to have one sweep
operation of the wiper.
Instruments and controls2-49
WIPER AND WASHER SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-50Instruments and controls
NOTE:
.In the MIST position, the wipers oper-
ate while the lever is lifted up. When
the lever is released, it automatically
returns to the OFF position and the
wipers stop.
. When the speed sensing wiper interval
function is turned on, the intermittent
operation speed varies in accordance
with the vehicle speed. (For example,
when the vehicle speed is high, the
intermittent operation speed will be
faster.) To turn this function on and
off, see the separate Multi Function
Display Owner's Manual.
. If the wiper operation is interrupted by
snow or ice, the wiper may stop moving
to protect its motor. If this occurs, turn
the wiper switch to the OFF position
and remove the snow or ice on and
around the wiper arms. In approxi-
mately 1 minute, turn the switch on
again to operate the wiper.
JVI0907X
USING THE WASHERGUID-74E5C3EC-28DC-4109-A2BD-256046160FCBPull the lever toward you to operate the washer.
Then the wiper will also operate several times.
NOTE:
When the level of washer fluid is low, a
warning display appears on the vehicle
information display. (
ªLow washer
fluid warningº page 2-42)
GUID-758F14E8-AEB1-4436-AC9B-B9A128AA7C5B
JVI1459X
To defog/defrost the rear window, start the
engine and push the switch on. The indicator
light on the switch will come on. Push the switch
again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
NOTE:
When the rear window defroster switch is
pressed, the heated outside mirrors also
operate at the same time. (
ªOutside
mirrorsº page 3-28)
REAR WINDOW DEFROSTER
SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
CAUTION
.Do not insert hands, clothing, tools
or other items into the engine
compartment while the engine is
running.
. Do not touch the exhaust system
parts, radiator or other hot parts
until the engine and the parts have
cooled.
NOTICE
Do not open the hood while the wiper
arms are lifted away from the wind-
shield. The hood and wipers will be
damaged.
JVP0010X
CLOSING THE HOODGUID-964E4C2C-3CBF-42B3-8D47-84E4363917401. While supporting the hood, store the stay to
the original position.
2. Slowly lower the hood. When it is at a height of 1 ft (30 cm) or higher, drop the hood and
make sure that both sides of the hood
securely lock in place.
WARNING
.Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the
hood to open and result in an accident.
. Be sure to check that the hood is
securely closed before driving. If
both sides of the hood are not
locked in place, the hood may open
during driving, possibly causing an
accident.
CAUTION
When closing the hood, lower it slowly
so that hands or other items do not get
caught.
NOTE:
Because the hood of this vehicle requires
more force to close than that for other
vehicles, the hood will be difficult to close
if you lower it all the way and then attempt
to press it closed. Be sure to drop the hood
from a height of approximately 1 ft (30 cm)
and be sure that both sides securely lock
in place.
Pre-driving checks and adjustments3-19


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Inside the vehicleGUID-271ECB51-07A9-440B-8C85-E91833E3031EThe maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Transmission
&Pmechanism: On a fairly
steep hill, check that your vehicle is held
securely with the shift lever in the
&Pposition
without applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, it is recommended you see a GT-R
certified NISSAN dealer immediately. Keep the
floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
to be adjusted, it is recommended you see a
GT-R certified NISSAN dealer. Seat belts:
Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleGUID-0160BFB4-B665-462D-BB67-5EE01054A4AAThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) . Battery*:
Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Maintenance and do-it-yourself8-5


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-8
Vehicle information display...
....................................... 2-12
Vehicle load capacity ...
................................................. 9-15
Vehicle loading information ...
...................................... 9-14
Vehicle recovery ...
............................................................ 6-9
Vehicle security system ...
............................................. 2-46
Vehicle speed ...
.............................................................. 2-16
Vehicle status data recorder ...
.................................... 9-21
Ventilators ...
....................................................................... 4-9
W
Warning
Anti-lock Braking System warning ...
.................. 2-38
AWD clutch high temperature warning ...
......... 2-38
AWD system warning ...
......................................... 2-39
AWD warning light ...
.............................................. 5-41
Brake pad wear warning ...
................................... 8-23
Cruise control system warning ...
........................ 2-41
Door/trunk open warning ...
................................... 2-42
Engine oil low pressure warning ...
..................... 2-35
Engine system warning ...
...................................... 2-35
Front/rear tire size discrepancy warning ...
....... 2-39
Hazard warning flasher switch ...
............................ 6-2
Low brake fluid warning ...
.................................... 2-37
Low fuel warning ...
................................................. 2-41
Low tire pressure warning ...
................................ 2-40
Low washer fluid warning ...
................................. 2-42
No key warning ...
.................................................... 2-43
Parking brake release warning ...
......................... 2-37
ªPUSHº warning ...
.................................................. 2-44
Reverse warning ...
.................................................. 2-36 Run-flat tire warning
...
........................................... 2-40
Shift lever position warning ...
.............................. 2-35
Shift ªPº warning ...
................................................. 2-44
Supplemental air bag warning labels ...
............. 1-46
Supplemental air bag warning light ...
................ 1-47
Tire Pressure Monitoring System warning ...
.... 2-40
Transmission clutch high
temperature warning ...
........................................... 2-37
Transmission oil high temperature warning ...
.... 2-36
Transmission system warning ...
........................... 2-36
Vehicle Dynamic Control system warning ...
..... 2-38
Warning (drive computer) ...
................................. 2-23
Warning display ...
................................................... 2-34
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Warning signals ...
................................................... 3-16
Warranty information ...
.............................................. GTR-3
Washing ...
.......................................................................... 7-3
Waxing ...
............................................................................ 7-4
Wheel alignment ...
.......................................... GTR-9, 5-39
Wheel alignment inspection and adjustment
(if necessary) (including tire
pressure adjustment) ...
............................................. GTR-8
Wheel lock nuts ...
.......................................................... 8-49
Wheels ...
............................................................................ 7-5
Wheels and tires ...
........... GTR-16, GTR-22, 8-32, 9-9
When traveling or registering in
another country ...
........................................................... 9-11
Where to go for service ...
............................................. 8-3
Window washer fluid ...
................................................. 8-16 Windows
...
....................................................................... 2-61
Windshield wiper blades ...
.......................................... 8-22
Wiper Replacing the wiper blades ...
.............................. 8-22
Using the wipers ...
.................................................. 2-49
Windshield wiper blades ...
................................... 8-22
Wiper and washer switch ...
................................. 2-49
Wiper and washer switch ...
........................................ 2-49
