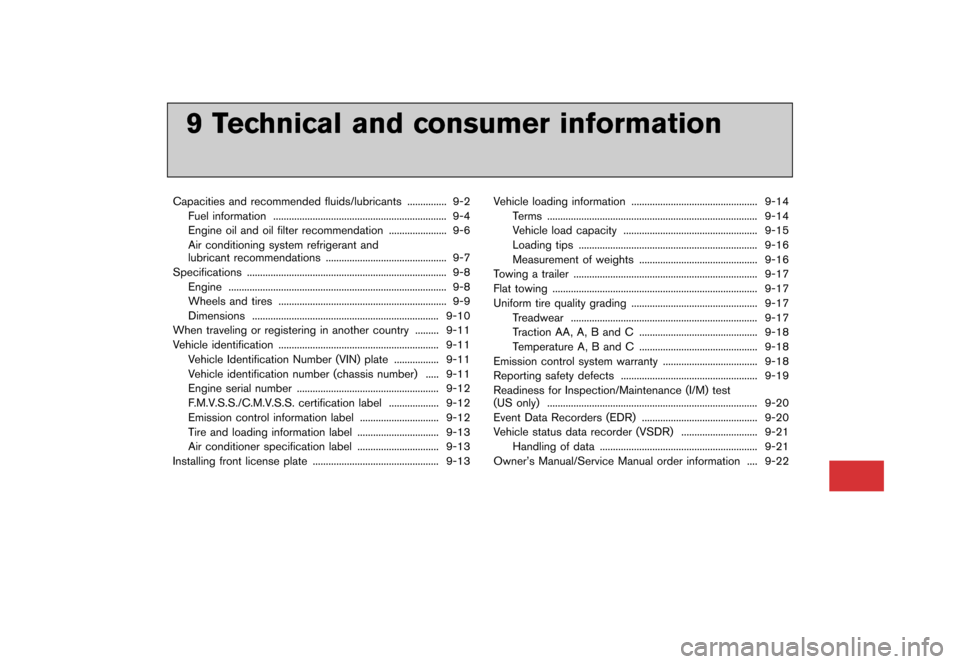

9 Technical and consumer information
Capacities and recommended fluids/lubricants....
............... 9-2
Fuel information ...................................................................... 9-4
Engine oil and oil filter recommendation ....
...................... 9-6
Air conditioning system refrigerant and
lubricant recommendations ....
.............................................. 9-7
Specifications ....
........................................................................\
.... 9-8
Engine ............................................................................\
........... 9-8
Wheels and tires .................................................................... 9-9
Dimensions ........................................................................... 9-10
When traveling or registering in another country ............. 9-11
Vehicle identification ....
............................................................. 9-11
Vehicle Identification Number (VIN) plate ..................... 9-11
Vehicle identification number (chassis number) ......... 9-11
Engine serial number ....
...................................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ....................... 9-12
Emission control information label .................................. 9-12
Tire and loading information label ....
............................... 9-13
Air conditioner specification label ....
............................... 9-13
Installing front license plate ....
................................................ 9-13 Vehicle loading information
.... ................................................ 9-14
Terms ....
........................................................................\
........ 9-14
Vehicle load capacity ....................................................... 9-15
Loading tips ....
.................................................................... 9-16
Measurement of weights ....
............................................. 9-16
Towing a trailer ....
...................................................................... 9-17
Flat towing ....
........................................................................\
...... 9-17
Uniform tire quality grading ....
................................................ 9-17
Treadwear ........................................................................... 9-17
Traction AA, A, B and C ................................................. 9-18
Temperature A, B and C ....
............................................. 9-18
Emission control system warranty ....
.................................... 9-18
Reporting safety defects ........................................................ 9-19
Readiness for Inspection/Maintenance (I/M) test
(US only) ............................................................................\
........ 9-20
Event Data Recorders (EDR) ....
............................................ 9-20
Vehicle status data recorder (VSDR) ................................. 9-21
Handling of data ....
............................................................ 9-21
Owner's Manual/Service Manual order information ........ 9-22


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-2Technical and consumer information

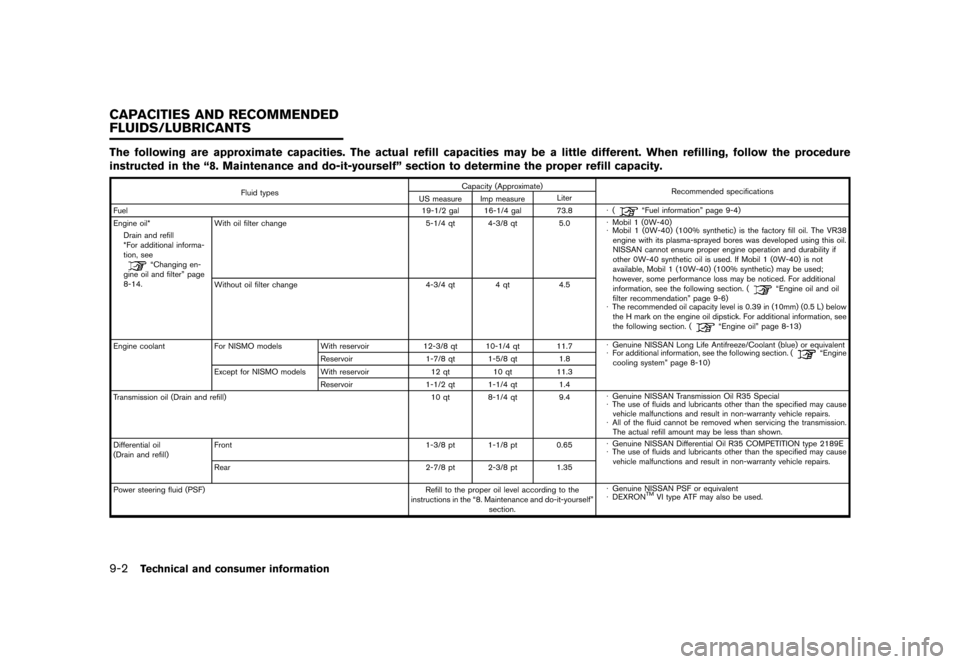

GUID-8B2B269B-37CD-4A40-BFC8-209C4F067D46The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Fluid typesCapacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 73.8


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-4Technical and consumer information

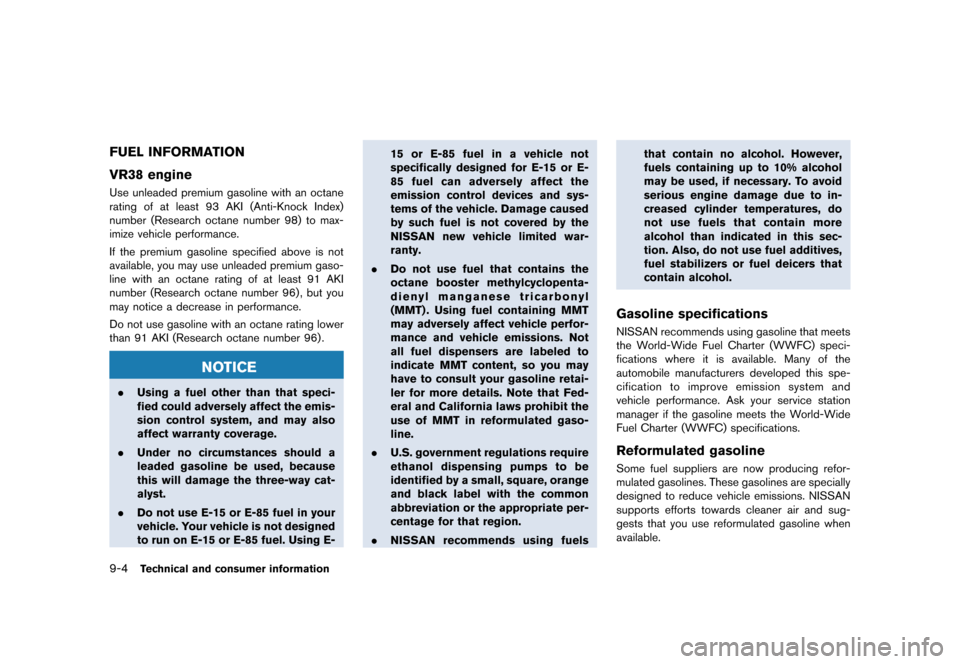

FUEL INFORMATIONGUID-0636C688-28BB-4E17-9ED8-D4ADCE03A7E8
VR38 engineGUID-EE486430-D4A7-47DF-9BB7-1225BE39E9CDUse unleaded premium gasoline with an octane
rating of at least 93 AKI (Anti-Knock Index)
number (Research octane number 98) to max-
imize vehicle performance.
If the premium gasoline specified above is not
available, you may use unleaded premium gaso-
line with an octane rating of at least 91 AKI
number (Research octane number 96) , but you
may notice a decrease in performance.
Do not use gasoline with an octane rating lower
than 91 AKI (Research octane number 96) .
NOTICE
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E- 15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. Do not use fuel that contains the
octane booster methylcyclopenta-
dienyl manganese tricarbonyl
(MMT) . Using fuel containing MMT
may adversely affect vehicle perfor-
mance and vehicle emissions. Not
all fuel dispensers are labeled to
indicate MMT content, so you may
have to consult your gasoline retai-
ler for more details. Note that Fed-
eral and California laws prohibit the
use of MMT in reformulated gaso-
line.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
. NISSAN recommends using fuels that contain no alcohol. However,
fuels containing up to 10% alcohol
may be used, if necessary. To avoid
serious engine damage due to in-
creased cylinder temperatures, do
not use fuels that contain more
alcohol than indicated in this sec-
tion. Also, do not use fuel additives,
fuel stabilizers or fuel deicers that
contain alcohol.
Gasoline specificationsGUID-4EF21CDE-B194-4C06-B855-74B745204522NISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.
Reformulated gasolineGUID-978911DE-55D8-44BF-8E23-1F00C4ECB129Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-8Technical and consumer information
GUID-1B5848A1-885A-4B58-A096-07EFD62976CA

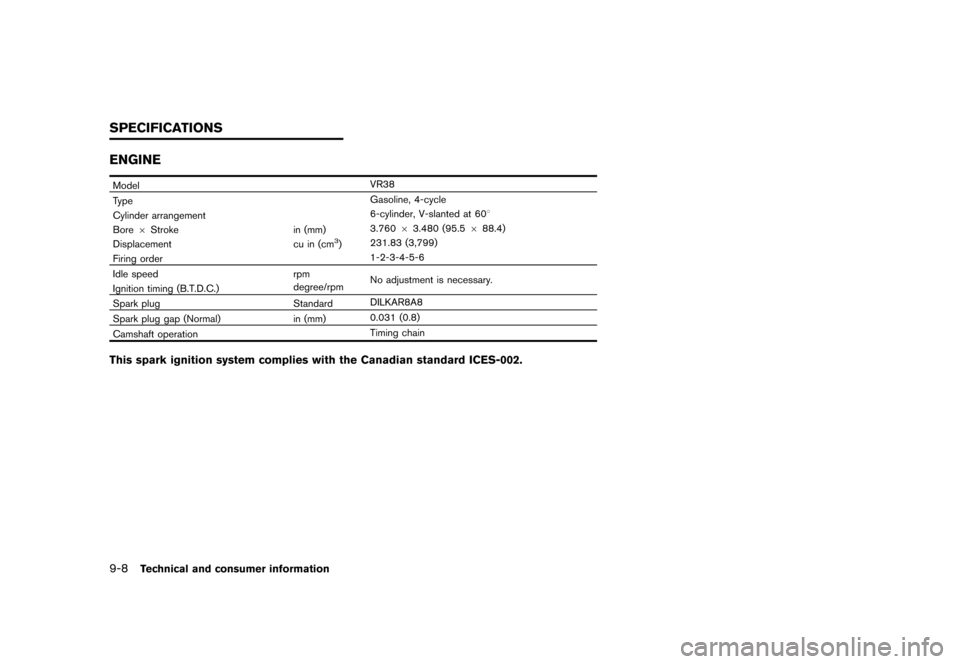

ENGINEGUID-358D5836-1CEA-4308-877F-E23EA16E95E4
ModelVR38
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm)3.760
63.480 (95.5 688.4)
Displacement cu in (cm
3)231.83 (3,799)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardDILKAR8A8
Spark plug gap (Normal) in (mm)0.031 (0.8)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
GTC0012
SPECIFICATIONS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-D3CBB553-D938-4B24-8492-830DDEF71EABIf you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.GUID-B0892AFD-8234-4354-812A-F84889EEA0CC
GTC0013

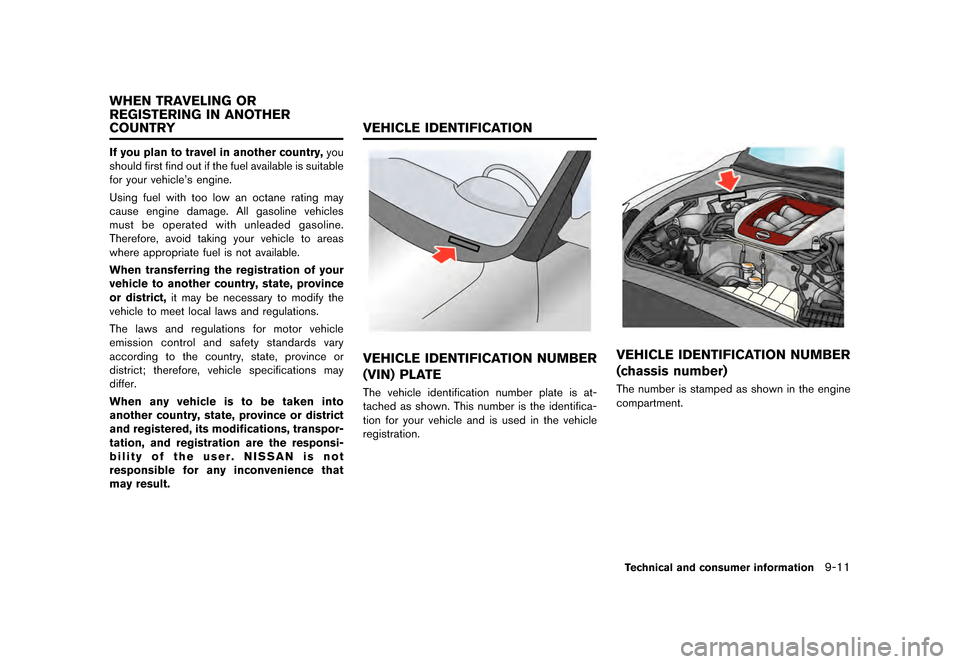

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-2D0BF39B-5FBD-4573-B3D6-B6AE2FF151B9The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
JVT0022X
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-039A5BF4-55DD-4B34-81C7-EC4F2EB87BBAThe number is stamped as shown in the engine
compartment.
Technical and consumer information9-11
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
