8-12Maintenance and do-it-yourself
This vehicle contains Genuine NISSAN Long
Life Antifreeze/Coolant (blue) . The life expec-
tancy of the factory-fill coolant is 24,000 miles
(38,400 km) or 2 years. Mixing any other type of
coolant or the use of non-distilled water will
reduce the life expectancy of the factory-fill
coolant. Refer to the GT-R Service and Main-
tenance Guide for more details.
If the cooling system frequently requires
coolant, it is recommended you have it
checked by a GT-R certified NISSAN deal-
er.
Check that the level of coolant is between MAX
and MIN on the pressurized radiator reservoir. If
the level is below the midpoint, the amount of
coolant circulating may be insufficient for max-
imum vehicle performance, possibly causing
engine overheating or other trouble.
For the coolant level and mixture ratio when
engaging in performance driving, see
ªCoolant level and mixture ratioº page
GTR-14.
Except for NISMO models:
If it is difficult to determine the midpoint between
MAX and MIN, remove the coolant reservoir cap
and look inside through the opening to check
that the coolant level is above the divider
*3
between the top half and bottom half of the pressurized coolant reservoir.
NOTICE
.
The coolant reservoir is equipped
with a pressure type cap, and the
radiator is equipped with a non-
pressure type cap. Do not switch
the radiator filler cap and the cool-
ant reservoir cap. Doing so will
cause substandard cooling perfor-
mance and overheating.
. If you have added only water as the
coolant in an emergency, change it
to a coolant mixture ratio specified
as soon as possible.
CHANGING ENGINE COOLANTGUID-851EDD89-D9EC-4EE0-B833-ADAF4D8D3C6FIf major cooling system repairs are required, it is
recommended you contact a GT-R certified
NISSAN dealer. The service procedures can
be found in the appropriate NISSAN Service
Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING
.To avoid the danger of being
scalded, never change the coolant
when the engine is hot.
. Never remove the radiator filler cap
and the coolant reservoir cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator and
reservoir.
. Avoid direct skin contact with used
coolant. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep coolant out of reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-5CDBD9E9-FB85-4823-9549-A4D0ED081C01
GMD0019
CHECKING ENGINE OIL LEVELGUID-1AFFF17E-8288-42ED-A659-0753FA09A56B1. Park the vehicle on a level surface and applythe parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait at least 5
minutes for the oil to drain back into
the oil pan before checking the oil.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
*1. If the
oil level is below
*2, remove the oil filler cap and pour recommended oil through the
opening.
Do not overfill
*3.
6. Recheck oil level with the dipstick.
NOTE:
. It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the
severity of operating conditions. More
engine oil is consumed by frequent
acceleration/deceleration especially
when the engine rpm is high. If your
rate of oil consumption increases sud-
denly or without explanation, NISSAN
recommends that you have your vehicle
inspected by a GT-R certified NISSAN
dealer.
. When the vehicle is delivered, the
engine oil is set to 0.39 in (10 mm)
below the H mark for optimal high
performance driving. The engine oil can
be filled up to the H mark if perfor-
mance driving is not engaged.NOTICE
.Mobil 1 (0W-40) (100% synthetic) is
the factory fill oil. The VR38 engine
with its plasma-sprayed bores was
developed using this oil. NISSAN
cannot ensure proper engine opera-
tion and durability if other 0W-40
synthetic oil is used. If Mobil 1 (0W-
40) is not available, Mobil 1 (10W-
40) (100% synthetic) may be used;
however, some performance loss
may be noticed.
. Oil level should be checked regu-
larly. Operating the engine with an
insufficient amount of oil can da-
mage the engine. See the 2017
NISSAN GT-R Warranty Information
Booklet for details including applic-
able exclusions.
Maintenance and do-it-yourself8-13
ENGINE OIL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-14Maintenance and do-it-yourself
CHANGING ENGINE OIL AND FILTERGUID-A8104806-A565-4762-B7D8-16C223A15A46
NOTE:
When replacement is required, it is recom-
mended you contact a GT-R certified
NISSAN dealer for servicing.
WARNING
.Prolonged and repeated contact
with used engine oil may cause skin
cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep used engine oil out of reach of
children.
GUID-0C2AD160-C711-4F91-A278-2320DB7A3B08
NOTE:
When checking or replacement is required,
it is recommended you contact a GT-R
certified NISSAN dealer for servicing.
NOTICE
.Use only Genuine NISSAN Trans-
mission Oil R35 Special or equiva-
lent. Do not mix with other fluids.
. Using transmission oil other than
Genuine NISSAN Transmission Oil
R35 Special or equivalent may
cause deterioration in driveability
and transmission durability, and
may damage the transmission. See
the 2017 NISSAN GT-R Warranty
Information Booklet for details in-
cluding applicable exclusions.
GUID-5D59677B-E60A-44A6-94B0-376900A23B61
GMD0020
Check the fluid level in the reservoir. Remove the
cap that is attached with a gauge inside.
The fluid level should be checked using the front
side of the gauge marked ªHOTº (
*1: HOT
MIN.,
*2: HOT MAX.) at fluid temperatures of
122 to 1768F (50 to 808C) or using the reverse
side of the gauge marked ªCOLDº (
*3: COLD
MIN.,
*4: COLD MAX.) at fluid temperatures of
32 to 868F (0 to 308C) .
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap
and fill through the opening.
TRANSMISSION OIL POWER STEERING FLUID


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

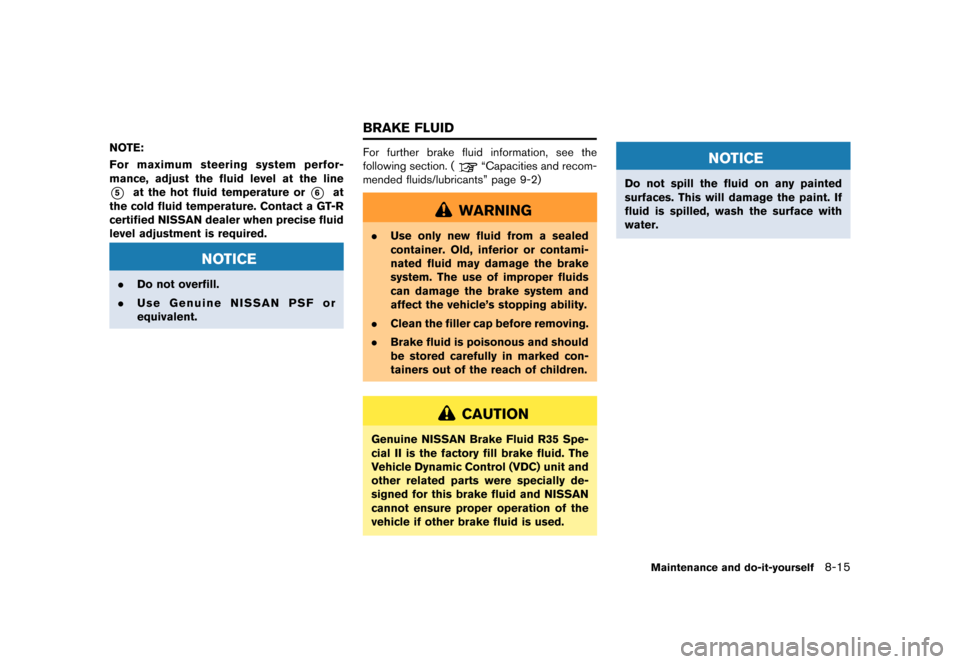

NOTE:
For maximum steering system perfor-
mance, adjust the fluid level at the line
*5at the hot fluid temperature or*6at
the cold fluid temperature. Contact a GT-R
certified NISSAN dealer when precise fluid
level adjustment is required.
NOTICE
. Do not overfill.
. Use Genuine NISSAN PSF or
equivalent.
GUID-0B9D53D1-DC12-4C0B-8B0D-B933F55E2CC3For further brake fluid information, see the
following section. (
ªCapacities and recom-
mended fluids/lubricantsº page 9-2)
WARNING
. Use only new fluid from a sealed
container. Old, inferior or contami-
nated fluid may damage the brake
system. The use of improper fluids
can damage the brake system and
affect the vehicle's stopping ability.
. Clean the filler cap before removing.
. Brake fluid is poisonous and should
be stored carefully in marked con-
tainers out of the reach of children.
CAUTION
Genuine NISSAN Brake Fluid R35 Spe-
cial II is the factory fill brake fluid. The
Vehicle Dynamic Control (VDC) unit and
other related parts were specially de-
signed for this brake fluid and NISSAN
cannot ensure proper operation of the
vehicle if other brake fluid is used.
NOTICE
Do not spill the fluid on any painted
surfaces. This will damage the paint. If
fluid is spilled, wash the surface with
water.
Maintenance and do-it-yourself8-15
BRAKE FLUID


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-16Maintenance and do-it-yourself
GMD0021
Check the fluid level in the reservoir. If the fluid is
below the MIN line
*1or the brake warning
light comes on, add Genuine NISSAN Brake
Fluid R35 Special II fluid (or equivalent) up to
the MAX line
*2. If fluid must be added
frequently, the system should be checked by a
GT-R certified NISSAN dealer.
GUID-0065E715-7CFD-4060-8CDE-667C0E40B99D
GMD0001
WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the vehicle
information display. (
ªLow washer fluid
warningº page 2-42)
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window washer fluid into the tank opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer's
instructions for the mixture ratio.
Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.
NOTICE
.
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
NOTE:
Pre-mix washer fluid concentrates with
water to the manufacturer's recommended
levels before pouring the fluid into the
window washer reservoir. Do not use the
WINDOW WASHER FLUID


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
window washer reservoir to mix the
washer fluid concentrate and water.GUID-CAAD938D-B29B-4106-8A22-770CD52BF4CD.Keep the battery surface clean and dry.

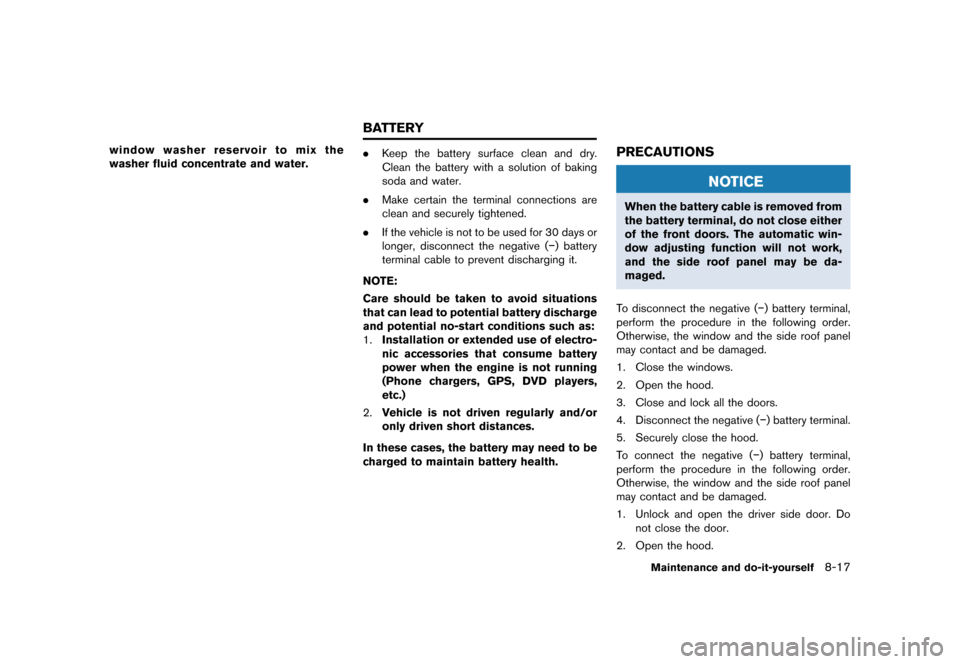

Clean the battery with a solution of baking
soda and water.
. Make certain the terminal connections are
clean and securely tightened.
. If the vehicle is not to be used for 30 days or
longer, disconnect the negative (


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-18Maintenance and do-it-yourself

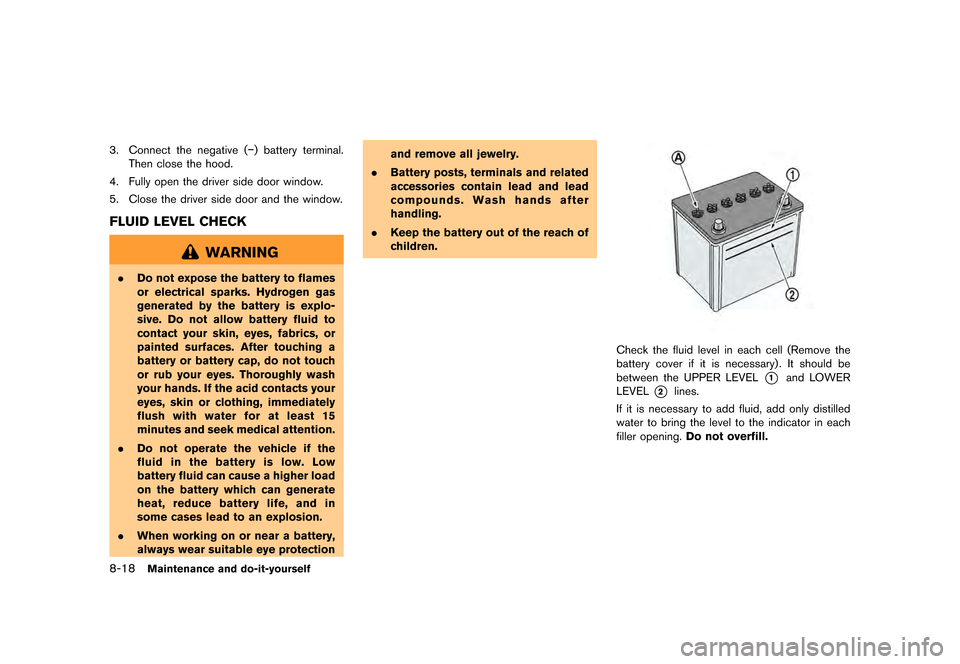

3. Connect the negative (


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GMD0011
1. Remove the cell plugs*A.
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*1indicates
OK and the conditions
*2needs more to
be added.
3. Tighten cell plugs
*A.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTINGGUID-07E0CB08-5CCA-492E-9405-05BF8E1DEF72If jump starting is necessary, see the following
section. (
ªJump startingº page 6-5)
If the engine does not start by jump starting, the
battery may have to be replaced. Contact a
GT-R certified NISSAN dealer.
GUID-1070F707-9273-40FB-95CE-B181F6753CFD
GMD0023
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belts. The engine could rotate unex-
pectedly.
1. Visually inspect each belt for signs of
unusual wear, cuts, fraying or looseness. If
Maintenance and do-it-yourself8-19
