2017 NISSAN GT-R Owners Manual


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-18Technical and consumer information
TRACTION AA, A, B AND CGUID-EFF779B5-24A6-4DFF-A60D-C39DCA737D30The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire's ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-0A15D4F9-FE96-4294-B7FD-9EADDB1774CAThe temperature grades A (the highest) , B, and
C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires mustmeet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-C949373D-4FD5-4D5B-8C70-1CCAD8B135A7Your NISSAN is covered by specific emission
warranties:
For the United States, see the 2017 NISSAN
GT-R Warranty Information Booklet.
For Canada, see the Warranty and Roadside
Assistance Information Booklet.
If you did not receive a Warranty Information
Booklet (Warranty and Roadside Assistance
Information (Canada only)) , or it has become
lost, you may obtain a replacement by writing to:
.
NISSAN Division
NISSAN North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
. NISSAN Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-4596C70B-C2CB-4315-882A-39E107A6EB0D

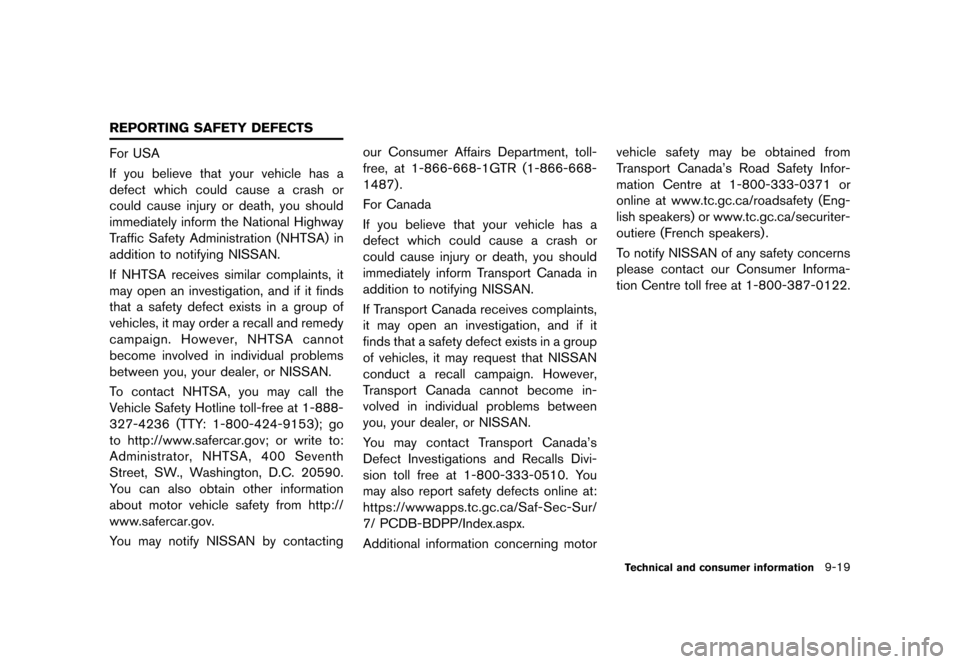

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual problems
between you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from http://
www.safercar.gov.
You may notify NISSAN by contactingour Consumer Affairs Department, toll-
free, at 1-866-668-1GTR (1-866-668-
1487) .
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada in
addition to notifying NISSAN.
If Transport Canada receives complaints,
it may open an investigation, and if it
finds that a safety defect exists in a group
of vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become in-
volved in individual problems between
you, your dealer, or NISSAN.
You may contact Transport Canada's
Defect Investigations and Recalls Divi-
sion toll free at 1-800-333-0510. You
may also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/ PCDB-BDPP/Index.aspx.
Additional information concerning motorvehicle safety may be obtained from
Transport Canada's Road Safety Infor-
mation Centre at 1-800-333-0371 or
online at www.tc.gc.ca/roadsafety (Eng-
lish speakers) or www.tc.gc.ca/securiter-
outiere (French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Informa-
tion Centre toll free at 1-800-387-0122.
Technical and consumer information9-19
REPORTING SAFETY DEFECTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-20Technical and consumer information
GUID-B42F56B1-0635-4B02-99C4-ADA544FC44E6A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing) , or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/ areas,
your vehicle may be required to be in what is
called the ªready conditionº for an Inspection/
Maintenance (I/M) test of the emission control
system.
The vehicle is set to the ªready conditionº when
it is driven through certain driving patterns.
Usually, the ªready conditionº can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a ªnot ready conditionº. Before taking
the I/M test, check the vehicle's inspection/
maintenance test readiness condition. Push the
ignition switch to the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M testcondition is ªnot readyº. If the MIL does not
blink after 20 seconds, the I/M test condition is
ªreadyº.
It is recommended you contact a GT-R certified
NISSAN dealer to set ªready conditionº or to
prepare the vehicle for testing.GUID-9DB6AD17-5556-4DA9-B475-66A5CDE6A98CThis vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.
How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are
recorded by your vehicle only if a nontrivial
crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no
personal data (e.g. name, gender, age and crash
location) are recorded. However, other parties,
such as law enforcement, could combine the
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only) EVENT DATA RECORDERS (EDR)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
EDR data with the type of personally identifying
data routinely acquired during a crash investiga-
tion.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.GUID-CC39B335-0127-443E-A42E-07A8F24D6478The Vehicle Status Data Recorder (VSDR) is
different from the Event Data Recorder de-
scribed in ªEvent Data Recorderº in this section.
The VSDR is not a crash-activated device, but it
records and accumulates vehicle data while
driving.
Examples are:
.Vehicle operating information such as the
wheel speeds of the front and rear wheels
. Engine control information such as the
engine speed and boost pressure
The VSDR always records and stores vehicle
operating data between periodic inspections,
which can assist and be used for servicing,
diagnosing and performing warranty repairs.
The VSDR does not record sounds, conversa-
tions or images.
To read data recorded by the VSDR, special
equipment is required and access to the vehicle
or the VSDR is needed.
HANDLING OF DATAGUID-6C31D396-532C-47AF-8C54-D7572F10E85CNISSAN and third parties affiliated with NISSAN
can acquire and use the data recorded by the
VSDR in order to confirm the part replacement
history to improve the quality of NISSAN
vehicles.
With the exception of the following cases, neither NISSAN nor third parties affiliated with
NISSAN, shall disclose or offer the acquired
data to other non-affiliated third parties.
.
With the agreement of the vehicle owner
. When legally required to, such as when
ordered by a court of law, etc.
. When offering processed data so that
neither the vehicle owner nor the vehicle is
identified, to research centers for statistical
analysis, etc.
Technical and consumer information9-21
VEHICLE STATUS DATA RECORDER
(VSDR)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-22Technical and consumer information

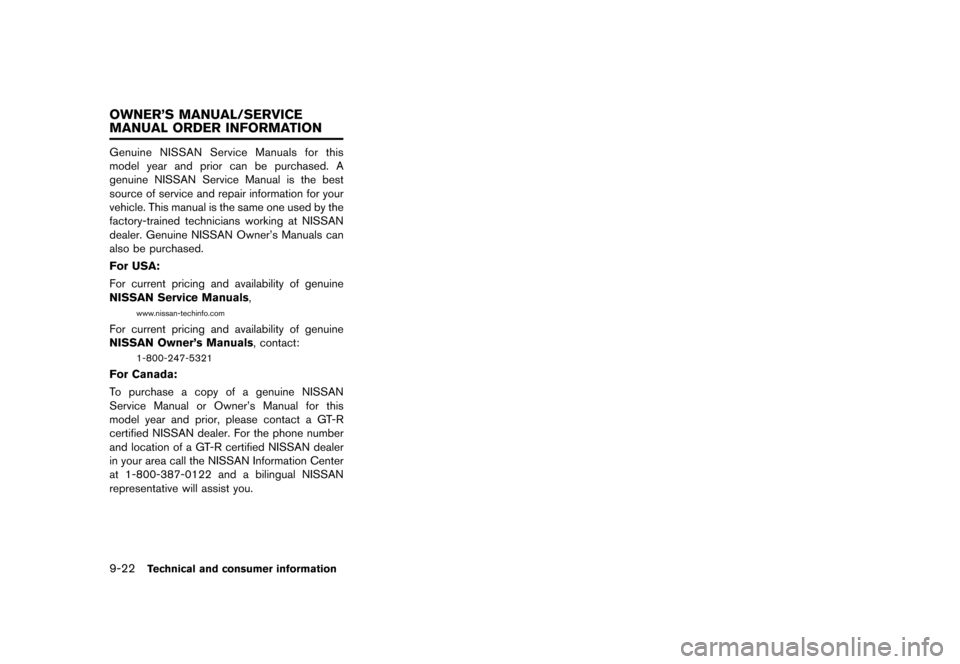

GUID-432D523D-FAB9-45E0-9168-450FC76C1871Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory-trained technicians working at NISSAN
dealer. Genuine NISSAN Owner's Manuals can
also be purchased.
For USA:
For current pricing and availability of genuine
NISSAN Service Manuals,
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner's Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner's Manual for this
model year and prior, please contact a GT-R
certified NISSAN dealer. For the phone number
and location of a GT-R certified NISSAN dealer
in your area call the NISSAN Information Center
at 1-800-387-0122 and a bilingual NISSAN
representative will assist you.
OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

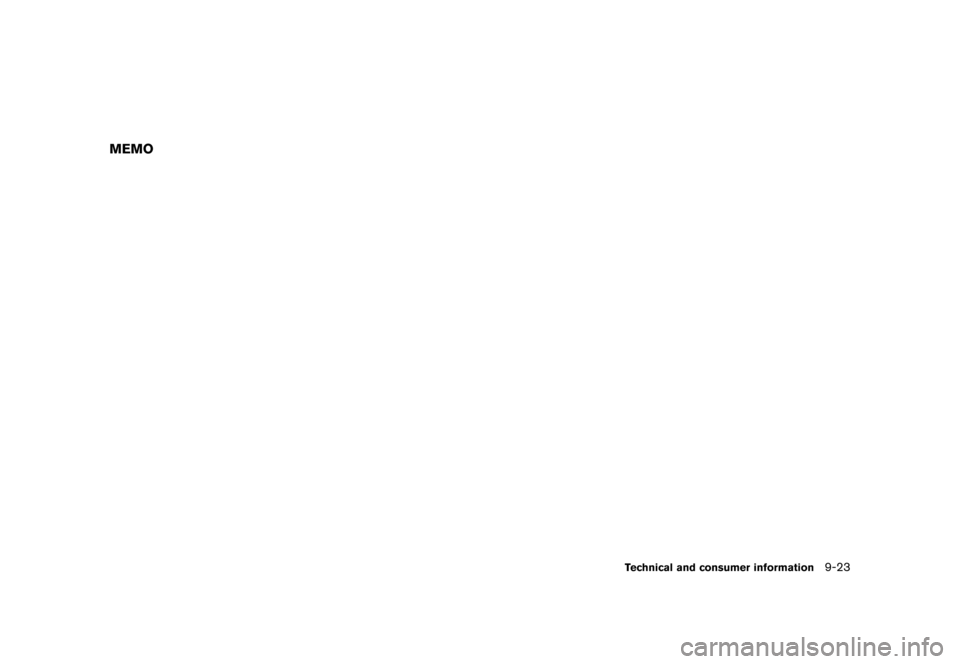

MEMO
Technical and consumer information9-23


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

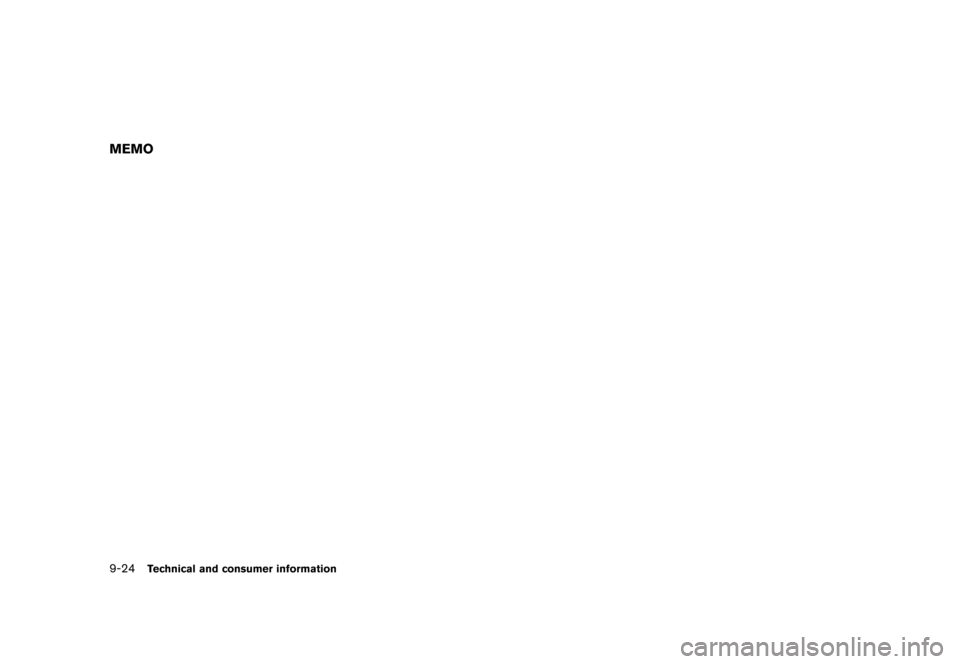

9-24Technical and consumer information
MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10 Index
A
Active noise cancellation...
.......................................... 5-59
Active sound enhancement ...
..................................... 5-59
Additional maintenance items ...
........................... GTR-12
Air cleaner ...
.................................................................... 8-21
Air conditioner ...
............................................................. 4-11
Air conditioner operation ...
................................... 4-10
Air conditioner specification label ...
................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
........................................ 9-7
Air fresheners ...
................................................................ 7-7
All-season tires ...
..................................................... GTR-10
All-Wheel Drive ...
........................................................... 5-41
All-Wheel Drive driving safety precautions ...
............ 5-9
Anti-freeze ...
.................................................................... 5-56
Anti-lock Braking System ...
......................................... 5-52
Anti-lock Braking System warning ...
......................... 2-38
Audible reminders ...
...................................................... 2-33
Automatic Automatic door lock system ...
................................ 3-5
Average fuel consumption and speed ...
.................. 2-16
Avoiding body damage ...
....................................... GTR-11
Avoiding collision and rollover ...
.................................. 5-7
AWD clutch high temperature warning ...
................ 2-38
AWD system characteristics ...
................................... 5-43
AWD system warning ...
................................................ 2-39
AWD warning light ...
..................................................... 5-41
B
Battery ...
............................................................... 5-56, 8-17
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Before starting the engine ...
....................................... 5-13
Body repair ...
............................................................. GTR-11
Booster seats ...
.............................................................. 1-30
Brake Brake assist ...
.......................................................... 5-52
Brake fluid ...
.............................................. GTR-4, 8-15
Brake pad wear warning ...
................................... 8-23
Brake system ...
........................................................ 5-51
Brakes ...
.................................................................... 8-23
High performance brake system ...
..................... 8-23
Low brake fluid warning ...
.................................... 2-37
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Replacing the brake pads ...
................................. 8-24
Self-adjusting brakes ...
.......................................... 8-23
Brake dust ...
.............................................................. GTR-26
Brake pad ...
............................................................... GTR-14
Brake pad and disc rotor ...
..................................... GTR-5
Brake pad break-in procedure ...
.......................... GTR-14
Brake system information ...
................................... GTR-26
Brakes ...
................................................... GTR-17, GTR-22
Braking precautions ...
................................................... 5-51
Break-in schedule ...
........................................ GTR-9, 5-39
C
Capacities and recommended fluids/lubricants ...
... 9-2
Car phone or CB radio ...
............................................. 4-15
Changing Changing engine coolant ...
.................................. 8-12
Changing engine oil and filter ...
.......................... 8-14
Changing wheels and tires ...
............................... 8-41
Checking
Checking engine coolant level ...
......................... 8-11
Checking engine oil level ...
.................................. 8-13
Checking lights ...
.................................................... 2-25
Checking the tire pressure ...
............................... 8-36
Child restraints ...
............................................................ 1-16
Child safety ...
.................................................................. 1-13
Chrome parts ...
................................................................. 7-5
Cleaning ...
........................................................................ 8-22
Cleaning exterior ...
........................................................... 7-2
Cleaning interior ...
............................................................ 7-7
Closing the fuel-filler door ...
....................................... 3-25
Closing the hood ...
........................................................ 3-19
Coat hooks ...
................................................................... 2-61
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
................................................. 5-56
Console box ...
................................................................. 2-60
Cool down ...
.............................................................. GTR-12
Coolant
Changing engine coolant ...
.................................. 8-12
Checking engine coolant level ...
......................... 8-11
Draining of coolant water ...
.................................. 5-56
Engine coolant temperature gauge ...
................... 2-7
