8-44Maintenance and do-it-yourself
Warranty Information Booklet.
. Always use tires of the specified
type, size, brand, construction (bias,
bias-belted, radial or run-flat) , and
tread pattern on all four wheels.
Failure to do so may result in a
circumference difference between
tires on the front and rear axles
which will cause excessive tire wear
and may damage the transmission,
transfer case and differential gears.
Wheel balanceGUID-22867962-AD6F-48F7-AC6D-26DC40810782Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the rear wheels on the vehicle could lead to
mechanical damage.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Care of wheelsGUID-AD8A1B26-09E0-4A17-8973-2E5FA1479EAF(ªCleaning exteriorº page 7-2)
JACKING VEHICLE AND REMOVING
WHEELS
GUID-9E3C7B96-C2E2-4518-AE66-730BF46CD468
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the
&Pposition.
. Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
GIE0043
Blocking wheelsGUID-92FD8081-8CEE-494A-A3C5-D97A2F619349Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GIE0025
Getting the toolsGUID-E381EF01-A3AB-41AC-98C7-A79C755F90C6
NOTE:
A jack, jack lever and rod are not equipped
as standard with this vehicle. These parts
are dealer options. It is recommended you
contact a GT-R certified NISSAN dealer
about acquiring a jack, jack lever and rod.
You can store a jack, jack lever and rod in
the floor in front of the passenger's seat.
CAUTION
After using the tools, put them back in
their original places. An accident may
occur if you leave them in the car
unsecured.
Jacking up the vehicle and removing
the tire
GUID-32994668-8DC8-448D-9C67-1CA8A7E791B7
WARNING
.Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited slip differentials.
. Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached
to the jack body and the following instruc-
tions.
Maintenance and do-it-yourself8-45


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

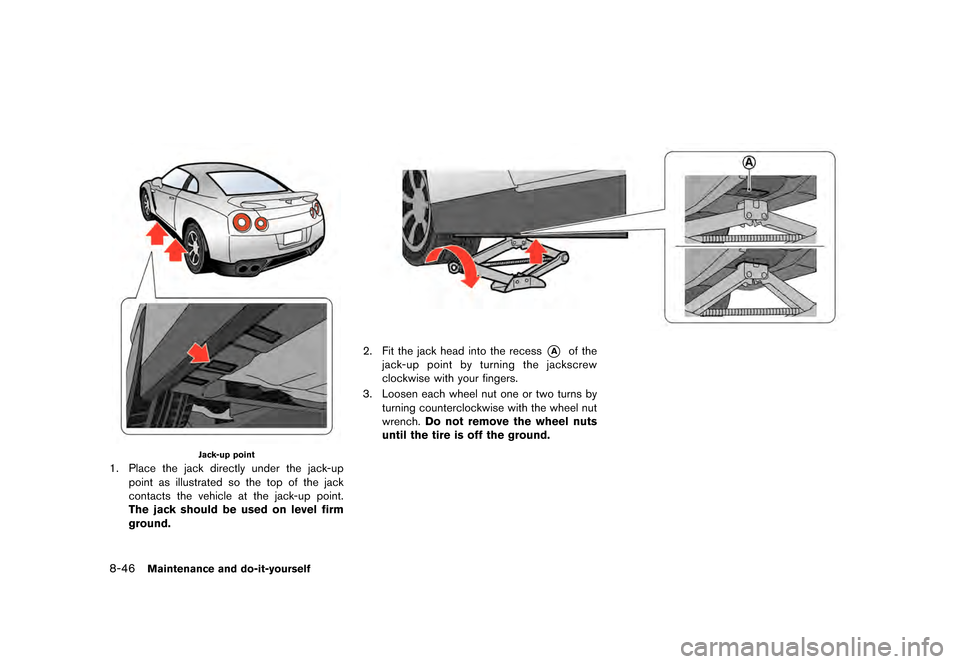

8-46Maintenance and do-it-yourself
GIE0033
Jack-up point
1. Place the jack directly under the jack-uppoint as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
The jack should be used on level firm
ground.
GIE0031
2. Fit the jack head into the recess*Aof the
jack-up point by turning the jackscrew
clockwise with your fingers.
3. Loosen each wheel nut one or two turns by turning counterclockwise with the wheel nut
wrench. Do not remove the wheel nuts
until the tire is off the ground.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GIE0034

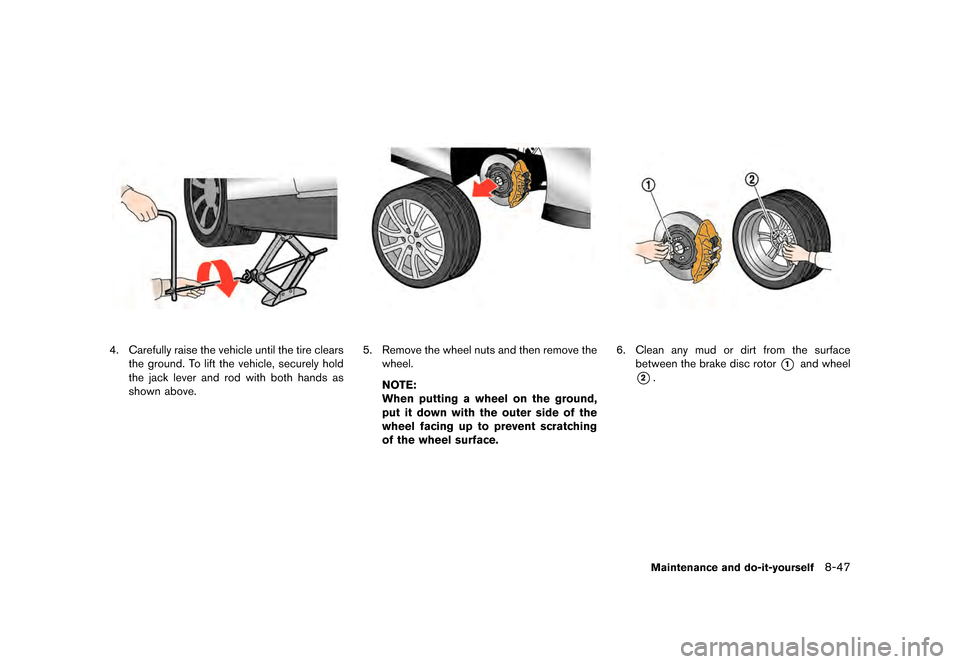

4. Carefully raise the vehicle until the tire clearsthe ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above.
JVM0014X
5. Remove the wheel nuts and then remove thewheel.
NOTE:
When putting a wheel on the ground,
put it down with the outer side of the
wheel facing up to prevent scratching
of the wheel surface.
GIE0037
6. Clean any mud or dirt from the surfacebetween the brake disc rotor
*1and wheel
*2.
Maintenance and do-it-yourself8-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

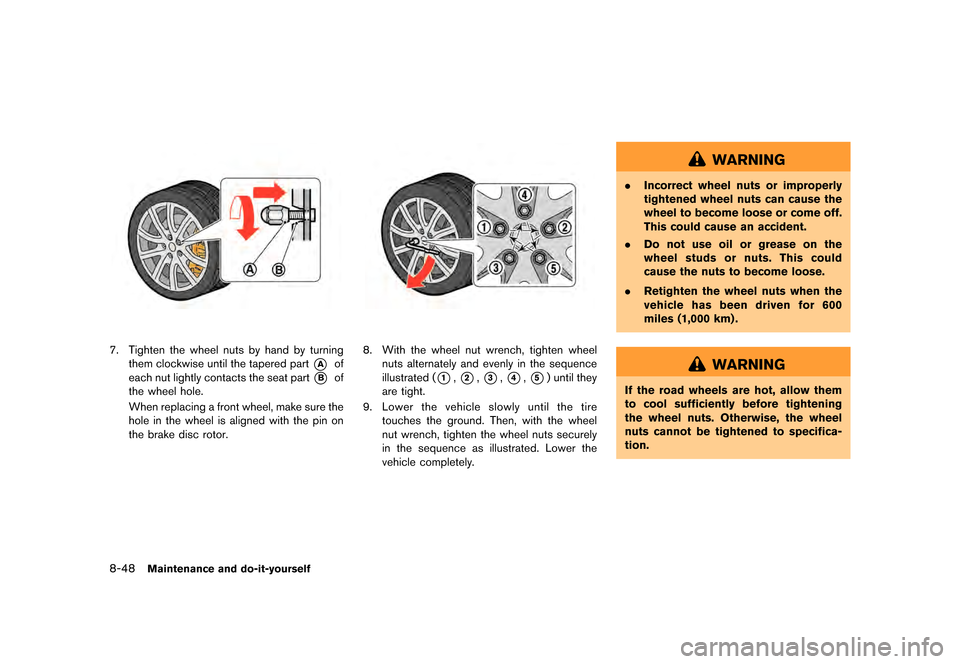

8-48Maintenance and do-it-yourself
JVM0015X
7. Tighten the wheel nuts by hand by turningthem clockwise until the tapered part
*Aof
each nut lightly contacts the seat part
*Bof
the wheel hole.
When replacing a front wheel, make sure the
hole in the wheel is aligned with the pin on
the brake disc rotor.
JVM0016X
8. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the sequence
illustrated (
*1,*2,*3,*4,*5) until they
are tight.
9. Lower the vehicle slowly until the tire
touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence as illustrated. Lower the
vehicle completely.
WARNING
.Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
. Do not use oil or grease on the
wheel studs or nuts. This could
cause the nuts to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600
miles (1,000 km) .
WARNING
If the road wheels are hot, allow them
to cool sufficiently before tightening
the wheel nuts. Otherwise, the wheel
nuts cannot be tightened to specifica-
tion.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
NOTE:.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque:
Except for NISMO models 97 ft-lb (132 N´m)
NISMO models 114 ft-lb (155 N´m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure: After the vehicle has
been parked for three hours or more
or driven less than 1 mile (1.6 km) .
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver's door
opening.
10. Securely store the jacking equipment in the vehicle.
SDI2432
JVM0017X
WHEEL LOCK NUTS (if so equipped)GUID-FD22D5F1-3C05-43DE-B494-6381AF6B4168In order to prevent theft, the specially designed
wheel lock nut
*1is installed on each wheel.
The wheel lock nut cannot be removed with
commonly used tools.
When removing tires, use the lock key
*2
provided with your vehicle.
Removing the wheel lock nutGUID-E5616F47-1B20-43B2-B8A3-01A65A8CD5CDTo remove the wheel lock nut, use the lock key
stored under the passenger's side floor.
1. Insert the lock key to the wheel lock nut.
2. To remove the wheel lock nut, turn the lock key counterclockwise using the wheel nut
wrench.
CAUTION
.Do not use a power tool to remove
the wheel lock nuts.
. Tighten the wheel lock nuts to the
same tightening torque as the nor-
mal wheel nuts. (
ªJacking up
the vehicle and removing the tireº
page 8-45)
Maintenance and do-it-yourself8-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-50Maintenance and do-it-yourself
NOTE:
.The wheel lock nut has an individual
code. A lock key which does not match
the individual code cannot remove the
wheel lock nut. If you lose the wheel
lock key, it is recommended you con-
tact a GT-R certified NISSAN dealer
immediately.
. Keep the key code card
*3in a safe
place. To purchase a lock key, contact a
GT-R certified NISSAN dealer with your
original code
*4on the key code card.
. When you ask for a service at a GT-R
certified NISSAN dealer, make sure to
keep the lock key in the vehicle. Other-
wise, tires cannot be removed and any
service requiring the removal of the
wheels cannot be performed.


