2-34Instruments and controls
GUID-C3DF3171-3EE9-4A6E-9B44-2FB330C4983C
JVI0089X
WARNING
When the warning light illuminates or
blinks and a warning is displayed,
promptly take the appropriate action.
Ignoring the warning may result inmalfunctions and accidents.
When the items mentioned below are detected
the master warning light
*1illuminates and the
warning is displayed on the vehicle information
display
*2. A chime also sounds. If there are multiple warnings, the warning lights
remain lit or continue to blink and the warnings
displayed in the vehicle information display are
switched at regular intervals. The warnings
displayed in the vehicle information display can
be switched voluntarily by pushing the ENTER
switch
.
WARNING DISPLAY


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0053X
ENGINE OIL LOW PRESSURE
WARNING
GUID-34CBE14F-B9C1-4537-B210-F2AAABAE4FB8This will appear if the engine oil pressure is low.
(
ªEngine oil pressure warning lightº page
2-27)
JVI1497X
ENGINE SYSTEM WARNINGGUID-F79474B3-A4C2-4F86-9A01-DCC9408ABD90This will appear if a potential emission control or
the muffler with electronic control valve (if so
equipped) malfunction is detected, the fuel-filler
cap is loose or missing, or the vehicle runs out of
fuel. (
ªMalfunction Indicator Light (MIL)º
page 2-32)
JVI0054X
SHIFT LEVER POSITION WARNINGGUID-CF9F088A-D172-4365-8953-C0A42B186E6AThis will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
position then move the lever back to the desired
position. If the warning is still displayed after the
above operation is performed, it is recom-
mended you have the system checked by a
GT-R certified NISSAN dealer. (
ªDriving
the vehicleº page 5-15)
Instruments and controls2-35


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-36Instruments and controls
JVI0845X
REVERSE WARNINGGUID-FEFD2E59-38D9-463E-BF82-596CA8EB8709This will appear (and a chime will sound) if the
shift lever is in the
&Rposition for more than 5
minutes, or when the driver's door is opened
while the shift lever is in the
&Rposition.
JVI0130X
TRANSMISSION SYSTEM WARN-
ING
GUID-D699E4F2-4D10-43AD-B2F0-D399EB4E4960This will appear if a transmission system
malfunction occurs. (
ªTransmission warn-
ing lightº page 2-30)
JVI0055X
TRANSMISSION OIL HIGH TEM-
PERATURE WARNING
GUID-E5232020-FB63-454C-BB90-8561A2F8A852This will appear if the transmission oil tempera-
ture becomes unusually high.
(
ªTransmission warning lightº page 2-30)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0056X

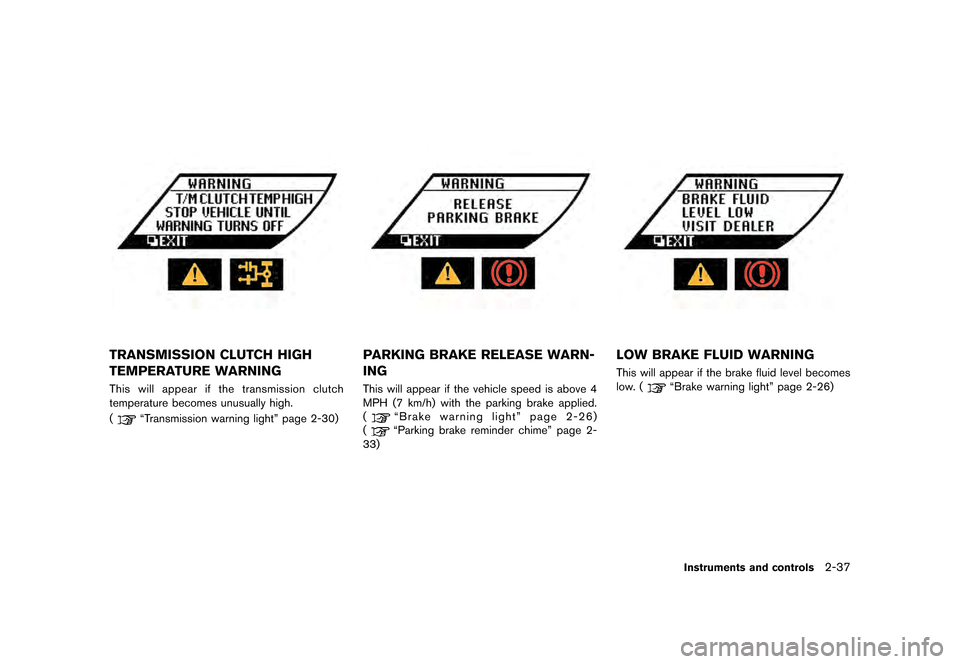

TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNING
GUID-4163144D-0484-483B-8C4B-E3CA2D6F7343This will appear if the transmission clutch
temperature becomes unusually high.
(
ªTransmission warning lightº page 2-30)
JVI0057X
PARKING BRAKE RELEASE WARN-
ING
GUID-A8981A08-4A15-4D60-AA22-E7DF796CB574This will appear if the vehicle speed is above 4
MPH (7 km/h) with the parking brake applied.
(
ªBrake warning lightº page 2-26)
(
ªParking brake reminder chimeº page 2-
33)
JVI0058X
LOW BRAKE FLUID WARNINGGUID-7160A127-71BE-439C-BC97-FF95ACCA2478This will appear if the brake fluid level becomes
low. (
ªBrake warning lightº page 2-26)
Instruments and controls2-37


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-38Instruments and controls
JVI0059X

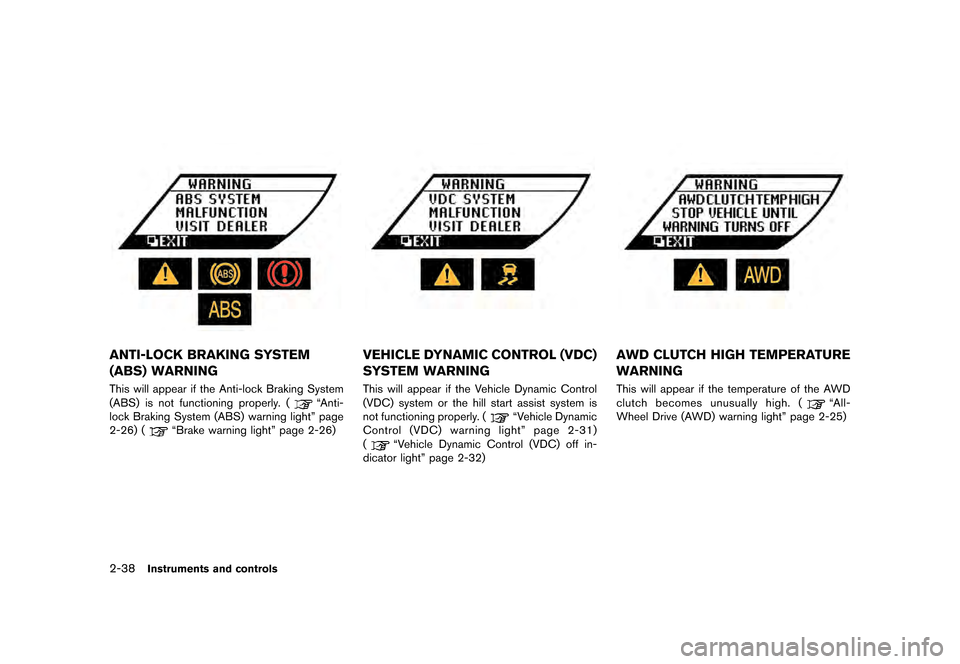

ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
GUID-8CCDA845-FDDC-4648-8DF6-79AFF98E1C97This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26) (
ªBrake warning lightº page 2-26)
JVI0060X
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
GUID-53CD1130-485D-41F1-A5E7-CA1A9528FA15This will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
ªVehicle Dynamic
Control (VDC) warning lightº page 2-31)
(
ªVehicle Dynamic Control (VDC) off in-
dicator lightº page 2-32)
JVI0148X
AWD CLUTCH HIGH TEMPERATURE
WARNING
GUID-B3D3A241-F717-4CD9-84D5-2622F89245C9This will appear if the temperature of the AWD
clutch becomes unusually high. (
ªAll-
Wheel Drive (AWD) warning lightº page 2-25)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
NOTE:
If the vehicle is driven in a way which
causes the rear wheels to slip, the AWD
clutch temperature will increase and the
warning indicator may flash. Continuing to
drive in way that causes the warning light
to flash may cause the clutch to reach
excessive temperatures that could result in
damage to the vehicle.
JVI0149X
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
GUID-E1EDB916-C97E-4B18-868E-F9F62D46BD0CThis will appear if the diameter of the front and
the rear wheels are different. (
ªAll-Wheel
Drive (AWD) warning lightº page 2-25)
JVI0150X
AWD SYSTEM WARNINGGUID-CFC0CEB2-ECA8-4DD2-8D62-F0382A4A36C6This will appear if the AWD system is not
functioning properly while the engine is running.
(
ªAll-Wheel Drive (AWD) warning lightº
page 2-25)
Instruments and controls2-39


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-40Instruments and controls
JVI0151X

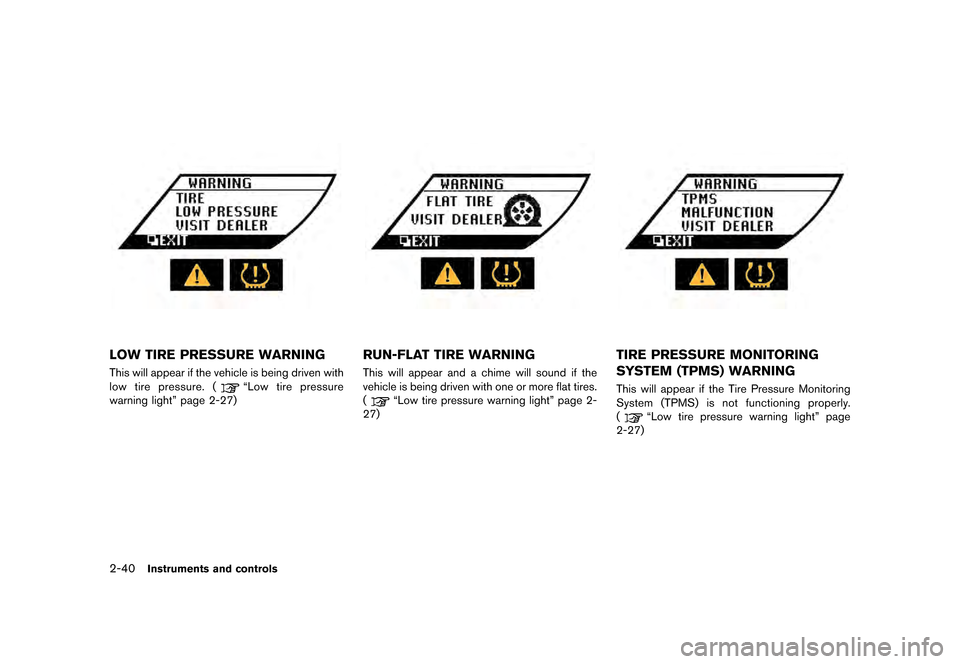

LOW TIRE PRESSURE WARNINGGUID-AF2197A9-90C7-4786-AAFF-39FAC9A6B9D8This will appear if the vehicle is being driven with
low tire pressure. (
ªLow tire pressure
warning lightº page 2-27)
JVI0152X
RUN-FLAT TIRE WARNINGGUID-F2142DB4-73FE-401B-9ACD-DF40114B69C0This will appear and a chime will sound if the
vehicle is being driven with one or more flat tires.
(
ªLow tire pressure warning lightº page 2-
27)
JVI0067X
TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNING
GUID-E2F8F675-E8C0-47CC-8D2C-773695CE6650This will appear if the Tire Pressure Monitoring
System (TPMS) is not functioning properly.
(
ªLow tire pressure warning lightº page
2-27)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0068X
CRUISE CONTROL SYSTEM WARN-
ING
GUID-78AA912E-E0DB-4D77-921C-48A452E497F3This will appear if the cruise control system is
not functioning properly. (
ªCruise set
switch indicator lightº page 2-31)
JVI0153X
LOW FUEL WARNINGGUID-34CEC7A2-F981-48F6-8EE4-49AEA78A8643This will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption. NOTE:
.
The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
. The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to ª
º. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
