2017 NISSAN GT-R Owners Manual


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

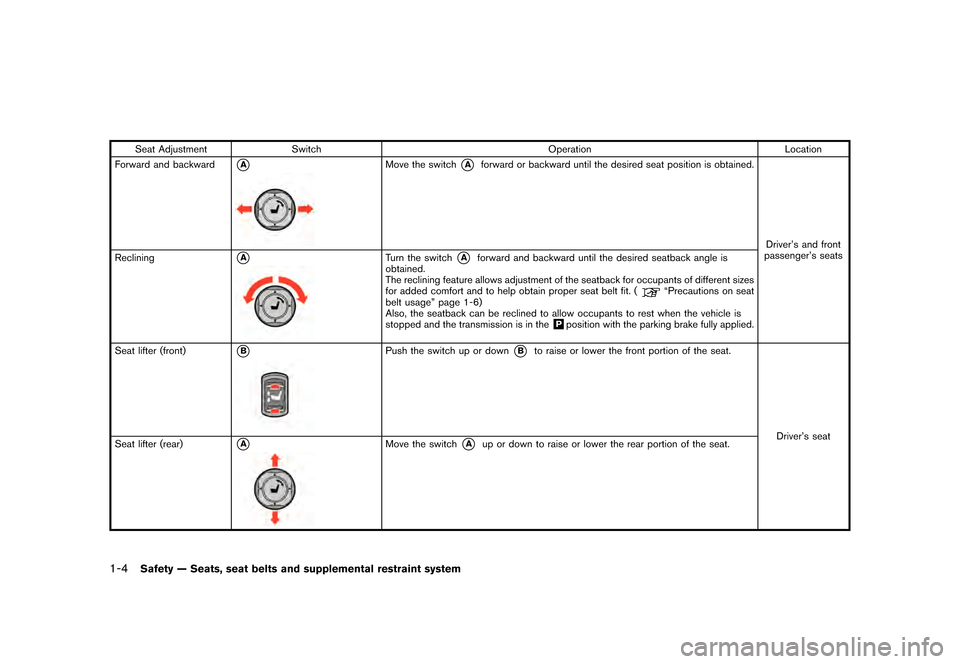

1-4Safety Ð Seats, seat belts and supplemental restraint system
Seat AdjustmentSwitch OperationLocation
Forward and backward
*AMove the switch*Aforward or backward until the desired seat position is obtained.
Driver's and front
passenger's seats
Reclining
*ATurn the switch*Aforward and backward until the desired seatback angle is
obtained.
The reclining feature allows adjustment of the seatback for occupants of different sizes
for added comfort and to help obtain proper seat belt fit. (
ªPrecautions on seat
belt usageº page 1-6)
Also, the seatback can be reclined to allow occupants to rest when the vehicle is
stopped and the transmission is in the
&Pposition with the parking brake fully applied.
Seat lifter (front)
*BPush the switch up or down*Bto raise or lower the front portion of the seat.
Driver's seat
Seat lifter (rear)
*AMove the switch*Aup or down to raise or lower the rear portion of the seat.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVR0172X
Rear seat walk-inGUID-9FCD4C3B-351D-4DCA-866D-2BE071D77007This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
1. Pull up the lever
*1, hold the knob*2, and
tilt the seatback forward.
2. Use the seat adjustment switch
*Ato slide
the seat forward to a position where it will be
easier to enter or exit the rear seats. Fold the
shoulder belt guide for easier access to the
rear seat.
To return the seatback to its original position,
hold the knob
*2, raise the seatback, and use
the seat adjustment switch
*Ato adjust the seat position.
CAUTION
.
When returning the seat to its
original position, confirm that the
seat and seatback are locked prop-
erly.
. Be careful not to pinch your hand or
foot or bump your head when oper-
ating the walk-in seat.
NOTICE
Do not place any objects near the
seatback of the front seats. They may
be pinched and damaged.
GUID-5EC5F9C2-F1CC-4995-A1C1-9ADD739874C1
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions.
Head restraints/headrests must be ad-
justed properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Failure to
follow these instructions can reduce the
effectiveness of the head restraints/
headrests. This may increase the risk
of serious injury or death in a collision.
Safety Ð Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-6Safety Ð Seats, seat belts and supplemental restraint system
JVR0323X
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
Your vehicle is equipped with integrated head
restraints/headrests.
Proper adjustment:
Properly position the head restraint by adjusting
the front seat so that the top of the seat is as
upright as possible.
GUID-C453EF6E-1052-4728-A223-765A745C3856
PRECAUTIONS ON SEAT BELT
USAGE
GUID-D7A4A9F8-7D03-408A-AF60-2A20FAC75001If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SEAT BELTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

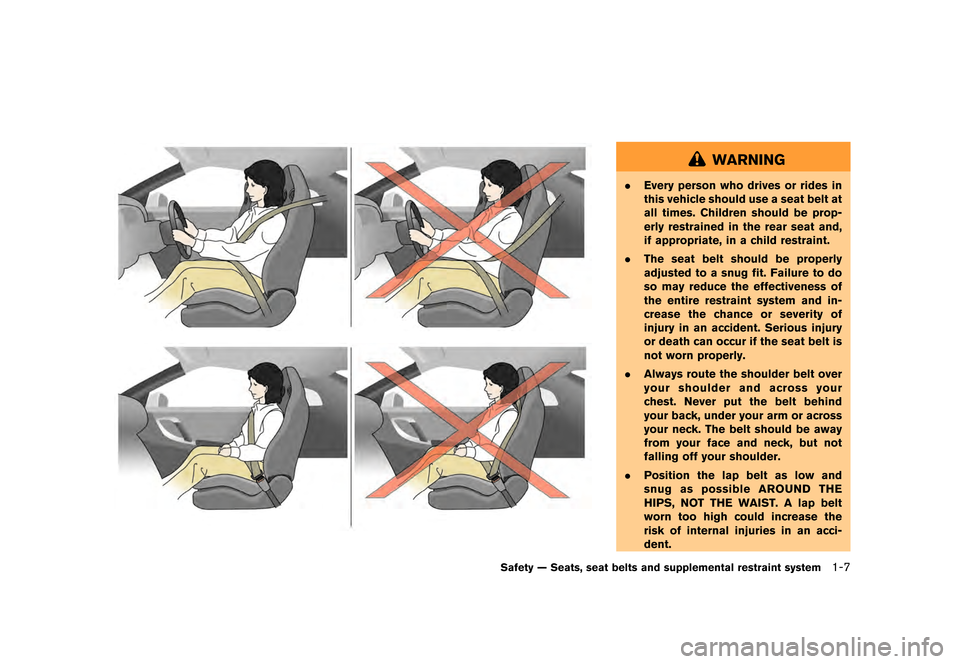

GPR0032
GPR0033
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent.
Safety Ð Seats, seat belts and supplemental restraint system1-7


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

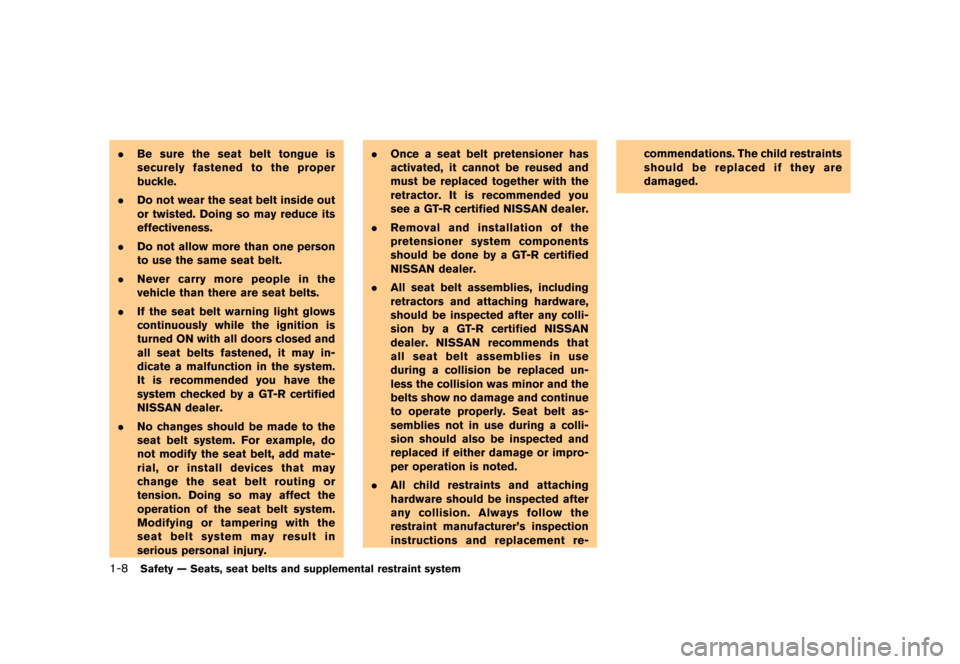

1-8Safety Ð Seats, seat belts and supplemental restraint system
.Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
It is recommended you have the
system checked by a GT-R certified
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. It is recommended you
see a GT-R certified NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a GT-R certified
NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a GT-R certified NISSAN
dealer. NISSAN recommends that
all seat belt assemblies in use
during a collision be replaced un-
less the collision was minor and the
belts show no damage and continue
to operate properly. Seat belt as-
semblies not in use during a colli-
sion should also be inspected and
replaced if either damage or impro-
per operation is noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer's inspection
instructions and replacement re- commendations. The child restraints
should be replaced if they are
damaged.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0034
GPR0035

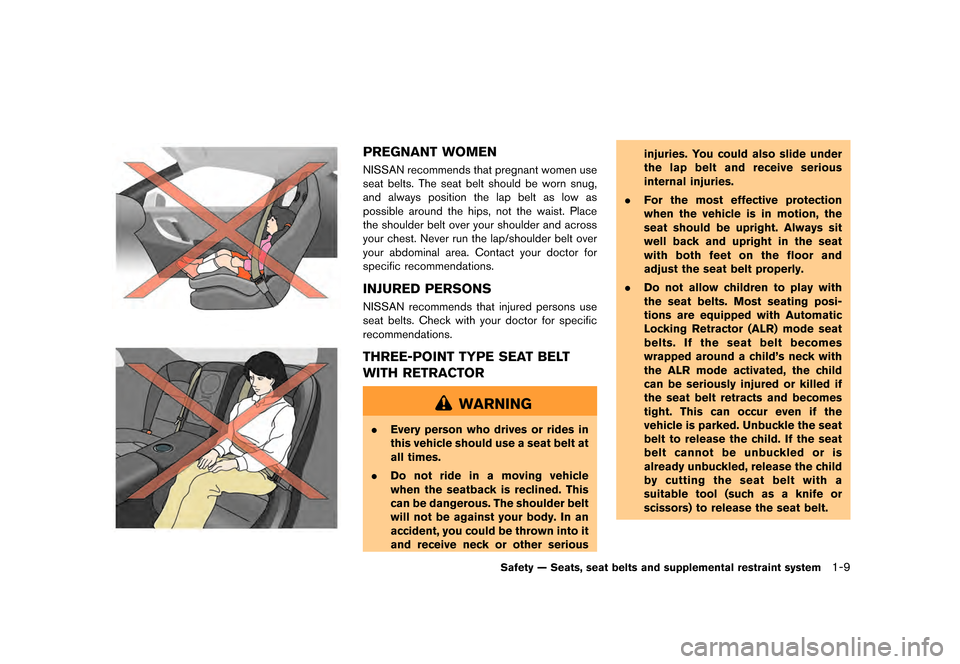

PREGNANT WOMENGUID-5296025E-1B40-4D7E-9E63-D8FD978D7BCFNISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONSGUID-27B8A50C-83A9-4EEB-8FC8-85C61C86B320NISSAN recommends that injured persons use
seat belts. Check with your doctor for specific
recommendations.
THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
GUID-1C46E2A7-5B00-41BB-BA4D-272C728B7FFF
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly.
. Do not allow children to play with
the seat belts. Most seating posi-
tions are equipped with Automatic
Locking Retractor (ALR) mode seat
belts. If the seat belt becomes
wrapped around a child's neck with
the ALR mode activated, the child
can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the
vehicle is parked. Unbuckle the seat
belt to release the child. If the seat
belt cannot be unbuckled or is
already unbuckled, release the child
by cutting the seat belt with a
suitable tool (such as a knife or
scissors) to release the seat belt.
Safety Ð Seats, seat belts and supplemental restraint system1-9


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
1-10Safety Ð Seats, seat belts and supplemental restraint system
GPC0046

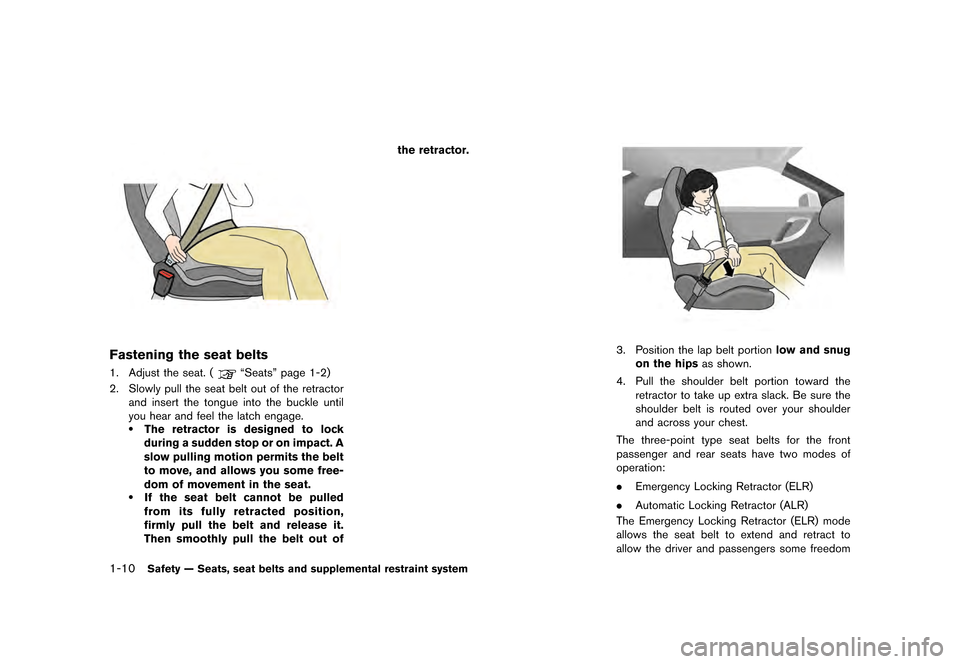

Fastening the seat beltsGUID-9BF04A9C-F28A-426D-940A-B69FA41CAB081. Adjust the seat. (ªSeatsº page 1-2)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lock
during a sudden stop or on impact. A
slow pulling motion permits the belt
to move, and allows you some free-
dom of movement in the seat.
.If the seat belt cannot be pulled
from its fully retracted position,
firmly pull the belt and release it.
Then smoothly pull the belt out of the retractor.
GPR0036
3. Position the lap belt portion
low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The three-point type seat belts for the front
passenger and rear seats have two modes of
operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

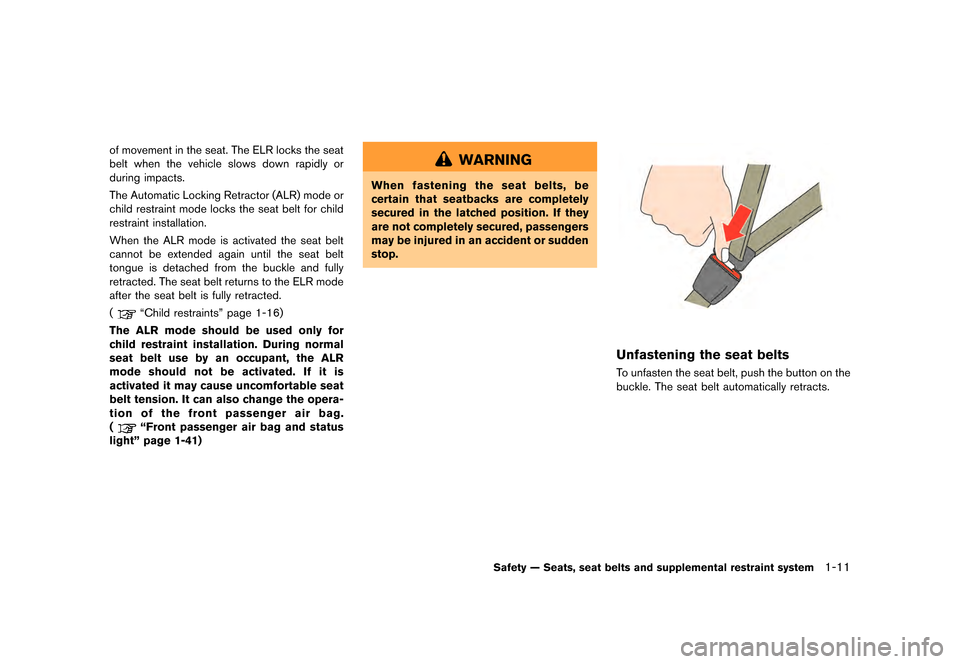

of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during impacts.
The Automatic Locking Retractor (ALR) mode or
child restraint mode locks the seat belt for child
restraint installation.
When the ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt is fully retracted.
(
ªChild restraintsº page 1-16)
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated it may cause uncomfortable seat
belt tension. It can also change the opera-
tion of the front passenger air bag.
(
ªFront passenger air bag and status
lightº page 1-41)
WARNING
When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
GPC0047
Unfastening the seat beltsGUID-B5D963F7-CE26-42FF-B1E1-030BDF97DD63To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.
Safety Ð Seats, seat belts and supplemental restraint system1-11
