7-8Appearance and care

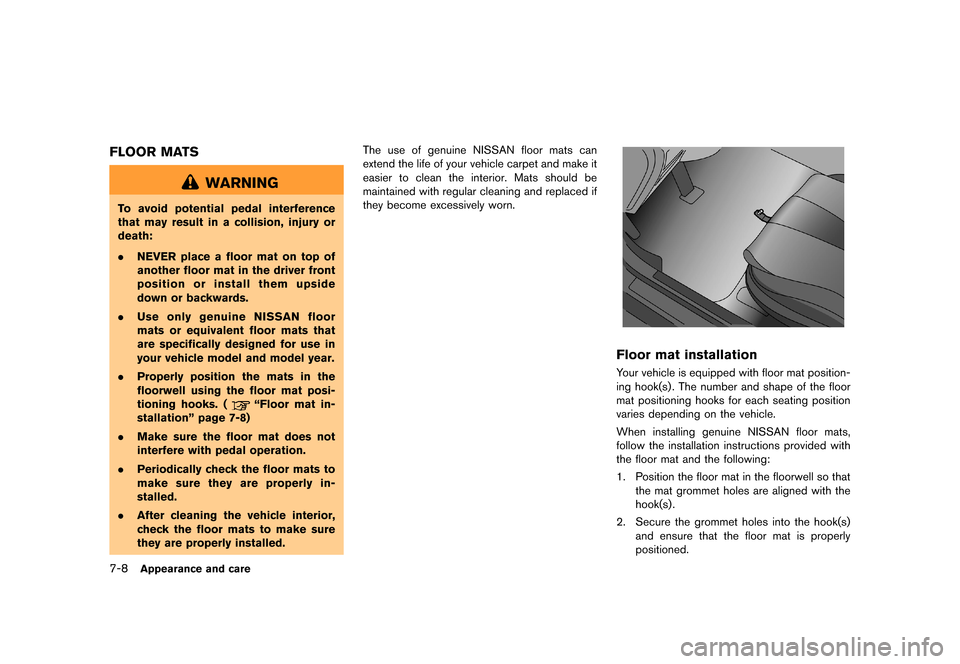

FLOOR MATSGUID-EC8FCCBC-D4B8-4D06-AE34-2F6A9E13C4FD
WARNING
To avoid potential pedal interference
that may result in a collision, injury or
death:
.NEVER place a floor mat on top of
another floor mat in the driver front
position or install them upside
down or backwards.
. Use only genuine NISSAN floor
mats or equivalent floor mats that
are specifically designed for use in
your vehicle model and model year.
. Properly position the mats in the
floorwell using the floor mat posi-
tioning hooks. (
ªFloor mat in-
stallationº page 7-8)
. Make sure the floor mat does not
interfere with pedal operation.
. Periodically check the floor mats to
make sure they are properly in-
stalled.
. After cleaning the vehicle interior,
check the floor mats to make sure
they are properly installed. The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be
maintained with regular cleaning and replaced if
they become excessively worn.
GAC0006
Floor mat installationGUID-7A94A420-550F-4378-8CF8-2DFDDBA6765BYour vehicle is equipped with floor mat position-
ing hook(s) . The number and shape of the floor
mat positioning hooks for each seating position
varies depending on the vehicle.
When installing genuine NISSAN floor mats,
follow the installation instructions provided with
the floor mat and the following:
1. Position the floor mat in the floorwell so that
the mat grommet holes are aligned with the
hook(s) .
2. Secure the grommet holes into the hook(s) and ensure that the floor mat is properly
positioned.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

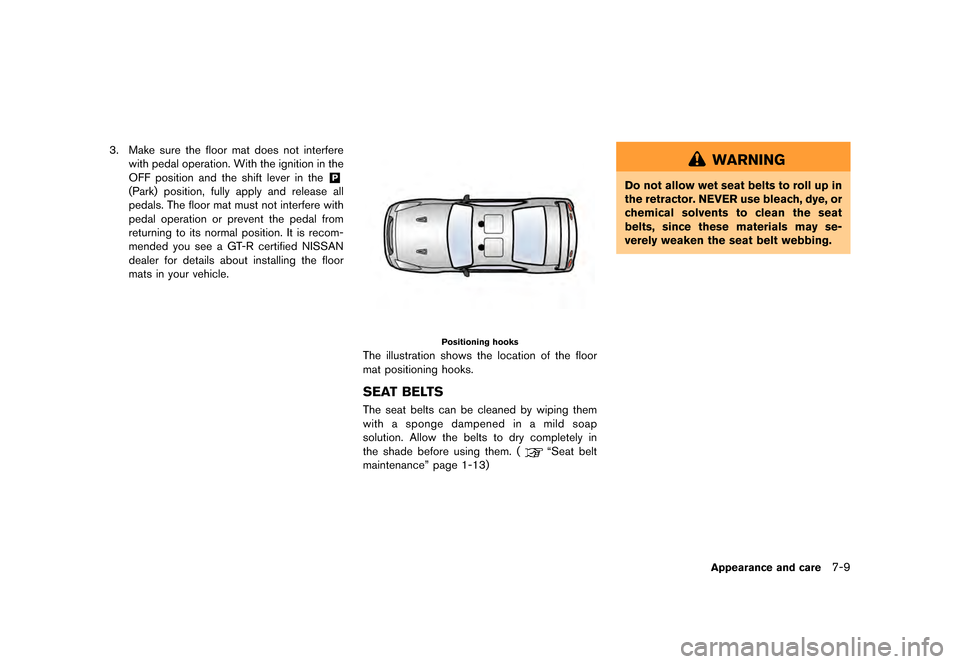

3. Make sure the floor mat does not interferewith pedal operation. With the ignition in the
OFF position and the shift lever in the
&P
(Park) position, fully apply and release all
pedals. The floor mat must not interfere with
pedal operation or prevent the pedal from
returning to its normal position. It is recom-
mended you see a GT-R certified NISSAN
dealer for details about installing the floor
mats in your vehicle.
JVA0006X
Positioning hooks
The illustration shows the location of the floor
mat positioning hooks.
SEAT BELTSGUID-C267C71E-8643-4CFA-9AC2-7E5A65E3B545The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them. (
ªSeat belt
maintenanceº page 1-13)
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.
Appearance and care7-9


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
7-10Appearance and care
GAC0005
Cleaning the power window finisherGUID-4406CA4F-B330-470C-ABAE-D90A3334ABDDMoisten a soft cloth with neutral detergent and
wipe off the dirt on the power window finisher
*1.
After wiping off the dirt, soak a cloth with water
and wring it out thoroughly, then wipe off the
neutral detergent.
NOTICE
Some cleaners may cause the paint to
peel or cause spots to occur. If using a
cleaner, it is recommended you consult
with a GT-R certified NISSAN dealer.
GUID-B970C1C5-D3A1-4C15-B518-E922FCEE496C
MOST COMMON FACTORS CON-
TRIBUTING TO VEHICLE CORRO-
SION
GUID-7A151D9E-D588-4251-8D20-4D2F2E257DA9. The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS IN-
FLUENCE THE RATE OF CORRO-
SION
GUID-277B6C42-E46B-4C04-95B8-D0C538E853B3
MoistureGUID-C93C1A17-821D-4EF7-9691-D9EF6CDDA506Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityGUID-B625B9E1-0536-4B11-99A9-97A1EADE7CE6Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureGUID-5221CCD2-9768-41EB-AFE4-BE246D0DDF1AA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionGUID-243E0D12-D57A-49A3-B55A-3CEEA95DB4A3Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
GUID-9315A8F3-048A-4979-8020-1AD6BA90A7BA.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CORROSION PROTECTION


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

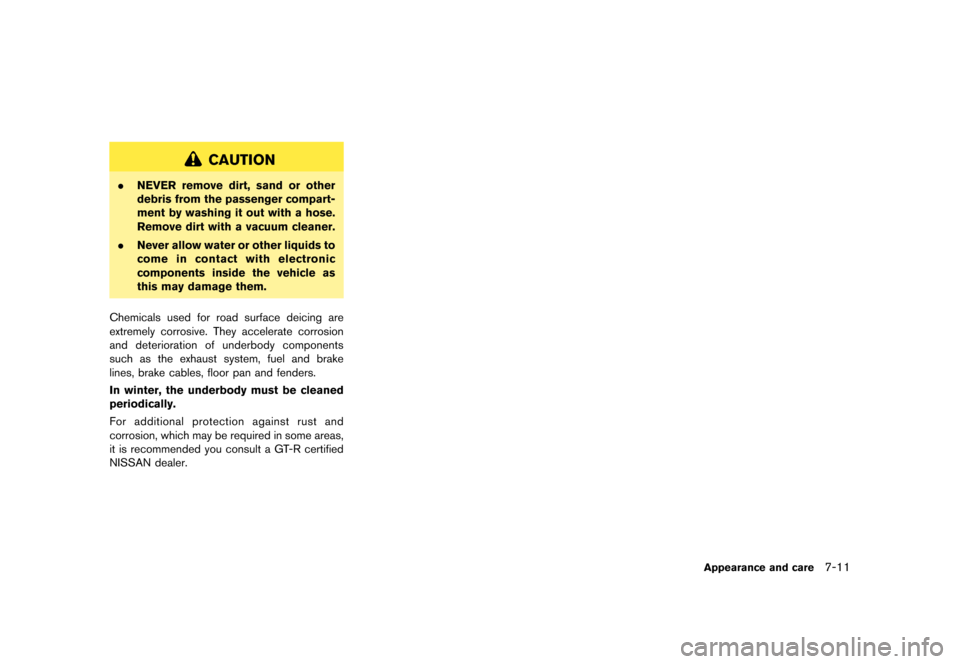

CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic
components inside the vehicle as
this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some areas,
it is recommended you consult a GT-R certified
NISSAN dealer.
Appearance and care7-11


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
7-12Appearance and care

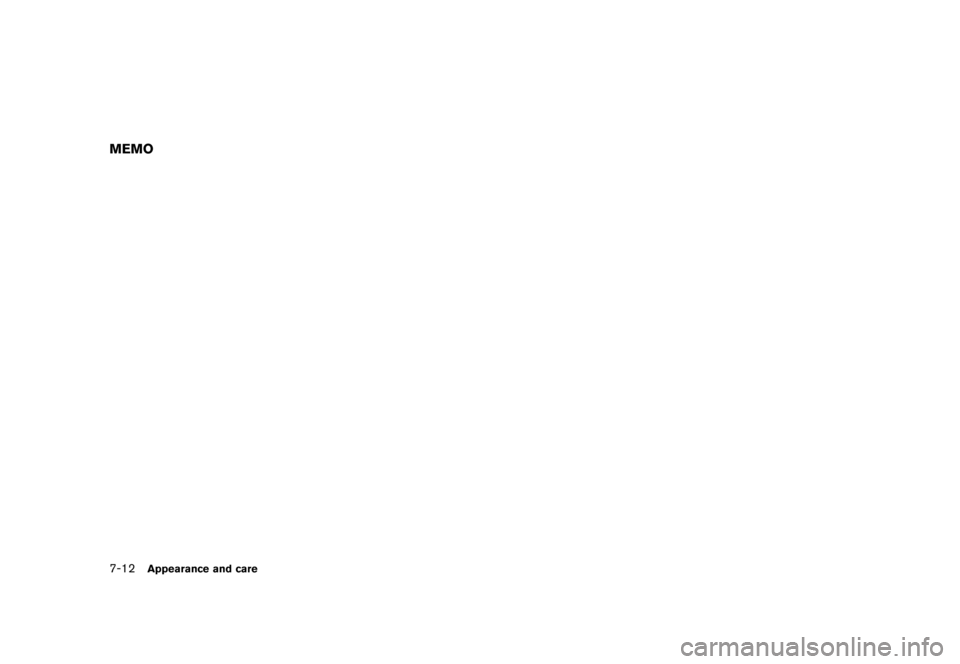

MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8 Maintenance and do-it-yourself
Maintenance requirements....
..................................................... 8-3
Scheduled maintenance ....................................................... 8-3
General maintenance ............................................................ 8-3
Where to go for service ....................................................... 8-3
General maintenance .................................................................. 8-4
Explanation of maintenance items ..................................... 8-4
Maintenance precautions ........................................................... 8-6
Engine compartment check locations ....
................................. 8-8
Removing the cowl top cover ............................................. 8-9
Engine cooling system ....
......................................................... 8-10
Checking engine coolant level ....
..................................... 8-11
Changing engine coolant .................................................. 8-12
Engine oil ............................................................................\
........ 8-13
Checking engine oil level .................................................. 8-13
Changing engine oil and filter ....
...................................... 8-14
Transmission oil ......................................................................... 8-14
Power steering fluid ....
.............................................................. 8-14
Brake fluid ............................................................................\
....... 8-15
Window washer fluid ............................................................... 8-16
Battery ....
........................................................................\
.............. 8-17
Precautions ........................................................................... 8-17
Fluid level check ....
.............................................................. 8-18
Jump starting ........................................................................ 8-19
Drive belts ............................................................................\
....... 8-19 Spark plugs
....
........................................................................\
.... 8-20
Replacing spark plugs ..................................................... 8-20
Air cleaner ............................................................................\
...... 8-21
Windshield wiper blades ....
.................................................... 8-22
Cleaning ............................................................................\
.. 8-22
Replacing the wiper blades ........................................... 8-22
Brakes ............................................................................\
............. 8-23
Self-adjusting brakes ....................................................... 8-23
Brake pad wear warning ................................................. 8-23
High performance brake system ................................... 8-23
Replacing the brake pads ....
........................................... 8-24
Fuses ............................................................................\
............... 8-24
Engine compartment ........................................................ 8-24
Passenger compartment ................................................. 8-25
Intelligent Key battery replacement ....
.................................. 8-27
Lights ....
........................................................................\
............... 8-29
Headlights ....
....................................................................... 8-30
Exterior and interior lights ............................................... 8-30
Wheels and tires ...................................................................... 8-32
Tire pressure ...................................................................... 8-32
Tire and loading information label ................................ 8-35
Checking the tire pressure ............................................. 8-36
Tire labeling ........................................................................ 8-37
Types of tires ....
.................................................................. 8-39


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire chains....
........................................................................\
. 8-41
Changing wheels and tires ....
........................................... 8-41 Jacking vehicle and removing wheels
....
...................... 8-44
Wheel lock nuts (if so equipped) ....
............................. 8-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-E98D7125-8032-452B-B9FF-1B3C53BBB5F2Some day-to-day and regular maintenance is
essential to maintain your vehicle good mechan-
ical condition, as well as its emission and engine
performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCEGUID-E0B2C09A-66B6-476D-8575-FB97D809FEBDFor your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your NISSAN Service and
Maintenance Guide. You must refer to that guide
to ensure that necessary maintenance is per-
formed on your vehicle at regular intervals.
GENERAL MAINTENANCEGUID-D2D0708D-C35D-4699-82DB-19B77AAFBDACGeneral maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a fewgeneral automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
GT-R certified NISSAN dealer.
WHERE TO GO FOR SERVICEGUID-DB69589D-3B24-4601-8C17-D768974E2FF3GT-R certified NISSAN dealers are required to
have additional training and equipment and are
the only NISSAN dealers authorized to perform
warranty work on key vehicle performance
systems such as engine, transmission, suspen-
sion and brakes.
If maintenance service is required or your vehicle
appears to malfunction, it is recommended that
you have the systems checked and serviced by a
GT-R certified NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealer information systems. They are
completely qualified to work on NISSAN vehi-
cles
before work begins.
You can be confident that a GT-R certified
NISSAN dealer's service department performs
the best job to meet the maintenance require-
ments on your vehicle.
To find a GT-R certified NISSAN dealer near
you, call 1-866-668-1GTR in the US or 1-800- 387-0122 in Canada, or go to www. gtrnissan.
com/.
Maintenance and do-it-yourself8-3
MAINTENANCE REQUIREMENTS
