All-Wheel Drive (AWD) warning lightLow tire pressure warning lightCruise set switch indicator light
Anti-lock Braking System (ABS) warning
lightMaster warning lightExterior light indicator
Seat belt warning lightFront passenger air bag status light
Brake warning lightSupplemental air bag warning lightHigh beam indicator light
Transmission warning lightMalfunction Indicator Light (MIL)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightTurn signal/hazard indicator lights
Engine oil pressure warning lightCruise main switch indicator lightVehicle Dynamic Control (VDC) off indicator
light
Intelligent Key warning light
CHECKING LIGHTSGUID-0690CE37-25FD-4D73-A7AF-AFE1D852C699With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:
,or,,,
The following lights (if so equipped) will come
on briefly and then go off:
,or,,,,,
If any light does not come on or operates in a
way other than described, it may indicate aburned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a GT-R certified NISSAN dealer.
WARNING LIGHTSGUID-C643F323-574D-4369-917C-E9A71BC3B75B
All-Wheel Drive (AWD) warn-
ing light
GUID-1B607105-7534-4297-BBBA-7F608F3BEDDCThewarning light comes on when the
ignition switch is pushed to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions, the warning
light will either remain illuminated or blink. (
ªAll-Wheel Drive (AWD)º page 5-41)
CAUTION
.
If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a GT-R certified NISSAN
dealer as soon as possible.
. If the AWD warning light blinks on
when you are driving:
Instruments and controls2-25
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
8-30Maintenance and do-it-yourself
HEADLIGHTSGUID-02DF20E9-197E-4198-84C1-8F022CF37578Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This does
not indicate that there is a malfunction. If large
drops of water collect inside the lens, contact a
GT-R certified NISSAN dealer.
ReplacingGUID-00DF49DB-1667-41BE-B931-A5B723F5290D
LED headlight:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If replacement is necessary, see a GT-R certified
NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTSGUID-30C39BC5-0F51-49AB-82BF-6F2132601083
ItemWattage (W)Bulb No.
Headlight assembly
low-beam* LEDÐ
high-beam* LEDÐ
Front turn signal light* 28/87444NA
Front parking light* LEDÐ
Daytime running light* LEDÐ
Front side marker light* 3.8T10
Rear combination light*
back-up 16W16W
turn signal 21WY21W
stop/tail LEDÐ
Rear side marker light* LEDÐ
License plate light* 5W5W
Map light 8Ð
Vanity mirror light 2Ð
Step light* 2.7Ð
Trunk light* 3.4Ð
High-mounted stop light* LEDÐ
*: It is recommended you see a GT-R certified NISSAN dealer for replacement.
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

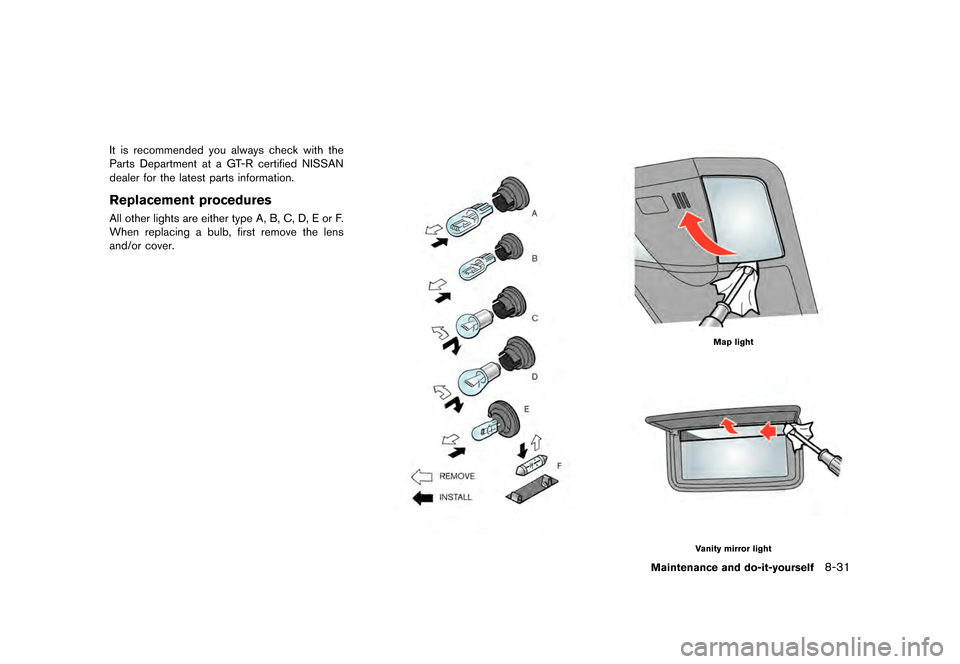

It is recommended you always check with the
Parts Department at a GT-R certified NISSAN
dealer for the latest parts information.
Replacement proceduresGUID-A034FE6D-DE8D-40C1-9B2D-843FBC6CCB18All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
GMD0013
GMD0014
Map light
GMD0015
Vanity mirror light
Maintenance and do-it-yourself8-31
