8-36Maintenance and do-it-yourself
GMD0017
CHECKING THE TIRE PRESSUREGUID-9660404A-CCE9-48DF-B05F-387147B1D4CA1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires.
NOTE:
.
You can check the pressure of all
four tires on the touch screen
display. See the separate Multi
Function Display Owner's Man-
ual.
.The tires of this vehicle are filled
with nitrogen gas. When the tire
pressure is low, fill the tires with
nitrogen. It is recommended you
contact a GT-R certified NISSAN
dealer for information on filling
the tires with nitrogen.
.If nitrogen is not available, com-
pressed air may be safely used
under normal driving conditions.
However, NISSAN recommends
refilling with nitrogen for max-
imum tire performance.
Summer tires:
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIRE 255/40ZR-
F20 (97Y)
30 PSI (210
kPa)
REAR ORI-
GINAL TIRE 285/35ZR-
F20 (100Y) 29 PSI (200
kPa)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
All-season tires:
SIZECOLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL TIRE 255/40R-
F20 97W
32 PSI (220
kPa)
REAR ORI-
GINAL TIRE 285/35R-
F20 100W 30 PSI (210
kPa)
GMD0018
Example
TIRE LABELINGGUID-8E9A4B6A-A510-4A34-B395-913A59699343
Federal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamental
characteristics of the tire and also
provides the tire identification number
(TIN) for safety standard certification.
The TIN can be used to identify the tire
in case of a recall.
GMD0009
Example
*1Tire size (example: P215/60R16 94H)
1.
P: The ªPº indicates the tire is
designed for passenger vehicles.
(Not all tires have this information.)
2.Three-digit number (215): This num-
ber gives the width in millimeters of
the tire from sidewall edge to sidewall
edge.
3.Two-digit number (65): This number,
known as the aspect ratio, gives the
tire's ratio of height to width.
4.R: The ªRº stands for radial.
Maintenance and do-it-yourself8-37


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

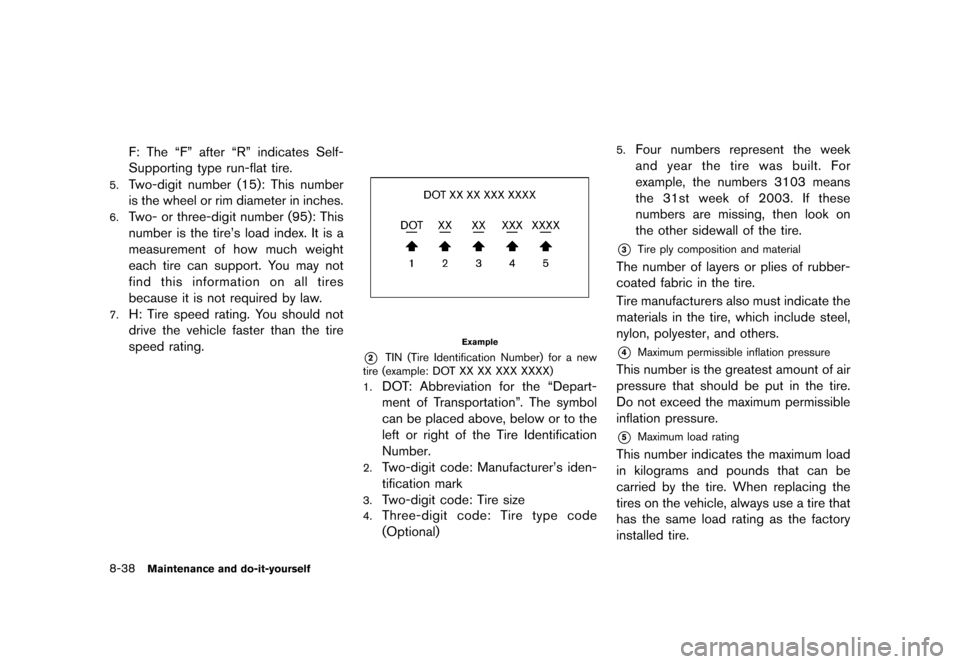

8-38Maintenance and do-it-yourself
F: The ªFº after ªRº indicates Self-
Supporting type run-flat tire.
5.Two-digit number (15): This number
is the wheel or rim diameter in inches.
6.Two- or three-digit number (95): This
number is the tire's load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires
because it is not required by law.
7.H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.JVM0694X
Example
*2TIN (Tire Identification Number) for a new
tire (example: DOT XX XX XXX XXXX)
1.
DOT: Abbreviation for the ªDepart-
ment of Transportationº. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.
2.Two-digit code: Manufacturer's iden-
tification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code
(Optional)
5.Four numbers represent the week
and year the tire was built. For
example, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing, then look on
the other sidewall of the tire.
*3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire.
Tire manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others.
*4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire.
Do not exceed the maximum permissible
inflation pressure.
*5Maximum load rating
This number indicates the maximum load
in kilograms and pounds that can be
carried by the tire. When replacing the
tires on the vehicle, always use a tire that
has the same load rating as the factory
installed tire.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

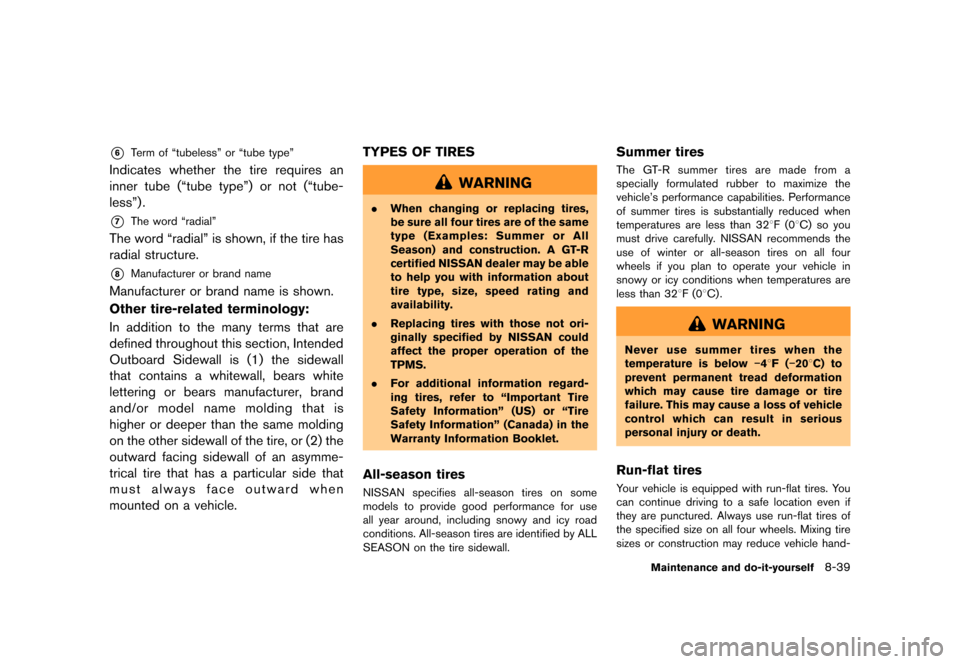

*6Term of ªtubelessº or ªtube typeº
Indicates whether the tire requires an
inner tube (ªtube typeº) or not (ªtube-
lessº) .
*7The word ªradialº
The word ªradialº is shown, if the tire has
radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall
that contains a whitewall, bears white
lettering or bears manufacturer, brand
and/or model name molding that is
higher or deeper than the same molding
on the other sidewall of the tire, or (2) the
outward facing sidewall of an asymme-
trical tire that has a particular side that
must always face outward when
mounted on a vehicle.TYPES OF TIRES
GUID-31F64B53-5AF8-4900-BFFB-25E6851AD8EE
WARNING
.
When changing or replacing tires,
be sure all four tires are of the same
type (Examples: Summer or All
Season) and construction. A GT-R
certified NISSAN dealer may be able
to help you with information about
tire type, size, speed rating and
availability.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Warranty Information Booklet.
All-season tiresGUID-3530878B-21CD-4FB0-834D-8BEEC1E9F857NISSAN specifies all-season tires on some
models to provide good performance for use
all year around, including snowy and icy road
conditions. All-season tires are identified by ALL
SEASON on the tire sidewall.
Summer tiresGUID-ABEF5B55-4350-4EC5-918F-0B7ED6BCE431The GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F (08C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F (08C) .
WARNING
Never use summer tires when the
temperature is below


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-40Maintenance and do-it-yourself
ling stability. If necessary, contact a GT-R
certified NISSAN dealer for assistance.
Frequently check the tire pressure information
on the touch screen display and adjust pressure
of each tire properly. See the separate Multi
Function Display Owner's Manual.
It can be difficult to tell if a run-flat tire is under-
inflated or flat. Check the tire pressures as
described earlier in this section. If the tire
becomes under-inflated while driving, the low
tire pressure warning light will come on. If the
tire becomes flat while driving, the low tire
pressure warning light and the run-flat tire
warning display will come on.
Low tire pressure:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the vehicle is being driven with low tire
pressure, the low tire pressure warning light will
illuminate and the low tire pressure warning will
appear in the vehicle information display.
Flat tire:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the vehicle is being driven with one or more flat
tires, the low tire pressure warning light will
illuminate continuously and a chime will sound
for 10 seconds. The run-flat tire warning also
appears in the vehicle information display.
The chime will only sound at the first indication
of a flat tire and the run-flat tire warning display
will illuminate continuously. When the flat tirewarning is activated, it is recommended you
have the system reset and the tire checked and
replaced if necessary by a GT-R certified
NISSAN dealer. Even if the tire is inflated to
the specified COLD tire pressure, the warning
light will continue to illuminate until the system is
reset by a GT-R certified NISSAN dealer.
If the low tire pressure and the run-flat tire
warning appears on the vehicle information
display:
.
Do not exceed 50 MPH (80 km/h) .
. Increase your following distance to allow for
increased stopping distances.
. Avoid sudden maneuvers, hard cornering
and hard braking.
WARNING
.Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tire.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. It is recommended you have the
punctured tire replaced by a GT-R
certified NISSAN dealer as soon as
possible, as the tire's performance
capability is reduced.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tires for All-Wheel Drive (AWD)GUID-848D3C9A-A3CC-4FF9-9DE9-F6990C89ECF1If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the specified size, brand, construction and
tread pattern. The tire pressure and wheel
alignment should also be checked and cor-
rected as necessary. It is recommended you
contact a GT-R certified NISSAN dealer.
TIRE CHAINSGUID-90F3D152-5E58-4B2D-929F-0D9F338D8B14Use of tire chains may be prohibited according
to location. Check the local laws before instal-
ling tire chains. When installing tire chains, make
sure they are of proper size for the tires on your
vehicle and are installed according to the chain
manufacturer instructions.Use only SAE class
S chains. Class ªSº chains are used on vehicles
with restricted tire to vehicle clearance. Vehicles
that can use Class ªSº chains are designed to
meet the SAE standard minimum clearances
between the tire and the closest vehicle
suspension or body component required to
accommodate the use of a winter traction device
(tire chains or cables) . The minimum clearances
are determined using the factory equipped tire
size. Other types may damage your vehicle. Use
chain tensioners when recommended by the tire
chain manufacturer to ensure a tight fit. Loose
end links of the tire chain must be secured or removed to prevent the possibility of whipping
action damage to the fenders or undercarriage.
If possible, avoid fully loading your vehicle when
using tire chains. In addition, drive at a reduced
speed. Otherwise, your vehicle may be da-
maged and/or vehicle handling and performance
may be adversely affected.
NOTE:
Tire chains must be installed only on the
rear wheels and not on the front wheels.
CAUTION
Do not use tire chains on dry roads.
NOTICE
Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.
Do not drive with tire chains on paved roads that
are clear of snow. Driving with chains in such
conditions can cause damage to the various
mechanisms of the vehicle due to some
overstress.
CHANGING WHEELS AND TIRESGUID-07A6466B-1B69-4149-A155-B5CE2ED265B1
Tire rotationGUID-F88DD8A5-029F-4CD0-A1A6-2FABE652D539
Tires cannot be rotated because your
vehicle is equipped with different sized
tires in the front and rear.
Maintenance and do-it-yourself8-41


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-42Maintenance and do-it-yourself
JVM0013X
1. Wear indicator
2. Wear indicator location marks. The locations areshown by ª
º, ªTWIº, etc. depending on tire
types.
Tire wear and damageGUID-A053145E-F451-4F9A-AA70-4737275226D6
WARNING
.Tires should be periodically
inspected for wear, cracking,
bulging or objects caught in
the tread. If excessive wear,
cracks, bulging or deep cuts
are found, the tire(s) should be replaced.
.The original tires have built-in
tread wear indicators. When
the wear indicators are visible,
the tire(s) should be replaced.
.Tires degrade with age and
use. Have tires, over 6 years
old checked by a qualified
technician because some tire
damage may not be obvious.
Replace the tires as necessary
to prevent tire failure and
possible personal injury.
.For additional information re-
garding tires, refer to ªImpor-
tant Tire Safety Informationº
(US) or ªTire Safety Informa-
tionº (Canada) in the Warranty
Information Booklet.
Replacing wheels and tires
GUID-AA9BCC05-3F63-414E-ACDE-EB327CFF8CF9When tire replacement is required, replacing
tires as a set of four with new tires is
recommended. However, if a tire is punctured or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. It is recommended you contact
your GT-R certified NISSAN dealer. They can
recommend if an individual tire or a complete set
should be replaced.
When replacing a tire, use the specified size,
speed rating and load carrying capacity as
originally equipped. (
ªWheels and tiresº
page 9-9)
NOTICE
. When you replace the GT-R tires, it
is recommended that you replace all
the tires at the same time.
. The GT-R uses specially designed
run-flat tires which feature an ex-
tremely rigid side wall. Special tech-
niques and equipment are therefore
required when replacing these tires.
NISSAN recommends that tire re-
placement be performed at a GT-R
certified NISSAN dealer.
. When tires are reinstalled after
being uninstalled from the wheels,
use equipment such as a leverless


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
automatic tire changer. It is only
possible to reuse the tires when
they have no cracks and/or defor-
mations on the bead portion. How-
ever, if you use a lever-type tire
changer, cracks and deformation
may occur on the bead portion of
the tires meaning that the tires
cannot be reused.
. Make sure the tire valve stem cap is
installed and that the valve stem is
tight. When installing the cap, make
sure to tighten the cap by hand. If a
tool is used to tighten the cap, the
cap may be damaged.
WARNING
.The use of tires other than those
specified or the mixed use of tires of
different brands, construction (bias,
bias-belted, radial or run-flat) , or
tread patterns can adversely affect
the ride, braking, VDC system, hand-
ling, ground clearance, body-to-tire
clearance, tire chain clearance,
speedometer calibration, headlight
aim and bumper height. Some of these effects may lead to accidents
and could result in serious personal
injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics, affect the VDC system and/or
cause interference with the brake
discs. Such interference can lead to
decreased braking efficiency and/or
early brake pad wear. (
ªWheels
and tiresº page 9-9)
. When a wheel is replaced, tire
pressure will not be indicated, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute and
remain on after the 1 minute. It is
recommended you contact a GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the TPMS.
. The TPMS sensor may be damaged
if it is not handled correctly. Be
careful when handling the TPMS
sensor.
. When replacing the TPMS sensor,
the ID registration may be required.
Contact a GT-R certified NISSAN
dealer for ID registration.
. Do not use a valve stem cap that is
not specified by NISSAN. The valve
stem cap may become stuck.
. Be sure that the valve stem caps are
correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause a malfunction or loss of
pressure.
. Do not install a damaged or de-
formed wheel or tire even if it has
been repaired. Such wheels or tires
could have structural damage and
could fail without warning.
. Never use retread tires.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Maintenance and do-it-yourself8-43
