cause the engine output may be
reduced and the clutch may be
reduced to keep the clutch disen-
gaged.
R mode start function:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the R mode start function is used 4 times
continuously, the function may be disabled and
cannot be turned on for protection. While the
function is disabled, the warning light illumi-
nates. When the warning light goes off, the
function can be used again. (
ªR mode start
functionº page 5-32)
When the warning light illuminates, perform cool
down driving (driving 1.3 mile (2 km) in 5th or
6th gear at a speed of approximately 37 - 50
MPH (60 - 80 km/h) while checking the
temperature of the transmission oil until the
warning light goes off.
NOTICE
While the warning light is illuminated,
the engine output is controlled so that
it does not increase.
Vehicle Dynamic Control (VDC)
warning light
GUID-133481A7-A7D1-4868-96FC-76FC517EF3F4The light will blink when the VDC system or the
traction control system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
If the VDC warning light illuminates when the
VDC system is turned on, this light alerts the
driver to the fact that the VDC system's fail-safe
mode is operating, for example the VDC or hill
start assist system may not be functioning
properly. Have the system checked by a GT-R
certified NISSAN dealer. If a malfunction occurs
in the system, the VDC system function will be
canceled but the vehicle is still driveable.
(
ªVehicle Dynamic Control (VDC) systemº
page 5-53)
INDICATOR LIGHTSGUID-E3A37514-681C-4C69-9C1D-DCB79934187F
Cruise main switch indicator
light
GUID-A23D0BDF-1E9D-4F2B-83A7-E680EA31D4DEThe light comes on when the cruise control is
pushed. The light turns off when the main switch
is pushed again. While the cruise control system
main switch indicator light is on, the cruise
control system is operational.
Cruise set switch indicator
light
GUID-620D95CA-78C2-42C7-A108-F8FDADDF21EBThe light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not
functioning properly. It is recommended you
have the system checked by a GT-R certified
NISSAN dealer.
Exterior light indicatorGUID-1C86E701-EE7D-4B25-BC7F-8065A02ECD73This indicator illuminates when the headlight
switch is turned to the AUTO,
or
position and the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.
Front passenger air bag status
light
GUID-B348C2F9-F714-4708-87F5-1029DDF7D946The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used. (
ªNISSAN Advanced
Air Bag System (front seats)º page 1-40)
High beam indicator lightGUID-82FA2B4D-4DFD-4DFA-9C82-A8317CF62338This light comes on when the headlight high
beam is on and goes out when the low beam is
Instruments and controls2-31


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-32Instruments and controls
selected.
Malfunction Indicator Light
(MIL)
GUID-7AE6836F-62DC-4F8F-81D2-F95B25AF5E24If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control or the
muffler with electronic control valve (if so
equipped) malfunction.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (12 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (
ªReadiness for Inspec-
tion/Maintenance (I/M) test (US only)º page 9-
20)
Operation:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The malfunction indicator light will come on in
one of two ways: .
Malfunction indicator light on steady Ð An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, it is
recommended you have the vehicle in-
spected by a GT-R certified NISSAN dealer.
You do not need to have your vehicle towed
to the dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
It is recommended you have the vehicle
inspected by a GT-R certified NISSAN
dealer. You do not need to have your vehicle towed to the dealer.
NOTICE
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Turn signal/hazard indicator
lights
GUID-994D8D95-6EF6-41CB-AB73-53CB5B204284The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
GUID-3BC6C8D3-71C4-4CF1-BC85-601B53D3970AWhen the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.
The light comes on when the VDC set up switch
is pushed to OFF for more than 1 second.
(
ªVDC, transmission and suspension setup
switchesº page 5-25)
This indicates that the vehicle dynamic control
system and traction control system are not
operating. (
ªVehicle Dynamic Control


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
TIGHT CORNER BRAKING PHE-
NOMENON
GUID-1A27E22E-DFCE-4A37-87A5-5B6E52FE9B38If the steering wheel is turned more than half a
turn when the vehicle is started when it is cold, it
may be harder to move the vehicle forward and
backward. This phenomenon is known as the
ªtight corner braking phenomenonº.
This phenomenon is unique to AWD vehicles,
and occurs due to a difference in speeds
between the front and rear wheels while the
vehicle is turning. This does not indicate that
there is a malfunction.
NOTE:
If the tight corner braking phenomenon
occurs, a slipping sound may be heard
from the tires, or a squeaking sound may
be heard from the drive system.
Reducing tight corner braking phe-
nomenon
GUID-BA737537-EE7C-4157-9184-AAED4280FA70The tight corner braking phenomenon can be
reduced if the following three conditions are
met:
.Transmission setup switch is set to Normal
mode.
. Vehicle speed is low (less than approxi-
mately 6 MPH (10 km/h)) . .
The steering wheel is turned more than 1/2
turn.
TIRESGUID-4607560A-BD7E-4BAE-972E-CBDBA63C2F98This vehicle is equipped with special tires. When
changing the tires, install the designated special
tires. Replacing tires as a set of four with new
ones is recommended. However, if a tire is
punctured or damaged, it may be possible to
replace only the damaged tire. Determining
whether one tire or a complete set of tires
should be replaced is based on a number of
factors including tire wear and condition. Con-
tact your GT-R certified NISSAN dealer. They
can recommend if an individual tire or a
complete set should be replaced.
NOTICE
If tires other than the designated tires,
tires with large differences in wear or
tires of different sizes are installed, the
AWD performance will be degraded and
the drive mechanism may be damaged.
AWD SYSTEM CHARACTERISTICSGUID-BB073156-8A99-484C-B5C5-853EDBCA9D09The AWD system automatically distributes the
optimal torque to the front and rear wheels. This
provides both the superior turning performance
of a rear wheel drive vehicle and the traction of a
AWD vehicle.
Electronic control continuously distributes tor-
que to the front and rear wheels in the range
from 0:100 (rear-wheel drive mode) to 50:50
(all-wheel drive mode) to match the driving
conditions and road conditions. This allows the
engine output (torque) to be effectively trans-
mitted to the road surface.
Starting and driving5-43


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are
hazardous and extra care is required while
driving.GUID-55C14948-F47B-404C-93D0-AC90CA9C4F34The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving con-
ditions, the VDC system helps to perform the
following functions.
.Controls brake pressure to reduce wheel
slip on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.
. Controls brake pressure and engine output
to reduce drive wheel slip based on vehicle
speed (traction control function) .
. Controls brake pressure at individual wheels
and engine output to help the driver maintain
control of the vehicle in the following
conditions:
Ð understeer (vehicle tends to not follow
the steered path despite increased
steering input)
Ð oversteer (vehicle tends to spin due to certain road or driving conditions) .
The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss
of vehicle control in all driving situations. When the VDC system operates, the VDC
warning lightin the meter flashes so note
the following:
. The road may be slippery or the system may
determine some action is required to help
keep the vehicle on the steered path.
. You may feel a pulsation in the brake pedal
and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.
. Adjust your speed and driving to the road
conditions.
. The VDC mode can be changed using the
VDC setup switch. (
ªVDC, transmis-
sion and suspension setup switchesº page
5-25)
(
ªVehicle Dynamic Control (VDC) warning
lightº page 2-31,
ªVehicle Dynamic Con-
trol (VDC) off indicator lightº page 2-32)
If a malfunction occurs in the system, the VDC
warning light
illuminates in the meter. The
VDC system automatically turns off.
The VDC setup switch is used to turn off the
VDC system. The VDC off indicator
illuminates to indicate the VDC system is off.
When the VDC setup switch is used to turn off
the system, the VDC system still operates to
prevent one drive wheel from slipping by
Starting and driving5-53
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
WARNING
.The VDC OFF mode should ONLY be
used briefly to help free the vehicle
if stuck in snow or mud by tempora-
rily stopping operation of the VDC
to maintain wheel torque.
. Driving the GT-R with the VDC off
may lead to handling issues related
to steering maneuvers, acceleration,
or deceleration. Moreover, driving
with the VDC off can result in an
inoperative vehicle by causing ser-
ious damage to the powertrain,
including damage to the Transaxle
Assembly including Transfer, Clutch,
Gears, Transaxle case and all of its
components and other drivetrain
component(s) by overheating or ex-
cessive force.
. Damage to the powertrain or any
drivetrain component(s) that occurs
when there is a record in the Vehicle
Status Data Recorder (VSDR) that
the vehicle was driven with VDC off
during the period when the damage
was incurred is excluded from war-
ranty coverage. See your 2016 Warranty Information Booklet for
important related information and warranty
coverage exclusions. See also section 2
(ªTransmission warning lightº page 2-30)
and section 5 (
ªVehicle Dynamic Control
(VDC) systemº page 5-53) of this Owner's
Manual, ªTransmission Clutch Temperature
Highº and ªVehicle Dynamic Control (VDC)
Systemº for important additional related informa-
tion.
. Except for the emergency cases above,
any issues related to driving stability
(e.g., steering maneuvers and maneu-
vers during acceleration and decelera-
tion) and any damages to drivetrain
components (e.g., transfer, clutch, a
sort of gear, transaxle case) will not
be covered by warranty if there is a
record in the Vehicle Status Data
Recorder (VSDR) that the vehicle was
driven with VDC off.
. When attempting to free the vehicle
from mud or fresh snow, the VDC will
detect the tire slipping, and the engine
speed may not increase even when the
accelerator pedal is depressed. To raise
the engine speed, use the VDC set up
switch to turn the VDC system OFF and
select SAVE mode with the transmis- sion switch. (
ªVDC, transmission
and suspension setup switchesº page
5-25)
. When the VDC system is turned OFF,
all VDC functions (including traction
control) , except for the ABS functions,
are deactivated.
Starting and driving5-55


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9 Technical and consumer information
Capacities and recommended fluids/lubricants....
............... 9-2
Fuel information ...................................................................... 9-4
Engine oil and oil filter recommendation ....
...................... 9-6
Air conditioning system refrigerant and
lubricant recommendations ....
.............................................. 9-7
Specifications ....
........................................................................\
.... 9-8
Engine ............................................................................\
........... 9-8
Wheels and tires .................................................................... 9-9
Dimensions ........................................................................... 9-10
When traveling or registering in another country ............. 9-11
Vehicle identification ....
............................................................. 9-11
Vehicle Identification Number (VIN) plate ..................... 9-11
Vehicle identification number (chassis number) ......... 9-11
Engine serial number ....
...................................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ....................... 9-12
Emission control information label .................................. 9-12
Tire and loading information label ....
............................... 9-13
Air conditioner specification label ....
............................... 9-13
Installing front license plate ....
................................................ 9-13 Vehicle loading information
.... ................................................ 9-14
Terms ....
........................................................................\
........ 9-14
Vehicle load capacity ....................................................... 9-15
Loading tips ....
.................................................................... 9-16
Measurement of weights ....
............................................. 9-16
Towing a trailer ....
...................................................................... 9-17
Flat towing ....
........................................................................\
...... 9-17
Uniform tire quality grading ....
................................................ 9-17
Treadwear ........................................................................... 9-17
Traction AA, A, B and C ................................................. 9-18
Temperature A, B and C ....
............................................. 9-18
Emission control system warranty ....
.................................... 9-18
Reporting safety defects ........................................................ 9-19
Readiness for Inspection/Maintenance (I/M) test
(US only) ............................................................................\
........ 9-20
Event Data Recorders (EDR) ....
............................................ 9-20
Vehicle status data recorder (VSDR) ................................. 9-21
Handling of data ....
............................................................ 9-21
Owner's Manual/Service Manual order information ........ 9-22


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-A7EF52ED-0918-4222-9D88-0C4CBDE8D06BDo not tow a trailer with your vehicle.GUID-A601D60D-D8C8-4262-A40A-D5D62480E756Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
DO NOT tow the GT-R with all four wheels on
the ground (flat towing) . Doing so WILL
DAMAGE internal transmission parts. Tow the
GT-R with all four wheels off the ground.
(
ªTowing your vehicleº page 6-9)
GUID-ABF4BAEC-CE23-4E9D-92B0-C19BC42585B1DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-F8997A0C-D647-4DBA-B412-AA6947D11FECThe treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half (1
1/2) times as well on the government course as
a tire graded 100. The relative performance of
tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
Technical and consumer information9-17
TOWING A TRAILERFLAT TOWINGUNIFORM TIRE QUALITY GRADING


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

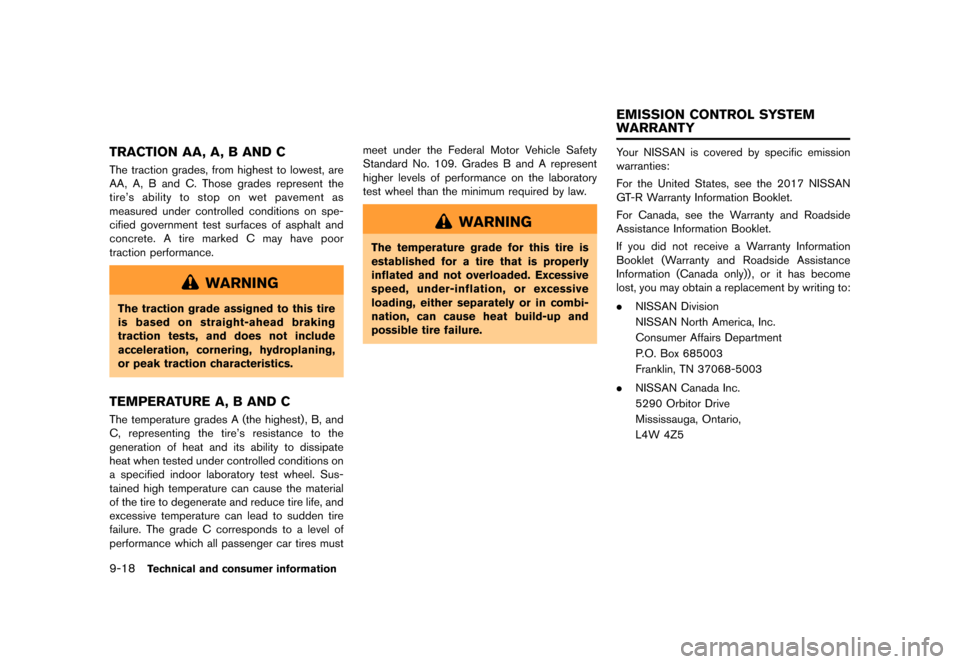

9-18Technical and consumer information
TRACTION AA, A, B AND CGUID-EFF779B5-24A6-4DFF-A60D-C39DCA737D30The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire's ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-0A15D4F9-FE96-4294-B7FD-9EADDB1774CAThe temperature grades A (the highest) , B, and
C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires mustmeet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
GUID-C949373D-4FD5-4D5B-8C70-1CCAD8B135A7Your NISSAN is covered by specific emission
warranties:
For the United States, see the 2017 NISSAN
GT-R Warranty Information Booklet.
For Canada, see the Warranty and Roadside
Assistance Information Booklet.
If you did not receive a Warranty Information
Booklet (Warranty and Roadside Assistance
Information (Canada only)) , or it has become
lost, you may obtain a replacement by writing to:
.
NISSAN Division
NISSAN North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
. NISSAN Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
