2017 NISSAN GT-R jacking


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
For the tire removing procedure, see the
following section. (
ªJacking vehicle and
removing wheelsº page 8-44)
GUID-39453668-FE24-4D2E-9D0E-A27FAD36B326The following circumstances indicate that the
battery is discharged.
. The starter motor does not turn or it turns
weakly and the engine does not start.
. The vehicle lights are much dimmer than
usual.
. The sound of the horn is weak. The horn
makes no sound.
NOTICE
When the battery is discharged, do not
close either of the front doors. The
automatic window adjusting function
will not work, and the side roof panel
may be damaged.
To start your engine with a booster battery, the
instructions and precautions below must be
followed.
For the battery maintenance information, see the
following section. (
ªBatteryº page 8-17)
WARNING
. If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
In case of emergency6-5
JUMP STARTING


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire chains....
........................................................................\
. 8-41
Changing wheels and tires ....
........................................... 8-41 Jacking vehicle and removing wheels
....
...................... 8-44
Wheel lock nuts (if so equipped) ....
............................. 8-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

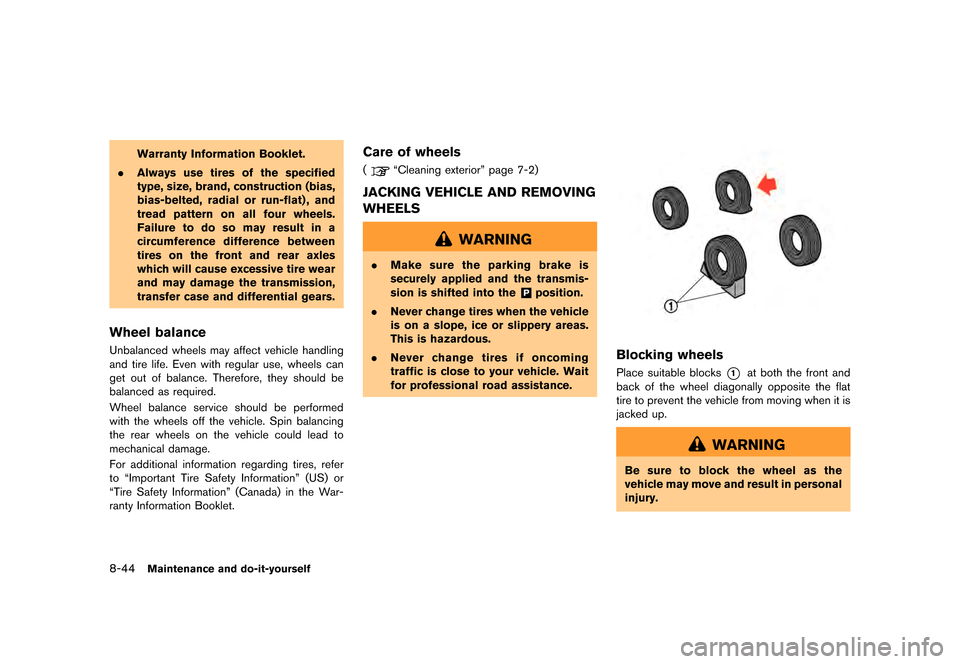

8-44Maintenance and do-it-yourself
Warranty Information Booklet.
. Always use tires of the specified
type, size, brand, construction (bias,
bias-belted, radial or run-flat) , and
tread pattern on all four wheels.
Failure to do so may result in a
circumference difference between
tires on the front and rear axles
which will cause excessive tire wear
and may damage the transmission,
transfer case and differential gears.
Wheel balanceGUID-22867962-AD6F-48F7-AC6D-26DC40810782Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the rear wheels on the vehicle could lead to
mechanical damage.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Care of wheelsGUID-AD8A1B26-09E0-4A17-8973-2E5FA1479EAF(ªCleaning exteriorº page 7-2)
JACKING VEHICLE AND REMOVING
WHEELS
GUID-9E3C7B96-C2E2-4518-AE66-730BF46CD468
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the
&Pposition.
. Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming
traffic is close to your vehicle. Wait
for professional road assistance.
GIE0043
Blocking wheelsGUID-92FD8081-8CEE-494A-A3C5-D97A2F619349Place suitable blocks*1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the
vehicle may move and result in personal
injury.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GIE0025
Getting the toolsGUID-E381EF01-A3AB-41AC-98C7-A79C755F90C6
NOTE:
A jack, jack lever and rod are not equipped
as standard with this vehicle. These parts
are dealer options. It is recommended you
contact a GT-R certified NISSAN dealer
about acquiring a jack, jack lever and rod.
You can store a jack, jack lever and rod in
the floor in front of the passenger's seat.
CAUTION
After using the tools, put them back in
their original places. An accident may
occur if you leave them in the car
unsecured.
Jacking up the vehicle and removing
the tire
GUID-32994668-8DC8-448D-9C67-1CA8A7E791B7
WARNING
.Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited slip differentials.
. Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached
to the jack body and the following instruc-
tions.
Maintenance and do-it-yourself8-45


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
NOTE:.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque:
Except for NISMO models 97 ft-lb (132 N´m)
NISMO models 114 ft-lb (155 N´m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure: After the vehicle has
been parked for three hours or more
or driven less than 1 mile (1.6 km) .
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver's door
opening.
10. Securely store the jacking equipment in the vehicle.
SDI2432
JVM0017X
WHEEL LOCK NUTS (if so equipped)GUID-FD22D5F1-3C05-43DE-B494-6381AF6B4168In order to prevent theft, the specially designed
wheel lock nut
*1is installed on each wheel.
The wheel lock nut cannot be removed with
commonly used tools.
When removing tires, use the lock key
*2
provided with your vehicle.
Removing the wheel lock nutGUID-E5616F47-1B20-43B2-B8A3-01A65A8CD5CDTo remove the wheel lock nut, use the lock key
stored under the passenger's side floor.
1. Insert the lock key to the wheel lock nut.
2. To remove the wheel lock nut, turn the lock key counterclockwise using the wheel nut
wrench.
CAUTION
.Do not use a power tool to remove
the wheel lock nuts.
. Tighten the wheel lock nuts to the
same tightening torque as the nor-
mal wheel nuts. (
ªJacking up
the vehicle and removing the tireº
page 8-45)
Maintenance and do-it-yourself8-49


