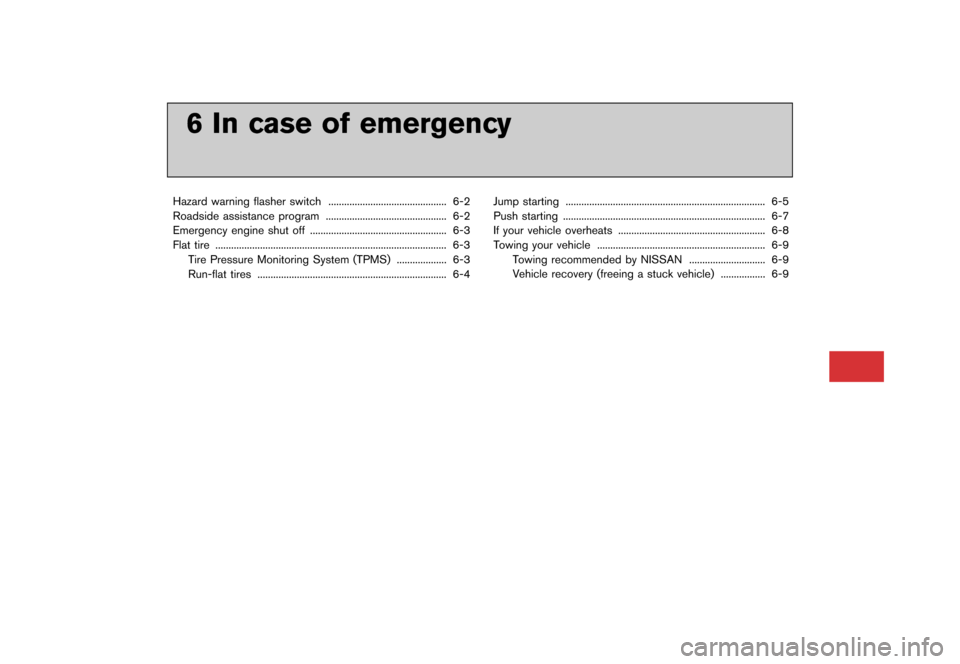

6 In case of emergency
Hazard warning flasher switch................................................. 6-2
Roadside assistance program .................................................. 6-2
Emergency engine shut off ....
.................................................... 6-3
Flat tire ....
........................................................................\
................ 6-3
Tire Pressure Monitoring System (TPMS) ....
................... 6-3
Run-flat tires ............................................................................\
6-4 Jump starting
............................................................................\
.... 6-5
Push starting ....
........................................................................\
..... 6-7
If your vehicle overheats ....
........................................................ 6-8
Towing your vehicle .................................................................... 6-9
Towing recommended by NISSAN ................................. 6-9
Vehicle recovery (freeing a stuck vehicle) ....
................. 6-9


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

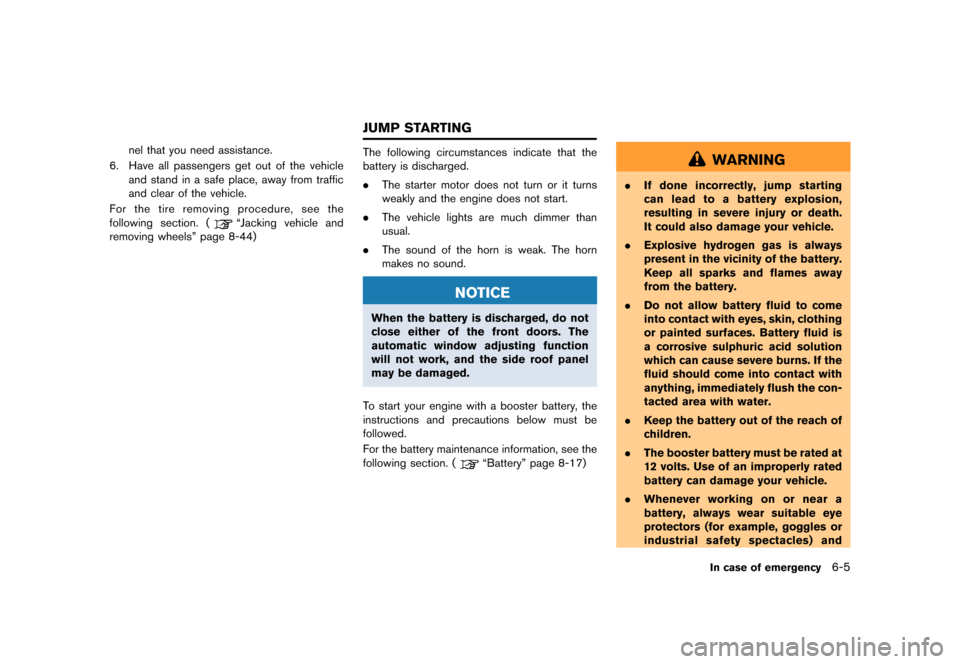

nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
For the tire removing procedure, see the
following section. (
ªJacking vehicle and
removing wheelsº page 8-44)
GUID-39453668-FE24-4D2E-9D0E-A27FAD36B326The following circumstances indicate that the
battery is discharged.
. The starter motor does not turn or it turns
weakly and the engine does not start.
. The vehicle lights are much dimmer than
usual.
. The sound of the horn is weak. The horn
makes no sound.
NOTICE
When the battery is discharged, do not
close either of the front doors. The
automatic window adjusting function
will not work, and the side roof panel
may be damaged.
To start your engine with a booster battery, the
instructions and precautions below must be
followed.
For the battery maintenance information, see the
following section. (
ªBatteryº page 8-17)
WARNING
. If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
In case of emergency6-5
JUMP STARTING


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
6-6In case of emergency

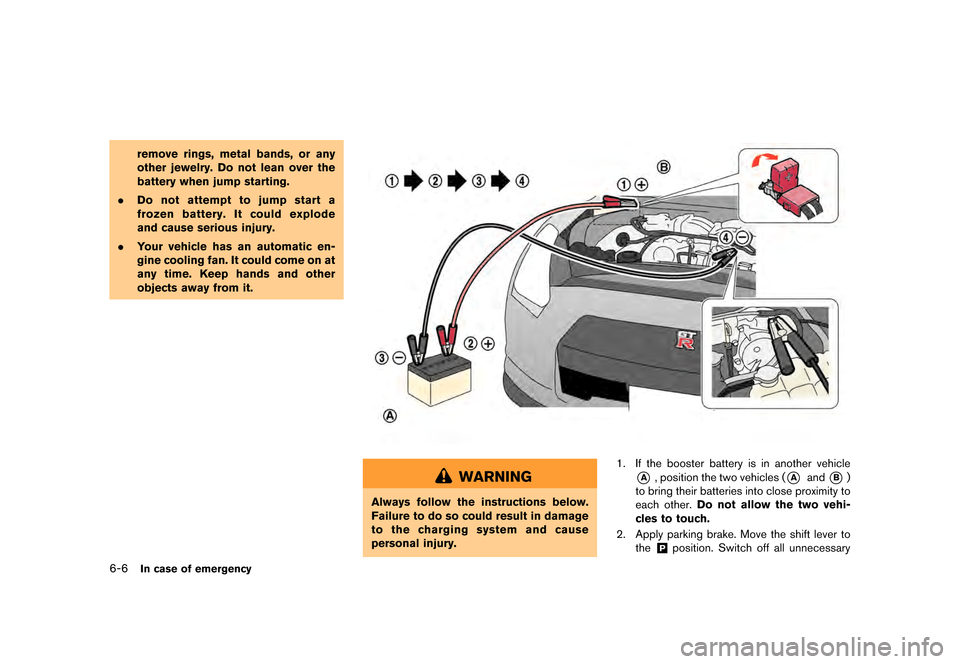

remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.
GIE0004
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury. 1. If the booster battery is in another vehicle
*A, position the two vehicles (*Aand*B)
to bring their batteries into close proximity to
each other. Do not allow the two vehi-
cles to touch.
2. Apply parking brake. Move the shift lever to the
&Pposition. Switch off all unnecessary


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8 Maintenance and do-it-yourself
Maintenance requirements....
..................................................... 8-3
Scheduled maintenance ....................................................... 8-3
General maintenance ............................................................ 8-3
Where to go for service ....................................................... 8-3
General maintenance .................................................................. 8-4
Explanation of maintenance items ..................................... 8-4
Maintenance precautions ........................................................... 8-6
Engine compartment check locations ....
................................. 8-8
Removing the cowl top cover ............................................. 8-9
Engine cooling system ....
......................................................... 8-10
Checking engine coolant level ....
..................................... 8-11
Changing engine coolant .................................................. 8-12
Engine oil ............................................................................\
........ 8-13
Checking engine oil level .................................................. 8-13
Changing engine oil and filter ....
...................................... 8-14
Transmission oil ......................................................................... 8-14
Power steering fluid ....
.............................................................. 8-14
Brake fluid ............................................................................\
....... 8-15
Window washer fluid ............................................................... 8-16
Battery ....
........................................................................\
.............. 8-17
Precautions ........................................................................... 8-17
Fluid level check ....
.............................................................. 8-18
Jump starting ........................................................................ 8-19
Drive belts ............................................................................\
....... 8-19 Spark plugs
....
........................................................................\
.... 8-20
Replacing spark plugs ..................................................... 8-20
Air cleaner ............................................................................\
...... 8-21
Windshield wiper blades ....
.................................................... 8-22
Cleaning ............................................................................\
.. 8-22
Replacing the wiper blades ........................................... 8-22
Brakes ............................................................................\
............. 8-23
Self-adjusting brakes ....................................................... 8-23
Brake pad wear warning ................................................. 8-23
High performance brake system ................................... 8-23
Replacing the brake pads ....
........................................... 8-24
Fuses ............................................................................\
............... 8-24
Engine compartment ........................................................ 8-24
Passenger compartment ................................................. 8-25
Intelligent Key battery replacement ....
.................................. 8-27
Lights ....
........................................................................\
............... 8-29
Headlights ....
....................................................................... 8-30
Exterior and interior lights ............................................... 8-30
Wheels and tires ...................................................................... 8-32
Tire pressure ...................................................................... 8-32
Tire and loading information label ................................ 8-35
Checking the tire pressure ............................................. 8-36
Tire labeling ........................................................................ 8-37
Types of tires ....
.................................................................. 8-39


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GMD0011
1. Remove the cell plugs*A.
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*1indicates
OK and the conditions
*2needs more to
be added.
3. Tighten cell plugs
*A.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTINGGUID-07E0CB08-5CCA-492E-9405-05BF8E1DEF72If jump starting is necessary, see the following
section. (
ªJump startingº page 6-5)
If the engine does not start by jump starting, the
battery may have to be replaced. Contact a
GT-R certified NISSAN dealer.
GUID-1070F707-9273-40FB-95CE-B181F6753CFD
GMD0023
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belts. The engine could rotate unex-
pectedly.
1. Visually inspect each belt for signs of
unusual wear, cuts, fraying or looseness. If
Maintenance and do-it-yourself8-19
DRIVE BELTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

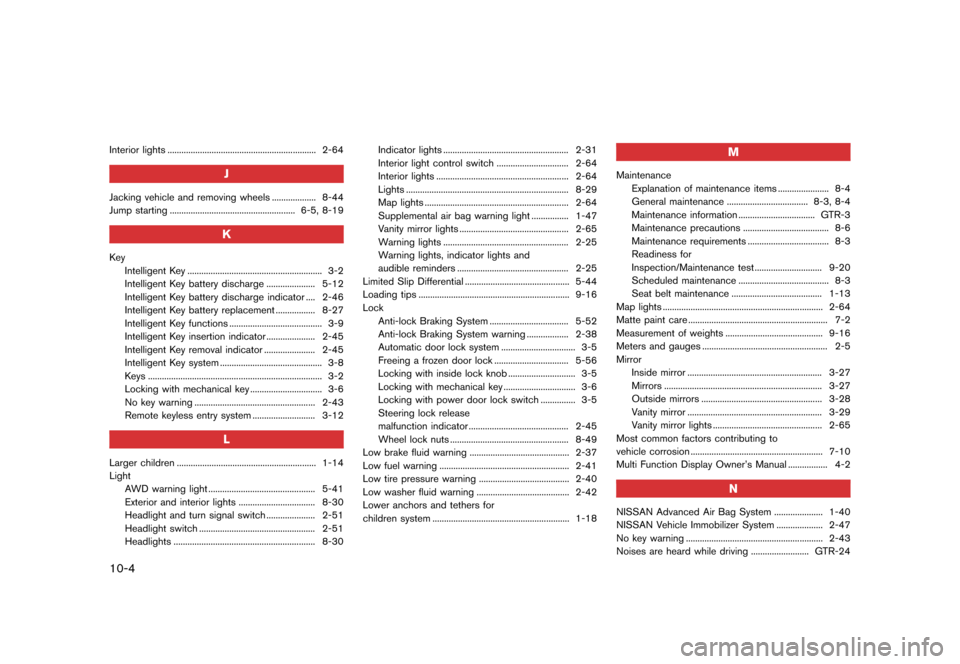

10-4
Interior lights...
................................................................ 2-64
J
Jacking vehicle and removing wheels ...
................... 8-44
Jump starting ...
...................................................... 6-5, 8-19
K
Key
Intelligent Key ...
.......................................................... 3-2
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Intelligent Key functions ...
........................................ 3-9
Intelligent Key insertion indicator ...
..................... 2-45
Intelligent Key removal indicator ...
...................... 2-45
Intelligent Key system ...
............................................ 3-8
Keys ...
........................................................................... 3-2
Locking with mechanical key ...
............................... 3-6
No key warning ...
.................................................... 2-43
Remote keyless entry system ...
........................... 3-12
L
Larger children ...
............................................................ 1-14
Light
AWD warning light ...
.............................................. 5-41
Exterior and interior lights ...
................................. 8-30
Headlight and turn signal switch ...
..................... 2-51
Headlight switch ...
.................................................. 2-51
Headlights ...
............................................................. 8-30 Indicator lights
...
...................................................... 2-31
Interior light control switch ...
............................... 2-64
Interior lights ...
......................................................... 2-64
Lights ...
...................................................................... 8-29
Map lights ...
.............................................................. 2-64
Supplemental air bag warning light ...
................ 1-47
Vanity mirror lights ...
............................................... 2-65
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Limited Slip Differential ...
............................................. 5-44
Loading tips ...
................................................................. 9-16
Lock
Anti-lock Braking System ...
.................................. 5-52
Anti-lock Braking System warning ...
.................. 2-38
Automatic door lock system ...
................................ 3-5
Freeing a frozen door lock ...
................................ 5-56
Locking with inside lock knob ...
............................. 3-5
Locking with mechanical key ...
............................... 3-6
Locking with power door lock switch ...
............... 3-5
Steering lock release
malfunction indicator ...
........................................... 2-45
Wheel lock nuts ...
................................................... 8-49
Low brake fluid warning ...
........................................... 2-37
Low fuel warning ...
........................................................ 2-41
Low tire pressure warning ...
....................................... 2-40
Low washer fluid warning ...
........................................ 2-42
Lower anchors and tethers for
children system ...
........................................................... 1-18
M
Maintenance
Explanation of maintenance items ...
...................... 8-4
General maintenance ...
................................... 8-3, 8-4
Maintenance information ...
................................. GTR-3
Maintenance precautions ...
..................................... 8-6
Maintenance requirements ...
................................... 8-3
Readiness for
Inspection/Maintenance test ...
............................. 9-20
Scheduled maintenance ...
....................................... 8-3
Seat belt maintenance ...
....................................... 1-13
Map lights ...
..................................................................... 2-64
Matte paint care ...
............................................................ 7-2
Measurement of weights ...
.......................................... 9-16
Meters and gauges ...
...................................................... 2-5
Mirror Inside mirror ...
.......................................................... 3-27
Mirrors ...
.................................................................... 3-27
Outside mirrors ...
.................................................... 3-28
Vanity mirror ...
.......................................................... 3-29
Vanity mirror lights ...
............................................... 2-65
Most common factors contributing to
vehicle corrosion ...
......................................................... 7-10
Multi Function Display Owner's Manual ...
................. 4-2
N
NISSAN Advanced Air Bag System ...
..................... 1-40
NISSAN Vehicle Immobilizer System ...
.................... 2-47
No key warning ...
........................................................... 2-43
Noises are heard while driving ...
......................... GTR-24


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

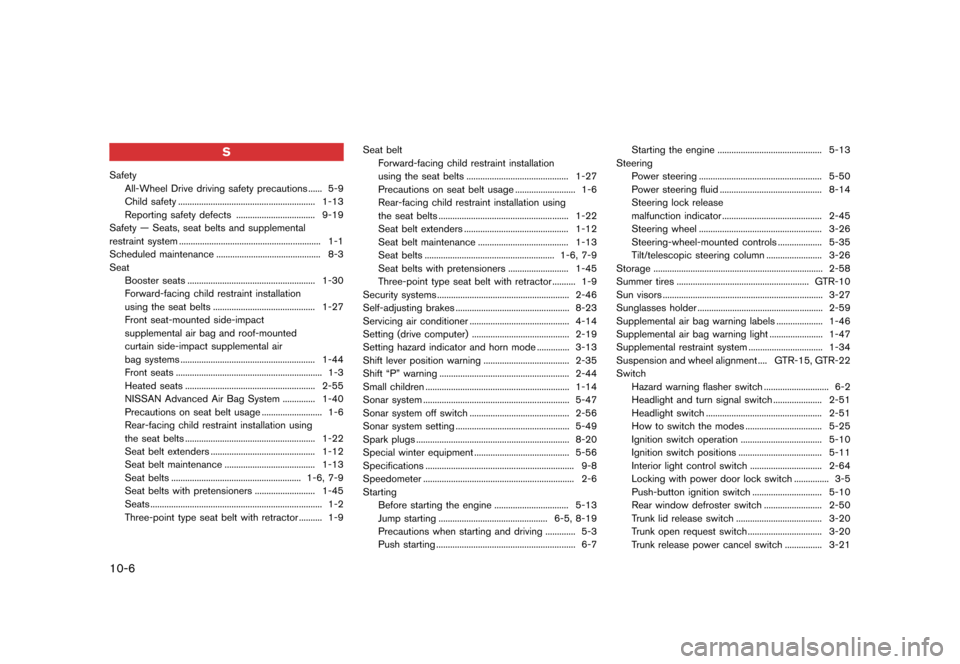

10-6
S
SafetyAll-Wheel Drive driving safety precautions ...
...... 5-9
Child safety ...
........................................................... 1-13
Reporting safety defects ...
.................................. 9-19
Safety Ð Seats, seat belts and supplemental
restraint system ...
............................................................. 1-1
Scheduled maintenance ...
............................................. 8-3
Seat Booster seats ...
....................................................... 1-30
Forward-facing child restraint installation
using the seat belts ...
............................................ 1-27
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air
bag systems ...
.......................................................... 1-44
Front seats ...
............................................................... 1-3
Heated seats ...
........................................................ 2-55
NISSAN Advanced Air Bag System ...
.............. 1-40
Precautions on seat belt usage ...
.......................... 1-6
Rear-facing child restraint installation using
the seat belts ...
........................................................ 1-22
Seat belt extenders ...
............................................. 1-12
Seat belt maintenance ...
....................................... 1-13
Seat belts ...
........................................................ 1-6, 7-9
Seat belts with pretensioners ...
.......................... 1-45
Seats ...
.......................................................................... 1-2
Three-point type seat belt with retractor ...
.......... 1-9 Seat belt
Forward-facing child restraint installation
using the seat belts ...
............................................ 1-27
Precautions on seat belt usage ...
.......................... 1-6
Rear-facing child restraint installation using
the seat belts ...
........................................................ 1-22
Seat belt extenders ...
............................................. 1-12
Seat belt maintenance ...
....................................... 1-13
Seat belts ...
........................................................ 1-6, 7-9
Seat belts with pretensioners ...
.......................... 1-45
Three-point type seat belt with retractor ...
.......... 1-9
Security systems ...
......................................................... 2-46
Self-adjusting brakes ...
................................................. 8-23
Servicing air conditioner ...
........................................... 4-14
Setting (drive computer) ...
.......................................... 2-19
Setting hazard indicator and horn mode ...
.............. 3-13
Shift lever position warning ...
..................................... 2-35
Shift ªPº warning ...
........................................................ 2-44
Small children ...
.............................................................. 1-14
Sonar system ...
............................................................... 5-47
Sonar system off switch ...
........................................... 2-56
Sonar system setting ...
................................................. 5-49
Spark plugs ...
.................................................................. 8-20
Special winter equipment ...
......................................... 5-56
Specifications ...
................................................................ 9-8
Speedometer ...
................................................................. 2-6
Starting Before starting the engine ...
................................ 5-13
Jump starting ...
............................................... 6-5, 8-19
Precautions when starting and driving ...
............. 5-3
Push starting ...
............................................................ 6-7 Starting the engine
...
............................................. 5-13
Steering Power steering ...
..................................................... 5-50
Power steering fluid ...
............................................ 8-14
Steering lock release
malfunction indicator ...
........................................... 2-45
Steering wheel ...
..................................................... 3-26
Steering-wheel-mounted controls ...
................... 5-35
Tilt/telescopic steering column ...
........................ 3-26
Storage ...
......................................................................... 2-58
Summer tires ...
......................................................... GTR-10
Sun visors ...
..................................................................... 3-27
Sunglasses holder ...
...................................................... 2-59
Supplemental air bag warning labels ...
.................... 1-46
Supplemental air bag warning light ...
....................... 1-47
Supplemental restraint system ...
................................ 1-34
Suspension and wheel alignment ...
.... GTR-15, GTR-22
Switch Hazard warning flasher switch ...
............................ 6-2
Headlight and turn signal switch ...
..................... 2-51
Headlight switch ...
.................................................. 2-51
How to switch the modes ...
................................. 5-25
Ignition switch operation ...
................................... 5-10
Ignition switch positions ...
.................................... 5-11
Interior light control switch ...
............................... 2-64
Locking with power door lock switch ...
............... 3-5
Push-button ignition switch ...
.............................. 5-10
Rear window defroster switch ...
......................... 2-50
Trunk lid release switch ...
..................................... 3-20
Trunk open request switch ...
................................ 3-20
Trunk release power cancel switch ...
................ 3-21
