GTR-10GT-R Overview
GUID-5A0487F9-9067-424A-9706-7729D654032F
VEHICLE DYNAMIC CONTROL (VDC)
OFF MODE
GUID-A712B23F-22C8-422B-AAEC-C95B66DCFF94Always make sure the VDC is ON before driving
the vehicle by checking that the VDC OFF
indicator lights on the meter and the VDC set-up
switch are not illuminated. The GT-R is a high
performance vehicle and the VDC must be on/
activated to provide proper powertrain operation
and intended drivability.
WARNING
.The VDC OFF mode should ONLY be
used briefly to help free the vehicle
if stuck in snow or mud by tempora-
rily stopping operation of the VDC
to maintain wheel torque.
. Driving the GT-R with the VDC off
may lead to handling issues related
to steering maneuvers, acceleration,
or deceleration. Moreover, driving
with the VDC off can result in an
inoperative vehicle by causing ser-
ious damage to the powertrain,
including damage to the Transaxle
Assembly including Transfer, Clutch,
Gears, Transaxle case and all of its
components and other drivetrain component(s) by overheating or ex-
cessive force.
. Damage to the powertrain or any
drivetrain component(s) that occurs
when there is a record in the Vehicle
Status Data Recorder (VSDR) that
the vehicle was driven with VDC off
during the period when the damage
was incurred is excluded from war-
ranty coverage.
See your 2016 Warranty Information Booklet for
important related information and warranty
coverage exclusions. See also section 2
(
ªTransmission warning lightº page 2-30)
and section 5 (
ªVehicle Dynamic Control
(VDC) systemº page 5-53) of this Owner's
Manual, ªTransmission Clutch Temperature
Highº and ªVehicle Dynamic Control (VDC)
Systemº for important additional related informa-
tion.
SUMMER TIRESGUID-95CE2054-E324-42E2-8080-D3A2CDC73B95The GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F (08C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F (08C) .
WARNING
Never use summer tires when the
temperature is below


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-22GT-R Overview
Suspension and wheel alignmentGUID-717B8FCC-38D9-49B8-900D-CE3AC60083CD.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment. It
is recommended you contact a GT-R
certified NISSAN dealer to adjust the wheel
alignment to the recommended setting for
normal driving.
Wheels and tiresGUID-DF739C54-232F-4D22-8411-3447FCC6AF9E.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page GTR-
16) If you do not drive under the conditions
listed in this section, see
ªWheels and
tiresº page 8-32.
. Check that the wheel nuts are not stripped.
Check if there is no deformation on the
contact surface of the wheel nuts.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires. (
ªWheels and tiresº page
GTR-16)
. Make sure that the TPMS sensor installation
nuts and the sensor valve are tight and there
is no nitrogen leak.
BrakesGUID-9F9BF18B-725B-4D67-9B77-FE9C5E2B01AC.Check for the heat deterioration of the
brakes and parts around the brakes.
. Check the condition of the brake pads and
disc rotors and replace them as necessary.
Engine and powertrainGUID-6D6A93B6-167E-482B-B7DB-6E5B685097F5.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the area surrounding the catalytic
converter for heat deterioration.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. The clutch clearance and shift fork position
may need to be adjusted.
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
. Check that there is no abnormal noise,
vibrations or warning lights illuminated when
making tight turns at slow speed (for tight
corner braking phenomenon) .


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

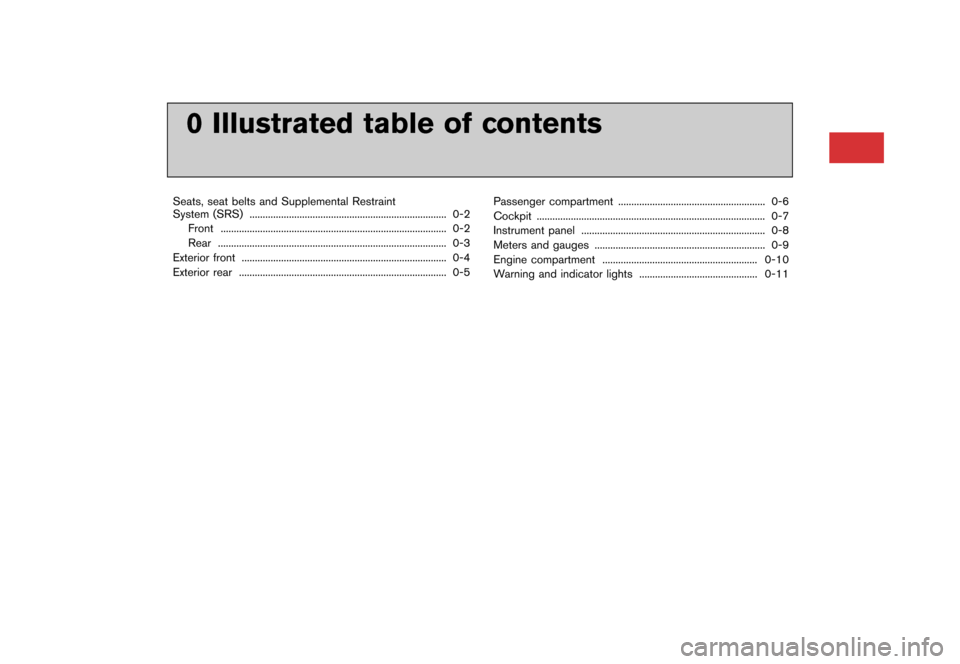

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS).... ........................................................................\
... 0-2
Front ............................................................................\
.............. 0-2
Rear ............................................................................\
............... 0-3
Exterior front ............................................................................\
...... 0-4
Exterior rear ............................................................................\
....... 0-5 Passenger compartment
....
........................................................ 0-6
Cockpit ....
........................................................................\
............... 0-7
Instrument panel .......................................................................... 0-8
Meters and gauges ....
................................................................. 0-9
Engine compartment ............................................................... 0-10
Warning and indicator lights ................................................. 0-11


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
0-6Illustrated table of contents
GUID-29D36A68-B252-4B14-87BC-67A3B26D06AB
JVC0923X
1. Coat hooks (P.2-61)
2. Inside lock knob (P.3-5)
3. Interior light control switch (P.2-64)
4. Map lights (P.2-64)
5. SOS call switch*
6. Sun visors (P.3-27)7. Sunglasses holder (P.2-59)
8. Inside rearview mirror (P.2-66, P.3-27)
9. Center console box (P.2-60)
Ð USB memory operation*
Ð iPod


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-51B7C3A8-BBEA-4142-A313-89A7B5E77D7E
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light 2-25
Anti-lock Braking System
(ABS) warning light2-26
Brake warning light
2-26
Charge warning light2-27
Engine oil pressure warning
light2-27
Intelligent Key warning light
2-27
Low tire pressure warning light2-27
Master warning light2-29
Seat belt warning light2-29
Supplemental air bag warning
light2-30
Transmission warning light
2-30Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-31Indicator
light Name
PageCruise main switch indicator
light 2-31
Cruise set switch indicator light
2-31
Exterior light indicator2-31
Front passenger air bag status
light2-31
High beam indicator light
2-31
Malfunction Indicator Light
(MIL)2-32
Turn signal/hazard indicator
lights
2-32
Vehicle Dynamic Control (VDC)
off indicator light2-32
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2 Instruments and controls
Cockpit............................................................................\
............... 2-3
Instrument panel ....
....................................................................... 2-4
Meters and gauges ....
.................................................................. 2-5
Speedometer ....
....................................................................... 2-6
Odometer/twin trip odometer ............................................. 2-6
Tachometer ............................................................................\
.. 2-7
Engine coolant temperature gauge ................................... 2-7
Fuel gauge ............................................................................\
... 2-8
Transmission position indicator .......................................... 2-9
Upshift indicator ..................................................................... 2-9
Instrument brightness control .......................................... 2-11
Vehicle information display ..................................................... 2-12
Engine oil level display ....
................................................... 2-12
Transmission system check display ....
............................ 2-14
Drive computer .......................................................................... 2-15
Current fuel consumption ................................................. 2-15
Vehicle speed ....
................................................................... 2-16
Cruise control ....
................................................................... 2-16
Average fuel consumption and speed ........................... 2-16
Elapsed time and trip odometer ....
.................................. 2-17
Distance to empty ............................................................... 2-17
Outside air temperature .................................................... 2-18
Setting (drive computer) ................................................... 2-19
Warning (drive computer) ....
............................................. 2-23 Warning lights, indicator lights and
audible reminders
.... ................................................................. 2-25
Checking lights ....
.............................................................. 2-25
Warning lights ....
................................................................ 2-25
Indicator lights ................................................................... 2-31
Audible reminders ............................................................. 2-33
Warning display ........................................................................ 2-34
Engine oil low pressure warning ....
............................... 2-35
Engine system warning ................................................... 2-35
Shift lever position warning ............................................ 2-35
Reverse warning ....
............................................................ 2-36
Transmission system warning ........................................ 2-36
Transmission oil high temperature warning ................ 2-36
Transmission clutch high temperature warning ....
..... 2-37
Parking brake release warning ...................................... 2-37
Low brake fluid warning .................................................. 2-37
Anti-lock Braking System (ABS) warning .................. 2-38
Vehicle Dynamic Control (VDC)
system warning ....
.............................................................. 2-38
AWD clutch high temperature warning ....
................... 2-38
Front/rear tire size discrepancy warning ....
................. 2-39
AWD system warning ...................................................... 2-39
Low tire pressure warning .............................................. 2-40
Run-flat tire warning ....
..................................................... 2-40


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Use the NEXT switchand ENTER switch
to go to ALERT > UPSHIFT. The current
status of the upshift indicator will be shown on
the UPSHIFT screen. Note that the function is
set to AUTO as the factory default setting.
To change the upshift indicator mode, choose
SETTING on the UPSHIFT screen. Set one of
the following modes by pushing the NEXT
switch
, and then push ENTERto
complete.
. AUTO
. 3,000 to 6,300 RPM (MANUAL)
. OFF
The number will increase by 100 RPM. To
increase the number by 500 RPM, push and
hold the NEXT switch
.
ExampleGUID-B7DEDF79-0D08-4F50-907D-74577BC62D90
When the maximum engine speed is
desired:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Set the upshift indicator to AUTO. The yellow
indicator illuminates approximately 700 RPM
before the red zone, and the red indicator
illuminates just before the red zone. When the maximum engine torque is
desired:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Set the figure at 6,000 RPM. The green
indicator starts flashing from approximately
5,500 RPM and illuminates at 6,000 RPM.
When breaking-in the vehicle:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9To help avoid high engine speeds during break-
in, set the upshift indicator to less than 3,500
RPM. The green indicator starts flashing ap-
proximately 500 RPM before the set figure and
illuminates from the set figure. (
ªBreak-in
scheduleº page 5-39)
NOTE:
. There may be a slight difference be-
tween the timing of the upshift indica-
tor illumination and the tachometer
indication.
. When the battery terminal is discon-
nected, the set memory will be erased
and the mode returns to the default.
JVI0039X
INSTRUMENT BRIGHTNESS CON-
TROL
GUID-0168A528-2CC4-4698-9101-57751437C54DThe instrument brightness can be adjusted
when the ignition switch is in the ON position.
Push the switch to adjust the brightness up
*1
or down*2. The brightness level is shown on
the vehicle information display.
When the headlights are on, the brightness of
the interior switches is also adjusted at the same
time.
Instruments and controls2-11
