2017 NISSAN GT-R key


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-BA1734E3-05F1-4911-BF3E-1409B0BE61CD
JVC0924X
1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Illustrated table of contents0-7
COCKPIT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-51B7C3A8-BBEA-4142-A313-89A7B5E77D7E
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light 2-25
Anti-lock Braking System
(ABS) warning light2-26
Brake warning light
2-26
Charge warning light2-27
Engine oil pressure warning
light2-27
Intelligent Key warning light
2-27
Low tire pressure warning light2-27
Master warning light2-29
Seat belt warning light2-29
Supplemental air bag warning
light2-30
Transmission warning light
2-30Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-31Indicator
light Name
PageCruise main switch indicator
light 2-31
Cruise set switch indicator light
2-31
Exterior light indicator2-31
Front passenger air bag status
light2-31
High beam indicator light
2-31
Malfunction Indicator Light
(MIL)2-32
Turn signal/hazard indicator
lights
2-32
Vehicle Dynamic Control (VDC)
off indicator light2-32
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-29959B49-CCE4-4C25-B217-0AC7FFC4712B
JVC0924X
1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Instruments and controls2-3
COCKPIT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-0FC3F259-24D6-477D-9CD2-147340B1F652
All-Wheel Drive (AWD) warning lightLow tire pressure warning lightCruise set switch indicator light
Anti-lock Braking System (ABS) warning
lightMaster warning lightExterior light indicator
Seat belt warning lightFront passenger air bag status light
Brake warning lightSupplemental air bag warning lightHigh beam indicator light
Transmission warning lightMalfunction Indicator Light (MIL)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightTurn signal/hazard indicator lights
Engine oil pressure warning lightCruise main switch indicator lightVehicle Dynamic Control (VDC) off indicator
light
Intelligent Key warning light
CHECKING LIGHTSGUID-0690CE37-25FD-4D73-A7AF-AFE1D852C699With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:
,or,,,
The following lights (if so equipped) will come
on briefly and then go off:
,or,,,,,
If any light does not come on or operates in a
way other than described, it may indicate aburned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a GT-R certified NISSAN dealer.
WARNING LIGHTSGUID-C643F323-574D-4369-917C-E9A71BC3B75B
All-Wheel Drive (AWD) warn-
ing light
GUID-1B607105-7534-4297-BBBA-7F608F3BEDDCThewarning light comes on when the
ignition switch is pushed to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions, the warning
light will either remain illuminated or blink. (
ªAll-Wheel Drive (AWD)º page 5-41)
CAUTION
.
If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a GT-R certified NISSAN
dealer as soon as possible.
. If the AWD warning light blinks on
when you are driving:
Instruments and controls2-25
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
checked, and if necessary repaired, by a GT-R
certified NISSAN dealer promptly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning lightGUID-133A62B2-7E8B-4EF3-9103-A37320F99DAEIf the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, it is
recommended you see a GT-R certified NISSAN
dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
GUID-D66D6512-DD02-407A-B4CC-E2B0D6F8CFBBThis light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
ªEngine oil level displayº page 2-12)
(
ªChecking engine oil levelº page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-25C0AA6B-82C8-42D5-8984-4E4E27CAAB43After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, it is
recommended you contact a GT-R certified
NISSAN dealer for repair as soon as possible.
Low tire pressure warning lightGUID-BB3B0771-5818-4948-9BC3-7EB1194EB378Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
Instruments and controls2-27


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
(VDC) systemº page 5-53)

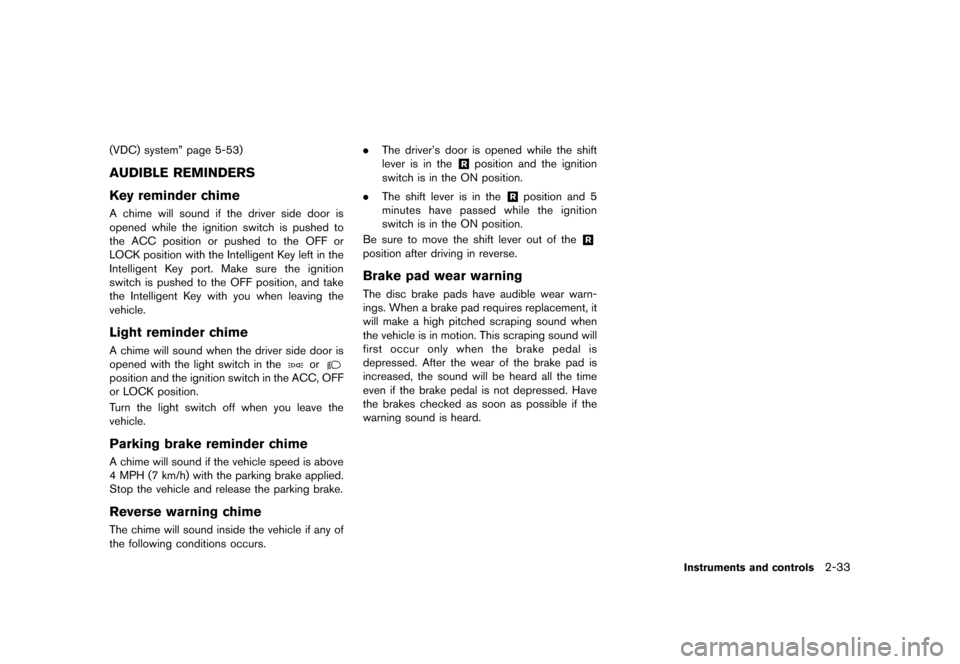

AUDIBLE REMINDERSGUID-79D57522-A450-443A-9780-9238EFE0DE25
Key reminder chimeGUID-F9CE8A0C-5787-4429-B657-74876C2AD9D4A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chimeGUID-E52E0967-64F0-4A5E-8D70-41CC49DD6C51A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC, OFF
or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chimeGUID-8D5A0C2C-D15F-42D7-B766-75BFEBAC7ACAA chime will sound if the vehicle speed is above
4 MPH (7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.
Reverse warning chimeGUID-C6E77573-B656-4DCA-92E1-B1B3B6CC5CD2The chime will sound inside the vehicle if any of
the following conditions occurs..
The driver's door is opened while the shift
lever is in the
&Rposition and the ignition
switch is in the ON position.
. The shift lever is in the
&Rposition and 5
minutes have passed while the ignition
switch is in the ON position.
Be sure to move the shift lever out of the
&R
position after driving in reverse.
Brake pad wear warningGUID-605FBDB7-0B7F-4CA9-8283-82A6050F9399The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After the wear of the brake pad is
increased, the sound will be heard all the time
even if the brake pedal is not depressed. Have
the brakes checked as soon as possible if the
warning sound is heard.
Instruments and controls2-33


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0072X
NO KEY WARNINGGUID-C743FC36-2E48-4434-9D40-A60E75999F3AThis will appear in either of the following
conditions.
No key inside the vehicleGUID-DB6FD108-20A8-45A3-8786-D06E653CE40AThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent KeyGUID-B83F80AA-04F8-4F8E-928C-DB8711C04A15The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by thesystem. You cannot start the engine with an
unregistered Intelligent Key.
(
ªIntelligent Key systemº page 3-8)
GUID-25CBCCB0-E450-4CEB-9314-F90D4BA72FDBThese displays appear when an appropriate
operation is required in starting or stopping the
engine.
Instruments and controls2-43
OPERATION DISPLAYS
