2017 NISSAN GT-R key


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
function properly.
Ð Do not change or modify the Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a GT-R certified NISSAN dealer.
GPC0004

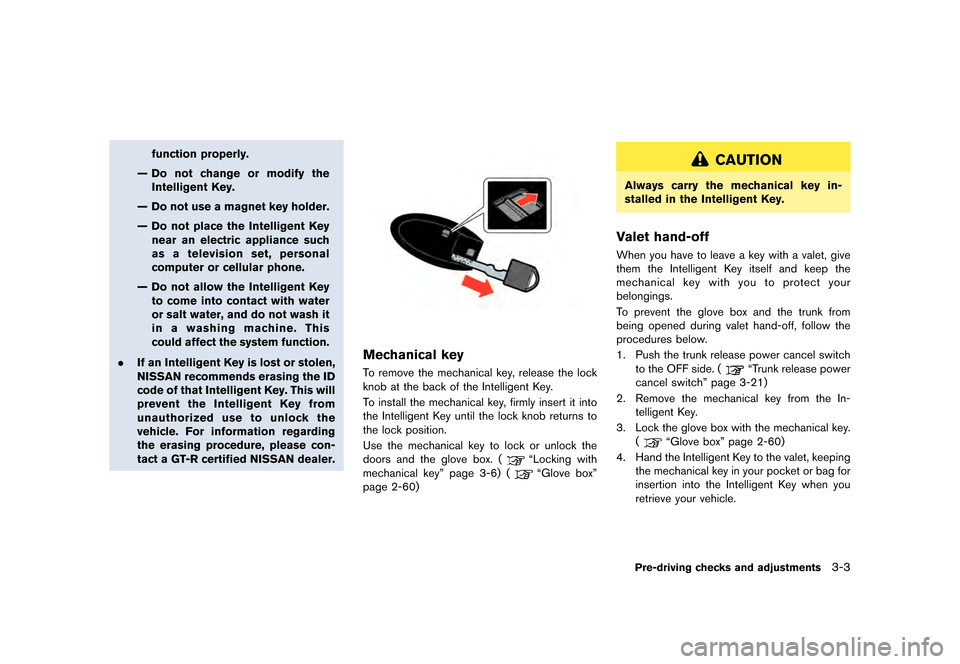

Mechanical keyGUID-773BACA2-EA33-4F18-83FE-96DF0DC886B0To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box. (
ªLocking with
mechanical keyº page 3-6) (
ªGlove boxº
page 2-60)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
Valet hand-offGUID-D759551B-4593-496F-8B92-A63320B51560When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch
to the OFF side. (
ªTrunk release power
cancel switchº page 3-21)
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key. (
ªGlove boxº page 2-60)
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
Pre-driving checks and adjustments3-3


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPC0012

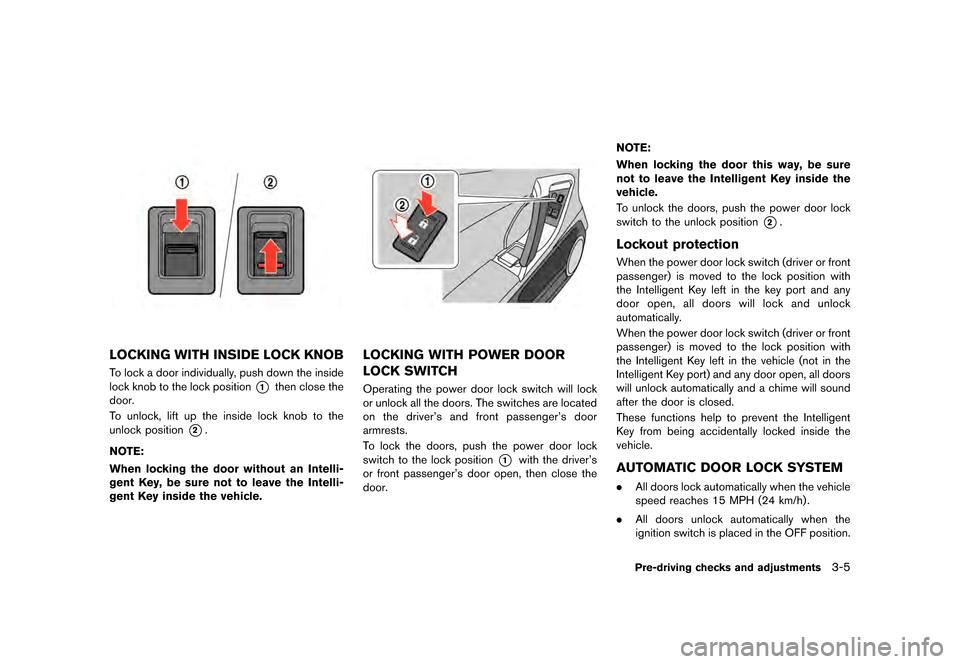

LOCKING WITH INSIDE LOCK KNOBGUID-2A99E88F-EC7B-4B89-A8CE-44732E09B44BTo lock a door individually, push down the inside
lock knob to the lock position
*1then close the
door.
To unlock, lift up the inside lock knob to the
unlock position
*2.
NOTE:
When locking the door without an Intelli-
gent Key, be sure not to leave the Intelli-
gent Key inside the vehicle.
JVP0353X
LOCKING WITH POWER DOOR
LOCK SWITCH
GUID-B2C8C659-BA6D-4E95-9137-32DC9365E1A4Operating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver's and front passenger's door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
or front passenger's door open, then close the
door. NOTE:
When locking the door this way, be sure
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionGUID-2FC90FA2-331F-4810-8CF1-768EF32F74DFWhen the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the key port and any
door open, all doors will lock and unlock
automatically.
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the vehicle (not in the
Intelligent Key port) and any door open, all doors
will unlock automatically and a chime will sound
after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCK SYSTEMGUID-EA4D7C64-4519-4ADA-931A-F3E840B64795.
All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position.
Pre-driving checks and adjustments3-5


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-6Pre-driving checks and adjustments
The automatic unlock function can be
deactivated or activated.To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing Step 2, push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver's or
front passenger's side) .
GPC0014
LOCKING WITH MECHANICAL KEYGUID-8A6F3EFA-CDFD-41BB-99E0-D69752DB88D7The driver's door will be locked or unlocked
using the mechanical key.
1. Press the rear end of the driver's outside door handle
*1to lift up the front end*2.
GPC0015
2. With the outside door handle lifted up, usethe mechanical key and turn the key cylinder
cap
*Acounterclockwise to remove.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPC0016
3. Turning the door key cylinder to the front ofthe vehicle
*1will lock the driver's door,
and turning to the rear of the vehicle
*2will
unlock the driver's door.
4. Replace the key cylinder cap in the reverse order.
NOTICE
Do not drive with the cap removed.
Water that enters through the keyhole
may cause a malfunction. NOTE:
.
Do not pull too hard on the door handle
when locking or unlocking the doors.
Pulling too hard will prevent the me-
chanical key from turning, making it
impossible to lock or unlock the doors.
. Unlocking the driver's door using the
mechanical key will not unlock the fuel-
filler door.
GPC0014
OPENING THE DOORSGUID-027984B2-5D1A-4486-B199-D7BD710B9F80
Opening from outside the vehicleGUID-358D3EB8-D76D-4AA6-A154-D4BCAFBD6AC31. Press the rear end of the outside door
handle
*1to lift up the front end of the
handle.
2. Pull the front end of the outside door handle
*2toward you.
Opening from inside the vehicleGUID-D5DBC49E-6D86-438B-93A8-24842417D53BLift up the inside door handle to open a door
from inside the vehicle.
Pre-driving checks and adjustments3-7


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-8Pre-driving checks and adjustments
NOTICE
Do not grasp the door pockets to open
and close the doors. Doing so may
damage the pockets.
GUID-D1815B87-3909-4C50-9EE8-0317B45F9BF7
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The Federal Aviation
Agency (FAA) advises the radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
. The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions. In such cases, correct the
operating conditions before using the In-
telligent Key function or use the mechanical
key.
Ð When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
Ð When in possession of wireless equip- ment, such as a cellular telephone,
transceiver, and CB radio.
Ð When the Intelligent Key is in contact with or covered by metallic materials.
INTELLIGENT KEY SYSTEM


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

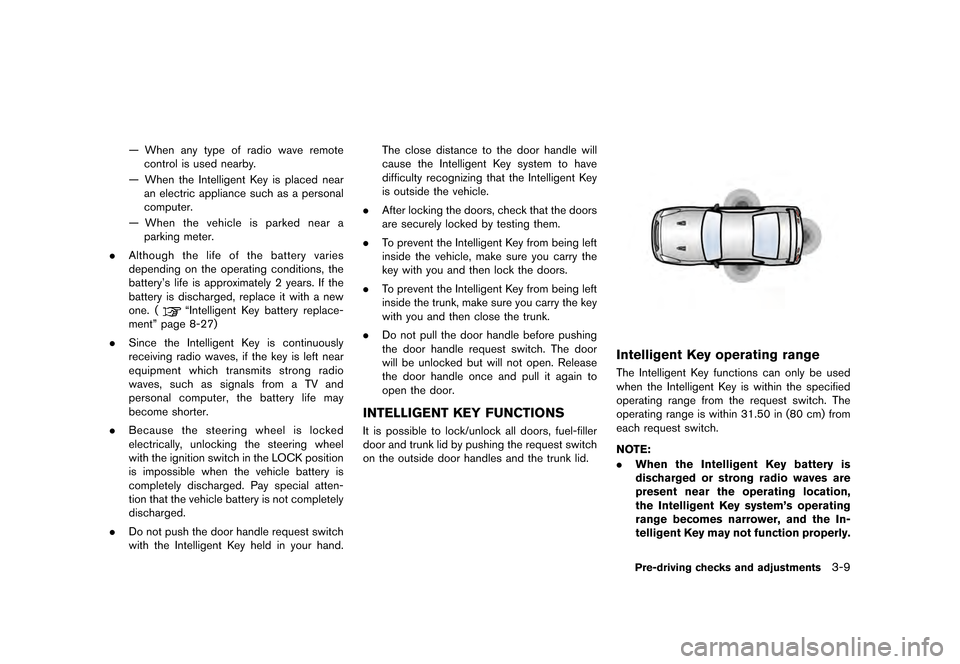

Ð When any type of radio wave remotecontrol is used nearby.
Ð When the Intelligent Key is placed near an electric appliance such as a personal
computer.
Ð When the vehicle is parked near a parking meter.
. Although the life of the battery varies
depending on the operating conditions, the
battery's life is approximately 2 years. If the
battery is discharged, replace it with a new
one. (
ªIntelligent Key battery replace-
mentº page 8-27)
. Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
. Because the steering wheel is locked
electrically, unlocking the steering wheel
with the ignition switch in the LOCK position
is impossible when the vehicle battery is
completely discharged. Pay special atten-
tion that the vehicle battery is not completely
discharged.
. Do not push the door handle request switch
with the Intelligent Key held in your hand. The close distance to the door handle will
cause the Intelligent Key system to have
difficulty recognizing that the Intelligent Key
is outside the vehicle.
. After locking the doors, check that the doors
are securely locked by testing them.
. To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the
key with you and then lock the doors.
. To prevent the Intelligent Key from being left
inside the trunk, make sure you carry the key
with you and then close the trunk.
. Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
INTELLIGENT KEY FUNCTIONSGUID-6F5A9D9C-B926-4C67-B951-86B6ED706CFAIt is possible to lock/unlock all doors, fuel-filler
door and trunk lid by pushing the request switch
on the outside door handles and the trunk lid.
GPC0001
Intelligent Key operating rangeGUID-B352643A-66D2-41BA-82C7-8FBE8D2D7908The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch. The
operating range is within 31.50 in (80 cm) from
each request switch.
NOTE:
.When the Intelligent Key battery is
discharged or strong radio waves are
present near the operating location,
the Intelligent Key system's operating
range becomes narrower, and the In-
telligent Key may not function properly.
Pre-driving checks and adjustments3-9


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

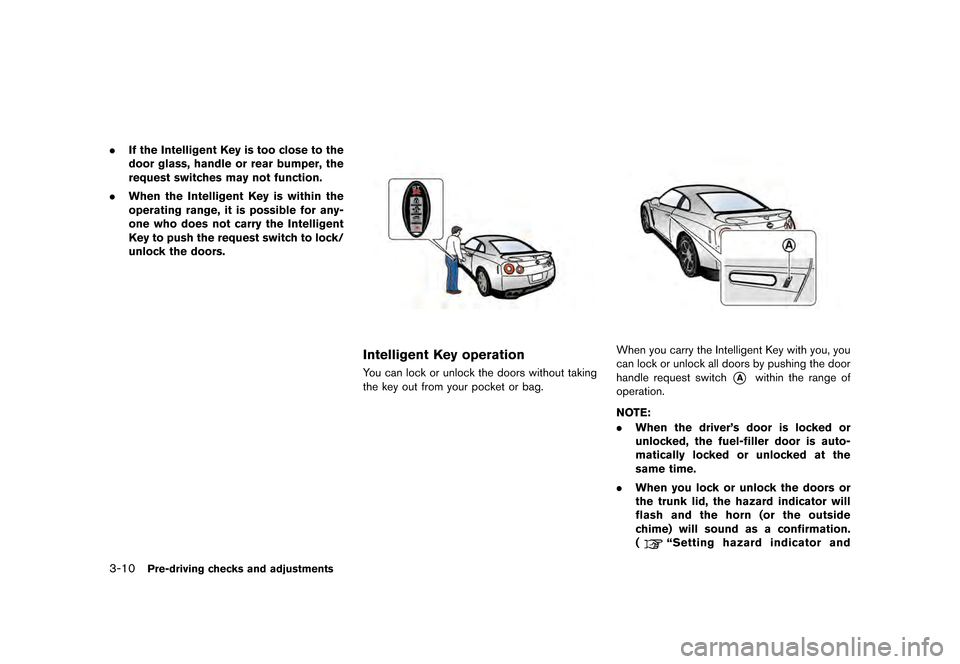

3-10Pre-driving checks and adjustments
.If the Intelligent Key is too close to the
door glass, handle or rear bumper, the
request switches may not function.
. When the Intelligent Key is within the
operating range, it is possible for any-
one who does not carry the Intelligent
Key to push the request switch to lock/
unlock the doors.
GPC0009
Intelligent Key operationGUID-08050492-D3EC-4A3C-8E79-BC206A1322EDYou can lock or unlock the doors without taking
the key out from your pocket or bag.
GPC0010
When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch
*Awithin the range of
operation.
NOTE:
. When the driver's door is locked or
unlocked, the fuel-filler door is auto-
matically locked or unlocked at the
same time.
. When you lock or unlock the doors or
the trunk lid, the hazard indicator will
flash and the horn (or the outside
chime) will sound as a confirmation.
(
ªSetting hazard indicator and


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
horn modeº page 3-13)

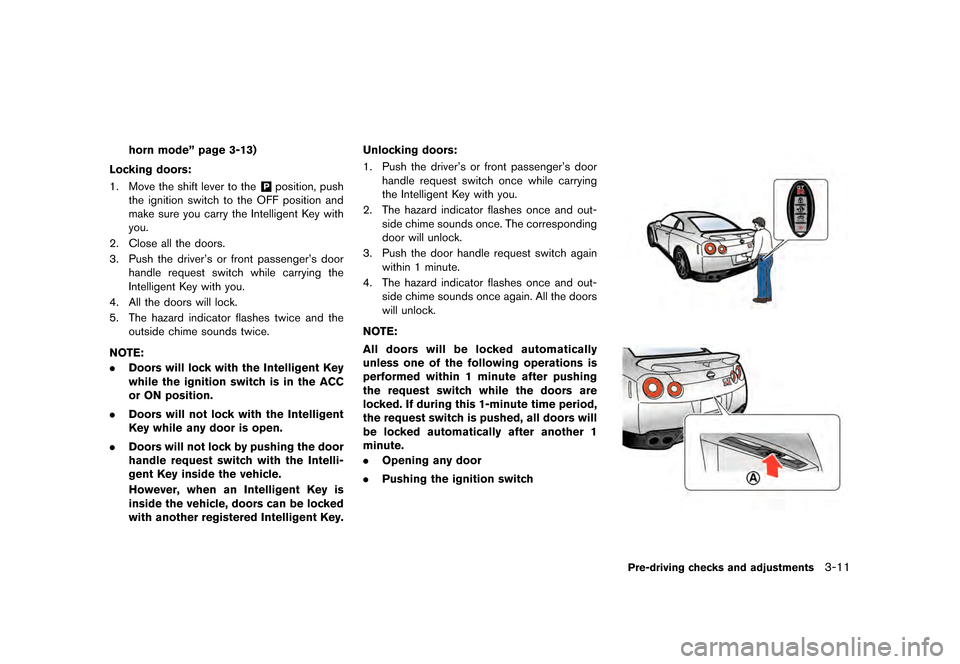

Locking doors:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Move the shift lever to the&Pposition, push
the ignition switch to the OFF position and
make sure you carry the Intelligent Key with
you.
2. Close all the doors.
3. Push the driver's or front passenger's door handle request switch while carrying the
Intelligent Key with you.
4. All the doors will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
NOTE:
. Doors will lock with the Intelligent Key
while the ignition switch is in the ACC
or ON position.
. Doors will not lock with the Intelligent
Key while any door is open.
. Doors will not lock by pushing the door
handle request switch with the Intelli-
gent Key inside the vehicle.
However, when an Intelligent Key is
inside the vehicle, doors can be locked
with another registered Intelligent Key. Unlocking doors:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push the driver's or front passenger's door
handle request switch once while carrying
the Intelligent Key with you.
2. The hazard indicator flashes once and out- side chime sounds once. The corresponding
door will unlock.
3. Push the door handle request switch again within 1 minute.
4. The hazard indicator flashes once and out- side chime sounds once again. All the doors
will unlock.
NOTE:
All doors will be locked automatically
unless one of the following operations is
performed within 1 minute after pushing
the request switch while the doors are
locked. If during this 1-minute time period,
the request switch is pushed, all doors will
be locked automatically after another 1
minute.
. Opening any door
. Pushing the ignition switch
GPC0018
GPC0019
Pre-driving checks and adjustments3-11
