2017 NISSAN GT-R key


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

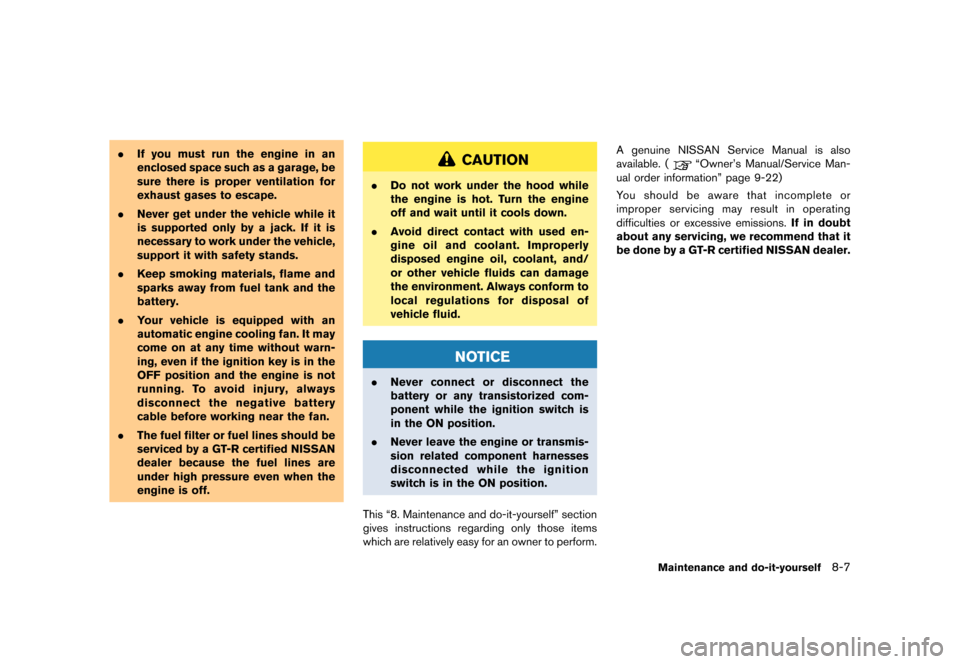

.If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it
is supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. Your vehicle is equipped with an
automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always
disconnect the negative battery
cable before working near the fan.
. The fuel filter or fuel lines should be
serviced by a GT-R certified NISSAN
dealer because the fuel lines are
under high pressure even when the
engine is off.CAUTION
.Do not work under the hood while
the engine is hot. Turn the engine
off and wait until it cools down.
. Avoid direct contact with used en-
gine oil and coolant. Improperly
disposed engine oil, coolant, and/
or other vehicle fluids can damage
the environment. Always conform to
local regulations for disposal of
vehicle fluid.
NOTICE
.Never connect or disconnect the
battery or any transistorized com-
ponent while the ignition switch is
in the ON position.
. Never leave the engine or transmis-
sion related component harnesses
disconnected while the ignition
switch is in the ON position.
This ª8. Maintenance and do-it-yourselfº section
gives instructions regarding only those items
which are relatively easy for an owner to perform. A genuine NISSAN Service Manual is also
available. (
ªOwner's Manual/Service Man-
ual order informationº page 9-22)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions. If in doubt
about any servicing, we recommend that it
be done by a GT-R certified NISSAN dealer.
Maintenance and do-it-yourself8-7


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVM0031X
How to remove the extended storage fuse
switch:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the extended storage fuse switch.
5. Pull the extended storage fuse switch
straight out from the fuse box
*2.
GUID-15820DA1-6097-4CC9-B8B9-36043617531D
GPC0006
WARNING
Be careful that batteries and other
removed components are not swal-
lowed by children.
NOTICE
There is the possibility that the key may
be damaged when the battery is re-
placed. It is recommended that you
have the battery replaced by a GT-R
certified NISSAN dealer. Recommended battery: Lithium battery CR2032
or an equivalent.
1. Disengage the lock on the reverse side of
the Intelligent Key while pulling out the
mechanical key.
2. Insert a flat-bladed screwdriver
*1
wrapped with a cloth into the slit*2and
twist it to separate the case into the upper
and lower parts.
NOTICE
Because there is the risk of scratching
the key, wrap a cloth or similar item
around the screwdriver when separat-
ing the parts. If the screwdriver is
inserted too far into the key, it may
damage the internal circuit board.
Maintenance and do-it-yourself8-27
INTELLIGENT KEY BATTERY
REPLACEMENT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

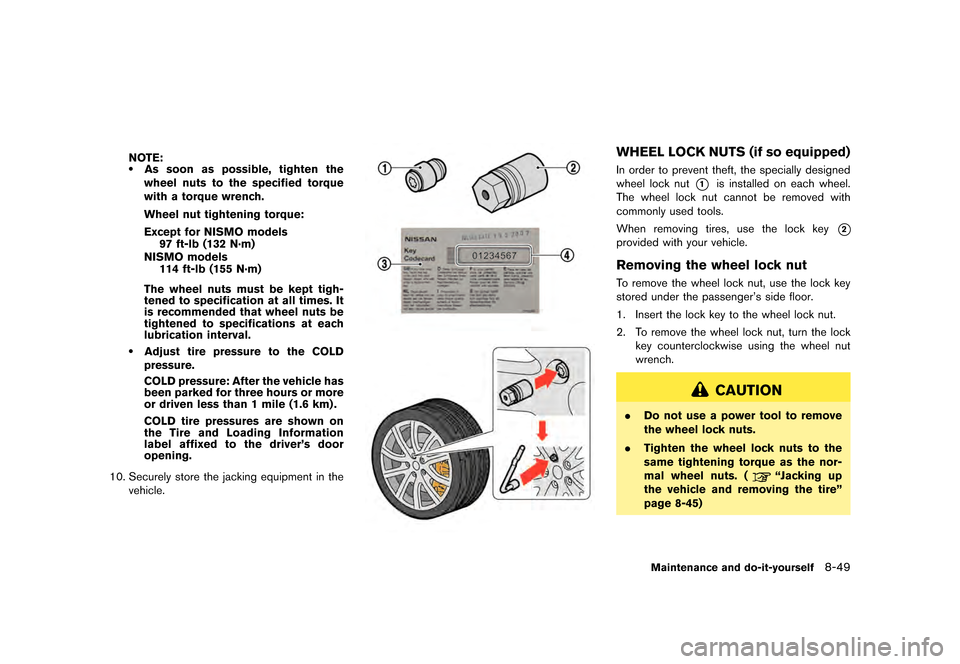

NOTE:.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque:
Except for NISMO models 97 ft-lb (132 N´m)
NISMO models 114 ft-lb (155 N´m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLD
pressure.
COLD pressure: After the vehicle has
been parked for three hours or more
or driven less than 1 mile (1.6 km) .
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver's door
opening.
10. Securely store the jacking equipment in the vehicle.
SDI2432
JVM0017X
WHEEL LOCK NUTS (if so equipped)GUID-FD22D5F1-3C05-43DE-B494-6381AF6B4168In order to prevent theft, the specially designed
wheel lock nut
*1is installed on each wheel.
The wheel lock nut cannot be removed with
commonly used tools.
When removing tires, use the lock key
*2
provided with your vehicle.
Removing the wheel lock nutGUID-E5616F47-1B20-43B2-B8A3-01A65A8CD5CDTo remove the wheel lock nut, use the lock key
stored under the passenger's side floor.
1. Insert the lock key to the wheel lock nut.
2. To remove the wheel lock nut, turn the lock key counterclockwise using the wheel nut
wrench.
CAUTION
.Do not use a power tool to remove
the wheel lock nuts.
. Tighten the wheel lock nuts to the
same tightening torque as the nor-
mal wheel nuts. (
ªJacking up
the vehicle and removing the tireº
page 8-45)
Maintenance and do-it-yourself8-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-50Maintenance and do-it-yourself
NOTE:
.The wheel lock nut has an individual
code. A lock key which does not match
the individual code cannot remove the
wheel lock nut. If you lose the wheel
lock key, it is recommended you con-
tact a GT-R certified NISSAN dealer
immediately.
. Keep the key code card
*3in a safe
place. To purchase a lock key, contact a
GT-R certified NISSAN dealer with your
original code
*4on the key code card.
. When you ask for a service at a GT-R
certified NISSAN dealer, make sure to
keep the lock key in the vehicle. Other-
wise, tires cannot be removed and any
service requiring the removal of the
wheels cannot be performed.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10 Index
A
Active noise cancellation...
.......................................... 5-59
Active sound enhancement ...
..................................... 5-59
Additional maintenance items ...
........................... GTR-12
Air cleaner ...
.................................................................... 8-21
Air conditioner ...
............................................................. 4-11
Air conditioner operation ...
................................... 4-10
Air conditioner specification label ...
................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
........................................ 9-7
Air fresheners ...
................................................................ 7-7
All-season tires ...
..................................................... GTR-10
All-Wheel Drive ...
........................................................... 5-41
All-Wheel Drive driving safety precautions ...
............ 5-9
Anti-freeze ...
.................................................................... 5-56
Anti-lock Braking System ...
......................................... 5-52
Anti-lock Braking System warning ...
......................... 2-38
Audible reminders ...
...................................................... 2-33
Automatic Automatic door lock system ...
................................ 3-5
Average fuel consumption and speed ...
.................. 2-16
Avoiding body damage ...
....................................... GTR-11
Avoiding collision and rollover ...
.................................. 5-7
AWD clutch high temperature warning ...
................ 2-38
AWD system characteristics ...
................................... 5-43
AWD system warning ...
................................................ 2-39
AWD warning light ...
..................................................... 5-41
B
Battery ...
............................................................... 5-56, 8-17
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Before starting the engine ...
....................................... 5-13
Body repair ...
............................................................. GTR-11
Booster seats ...
.............................................................. 1-30
Brake Brake assist ...
.......................................................... 5-52
Brake fluid ...
.............................................. GTR-4, 8-15
Brake pad wear warning ...
................................... 8-23
Brake system ...
........................................................ 5-51
Brakes ...
.................................................................... 8-23
High performance brake system ...
..................... 8-23
Low brake fluid warning ...
.................................... 2-37
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Replacing the brake pads ...
................................. 8-24
Self-adjusting brakes ...
.......................................... 8-23
Brake dust ...
.............................................................. GTR-26
Brake pad ...
............................................................... GTR-14
Brake pad and disc rotor ...
..................................... GTR-5
Brake pad break-in procedure ...
.......................... GTR-14
Brake system information ...
................................... GTR-26
Brakes ...
................................................... GTR-17, GTR-22
Braking precautions ...
................................................... 5-51
Break-in schedule ...
........................................ GTR-9, 5-39
C
Capacities and recommended fluids/lubricants ...
... 9-2
Car phone or CB radio ...
............................................. 4-15
Changing Changing engine coolant ...
.................................. 8-12
Changing engine oil and filter ...
.......................... 8-14
Changing wheels and tires ...
............................... 8-41
Checking
Checking engine coolant level ...
......................... 8-11
Checking engine oil level ...
.................................. 8-13
Checking lights ...
.................................................... 2-25
Checking the tire pressure ...
............................... 8-36
Child restraints ...
............................................................ 1-16
Child safety ...
.................................................................. 1-13
Chrome parts ...
................................................................. 7-5
Cleaning ...
........................................................................ 8-22
Cleaning exterior ...
........................................................... 7-2
Cleaning interior ...
............................................................ 7-7
Closing the fuel-filler door ...
....................................... 3-25
Closing the hood ...
........................................................ 3-19
Coat hooks ...
................................................................... 2-61
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
................................................. 5-56
Console box ...
................................................................. 2-60
Cool down ...
.............................................................. GTR-12
Coolant
Changing engine coolant ...
.................................. 8-12
Checking engine coolant level ...
......................... 8-11
Draining of coolant water ...
.................................. 5-56
Engine coolant temperature gauge ...
................... 2-7


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-4
Interior lights...
................................................................ 2-64
J
Jacking vehicle and removing wheels ...
................... 8-44
Jump starting ...
...................................................... 6-5, 8-19
K
Key
Intelligent Key ...
.......................................................... 3-2
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Intelligent Key functions ...
........................................ 3-9
Intelligent Key insertion indicator ...
..................... 2-45
Intelligent Key removal indicator ...
...................... 2-45
Intelligent Key system ...
............................................ 3-8
Keys ...
........................................................................... 3-2
Locking with mechanical key ...
............................... 3-6
No key warning ...
.................................................... 2-43
Remote keyless entry system ...
........................... 3-12
L
Larger children ...
............................................................ 1-14
Light
AWD warning light ...
.............................................. 5-41
Exterior and interior lights ...
................................. 8-30
Headlight and turn signal switch ...
..................... 2-51
Headlight switch ...
.................................................. 2-51
Headlights ...
............................................................. 8-30 Indicator lights
...
...................................................... 2-31
Interior light control switch ...
............................... 2-64
Interior lights ...
......................................................... 2-64
Lights ...
...................................................................... 8-29
Map lights ...
.............................................................. 2-64
Supplemental air bag warning light ...
................ 1-47
Vanity mirror lights ...
............................................... 2-65
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Limited Slip Differential ...
............................................. 5-44
Loading tips ...
................................................................. 9-16
Lock
Anti-lock Braking System ...
.................................. 5-52
Anti-lock Braking System warning ...
.................. 2-38
Automatic door lock system ...
................................ 3-5
Freeing a frozen door lock ...
................................ 5-56
Locking with inside lock knob ...
............................. 3-5
Locking with mechanical key ...
............................... 3-6
Locking with power door lock switch ...
............... 3-5
Steering lock release
malfunction indicator ...
........................................... 2-45
Wheel lock nuts ...
................................................... 8-49
Low brake fluid warning ...
........................................... 2-37
Low fuel warning ...
........................................................ 2-41
Low tire pressure warning ...
....................................... 2-40
Low washer fluid warning ...
........................................ 2-42
Lower anchors and tethers for
children system ...
........................................................... 1-18
M
Maintenance
Explanation of maintenance items ...
...................... 8-4
General maintenance ...
................................... 8-3, 8-4
Maintenance information ...
................................. GTR-3
Maintenance precautions ...
..................................... 8-6
Maintenance requirements ...
................................... 8-3
Readiness for
Inspection/Maintenance test ...
............................. 9-20
Scheduled maintenance ...
....................................... 8-3
Seat belt maintenance ...
....................................... 1-13
Map lights ...
..................................................................... 2-64
Matte paint care ...
............................................................ 7-2
Measurement of weights ...
.......................................... 9-16
Meters and gauges ...
...................................................... 2-5
Mirror Inside mirror ...
.......................................................... 3-27
Mirrors ...
.................................................................... 3-27
Outside mirrors ...
.................................................... 3-28
Vanity mirror ...
.......................................................... 3-29
Vanity mirror lights ...
............................................... 2-65
Most common factors contributing to
vehicle corrosion ...
......................................................... 7-10
Multi Function Display Owner's Manual ...
................. 4-2
N
NISSAN Advanced Air Bag System ...
..................... 1-40
NISSAN Vehicle Immobilizer System ...
.................... 2-47
No key warning ...
........................................................... 2-43
Noises are heard while driving ...
......................... GTR-24


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
O
Odometer/twin trip odometer...
.................................... 2-6
Off-road recovery ...
......................................................... 5-8
Oil Changing engine oil and filter ...
.......................... 8-14
Checking engine oil level ...
.................................. 8-13
Differential oil ...
..................................................... GTR-4
Engine oil ...
................................................ GTR-3, 8-13
Engine oil and oil filter recommendation ...
.......... 9-6
Engine oil level display ...
....................................... 2-12
Engine oil low pressure warning ...
..................... 2-35
Transmission oil ...
..................................... GTR-4, 8-14
Transmission oil high temperature warning ...
.... 2-36
Opening and closing the trunk ...
............................... 3-22
Opening the doors ...
....................................................... 3-7
Opening the fuel-filler door ...
...................................... 3-25
Opening the hood ...
...................................................... 3-18
Operating range for engine start ...
............................ 5-10
Operation displays ...
..................................................... 2-43
Outside air temperature ...
............................................ 2-18
Outside door handles ...
.................................................. 7-6
Outside mirrors ...
........................................................... 3-28
Outside temperature display indicates
higher temperature ...
............................................... GTR-23
Overheat If your vehicle overheats ...
....................................... 6-8
Owner's Manual/Service Manual
order information ...
......................................................... 9-22
P
Parking
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Parking/parking on hills ...
...................................... 5-45
Passenger compartment ...
........................................... 8-25
Power
Locking with power door lock switch ...
............... 3-5
Power outlets ...
........................................................ 2-56
Power steering ...
..................................................... 5-50
Power steering fluid ...
............................................ 8-14
Power windows ...
.................................................... 2-61
Trunk release power cancel switch ...
................ 3-21
Precautions ...
.................................................................. 8-17
All-Wheel Drive driving safety precautions ...
...... 5-9
Braking precautions ...
............................................ 5-51
Maintenance precautions ...
..................................... 8-6
Precautions on child restraints ...
........................ 1-16
Precautions on cruise control ...
.......................... 5-35
Precautions on seat belt usage ...
.......................... 1-6
Precautions on supplemental
restraint system ...
.................................................... 1-34
Precautions when starting and driving ...
............. 5-3
Precautions before driving ...
................................. GTR-10
Precautions on performance driving ...
................ GTR-12
Pregnant women ...
........................................................... 1-9
Push starting ...
.................................................................. 6-7
ªPUSHº warning ...
......................................................... 2-44
Push-button ignition switch ...
..................................... 5-10
R
R mode start function ...
................................................ 5-32
Rapid air pressure loss ...
............................................... 5-8
Readiness for Inspection/Maintenance test ...
........ 9-20
Rear window defroster switch ...
................................ 2-50
Rear-facing child restraint installation
using LATCH ...
............................................................... 1-20
Rear-facing child restraint installation using the
seat belts ...
...................................................................... 1-22
RearView Monitor ...
......................................................... 4-2
Recommended fluids and
maintenance interval ...
............................................ GTR-19
Reducing tight corner braking phenomenon ...
....... 5-43
Refueling precautions ...
.......................................... GTR-13
Remote keyless entry system ...
.................................. 3-12
Removing spots ...
............................................................ 7-4
Removing the cowl top cover ...
................................... 8-9
Repair and replacement procedure ...
....................... 1-47
Replacement of brake pads and disc rotors ...
.... GTR-5
Replacing spark plugs ...
.............................................. 8-20
Replacing the brake pads ...
........................................ 8-24
Replacing the wiper blades ...
..................................... 8-22
Reporting safety defects ...
......................................... 9-19
Reverse warning ...
......................................................... 2-36
Roadside assistance program ...
................................... 6-2
Run-flat tire warning ...
.................................................. 2-40
Run-flat tires ...
.................................................................. 6-4
10-5


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-8
Vehicle information display...
....................................... 2-12
Vehicle load capacity ...
................................................. 9-15
Vehicle loading information ...
...................................... 9-14
Vehicle recovery ...
............................................................ 6-9
Vehicle security system ...
............................................. 2-46
Vehicle speed ...
.............................................................. 2-16
Vehicle status data recorder ...
.................................... 9-21
Ventilators ...
....................................................................... 4-9
W
Warning
Anti-lock Braking System warning ...
.................. 2-38
AWD clutch high temperature warning ...
......... 2-38
AWD system warning ...
......................................... 2-39
AWD warning light ...
.............................................. 5-41
Brake pad wear warning ...
................................... 8-23
Cruise control system warning ...
........................ 2-41
Door/trunk open warning ...
................................... 2-42
Engine oil low pressure warning ...
..................... 2-35
Engine system warning ...
...................................... 2-35
Front/rear tire size discrepancy warning ...
....... 2-39
Hazard warning flasher switch ...
............................ 6-2
Low brake fluid warning ...
.................................... 2-37
Low fuel warning ...
................................................. 2-41
Low tire pressure warning ...
................................ 2-40
Low washer fluid warning ...
................................. 2-42
No key warning ...
.................................................... 2-43
Parking brake release warning ...
......................... 2-37
ªPUSHº warning ...
.................................................. 2-44
Reverse warning ...
.................................................. 2-36 Run-flat tire warning
...
........................................... 2-40
Shift lever position warning ...
.............................. 2-35
Shift ªPº warning ...
................................................. 2-44
Supplemental air bag warning labels ...
............. 1-46
Supplemental air bag warning light ...
................ 1-47
Tire Pressure Monitoring System warning ...
.... 2-40
Transmission clutch high
temperature warning ...
........................................... 2-37
Transmission oil high temperature warning ...
.... 2-36
Transmission system warning ...
........................... 2-36
Vehicle Dynamic Control system warning ...
..... 2-38
Warning (drive computer) ...
................................. 2-23
Warning display ...
................................................... 2-34
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Warning signals ...
................................................... 3-16
Warranty information ...
.............................................. GTR-3
Washing ...
.......................................................................... 7-3
Waxing ...
............................................................................ 7-4
Wheel alignment ...
.......................................... GTR-9, 5-39
Wheel alignment inspection and adjustment
(if necessary) (including tire
pressure adjustment) ...
............................................. GTR-8
Wheel lock nuts ...
.......................................................... 8-49
Wheels ...
............................................................................ 7-5
Wheels and tires ...
........... GTR-16, GTR-22, 8-32, 9-9
When traveling or registering in
another country ...
........................................................... 9-11
Where to go for service ...
............................................. 8-3
Window washer fluid ...
................................................. 8-16 Windows
...
....................................................................... 2-61
Windshield wiper blades ...
.......................................... 8-22
Wiper Replacing the wiper blades ...
.............................. 8-22
Using the wipers ...
.................................................. 2-49
Windshield wiper blades ...
................................... 8-22
Wiper and washer switch ...
................................. 2-49
Wiper and washer switch ...
........................................ 2-49
