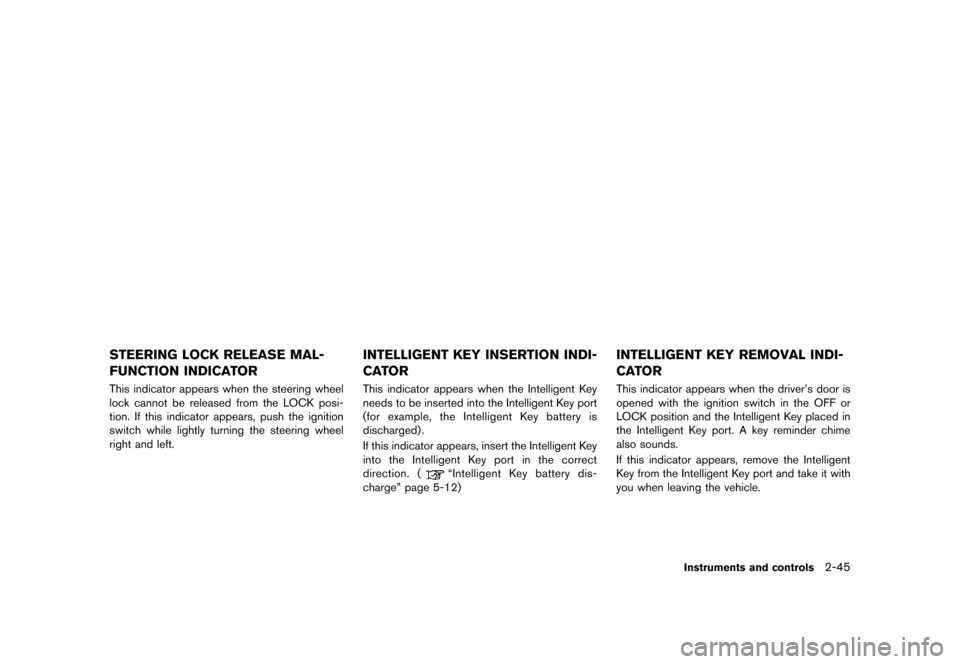

STEERING LOCK RELEASE MAL-
FUNCTION INDICATOR
GUID-7184C672-861C-4B9D-8EBB-EC72DC42A813This indicator appears when the steering wheel
lock cannot be released from the LOCK posi-
tion. If this indicator appears, push the ignition
switch while lightly turning the steering wheel
right and left.
JVI0077X
INTELLIGENT KEY INSERTION INDI-
CATOR
GUID-FFB35E85-587E-4309-89D2-CBE440909E86This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key port
(for example, the Intelligent Key battery is
discharged) .
If this indicator appears, insert the Intelligent Key
into the Intelligent Key port in the correct
direction. (
ªIntelligent Key battery dis-
chargeº page 5-12)
JVI0078X
INTELLIGENT KEY REMOVAL INDI-
CATOR
GUID-A852689B-5381-4949-91B5-5E2F1D1C82ABThis indicator appears when the driver's door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
Instruments and controls2-45


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-46Instruments and controls
JVI0079X
INTELLIGENT KEY BATTERY DIS-
CHARGE INDICATOR
GUID-F694E3B6-00F9-45AB-8774-172B3A485845This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (
ªIntelligent Key battery repla-
cementº page 8-27)
GUID-CD7F9451-9527-4A6A-AB5E-54B433B0ECE9
JVI0080X
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-9FC120CF-7493-403D-8A4D-4D0E0CCBEC31The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood, or trunk lid when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your GT-R
certified NISSAN dealer may also offer such
equipment. Check with your insurance company
to see if you may be eligible for discounts for
various theft protection features.
SECURITY SYSTEMS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0094X
How to arm the vehicle security
system
GUID-7F596F37-3AA2-4D57-824B-F60E4815C9471. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5.
Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-A43E97AF-39F9-49C9-98AB-1877FD0EE01DThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Opening the door or the trunk lid without
using the button on the Intelligent Key, the
door handle request switch or the mechan-
ical key. (Even if the door is opened by
releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmGUID-5074B89D-A82F-4CD3-9682-B35D540856A8The alarm will stop by:
.Unlocking a door by pushing the UNLOCK
button on the Intelligent Key.
. Unlocking a door by pushing the door
handle request switch.
. Pushing the ignition switch to the ACC or
ON position.
If the system does not operate as de-
scribed above, it is recommended you have
it checked by a GT-R certified NISSAN
dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
GUID-F3FE1AB9-4898-48E8-957A-B09774184B70The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Instruments and controls2-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-48Instruments and controls

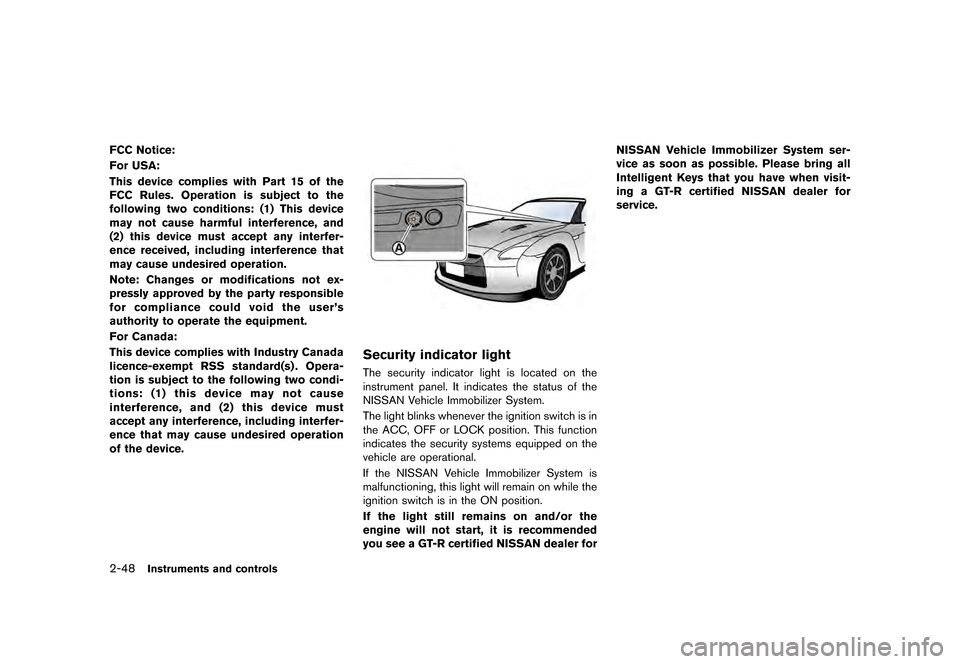

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
JVI0095X
Security indicator lightGUID-F11C75EF-0D68-4C3F-A312-C0031BE37433The security indicator light is located on the
instrument panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks whenever the ignition switch is in
the ACC, OFF or LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, it is recommended
you see a GT-R certified NISSAN dealer forNISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
Intelligent Keys that you have when visit-
ing a GT-R certified NISSAN dealer for
service.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-60Instruments and controls
JVI1464X

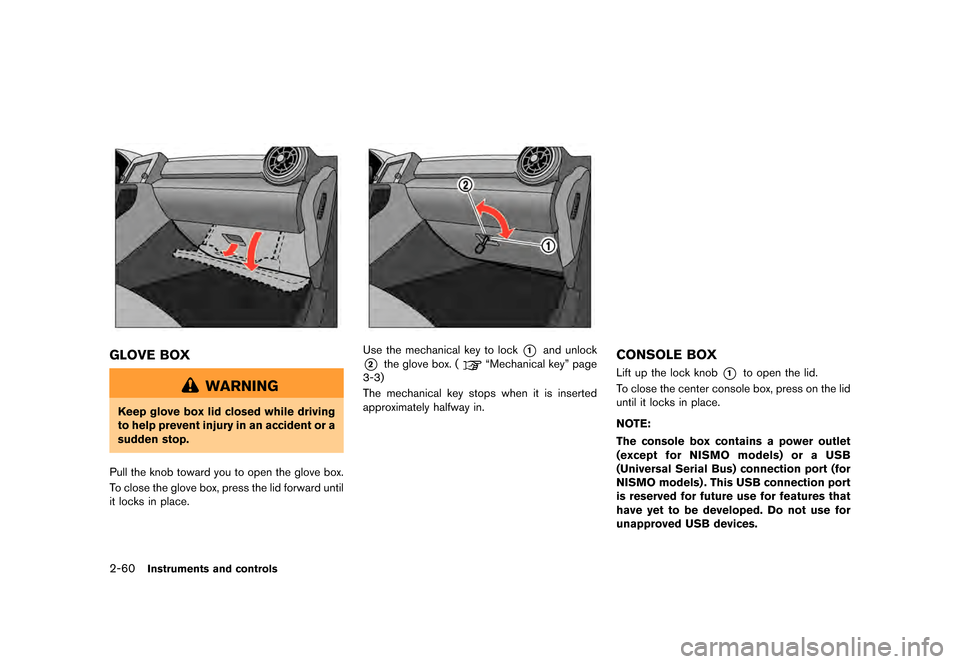

GLOVE BOXGUID-82CE5C2D-7F3D-4F59-B569-AD7C24D964A3
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
Pull the knob toward you to open the glove box.
To close the glove box, press the lid forward until
it locks in place.
JVI1465X
Use the mechanical key to lock*1and unlock
*2the glove box. (ªMechanical keyº page
3-3)
The mechanical key stops when it is inserted
approximately halfway in.
GEC0007
CONSOLE BOXGUID-E7E4F929-20D0-41B9-9DCA-197EDCD2A091Lift up the lock knob*1to open the lid.
To close the center console box, press on the lid
until it locks in place.
NOTE:
The console box contains a power outlet
(except for NISMO models) or a USB
(Universal Serial Bus) connection port (for
NISMO models) . This USB connection port
is reserved for future use for features that
have yet to be developed. Do not use for
unapproved USB devices.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
NOTE:
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
DOOR positionGUID-31F69CCA-C199-4829-8D83-95C634DA50F6When the switch is in the DOOR position*2,
the map lights will turn on when the door is
opened and turn off when the door is closed.
The map lights will turn off approximately 15
seconds after the door is closed with the ignition
switch in the OFF or LOCK position.
NOTE:
When the interior light control switch is in
the DOOR position and the door is open,
the light will remain on even when the map
light switch is pressed to turn off.
Key-linked interior light control system:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The map lights will turn on and off linked with the
locking and unlocking of the door.
This function operates when the interior light
control switch is in the DOOR position.
. When entering the vehicle
When the driver's seat door is unlocked, the
map light illuminates for approximately 15 seconds, then it turns off.
While the map light is on, if the ignition switch is
pushed to the ACC or ON position, or if the
driver's side door is locked, the light turns off.
.
When exiting the vehicle
When the ignition switch is pushed to the OFF
or LOCK position, the map lights turn on for
approximately 15 seconds, then it turns off.
If the driver's side door is locked while the map
lights are on, the light turns off.
NOTE:
It is possible to cancel the key-linked
interior light control system setting. See
the separate Multi Function Display Own-
er's Manual.
OFF positionGUID-A8A74054-EE3F-40C1-8FC1-F9AA774B30AEWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of any
condition.
GUID-955EF2DF-5A59-475A-BDE9-62BBF322A7CF
GEC0002
There is an illuminated vanity mirror on the
reverse side of the sun visor.
Instruments and controls2-65
VANITY MIRROR LIGHTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

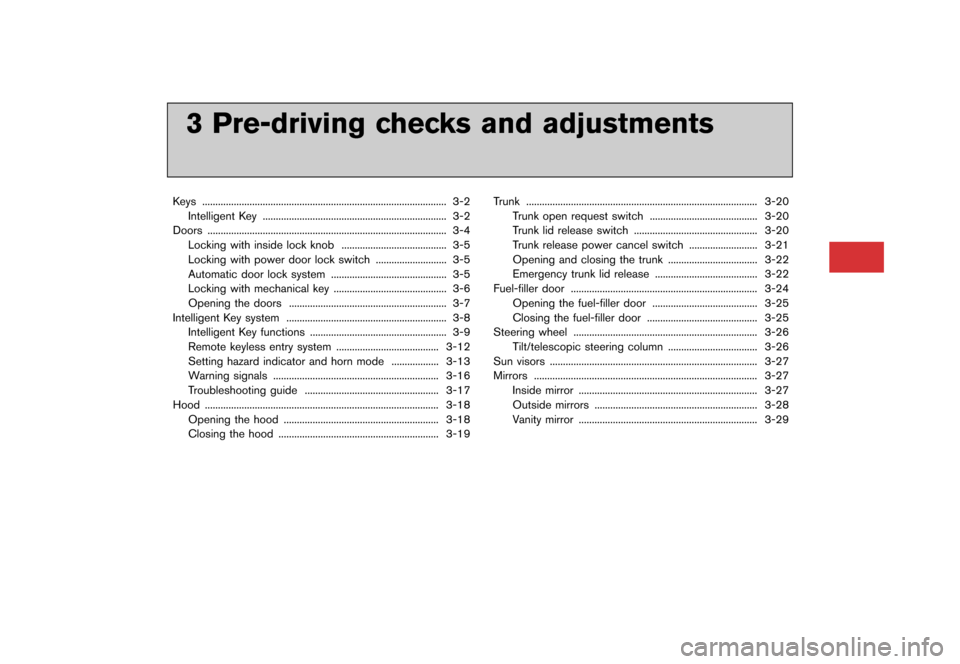

3 Pre-driving checks and adjustments
Keys............................................................................\
..................... 3-2
Intelligent Key .......................................................................... 3-2
Doors ....
........................................................................\
................... 3-4
Locking with inside lock knob ............................................ 3-5
Locking with power door lock switch ....
........................... 3-5
Automatic door lock system ....
............................................ 3-5
Locking with mechanical key ....
........................................... 3-6
Opening the doors ................................................................ 3-7
Intelligent Key system ................................................................. 3-8
Intelligent Key functions ....
.................................................... 3-9
Remote keyless entry system ....
....................................... 3-12
Setting hazard indicator and horn mode ...................... 3-13
Warning signals ................................................................... 3-16
Troubleshooting guide ....................................................... 3-17
Hood ....
........................................................................\
................. 3-18
Opening the hood ....
........................................................... 3-18
Closing the hood ....
............................................................. 3-19 Trunk
............................................................................\
................ 3-20
Trunk open request switch ............................................. 3-20
Trunk lid release switch ....
............................................... 3-20
Trunk release power cancel switch ....
.......................... 3-21
Opening and closing the trunk ....
.................................. 3-22
Emergency trunk lid release ....
....................................... 3-22
Fuel-filler door ........................................................................... 3-24
Opening the fuel-filler door ............................................ 3-25
Closing the fuel-filler door .............................................. 3-25
Steering wheel .......................................................................... 3-26
Tilt/telescopic steering column ....
.................................. 3-26
Sun visors ....
........................................................................\
....... 3-27
Mirrors ............................................................................\
............. 3-27
Inside mirror ....
.................................................................... 3-27
Outside mirrors ....
.............................................................. 3-28
Vanity mirror ....
.................................................................... 3-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

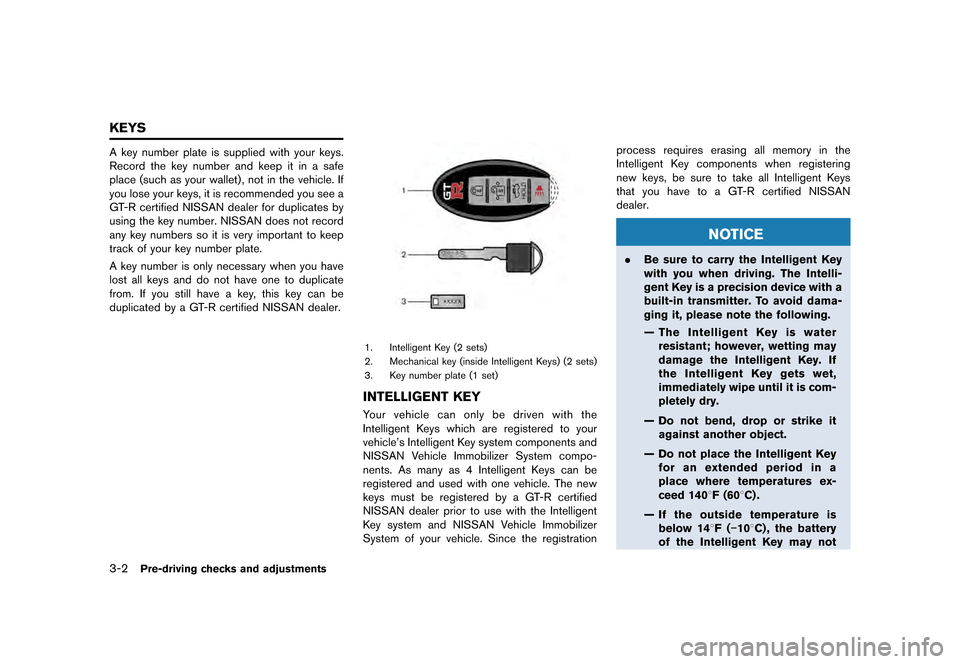

3-2Pre-driving checks and adjustments
GUID-0F85E24B-3B61-4032-BBF1-0B2357060839A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, it is recommended you see a
GT-R certified NISSAN dealer for duplicates by
using the key number. NISSAN does not record
any key numbers so it is very important to keep
track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a GT-R certified NISSAN dealer.
GPC0051
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Keys) (2 sets)
3. Key number plate (1 set)
INTELLIGENT KEYGUID-55514E95-F475-46ED-A8AC-046514ADBAC4Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a GT-R certified
NISSAN dealer prior to use with the Intelligent
Key system and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registrationprocess requires erasing all memory in the
Intelligent Key components when registering
new keys, be sure to take all Intelligent Keys
that you have to a GT-R certified NISSAN
dealer.
NOTICE
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) .
Ð If the outside temperature is below 148F (
