2017 NISSAN GT-R horn


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-BA1734E3-05F1-4911-BF3E-1409B0BE61CD
JVC0924X
1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Illustrated table of contents0-7
COCKPIT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-29959B49-CCE4-4C25-B217-0AC7FFC4712B
JVC0924X
1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Instruments and controls2-3
COCKPIT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0094X
How to arm the vehicle security
system
GUID-7F596F37-3AA2-4D57-824B-F60E4815C9471. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5.
Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-A43E97AF-39F9-49C9-98AB-1877FD0EE01DThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Opening the door or the trunk lid without
using the button on the Intelligent Key, the
door handle request switch or the mechan-
ical key. (Even if the door is opened by
releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmGUID-5074B89D-A82F-4CD3-9682-B35D540856A8The alarm will stop by:
.Unlocking a door by pushing the UNLOCK
button on the Intelligent Key.
. Unlocking a door by pushing the door
handle request switch.
. Pushing the ignition switch to the ACC or
ON position.
If the system does not operate as de-
scribed above, it is recommended you have
it checked by a GT-R certified NISSAN
dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
GUID-F3FE1AB9-4898-48E8-957A-B09774184B70The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Instruments and controls2-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

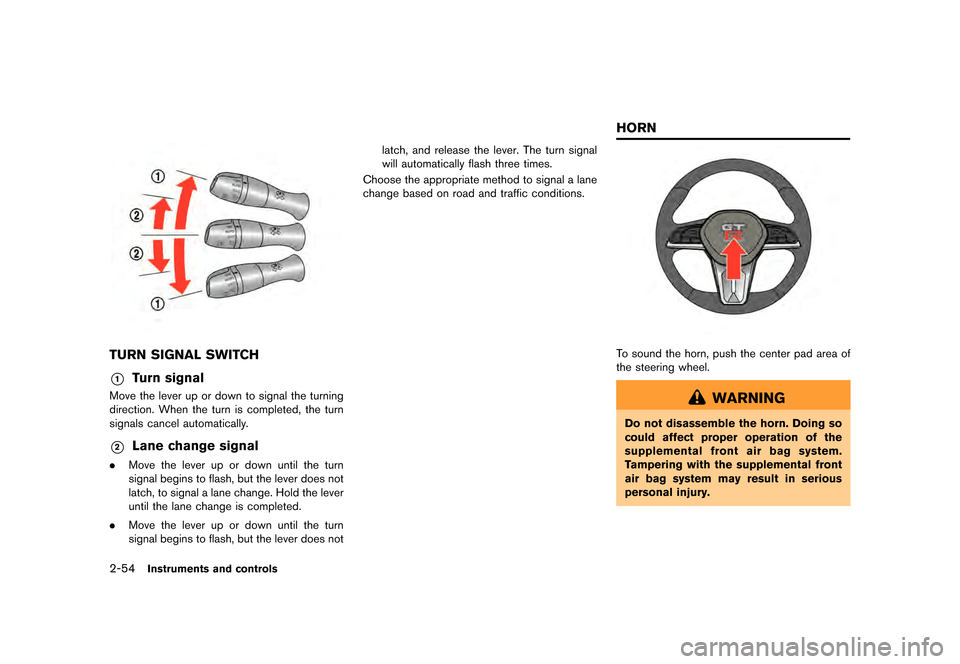

2-54Instruments and controls
JVI0156X
TURN SIGNAL SWITCHGUID-3E90D433-421B-49B7-BB68-0A49A8C905DC
*1Turn signalGUID-D930822E-1B78-44B6-947F-F14FAB277860Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-071A16F1-2DDB-4763-B256-67DF90ED0133.Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
. Move the lever up or down until the turn
signal begins to flash, but the lever does not latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.
GUID-E6838E91-9B44-446A-9139-732C2BD39269
JVI1460X
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
HORN


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3 Pre-driving checks and adjustments
Keys............................................................................\
..................... 3-2
Intelligent Key .......................................................................... 3-2
Doors ....
........................................................................\
................... 3-4
Locking with inside lock knob ............................................ 3-5
Locking with power door lock switch ....
........................... 3-5
Automatic door lock system ....
............................................ 3-5
Locking with mechanical key ....
........................................... 3-6
Opening the doors ................................................................ 3-7
Intelligent Key system ................................................................. 3-8
Intelligent Key functions ....
.................................................... 3-9
Remote keyless entry system ....
....................................... 3-12
Setting hazard indicator and horn mode ...................... 3-13
Warning signals ................................................................... 3-16
Troubleshooting guide ....................................................... 3-17
Hood ....
........................................................................\
................. 3-18
Opening the hood ....
........................................................... 3-18
Closing the hood ....
............................................................. 3-19 Trunk
............................................................................\
................ 3-20
Trunk open request switch ............................................. 3-20
Trunk lid release switch ....
............................................... 3-20
Trunk release power cancel switch ....
.......................... 3-21
Opening and closing the trunk ....
.................................. 3-22
Emergency trunk lid release ....
....................................... 3-22
Fuel-filler door ........................................................................... 3-24
Opening the fuel-filler door ............................................ 3-25
Closing the fuel-filler door .............................................. 3-25
Steering wheel .......................................................................... 3-26
Tilt/telescopic steering column ....
.................................. 3-26
Sun visors ....
........................................................................\
....... 3-27
Mirrors ............................................................................\
............. 3-27
Inside mirror ....
.................................................................... 3-27
Outside mirrors ....
.............................................................. 3-28
Vanity mirror ....
.................................................................... 3-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
3-10Pre-driving checks and adjustments
.If the Intelligent Key is too close to the
door glass, handle or rear bumper, the
request switches may not function.
. When the Intelligent Key is within the
operating range, it is possible for any-
one who does not carry the Intelligent
Key to push the request switch to lock/
unlock the doors.
GPC0009
Intelligent Key operationGUID-08050492-D3EC-4A3C-8E79-BC206A1322EDYou can lock or unlock the doors without taking
the key out from your pocket or bag.
GPC0010
When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch
*Awithin the range of
operation.
NOTE:
. When the driver's door is locked or
unlocked, the fuel-filler door is auto-
matically locked or unlocked at the
same time.
. When you lock or unlock the doors or
the trunk lid, the hazard indicator will
flash and the horn (or the outside
chime) will sound as a confirmation.
(
ªSetting hazard indicator and


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
horn modeº page 3-13)
Locking doors:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Move the shift lever to the&Pposition, push
the ignition switch to the OFF position and
make sure you carry the Intelligent Key with
you.
2. Close all the doors.
3. Push the driver's or front passenger's door handle request switch while carrying the
Intelligent Key with you.
4. All the doors will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
NOTE:
. Doors will lock with the Intelligent Key
while the ignition switch is in the ACC
or ON position.
. Doors will not lock with the Intelligent
Key while any door is open.
. Doors will not lock by pushing the door
handle request switch with the Intelli-
gent Key inside the vehicle.
However, when an Intelligent Key is
inside the vehicle, doors can be locked
with another registered Intelligent Key. Unlocking doors:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push the driver's or front passenger's door
handle request switch once while carrying
the Intelligent Key with you.
2. The hazard indicator flashes once and out- side chime sounds once. The corresponding
door will unlock.
3. Push the door handle request switch again within 1 minute.
4. The hazard indicator flashes once and out- side chime sounds once again. All the doors
will unlock.
NOTE:
All doors will be locked automatically
unless one of the following operations is
performed within 1 minute after pushing
the request switch while the doors are
locked. If during this 1-minute time period,
the request switch is pushed, all doors will
be locked automatically after another 1
minute.
. Opening any door
. Pushing the ignition switch
GPC0018
GPC0019
Pre-driving checks and adjustments3-11
