2014 Peugeot 3008 Hybrid 4 Owner's Manual

11
Practical information207

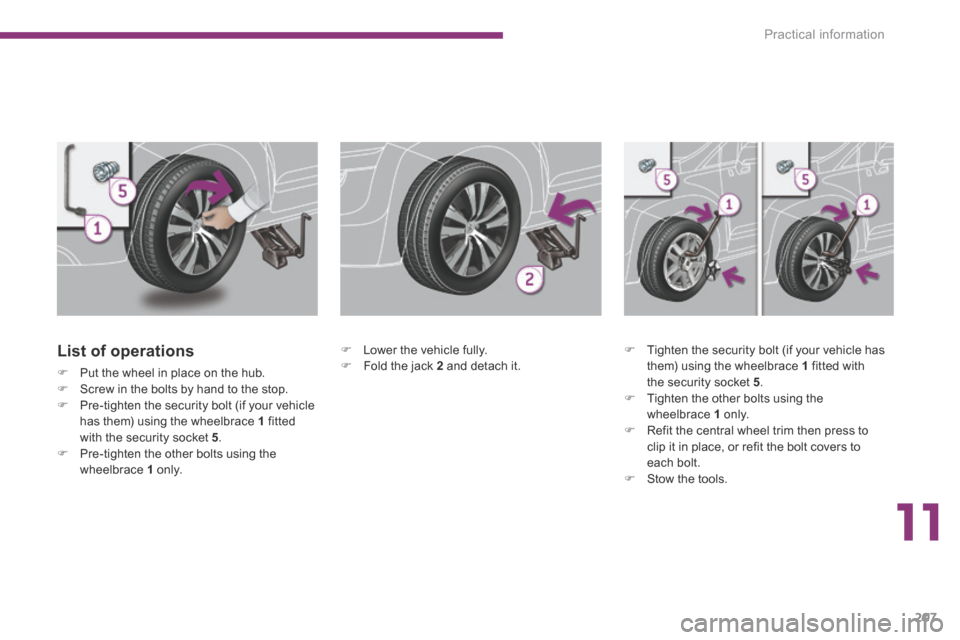

List of operations
 Put the wheel in place on the hub.  Screw in the bolts by hand to the stop.  Pre-tighten the security bolt (if your vehicle has them) using the wheelbrace 1 fitted with the security socket 5 .  Pre-tighten the other bolts using the wheelbrace 1 o n l y.
 Lower the vehicle fully.  Fold the jack 2 and detach it.  Tighten the security bolt (if your vehicle has them) using the wheelbrace 1 fitted with the security socket 5 .  Tighten the other bolts using the wheelbrace 1 o n l y.  Refit the central wheel trim then press to clip it in place, or refit the bolt covers to each bolt.  Stow the tools.

Practical information
208
The snow chains must be fitted only to the front wheels. They must never be fitted to spare wheels.
Use only the chains designed to be fitted to the type of wheel fitted to your vehicle. For more information on snow chains, contact a PEUGEOT dealer or a qualified workshop.
Avoid driving on roads that have been cleared of snow, to avoid damaging your vehicle's tyres and the road sur face. It is recommended that before you leave, you practise fitting the snow chains on a level and dry sur face. If your vehicle is fitted with alloy wheels, check that no part of the chain or its fixings is in contact with the wheel rim.

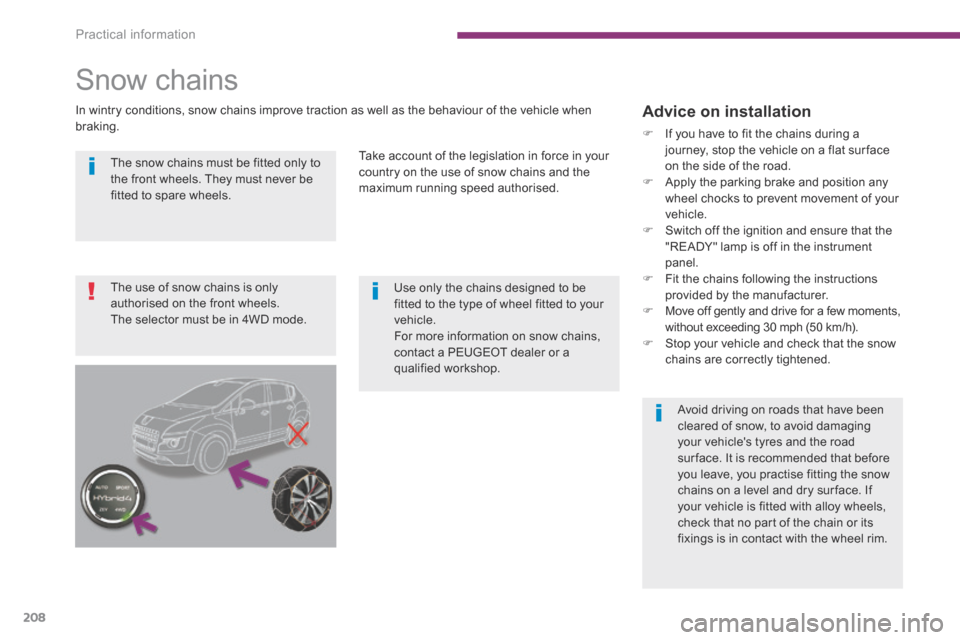

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
Take account of the legislation in force in your country on the use of snow chains and the maximum running speed authorised.
Advice on installation
 If you have to fit the chains during a journey, stop the vehicle on a flat sur face on the side of the road.  Apply the parking brake and position any wheel chocks to prevent movement of your vehicle.  Switch off the ignition and ensure that the "READY" lamp is off in the instrument panel.  Fit the chains following the instructions provided by the manufacturer.  Move off gently and drive for a few moments, without exceeding 30 mph (50 km/h).  Stop your vehicle and check that the snow chains are correctly tightened.
The use of snow chains is only authorised on the front wheels. The selector must be in 4WD mode.

11
Practical information209

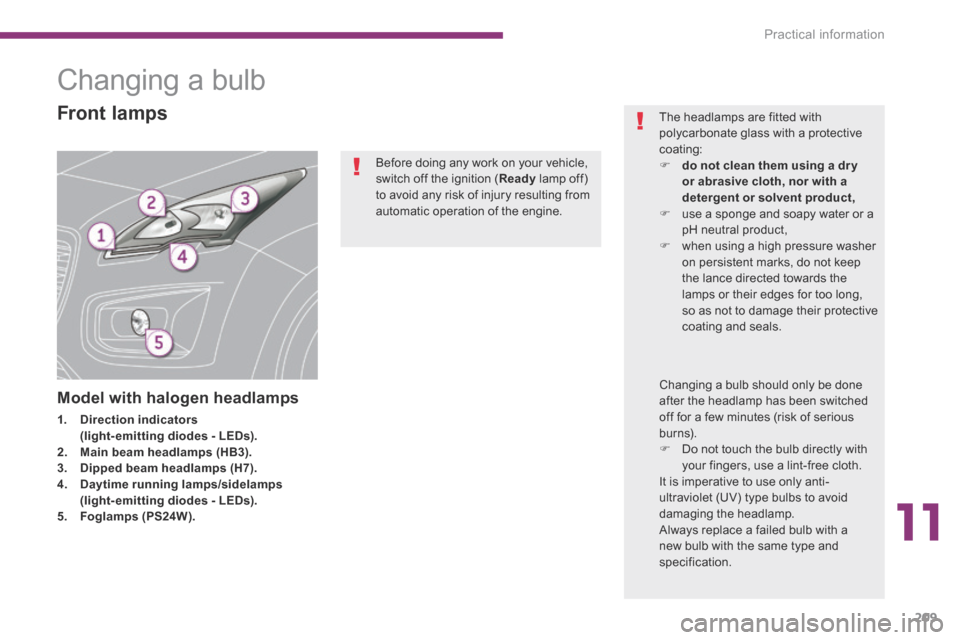

Changing a bulb
Model with halogen headlamps
1. Direction indicators (light-emitting diodes - LEDs).2. Main beam headlamps (HB3).3. Dipped beam headlamps (H7).4. Daytime running lamps/sidelamps (light-emitting diodes - LEDs).5. Foglamps (PS24W).
Front lamps
Before doing any work on your vehicle, switch off the ignition ( Ready lamp off) to avoid any risk of injury resulting from automatic operation of the engine.
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water or a pH neutral product,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals.
Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns).  Do not touch the bulb directly with your fingers, use a lint-free cloth. It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid damaging the headlamp. Always replace a failed bulb with a
new bulb with the same type and specification.

Practical information
210

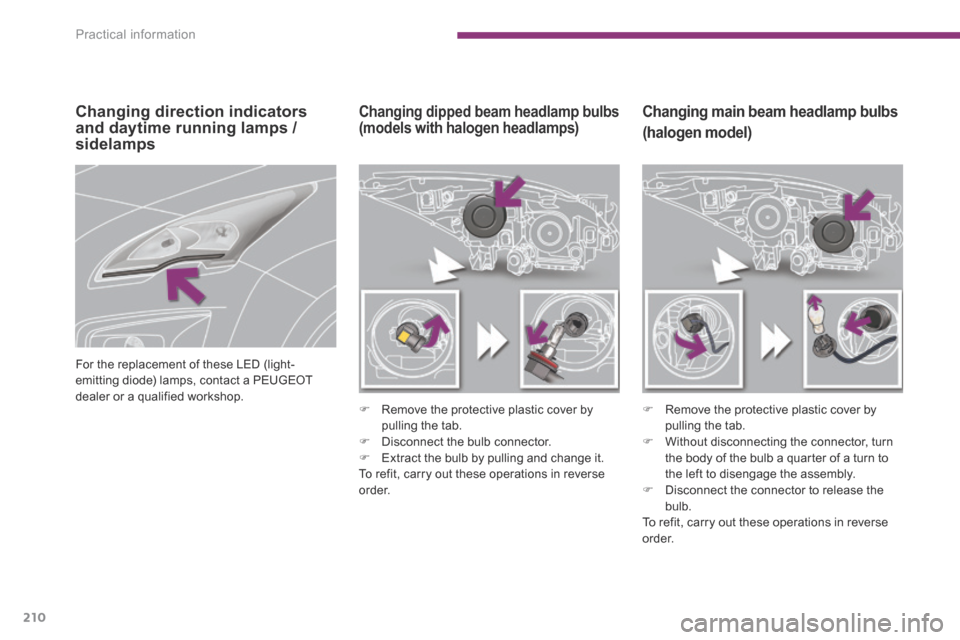

Changing main beam headlamp bulbs
(halogen model)
 Remove the protective plastic cover by pulling the tab.  Without disconnecting the connector, turn the body of the bulb a quarter of a turn to the left to disengage the assembly.  Disconnect the connector to release the bulb. To refit, carry out these operations in reverse
o r d e r.
Changing dipped beam headlamp bulbs (models with halogen headlamps)
 Remove the protective plastic cover by pulling the tab.  Disconnect the bulb connector.  Extract the bulb by pulling and change it. To refit, carry out these operations in reverse o r d e r.
Changing direction indicators and daytime running lamps / sidelamps
For the replacement of these LED (light-emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.

11
Practical information211
Changing foglamp bulbs
Contact a PEUGEOT dealer or a qualified workshop.  Insert a screwdriver towards the centre of the repeater between the repeater and the base of the mirror.  Tilt the screwdriver to extract the repeater and remove it.  Disconnect the repeater connector.

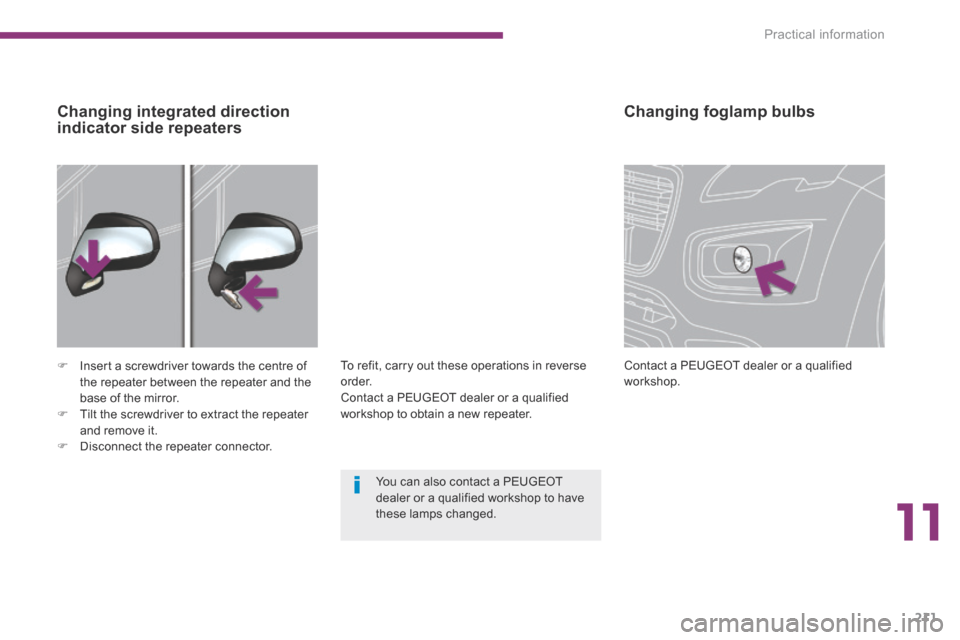

Changing integrated direction indicator side repeaters
You can also contact a PEUGEOT dealer or a qualified workshop to have these lamps changed.
To refit, carry out these operations in reverse o r d e r. Contact a PEUGEOT dealer or a qualified workshop to obtain a new repeater.

Practical information
212
Rear lamps
1. Brake lamps / sidelamps (light - emitting diodes - LEDs). 2. Reversing lamps (W16W).3. Direction indicators (P21W).4.S idelamps (light-emitting diodes - LEDs).5. Foglamps (P21W).
Changing reversing lamp and direction indicator bulbs
 Raise the tailgate.  Remove the plastic cover.  Unscrew the two fixing nuts.  Extract the lamp unit carefully from the outside.  Disconnect the bulb holder connector.
- Turn the the lamp unit over. - Press the five tabs and remove the bulb h o l d e r.
- Reversing lamp (2) : pull on the bulb to
remove it. - Direction indicator (3) : turn the bulb a quarter of a turn (anti-clockwise) to remove it.
To refit, carry out these operations in reverse o r d e r.

11
Practical information213

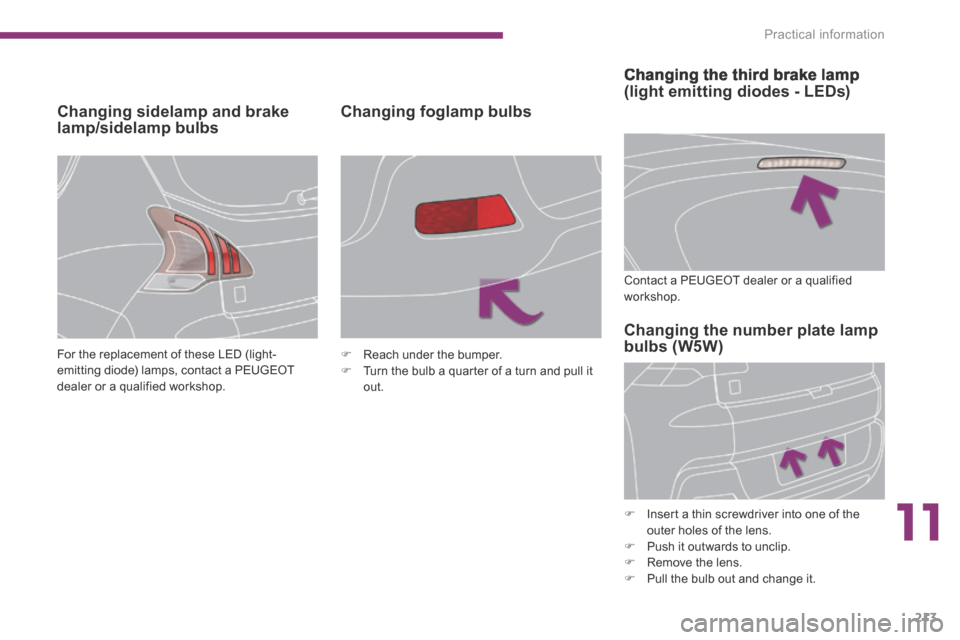

Changing the third brake lamp (light emitting diodes - LEDs)
Changing sidelamp and brake lamp/sidelamp bulbs Changing foglamp bulbs
For the replacement of these LED (light-emitting diode) lamps, contact a PEUGEOT dealer or a qualified workshop.
 Reach under the bumper.  Turn the bulb a quarter of a turn and pull it out.
Contact a PEUGEOT dealer or a qualified workshop.
Changing the number plate lamp bulbs (W5W)
 Insert a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Remove the lens.  Pull the bulb out and change it.

Practical information
214
Access to the tools Changing a fuse
GoodFailed
 Use the special tweezer to extract the fuse from its housing.  Always replace the faulty fuse with a fuse of the same rating.  Check that the number etched on the box, the rating etched on the fuse and the tables below all agree.
Before changing a fuse, the cause of the failure must be identified and rectified.  Identify the faulty fuse by checking the condition of its filament.
Changing a fuse
PEUGEOT will not accept responsibility for the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.
The replacement of a fuse not mentioned in the tables below could cause a serious malfunction on your vehicle. Contact a PEUGEOT dealer or a qualified workshop.
Procedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back of the dashboard fusebox cover. To gain access to it:  Remove the cover completely.  Remove the tweezer.
