2014 Peugeot 3008 Hybrid 4 Owner's Manual

6
Fittings127

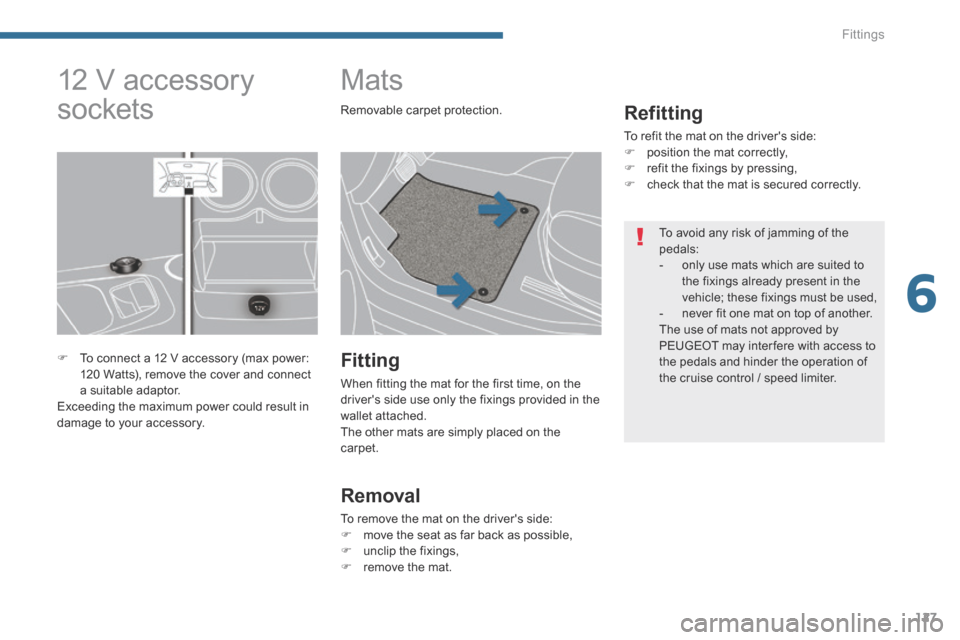

Mats
Refitting
To refit the mat on the driver's side:  position the mat correctly,  refit the fixings by pressing,  check that the mat is secured correctly.
Fitting
When fitting the mat for the first time, on the driver's side use only the fixings provided in the wallet attached. The other mats are simply placed on the carpet.
Removal
To remove the mat on the driver's side:  move the seat as far back as possible,  unclip the fixings,  remove the mat.

12 V accessory
sockets
 To connect a 12 V accessory (max power: 120 Watts), remove the cover and connect a suitable adaptor. Exceeding the maximum power could result in damage to your accessory.
To avoid any risk of jamming of the pedals: - only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved by PEUGEOT may inter fere with access to the pedals and hinder the operation of the cruise control / speed limiter.
Removable carpet protection.

Fittings
128

Rear multimedia
This multimedia system allows rear passengers to connect one or two external portable systems (audio or video player, games consoles, DVD player...). The sound is played through two Bluetooth ® wireless headphone ® wireless headphone ®
sets, while the video content is displayed in two 7-inch screens built into the backs of the front seat head restraints.
This system operates only with the hybrid system active.
Description
The pack includes: - the connection and control panel fitted on the rear face of the centre console, - two 7-inch screens built into the front head restraints (with protective covers), - two wireless Bluetooth technology headphone sets with rechargeable batteries, - a 12 V charger with two outlets allowing the simultaneous charging of two headphones,
1. Power switch 2. AV1 video input (yellow RCA socket) 3. Stereo audio input A (red and white RCA s o c ket s) 4. AV2 video input (yellow RCA socket) 5. Stereo audio input B (red and white RCA s o c ket s) 6. Selection of display in the left hand screen (AV1 or AV2) 7. Selection of display in the right hand screen (AV1 or AV2) 8. Connection indicator lamps for the Bluetooth audio headphones (blue)

6
Fittings129
1. Screen power switch 2. Display adjustment buttons
Each headphone set has a switch, a connection indicator lamp (blue) and a channel selector (A or B).
Operation
 With the engine running, connect your portable system to the RCA connectors (e.g. with AV1 on the left).  Press the switch on the control panel, the indicator lamp comes on and the AV1 indicator lamps come on.  Make a long press on the switch, its indicator lamp flashes in blue.  Make a long press on the control panel switch, the pairing with the headphone set is complete when the blue indicator lamps on the headphones and on the system are on continuously.  Repeat the operation for the other headphone set.  Press the screen switch if you have a video source.  Start playing your portable system.
 It is possible at any time to modify the source for the video display (using button 6or 7 on the control panel: the indicator lamp for the source selected comes on) as well as the audio channel (using the selector on the headphones).
The Multimedia system allows the connection of a third Bluetooth headphone set, not supplied.
If your seat is in the table position, position a cover to avoid damaging the screen. These covers also conceal each screen.

Fittings
130

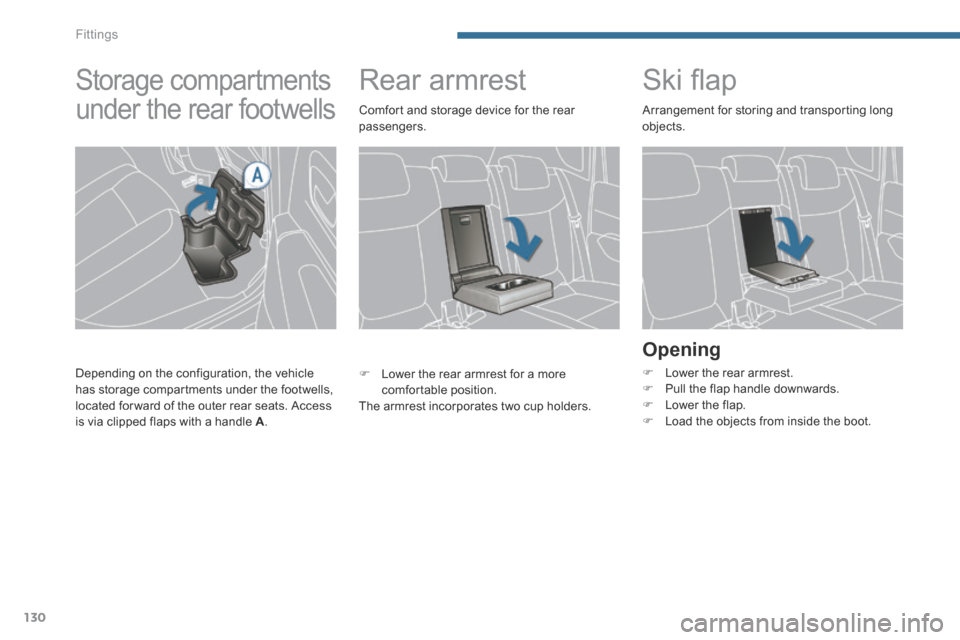

Rear armrest Ski fl ap
Opening
 Lower the rear armrest.  Pull the flap handle downwards.  Lower the flap.  Load the objects from inside the boot.
 Lower the rear armrest for a more comfortable position. The armrest incorporates two cup holders.
Comfort and storage device for the rear passengers. Arrangement for storing and transporting long objects.
Storage compartments
under the rear footwells
Depending on the configuration, the vehicle has storage compartments under the footwells, located for ward of the outer rear seats. Access is via clipped flaps with a handle A .

6
Fittings131

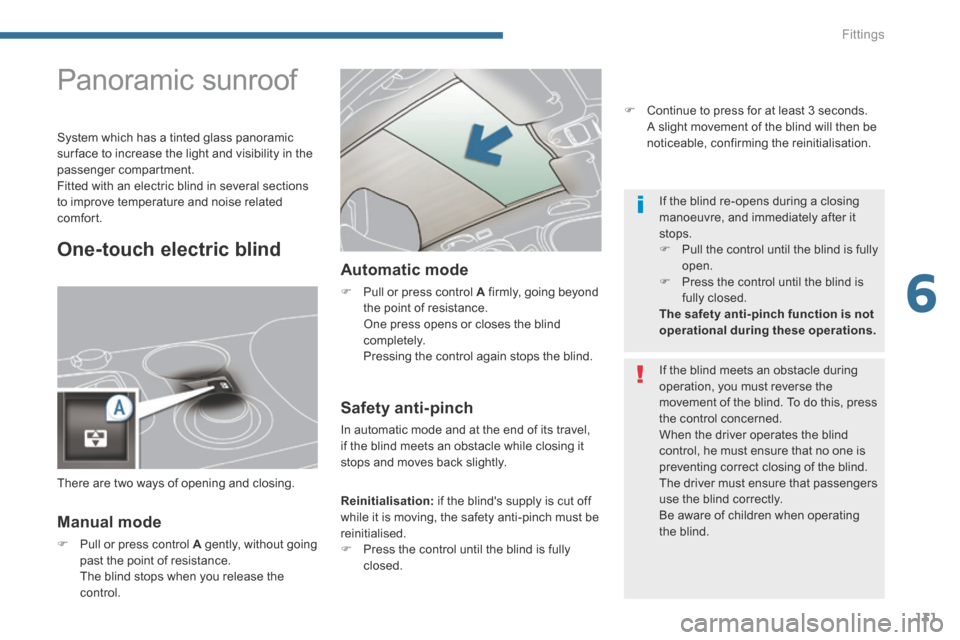

Panoramic sunroof
Manual mode
 Pull or press control A gently, without going past the point of resistance. The blind stops when you release the control.
Automatic mode
 Pull or press control A firmly, going beyond the point of resistance. One press opens or closes the blind completely. Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of its travel, if the blind meets an obstacle while closing it stops and moves back slightly.
There are two ways of opening and closing.
Reinitialisation: if the blind's supply is cut off while it is moving, the safety anti-pinch must be
reinitialised.  Press the control until the blind is fully closed.
If the blind meets an obstacle during operation, you must reverse the movement of the blind. To do this, press the control concerned. When the driver operates the blind control, he must ensure that no one is preventing correct closing of the blind. The driver must ensure that passengers use the blind correctly. Be aware of children when operating the blind.
If the blind re-opens during a closing manoeuvre, and immediately after it stops.  Pull the control until the blind is fully open.  Press the control until the blind is fully closed. The safety anti-pinch function is not operational during these operations.
 Continue to press for at least 3 seconds. A slight movement of the blind will then be noticeable, confirming the reinitialisation.
One-touch electric blind
System which has a tinted glass panoramic sur face to increase the light and visibility in the passenger compartment. Fitted with an electric blind in several sections to improve temperature and noise related comfort.

Fittings
132

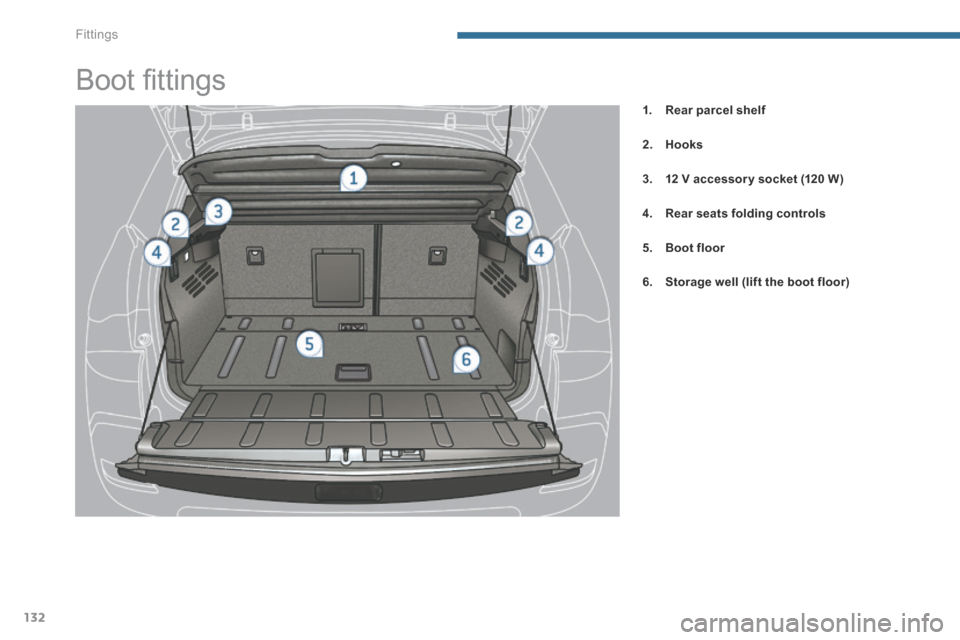

Boot fi ttings
1. Rear parcel shelf
2. Hooks
3. 12 V accessor y socket (120 W)
4. Rear seats folding controls
5. Boot floor
6. Storage well (lift the boot floor)

6
Fittings133
 To connect a 12 V accessory (max power: 120 W), remove the cap and connect an appropriate adaptor.  Turn the key to the ignition on position.

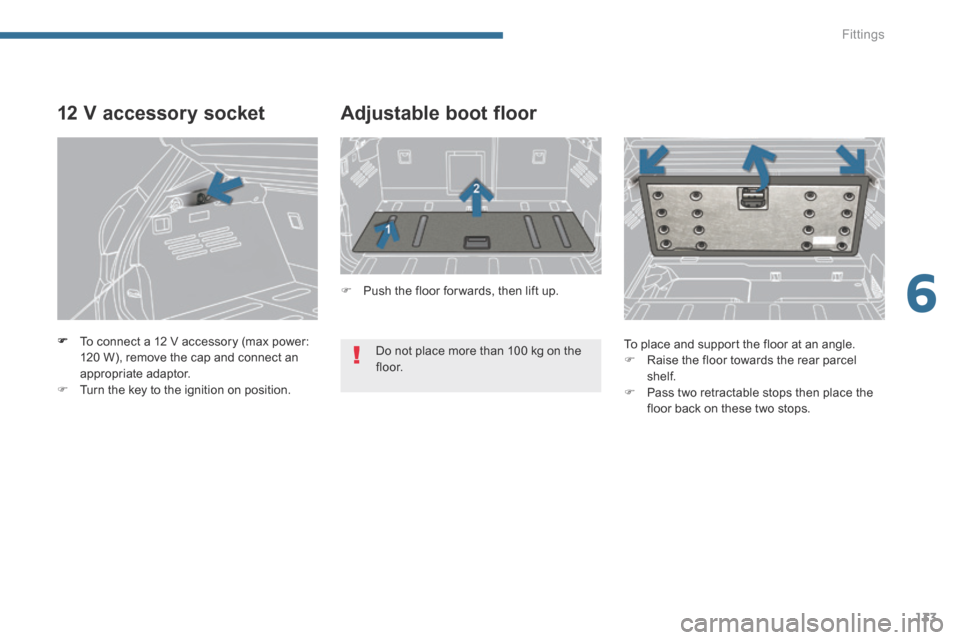

12 V accessory socket Adjustable boot floor
 Push the floor for wards, then lift up.
To place and support the floor at an angle.  Raise the floor towards the rear parcel shelf.  Pass two retractable stops then place the floor back on these two stops.
Do not place more than 100 kg on the f l o o r.

Fittings
134

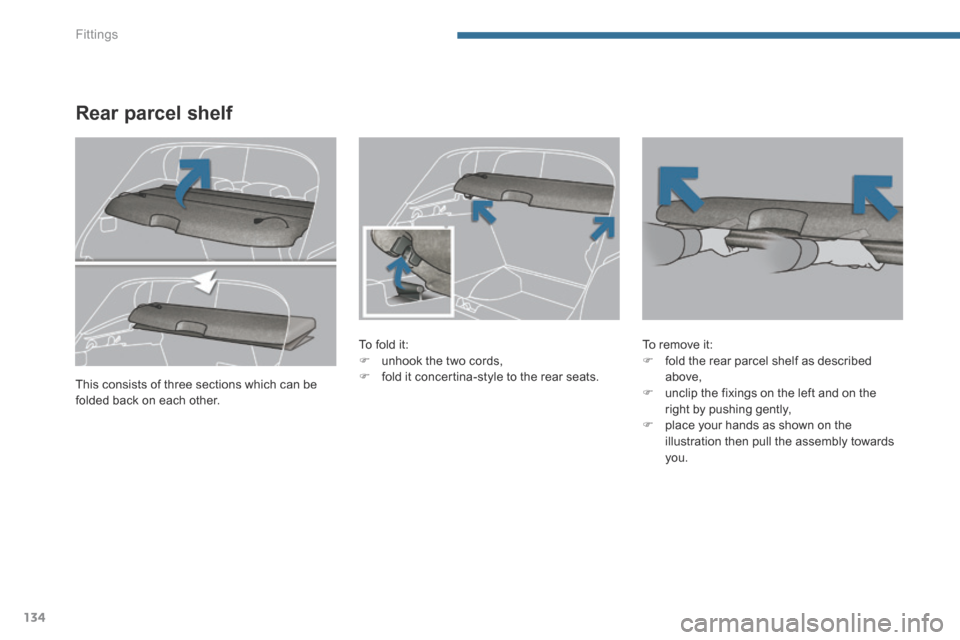

Rear parcel shelf
To fold it:  unhook the two cords,  fold it concertina-style to the rear seats.
To remove it:  fold the rear parcel shelf as described above,  unclip the fixings on the left and on the right by pushing gently,  place your hands as shown on the illustration then pull the assembly towards you.
This consists of three sections which can be folded back on each other.
