2014 Peugeot 3008 Hybrid 4 Owner's Manual

359

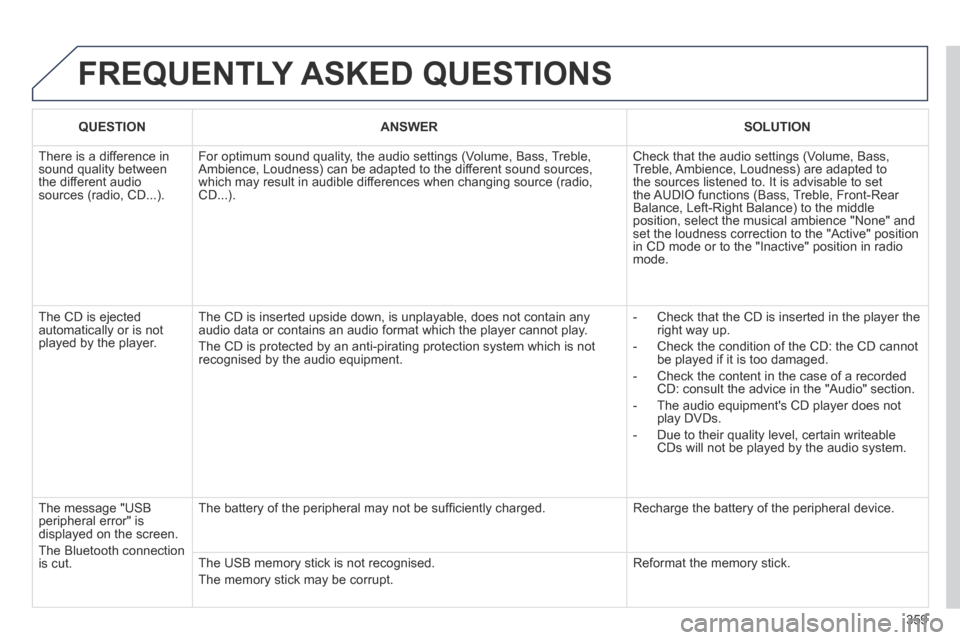

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

360
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
I am unable to access my voice mailbox. Few telephones or operators allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.\
Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

361

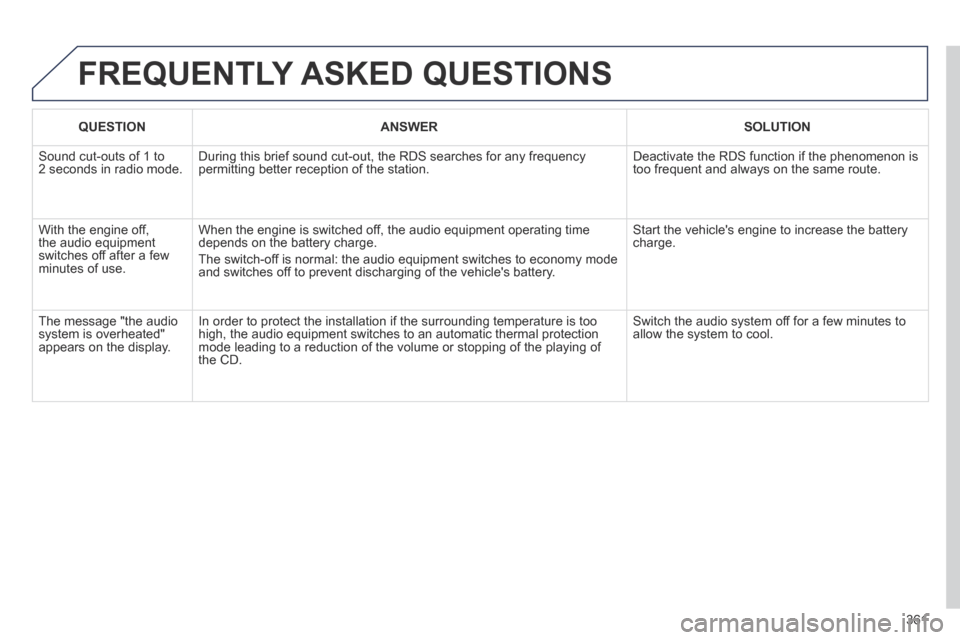

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

362

.
Alphabetical index363
Accessories ..................................................233Accessory socket, 12V .................124, 127, 133Adjusting headlamps ....................................115Adjusting head restraints ................................82Adjusting seat belt height .............................157Adjusting the steering wheel.............................................................87Airbags ....................................................58, 160Airbags, curtain .....................................162, 163Airbags, front.........................................160, 163Airbags, lateral ......................................162, 163Air conditioning ...............................................40Air conditioning, digital ...................................76Air filter ..........................................................Air filter ..........................................................Air filter195Air flow ............................................................40Air vents ..........................................................74Alarm ...............................................................96Anti-pinch ................................................98, 131Anti-theft .........................................................93Armrest ..........................................................124Armrest, front ................................................126Armrest, rear .................................................Armrest, rear .................................................Armrest, rear13 0Assistance call ......................................241, 242Audible warning ............................................151Audio streaming (Bluetooth) .........................................328, 355Audio systems ..............................245, 289, 343Audio/video sockets ......................................272Automatic illumination of headlamps ......................................109, 114Automatic operation of hazard warning lamps ............................................151Automatic rain sensitive windscreen wipers ..............................11 6 , 11 9Auxiliary sockets ..................................125, 126, 272, 329, 350, 352
Battery ...............4, 24, 43, 44, 87, 195, 221-224Battery, charging ...........................................223Battery, remote control .............................94, 95Blind for panoramic sunroof ........................................................sunroof ........................................................sunroof131Blinds.............................................................13 6Bluetooth (hands-free) ..................273, 312, 353Bluetooth (telephone) ....................273, 312, 323Bonnet ...........................................................189Bonnet stay ...................................................189Boot floor, adjustable ....................................13 3Boot lamp ......................................................123Boot ...............................................................103Brake discs ....................................................19 6Brake lamps ..................................................212Brake pads ....................................................19 6
AB
Child seats ............................................137-14 9Child seats, conventional ......................14 4, 145Closing the boot ..............................91, 103, 104Closing the doors ....................................91, 100Cold climate screen ......................................232Colour screen, retractable ........................68 -70Connectors, audio ..................125, 126, 272, 329, 350, 352Control for panoramic sunroof blind .............131Coolant level ...........................................60, 194Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator60Courtesy lamps .............................................121Courtesy mirror .............................................Courtesy mirror .............................................Courtesy mirror125Cruise control ................................................176Cup holder .....................................................Cup holder .....................................................Cup holder124
Capacity, fuel tank ........................................105CD MP3 ........................................268, 325, 349Central locking ........................................91, 101Changing a bulb ....................................20 9 -213Changing a fuse ....................................214 -2 20Changing a wheel .................................203-207Changing a wiper blade ........................120, 226Changing the date .....................................67, 69Changing the remote control battery ..............94Changing the time .....................................67, 69Checking levels ......................................192-19 4Checking the engine oil level ..................63, 132Checking tyre pressures (using the kit) ........202Checks ..................................................18 9 -19 6Child lock .......................................................150Children ..................................137-150, 159, 161
Date (setting) .............................................67, 69Deactivating the passenger airbag ...............161Deadlocking ....................................................91Defrosting ..................................................79, 88Dials and gauges ............................................48Diesel ....................................................10 6, 107Diesel additive level ......................................19 4Dimensions ...................................................238Dipped beam .................................108, 209, 210Dipstick ....................................................63, 192Direction indicators ...............151, 209, 210, 212Doors .............................................................10 0Doors emergency control .............................102Door pockets .................................................124Driving economically ......................................40Dynamic emergency braking ........................167Dynamic stability control (DSC) ..............57, 155
C
D

Alphabetical index
364
Filling with fuel .......................................105 -107Fitting a wheel ...............................................206Fitting roof bars .............................................231Fittings, boot .................................................132Flashing indicators ........................................151Flat bed lorry or trailer ............................Flat bed lorry or trailer ............................Flat bed lorry or trailer47, 228Foglamps, front .............................110, 209, 211Foglamps, rear ..............................Foglamps, rear ..............................Foglamps, rear110, 212, 213Folding the rear seats .....................................85Folding/unfolding the door mirrors .................88Front seats ..........................................80, 81, 84
Gearbox, electronic ......................................179Gear lever, electronic ....................................179Glove box ......................................................125G . P. S . ...................................................256, 295Grab handle on console ..................................................124Grab handles ................................................124Guidance ..............................................256, 295Guide-me-home ....................................113 , 114
Halogen headlamps ..............................209, 210Hands-free kit ...............................273, 312, 353Hazard warning lamps ..................................151Headlamp adjustment ...................................115Headlamp wash ............................................118Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir19 4Head restraints, front ......................................82
Identification plates .......................................239Indicator lamps, status ..............................50-59Indicators, direction ......................................151Inflating accessories (using the kit) ..............202Inflating tyres ..........................................40, 239Inputs for audio system ................125, 126, 272, 329, 350, 352Instrument panel lighting ................................64Instrument panels .....................................48, 49Instrument panel screen .................................49Interior fittings ...............................................124Interior mood lighting ....................................12 2ISOFIX ...................................................146 -148ISOFIX child seats ........................................147ISOFIX mountings.........................................146
Fuel........................................................105, 10 6Fuel consumption ......................................40, 42Fuel filler cap .................................................107Fuel filler flap .................................................107Fuel gauge ..............................................48, 105Fuel tank................................................105, 107Fusebox, dashboard .....................................215Fuses .............................................................214
F
E
G
H
I
Eco-driving .....................................................40Economy mode .............................................225Eco off .............................................................Eco off .............................................................Eco off36Electric window controls .................................98Electronic engine immobiliser.........................93Electronic gearbox ................................179, 196Electronic stability control (ESC) ..................15 4Emergency call ......................................241-243Emergency starting .......................................222Emergency warning lamps ...........................151Energy economy mode .................................225Engine compartment ..............................45, 191Engine compartment fusebox .......................218Engine, Diesel ...............106, 190, 191, 236, 237Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator63, 192Engines ................................................235, 236Environment .....................40, 95, 152, 194, 223Equipment settings .............................49, 65, 68ESC/ASR .......................................................15 4
Head restraints, rear ................................................................rear ................................................................rear85Head-up display ............................171, 173, 176Heated seats ...................................................83Heating ............................................................74Height and reach adjustment, steering wheel ..............................................87High voltage .....................43, 44, 159, 189, 223High voltage cables ........................................44Hill start assist ...............................................168History .......................................................42, 72Hooks ............................................................13 5Horn...............................................................151Hybrid flow ............................................4, 24, 33Hybrid selector ................................................Hybrid selector ................................................Hybrid selector29Hybrid system ............................4- 6, 24- 47, 221

.
Alphabetical index365
Jack ...............................................................203JACK socket .........125, 126, 272, 329, 350, 352Jukebox (c opy) ..............................................270Jukebox (playing) ..........................................271
Labels, identification .....................................239Lamps, warning and indicator ..................Lamps, warning and indicator ..................Lamps, warning and indicator50-59LED daytime running lamps .........112, 209, 210LEDs - light-emitting diodes ......................................209, 210, 212, 213Level, brake fluid ...........................................193Level, headlamp wash ..........................118, 194Level, power steering fluid ............................193Levels and checks .................................191-19 4Light-emitting diodes - LEDs ....209, 210, 212, 213Lighting ..........................................................123Lighting bulbs (replacement) ................20 9 -213Lighting control stalk .....................................108Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer64Lighting, guide-me home .......................112 -114Lighting, interior ....................................Lighting, interior ....................................Lighting, interior121, 12 2Loading ...................................................40, 231Load reduction mode ....................................224
Load space cover ..........................................Load space cover ..........................................Load space cover13 4Locating your vehicle ......................................92Locking from the inside .................................101Long objects, transporting ......................84, 130Low fuel level ..........................................57, 105
Keeping children safe ......................................137-150, 159, 161Key with remote control ............................90-95
Main beam ....................................108, 209, 210Maintenance ...................................................40Map reading lamps .......................................121Markings, identification .................................239Mat ................................................................127Menu, main ...................................................346Mirror, rear view ..............................................89Mirrors, door....................................................88Misfuel prevention .........................................107Mountings for ISOFIX seats .........................146MP3 CD ........................................268, 325, 349Multimedia, rear ............................................Multimedia, rear ............................................Multimedia, rear128Music media players ....................268, 324, 349
K
J
L
M
Navigation ............................................256, 295Number plate lamps ......................................213
N
Oil filter ..........................................................Oil filter ..........................................................Oil filter195Oil level....................................................63, 192Opening the bonnet ......................................189Opening the boot ....................................90, 103Opening the doors ..................................90, 100Opening the panoramic sunroof blind ..........131Opening the retractable screen ......................70Opening the tailgate ..............................103, 104Operation indicator lamps ........................50-59
O
Paint colour code ..........................................239Panoramic glass sunroof ..............................Panoramic glass sunroof ..............................Panoramic glass sunroof131Parking brake, electric ..........................164, 196Parking sensors, audible and visual ....................................................183Parking sensors, front ...................................183Parking sensors, rear....................................183Parking space sensor ..................................18 6Particle emission filter ..........................Particle emission filter ..........................Particle emission filter19 4, 195Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter195PEUGEOT call button ...................................243PEUGEOT Connect Assistance ...........242, 243PEUGEOT Connect Media Navigation (NG 4 3D) ...............................................68, 245PEUGEOT Connect Navigation (RT6) .....................................................68, 289PEUGEOT Connect SOS .....................242, 243PEUGEOT Connect Sound (RD5) ...........65, 343PEUGEOT services ......................................243PIN code .......................................................276Player, CD MP3 ............................268, 325, 349
P

Alphabetical index
366
Safety for children ..................137-150, 159, 161Screen, colour 16/9 .........................................68Screen, colour and mapping .......................................293, 332Screen menu map ........................278, 332, 356Screen, monochrome C .................65, 342, 356Screen, multifunction (with audio equipment) .....................65, 68, 70Screenwash fluid level ..........................118, 194Screenwash, front .........................................118Screen-wash reservoir .................................Screen-wash reservoir .................................Screen-wash reservoir19 4Seat adjustment ........................................80, 81Seat belts ...............................................157-159Seats, electric .................................................81Seats, rear .......................................................Seats, rear .......................................................Seats, rear85Serial number, vehicle ..................................239Service indicator .............................................Service indicator .............................................Service indicator61Service warning lamp .....................................55Servicing .........................................................40
S
T
POIs (updating) ....................................263, 300Port, USB .............125, 126, 272, 329, 350, 352Power ..............................................................Power ..............................................................Power32Priming the fuel system ................................19 0Protecting children .................137-150, 159, 161Puncture ........................................................197
Table of weights ............................................237Tables of engines .................................235, 236Tables of fuses ..............................................214
Radio .............................................267, 321, 347RCA sockets ........125, 126, 272, 329, 350, 352Reading lamps, rear ......................................Reading lamps, rear ......................................Reading lamps, rear121Ready ..............................................................28Ready lamp .....................................................28Rear foglamp.........................................212, 213Rear screen (demisting) ............................79, 88Recharging the battery .................................223Reduction of electrical load ..........................224Regeneration of the particle emissions filter .............................................................filter .............................................................filter195Reinitialising the electric windows ..................99Reinitialising the remote control .....................94Remote control ....................................90, 91, 95Removable screen (snow shield)..................232Removing a wheel ........................................205Removing the mat .........................................127Repair kit, puncture .......................................197Replacing bulbs ....................................20 9 -213Replacing fuses ....................................214 -2 20Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter195Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter195Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter195
R
Replacing wiper blades.........................120, 226Reset history .............................................42, 72Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator62Resetting the trip recorder ..............................Resetting the trip recorder ..............................Resetting the trip recorder64Rev counter .....................................................Rev counter .....................................................Rev counter48Reversing camera .........................................185Reversing lamp .............................................212Risk areas (update) ..............................263, 300Roof bars .......................................................231Routine checks .....................................195, 19 6Running out of fuel (Diesel) ..........................19 0
Setting the clock .......................................67, 69Short-cut menus ...................................252, 294Sidelamps .............................108, 209, 210, 212Side repeater ................................................Side repeater ................................................Side repeater2 11SIM card ................................................125, 276Ski flap ..........................................................13 0Snow chains ..................................................208Spare wheel ..................................................203Speed limiter .................................................Speed limiter .................................................Speed limiter173Speedometer ............................................Speedometer ............................................Speedometer32, 48Spotlamps, side ............................................12 2Starting the engine .............................27, 28, 35Starting the vehicle .................................27, 292Steering mounted controls, audio ..................................................250, 345Stopping the vehicle ...............................28, 182Stop & Start .....................77, 189, 190, 192, 195Storage ..................................124, 126, 130, 132Storage box ...................................................125Storage wells ................................................132Sun visor ...............................................Sun visor ...............................................Sun visor125, 136Switching off the engine ...........................27, 28Synchronising the remote control ...........................................................94Synthesiser, voice .........................................306System, ASR .................................................15 6System, navigation...............................256, 295
