2014 Peugeot 3008 Hybrid 4 Owner's Manual

11
Practical information231

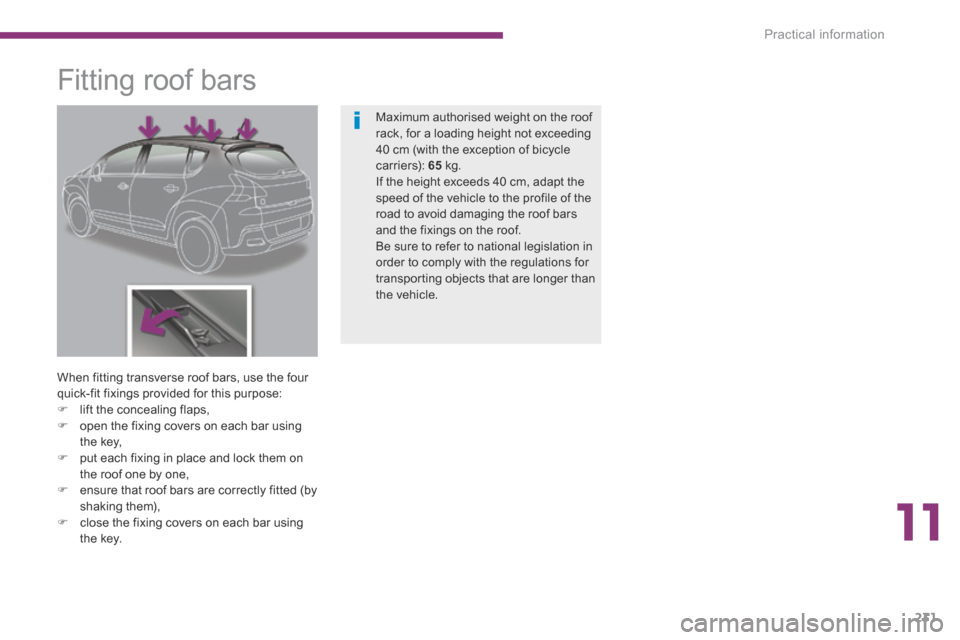

Fitting roof bars
When fitting transverse roof bars, use the four quick-fit fixings provided for this purpose:  lift the concealing flaps,  open the fixing covers on each bar using the key,  put each fixing in place and lock them on the roof one by one,  ensure that roof bars are correctly fitted (by shaking them),  close the fixing covers on each bar using
the key.
Maximum authorised weight on the roof rack, for a loading height not exceeding 40 cm (with the exception of bicycle c a r r i e r s): 65 kg. If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid damaging the roof bars and the fixings on the roof. Be sure to refer to national legislation in order to comply with the regulations for transporting objects that are longer than the vehicle.

Practical information
232

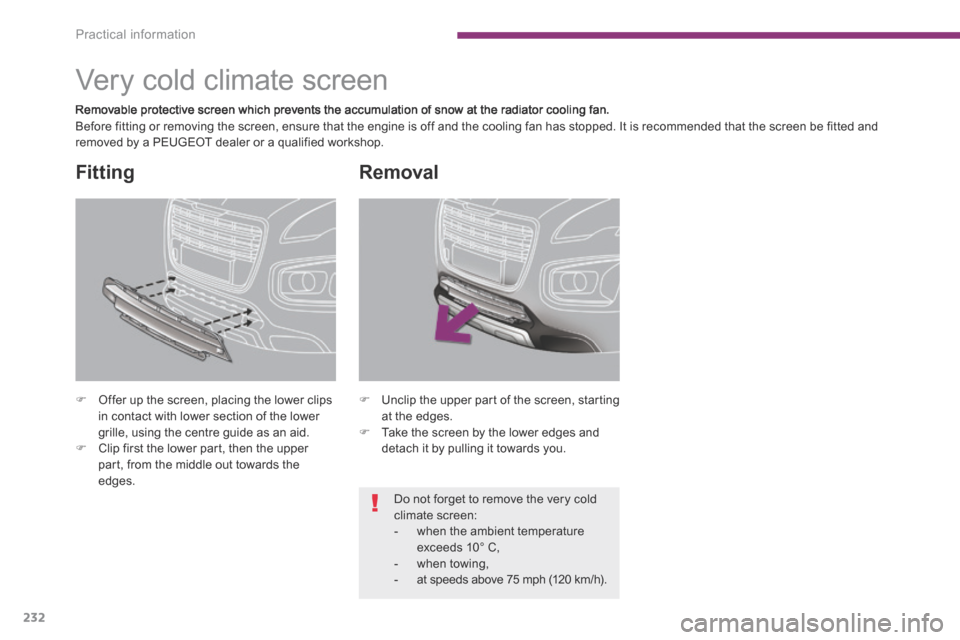

Very cold climate screen
Removable protective screen which prevents the accumulation of snow at the radiator cooling fan. Before fitting or removing the screen, ensure that the engine is off and the cooling fan has stopped. It is recommended that the screen be fitted and removed by a PEUGEOT dealer or a qualified workshop.
Fitting
 Offer up the screen, placing the lower clips in contact with lower section of the lower
grille, using the centre guide as an aid.  Clip first the lower part, then the upper part, from the middle out towards the edges.
Removal
 Unclip the upper part of the screen, starting at the edges.
 Take the screen by the lower edges and detach it by pulling it towards you.
Do not forget to remove the very cold climate screen: - when the ambient temperature exceeds 10° C, - when towing, - at speeds above 75 mph (120 km/h).

11
Practical information233

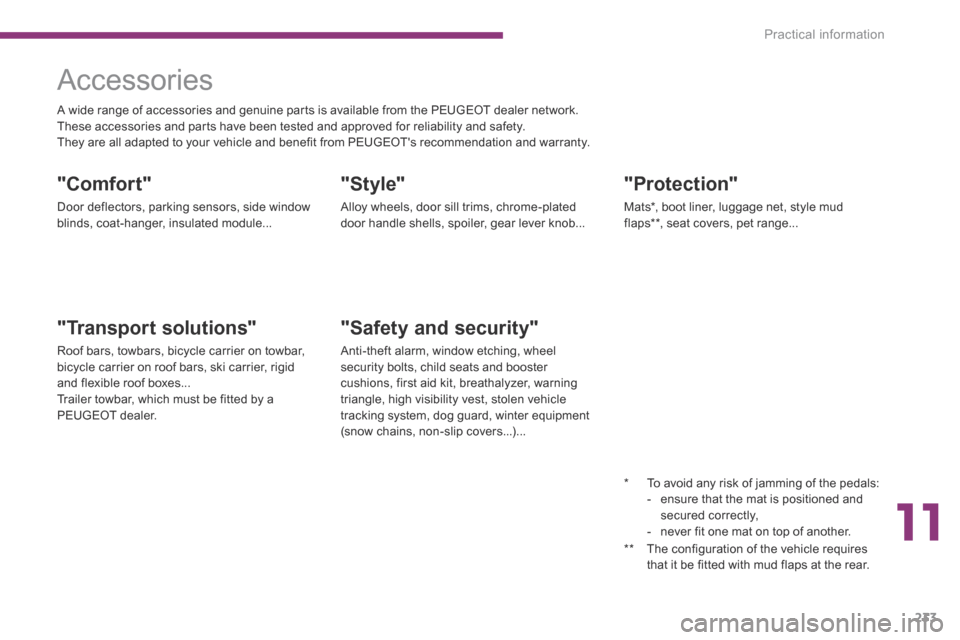

Accessories
"Comfort"
Door deflectors, parking sensors, side window blinds, coat-hanger, insulated module...
"Style"
Alloy wheels, door sill trims, chrome-plated door handle shells, spoiler, gear lever knob...
"Transport solutions"
Roof bars, towbars, bicycle carrier on towbar, bicycle carrier on roof bars, ski carrier, rigid and flexible roof boxes... Trailer towbar, which must be fitted by a PEUGEOT dealer.
"Safety and security"
Anti-theft alarm, window etching, wheel security bolts, child seats and booster cushions, first aid kit, breathalyzer, warning triangle, high visibility vest, stolen vehicle tracking system, dog guard, winter equipment
(snow chains, non-slip covers...)...
"Protection"
Mats * , boot liner, luggage net, style mud flaps ** , seat covers, pet range...
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
** The configuration of the vehicle requires that it be fitted with mud flaps at the rear.

Practical information
234
"Multimedia"
Portable satellite navigation systems, mapping updates, Bluetooth hands-free system, DVD player, USB Box, additional Bluetooth wireless headphones, Bluetooth audio headphones mains charger, multimedia support...
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the range of recommended equipment and accessories.
You can also obtain cleaning and maintenance products (exterior and interior), products for topping up (screenwash fluid...) and refills (sealant cartridge for the temporary puncture repair kit...) from PEUGEOT dealers.
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle
Electromagnetic Compatibility Directive ( 2 0 0 4 / 1 0 4 / E C ) .
Depending on the legislation in force in the country, certain safety equipment may be compulsory: high visibility safety vests, warning triangles, breathalyzers, spare bulbs, spare fuses, a fire extinguisher, a first aid kit, mud flaps at the rear of the vehicle.

12
Technical data235
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and ageing of the battery.
Electric motor and battery
Electric motor-
Technology Synchronous with permanent magnets.
Max. power: EU standard (kW) * 2 7
Max. power speed (rpm) 2 5 0 0
Max. torque: EU standard (Nm) 2 0 0
Max. torque speed (rpm) 1 2 5 0
Efficiency (%) 80 to 90
High voltage batteryNi-MH (Nickel Metal Hydride)
Voltage (V~) 2 0 0
Energy capacity (kWh / Ah) 1.1 / 5.5
Range (miles (km)) 1.2 (2) (approximately)
* The maximum power corresponds to the value type approved on an engine test bed, under conditions defined by European legislation (directive 1999/99/EC).

Technical data
236
Engine2 litre Turbo HDi 163 hp
Gearbox Electronic (6-speed)
Cubic capacity (cc) 1 9 9 7
Bore x stroke (mm) 85 x 88
Max power: EU standard (kW) * 1 2 0
Max power engine speed (rpm) 3 8 5 0
Max torque: EU standard (Nm) 300
Max torque engine speed (rpm) 1 7 5 0
Fuel Diesel
Catalytic converter yes
Particle emission filter yes
Oil capacities (in litres)
Engine (with filter replacement) -
Gearbox - Final drive -
Diesel engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined by European legislation (directive 1999/99/CE).

12
Technical data237
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

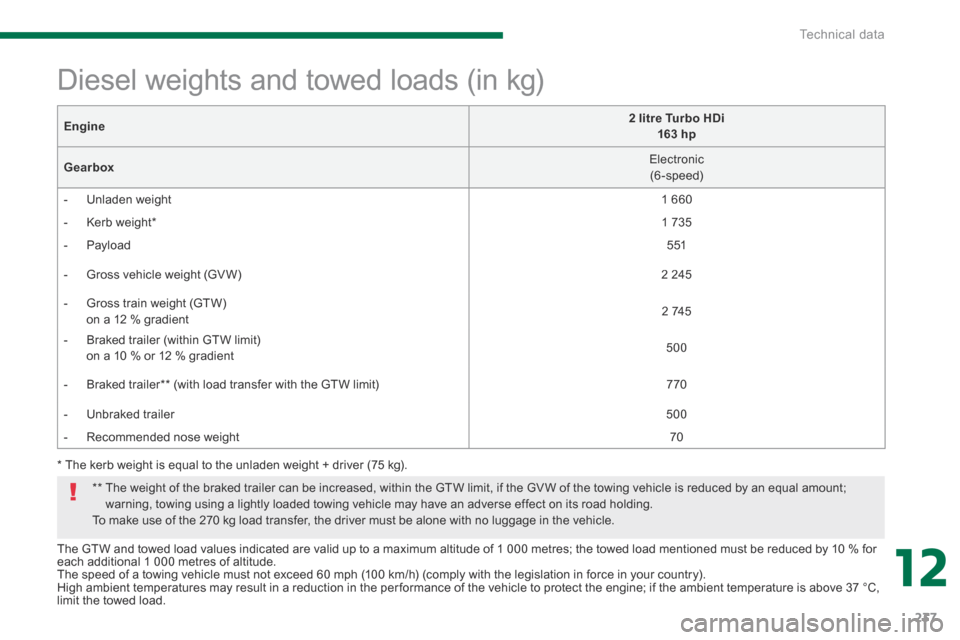

Diesel weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg).
Engine2 litre Turbo HDi 163 hp
Gearbox Electronic (6-speed)
- Unladen weight 1 6 6 0
- Kerb weight * 1 7 3 5
- Payload 5 5 1
- Gross vehicle weight (GV W) 2 2 4 5
- Gross train weight (GTW) on a 12 % gradient 2 7 4 5
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 5 0 0
- Braked trailer ** (with load transfer with the GTW limit) 7 7 0
- Unbraked trailer 5 0 0
- Recommended nose weight 7 0
** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding. To make use of the 270 kg load transfer, the driver must be alone with no luggage in the vehicle.

Technical data
238

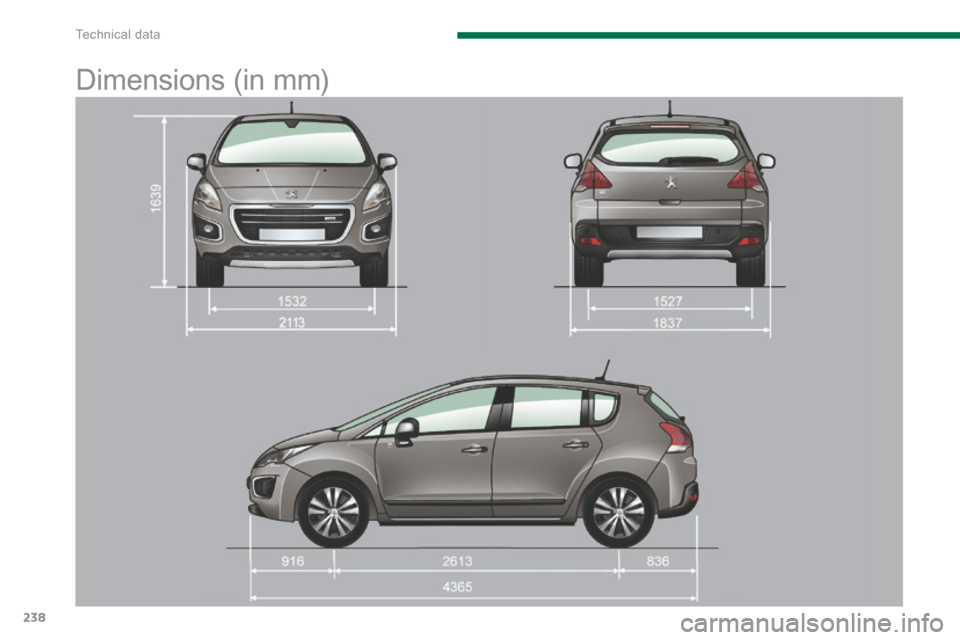

Dimensions (in mm)
