2014 Peugeot 3008 Hybrid 4 Owner's Manual

5
Visibility119
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically, without any action on the part of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing the stalk downwards to the "AUTO"position. It is accompanied by a message in the screen.
Switching off
This is controlled manually by the driver by moving the stalk upwards then returning it to position "0" . It is accompanied by a message in the screen.
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a PEUGEOT dealer or a qualified workshop.
Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic rain sensitive wipers when using an automatic car wash. In winter, to avoid damaging the wiper blades, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic rain sensitive wipers.
The automatic rain sensitive wipers must be reactivated if the ignition has been off for more than one minute, by pushing the stalk downwards.

Visibility
120

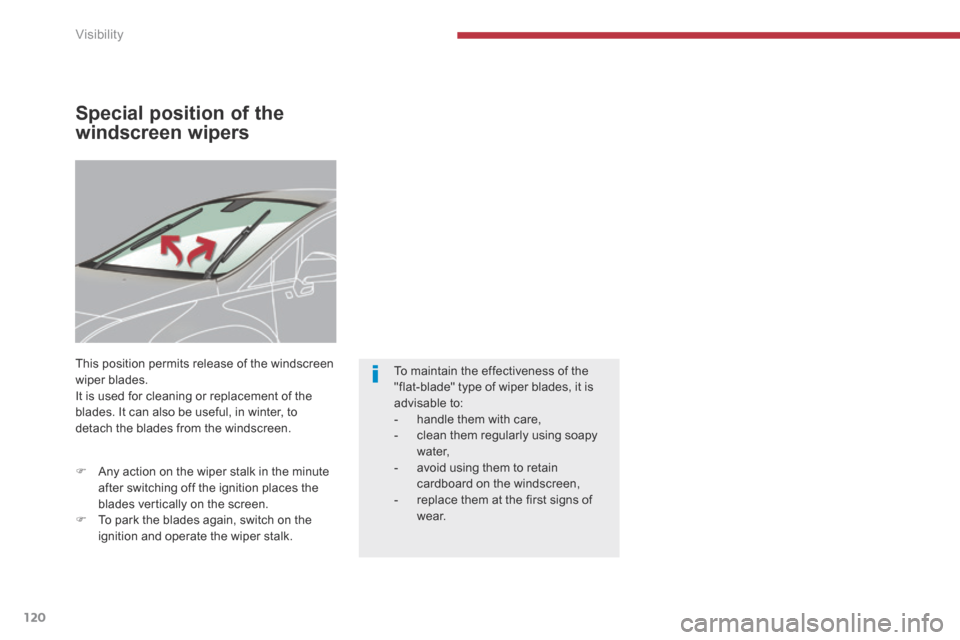

Special position of the
windscreen wipers
This position permits release of the windscreen wiper blades. It is used for cleaning or replacement of the blades. It can also be useful, in winter, to detach the blades from the windscreen.
 Any action on the wiper stalk in the minute after switching off the ignition places the blades vertically on the screen.  To park the blades again, switch on the ignition and operate the wiper stalk.
To maintain the effectiveness of the "flat-blade" type of wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - avoid using them to retain cardboard on the windscreen, - replace them at the first signs of w e a r.

5
Visibility121

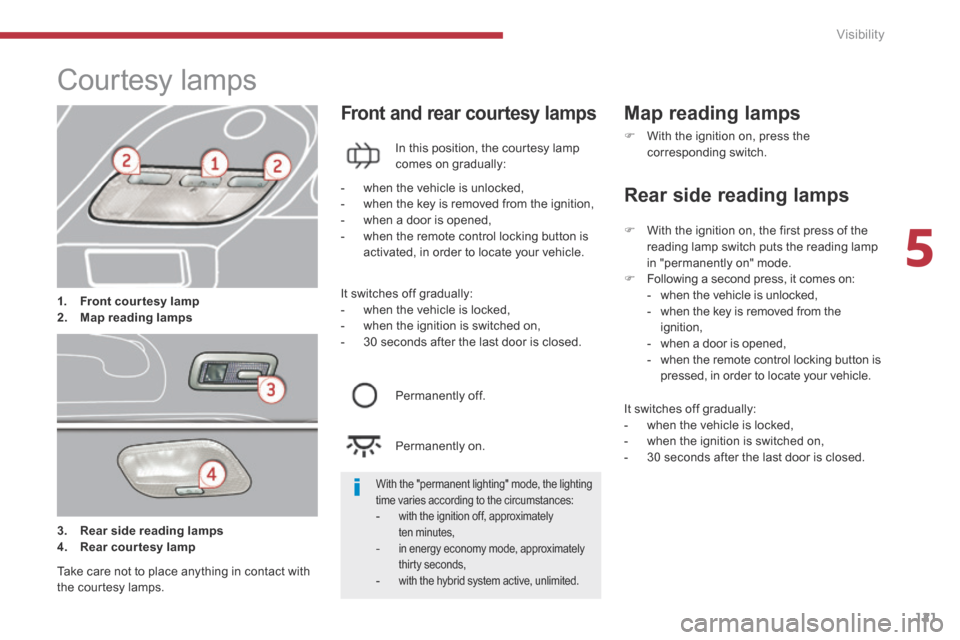

Courtesy lamps
1. Front courtesy lamp2. Map reading lamps
Front and rear courtesy lamps
In this position, the courtesy lamp comes on gradually:
Rear side reading lamps - when the vehicle is unlocked, - when the key is removed from the ignition, - when a door is opened, - when the remote control locking button is activated, in order to locate your vehicle.
Permanently off.
Permanently on.
 With the ignition on, the first press of the reading lamp switch puts the reading lamp in "permanently on" mode.  Following a second press, it comes on: - when the vehicle is unlocked, - when the key is removed from the ignition, - when a door is opened, - when the remote control locking button is pressed, in order to locate your vehicle.
It switches off gradually: - when the vehicle is locked, - when the ignition is switched on, - 30 seconds after the last door is closed.
3. Rear side reading lamps4. Rear courtesy lamp
Take care not to place anything in contact with the courtesy lamps.
With the "permanent lighting" mode, the lighting time varies according to the circumstances: - with the ignition off, approximately ten minutes, - in energy economy mode, approximately thirty seconds, - with the hybrid system active, unlimited.
Map reading lamps
 With the ignition on, press the corresponding switch.
It switches off gradually: - when the vehicle is locked, - when the ignition is switched on, - 30 seconds after the last door is closed.

Visibility
122

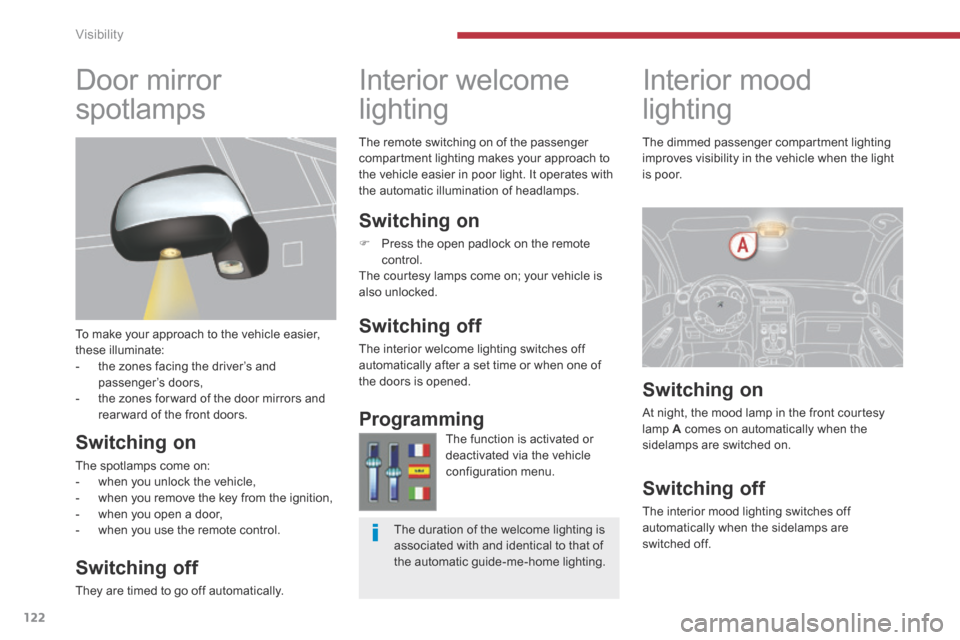

Interior mood
lighting
Interior welcome
lighting
The remote switching on of the passenger compartment lighting makes your approach to the vehicle easier in poor light. It operates with the automatic illumination of headlamps.
Switching on
 Press the open padlock on the remote control. The courtesy lamps come on; your vehicle is also unlocked.
Programming
Switching on
At night, the mood lamp in the front courtesy lamp A comes on automatically when the sidelamps are switched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps are switched off.
The function is activated or deactivated via the vehicle configuration menu.
Door mirror
spotlamps
To make your approach to the vehicle easier, these illuminate: - the zones facing the driver’s and passenger’s doors, - the zones for ward of the door mirrors and rear ward of the front doors.
Switching on
The spotlamps come on: - when you unlock the vehicle, - when you remove the key from the ignition, - when you open a door, - when you use the remote control.
Switching off
They are timed to go off automatically.
The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.
The duration of the welcome lighting is associated with and identical to that of the automatic guide-me-home lighting.
Switching off
The interior welcome lighting switches off automatically after a set time or when one of the doors is opened.

5
Visibility123
This comes on automatically when the boot is opened and goes off automatically when the boot is closed.

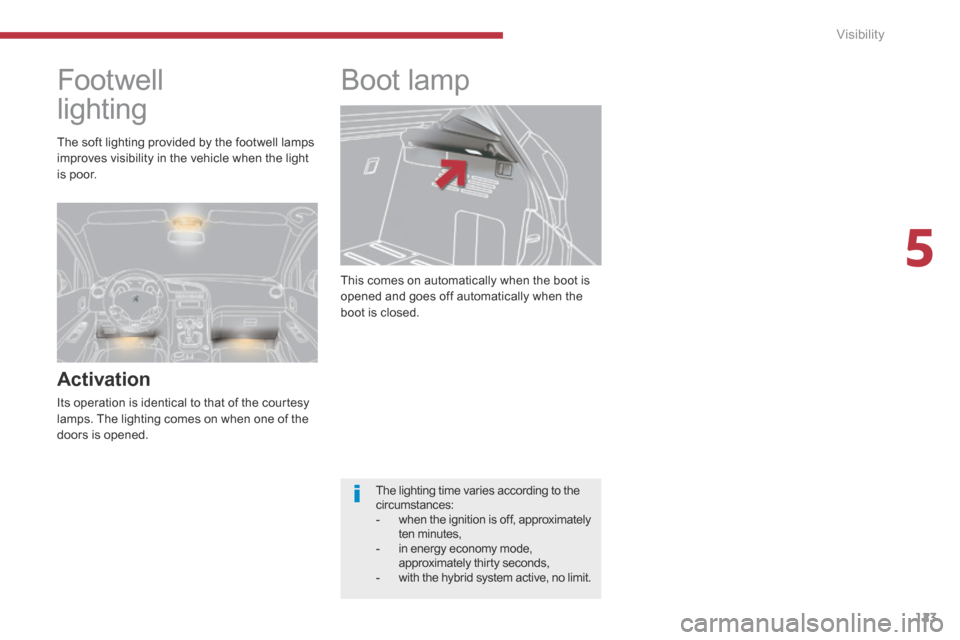

Boot lamp

Footwell
lighting
Activation
Its operation is identical to that of the courtesy lamps. The lighting comes on when one of the doors is opened.
The lighting time varies according to the circumstances: - when the ignition is off, approximately ten minutes, - in energy economy mode, approximately thirty seconds, - with the hybrid system active, no limit.
The soft lighting provided by the footwell lamps improves visibility in the vehicle when the light is poor.

Fittings
124
Interior fi ttings
1. Sun visor
2. Grab handle with coat hook
3. Storage compartment
4. Storage compar tment under the steering wheel
5. Storage compartment
6. Console handle
7. Storage compartment with net
8. Illuminated glove box
9. Door pockets
10. Front 12 V accessor y socket (120 W)
11. Cup holder
12 . Front armrest with storage compartment
13. Storage compartment
14 . Rear 12 V accessor y socket (120 W)

6
Fittings125

Driver's storage
compartments
Storage box
This has storage areas for the handbook pack, ...  To open, pull the handle then tilt the box.
Illuminated glove
box
This has storage areas, audio sockets for a portable player and a location for the SIM card (only with PEUGEOT Connect Media Navigation (NG4 3D)), ...  To open the glove box, raise the handle. The lamp comes on when the lid is opened.
Sun visor
Component which protects against sunlight from the front or the side, also equipped with an illuminated courtesy mirror.  With the ignition on, raise the concealing flap; the mirror is lit automatically. This sun visor is also equipped with a ticket h o l d e r. Card holder
This can be used for a toll payment ticket or parking card, for example.
Coin storage
Storage
To connect a portable player or a SIM card, refer to the "Audio equipment and telematics" section.

Fittings
126
Front armrest
Storage
A ventilation outlet distributes cooled air.
PEUGEOT Connect USB
This connection box consists of a JACK auxiliary socket and/or a USB port. It permits the connection of a portable device, such as a digital audio player of the iPod ® type ® type ®
or a USB memory stick. It reads the audio file formats (mp3, ogg, wma, wav...) which are transmitted to your audio system and played via the vehicle's speakers.
You can manage these files using the steering mounted controls or the audio system control panel and display them in the multifunction screen.
Connected to the USB port, the portable device charges automatically.
Comfort and storage device for the driver and front passenger.  Raise the cover on the left.
For more information on the use of this equipment, refer to the "Audio equipment and telematics" section.
