2014 Peugeot 3008 Hybrid 4 Owner's Manual

.
88
89
15789
Familiarisation15
Sitting comfortably
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted. B. Adjustment of the position of the mirror in the four directions.
Rear view mirror
Manual model
1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror.
Automatic day/night model
1. Adjustment of the mirror.
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
Also...C. Folding / Unfolding.

108151
11 6
Familiarisation
16
Seeing clearly
Lighting
Ring A
Lighting off.
Ring B
Sidelamps.
Dipped / main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Automatic illumination of headlamps.
Direction indicators
Raise or lower the lighting stalk passing the point of resistance; the corresponding direction indicators will flash for as long as the stalk remains in this position.
"Three fl ashes" function
Press the lighting stalk up or down once, without passing the point of resistance; the corresponding direction indicators will flash three times. This function can be used at any speed, but it is particularly useful when changing lane on high-speed roads.
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
 Press the stalk down and release it.
Switching off "AUTO"
 Push the stalk up and return it to position "0" . "0" . "0"
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.

.
48
183
155
96
186
36
171
151
36
183
50
101
Familiarisation17
Monitoring
Instrument panel
A. With the ignition on, the needle should
indicate the level of fuel remaining. B. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds. If the levels are not correct, top up the levels which are low.
Warning lamps
1. With the ignition on, the orange and red warning lamps come on. 2. With the hybrid system active, these warning lamps should go off. If warning lamps remain on, refer to the section concerned.
Switch panels
Lighting of the indicator lamp indicates the status of the corresponding function.
Lower
Central
A. Visual and audible parking sensors * .
B. ASR /DSC OFF.
C.Interior volumetric protection alarm.
D. Parking space sensors.
E. ECO OFF * .
F. Head-up display.
G. Hazard warning lamps.
H. ECO OFF * .
I. Visual and audible parking assistance * .
J. Central locking. * depending on version.

139, 161
157, 161
150
Familiarisation
18

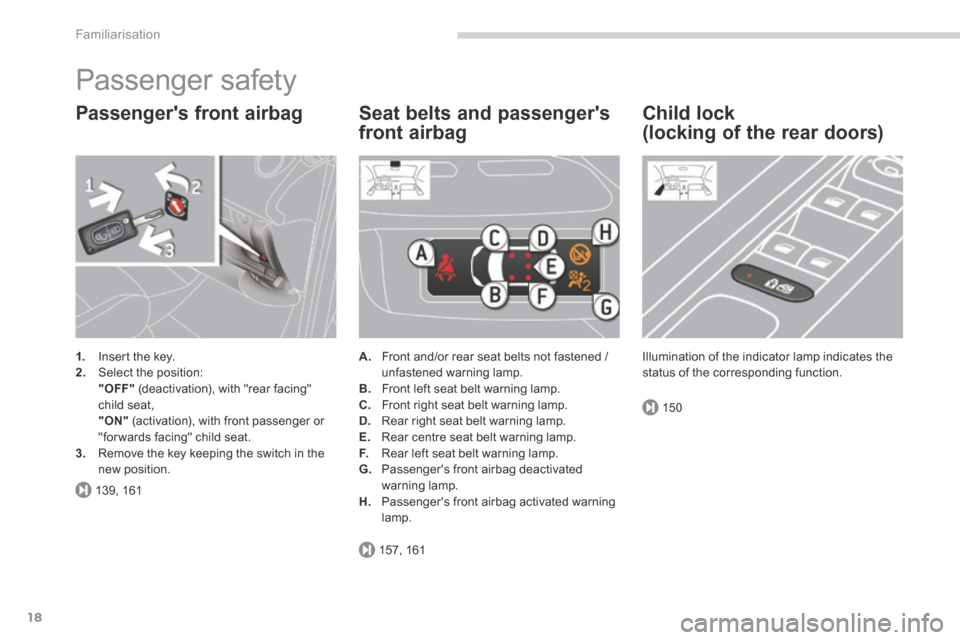

Passenger safety
Passenger's front airbag
1. Insert the key. 2. Select the position: "OFF" (deactivation), with "rear facing" child seat, "ON" (activation), with front passenger or "for wards facing" child seat. 3. Remove the key keeping the switch in the new position.
Seat belts and passenger's
front airbag
A. Front and/or rear seat belts not fastened / unfastened warning lamp. B. Front left seat belt warning lamp. C. Front right seat belt warning lamp. D. Rear right seat belt warning lamp. E. Rear centre seat belt warning lamp. F. Rear left seat belt warning lamp. G. Passenger's front airbag deactivated warning lamp. H. Passenger's front airbag activated warning lamp.
Child lock
(locking of the rear doors)
Illumination of the indicator lamp indicates the status of the corresponding function.

.
13385
Familiarisation19
Arrange your boot
Rear seats
 Check that nothing is preventing the seat backs from folding (front seats moved for wards, head restraints, seat belts, ...).  Check also that no object on or under the seat could hinder its movement.
 Pull the control of the 1/3 section, from the boot.
 Pull the control of the 2/3 section, from the boot.
Adjustable boot floor
100 kg max.
Place the floor in this position (at an angle), two stops support it to allow access underneath it. The seats are aligned with the floor and the lower tailgate.

164
Familiarisation
20

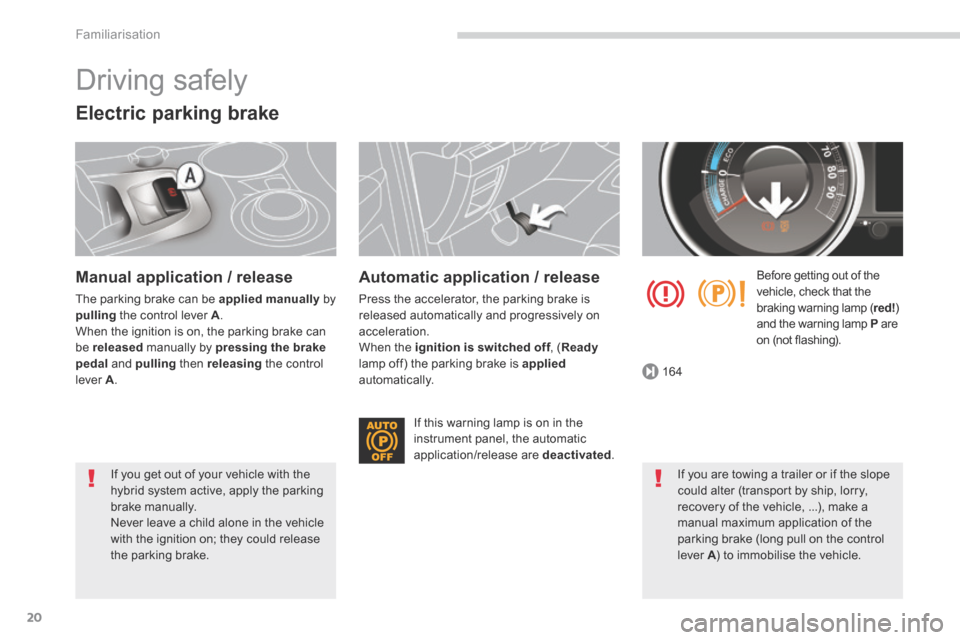

Driving safely
Electric parking brake
Manual application / release
The parking brake can be applied manually by pulling the control lever A . When the ignition is on, the parking brake can be released manually by pressing the brake pedal and pulling then releasing the control lever A .
Automatic application / release
Press the accelerator, the parking brake is released automatically and progressively on acceleration. When the ignition is switched off , ( ignition is switched off , ( ignition is switched offReadylamp off) the parking brake is appliedautomatically.
Before getting out of the vehicle, check that the braking warning lamp ( red! ) and the warning lamp P are on (not flashing).
If this warning lamp is on in the instrument panel, the automatic application/release are deactivated .
If you get out of your vehicle with the hybrid system active, apply the parking brake manually. Never leave a child alone in the vehicle with the ignition on; they could release the parking brake.
If you are towing a trailer or if the slope could alter (transport by ship, lorry, recovery of the vehicle, ...), make a manual maximum application of the parking brake (long pull on the control lever A ) to immobilise the vehicle. A ) to immobilise the vehicle. A

.
171
168
Familiarisation21
Head-up display
1. Head-up display on / off. 2. Brightness adjustment.
3. Display height adjustment.
Your vehicle is equipped with a system which keeps it immobile for a short time (approximately 2 seconds) to assist you when starting on a hill, the time required for you to move your foot from the brake pedal to the accelerator pedal. This function is only active:
- when the vehicle has been immobilised completely with your foot on the brake pedal, - on certain gradients, - when the driver's door is closed.
Hill start assist
Driving safely
The adjustments must be made with the ignition on and the Ready lamp on, with the vehicle stationary.
Do not get out of the vehicle during the hill start assist temporary hold phase.

173
176
Familiarisation
22
Driving safely
Speed limiter "LIMIT"
1. Limiter mode Selection / Off. 2. Decreasing the programmed value. 3. Increasing the programmed value. 4. Speed limiter On / Off.
Cruise control "CRUISE"
1. Cruise control mode Selection / Off. 2. Programming a speed / Decreasing the programmed value. 3. Programming a speed / Increasing the programmed value. 4. Cruise control Off / Resume.
Display in the instrument panel
The cruise control or speed limiter mode appears in the instrument panel when it is selected.
Cruise control
Speed limiter In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h) and at least second gear engaged.
