2014 Peugeot 3008 Hybrid 4 Owner's Manual

1
Monitoring63
Engine oil level indicator
This information is displayed for a few seconds when the ignition is switched on, after the service information.
Oil level correct
Oil level low
Oil level indicator fault
Dipstick
This is indicated by the flashing of " O I L" , linked with the service warning lamp, accompanied by an audible signal and a message in the multifunction screen. If the low oil level is confirmed by a check using the dipstick, the level must be topped up to prevent damage to the engine.
This is indicated by the flashing of "OIL- -" .
Contact a PEUGEOT dealer or a qualified workshop.
Refer to the "Checks" section to locate the dipstick and the oil filler cap on your engine.
There are 2 marks on the dipstick:
- A = max; never exceed this level (risk of damage to the engine),
- B = min; top up the level via the oil filler cap, using the grade of oil suited to your
engine.
The level shown will only be correct if the vehicle is on level ground and the engine has been off for more than 30 minutes.

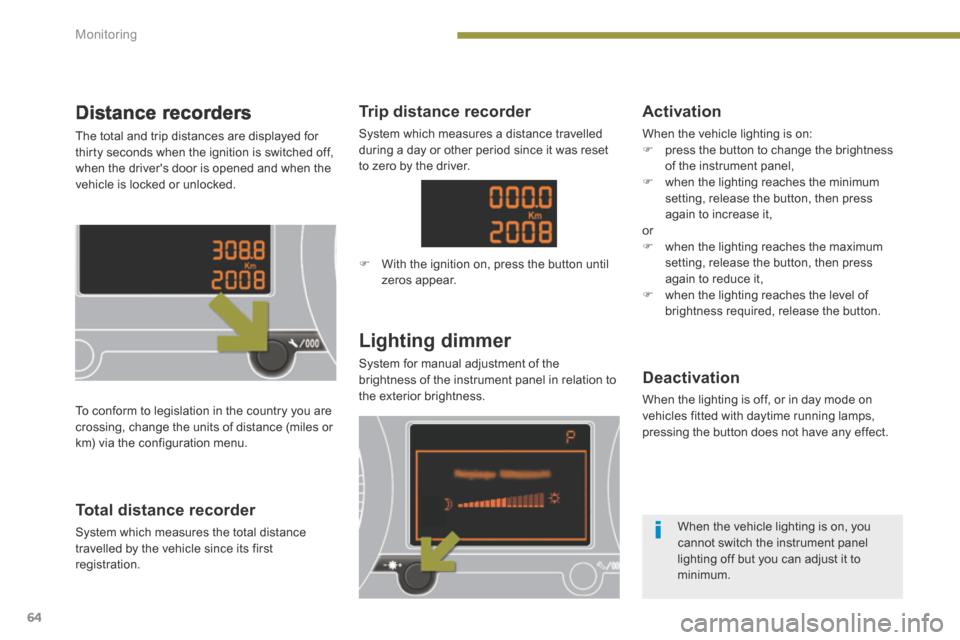

Monitoring
64
Distance recorders
The total and trip distances are displayed for thirty seconds when the ignition is switched off, when the driver's door is opened and when the vehicle is locked or unlocked.
Lighting dimmer
System for manual adjustment of the brightness of the instrument panel in relation to the exterior brightness.
Total distance recorder
System which measures the total distance travelled by the vehicle since its first registration.
Deactivation
When the lighting is off, or in day mode on vehicles fitted with daytime running lamps,
pressing the button does not have any effect.
To conform to legislation in the country you are crossing, change the units of distance (miles or
km) via the configuration menu.
When the vehicle lighting is on, you cannot switch the instrument panel lighting off but you can adjust it to minimum.
Trip distance recorder
System which measures a distance travelled during a day or other period since it was reset to zero by the driver.
 With the ignition on, press the button until zeros appear.
Activation
When the vehicle lighting is on:  press the button to change the brightness of the instrument panel,  when the lighting reaches the minimum setting, release the button, then press again to increase it, or  when the lighting reaches the maximum setting, release the button, then press again to reduce it,  when the lighting reaches the level of brightness required, release the button.

2
Multifunction screens65
Monochrome screen C (with PEUGEOT Connect Sound (RD5))
Main menu
Displays in the screen
Displays according to context: - time, - date, - ambient temperature with air conditioning (the value displayed flashes if there is a risk of ice), - audio functions, - trip computer (see the corresponding section), - alert messages, - screen and vehicle equipment parameter setting menus.
"Audio functions" menu
Controls
From the audio equipment control panel, you can:  press the " MENU " button for access to the main menu ,  press the "  " or "  " buttons to scroll through the items on the screen,  press the " MODE " button to change the permanent application (trip computer, audio source...),  press the "  " or "  " buttons to change a setting value,  press the " OK " button to confirm, or
 Press the "MENU" button for access to the main menu : - audio functions, - trip computer (see the corresponding section), - personalisation-configuration, - telephone (Bluetooth system).
 Press the "  " or "  " button to select the menu required, then confirm by pressing the " OK " button.
With the audio equipment switched on, once this menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG, RadioText) or CD (introscan, shuffle, CD repeat).  press this button to abandon the operation in progress. For more information on the "Audio functions" application, refer to the PEUGEOT Connect Sound (RD5) section.

Multifunction screens
66
"Trip computer" menu
 Press the "MENU" button to gain access to the general menu.  Press the arrows, then the "OK" button to select the "Trip computer" menu.
 On the "Trip computer" menu, select one of the applications:
Enter the distance to the destination
Once this menu has been selected, you can consult information concerning the status of the vehicle (alert log, status of the functions...).
Defi ne the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment (according to country): - wiper linked with reverse gear (see "Visibility" section), - selective unlocking (see the "Access" section), - guide-me-home lighting (see the " Visibility" section), - interior mood lighting (see the " Visibility" section),
- directional headlamps (see the "Visibility" section), - automatic or manual parking brake (see the "Driving" section), - ...
"Personalisation-
Configuration" menu
Once this menu has been selected, you can gain access to the following functions: - define the vehicle parameters, - display configuration, - choice of language. Alert log
This summarises the active warning messages, displaying them in succession in the multifunction screen
Status of functions
This summarises the status of the functions present on the vehicle.
This allows you to enter an approximate value for the distance to the final destination.

2
Multifunction screens67
Display confi guration
Once this menu has been selected, you have access to the following settings: - brightness-video setting, - date and time setting,
- selection of the units.
Adjusting the date and time Press the "  " or "  " button to select the "Display configuration" menu, then the "OK" button.  Press the "  " or "  " button, to select the "Adjust date and time" line, then on the "OK" button.  Press the "  " or "  " button to select the setting to modify. Confirm by pressing the "OK" button then adjust the setting and confirm again to save the modification.
Example: setting of the duration of the guide-me-home lighting
 Press the "  " or "  " buttons, then the " OK " button to select the menu required.
 Press the "  " or "  " buttons, then the " OK " button to select the "Guide-me-home headlamps" line.
 Press the "  " or "  " buttons to set the value required (15, 30 or 60 seconds), then press the " OK " button to confirm.
 Press the "  " or "  " buttons, then the " OK " button to select the " OK " box and confirm or press the " < ] arrow " button to cancel.
"Telephone" menu
With the audio equipment switched on, once this menu has been selected you can configure your Bluetooth hands-free kit (pairing), consult the various telephone directories (calls log, services...) and manage your communications (pick up, hang up, call waiting, secret mode...).
For more information on the telephone application, refer to the PEUGEOTConnect Sound (RD5) section.
For safety reasons, configuration of the multifunction screen by the driver must only be done when stationary.
Choice of language
Once this menu has been selected, you can change the screen display language.
 Adjust the settings one by one, confirming with the " OK " button.  Press the "  " or "  " button, then the "OK"button to select the "OK" box and confirm, or the "Back" button to cancel.

Multifunction screens
68
16/9 retractable colour screen (with PEUGEOT Connect Navigation (RT6) or PEUGEOT Connect Media Navigation (NG4 3D))
When the screen is unfolded, it displays the following information: - time, - date, - altitude, - ambient temperature (the value displayed flashes if there is a risk of ice), - audio functions, - satellite navigation system information. - visual parking assistance, - the result of the measurement of free space, - contacts and telephone information, - configuration menus for the screen and the navigation system,
Controls
From the navigation system control panel:
 press the dedicated "RADIO" , "MUSIC" , " N AV " , "TR AFFIC" , "SETUP" or "PHONE" button for access to the corresponding menu,
and with PEUGEOT Connect Navigation (RT6): - alert messages, - the image from the reversing camera, - trip computer information, - the configuration menu for vehicle systems.
 press the this button to abandon the current operation and return to the previous display.
For operation of the retractable screen (opening, closing, adjustment of the position, etc.), refer to the paragraph "Access to the retractable screen".
The screen also displays hybrid system information. For details of the information displayed, refer to the "Hybrid System" section.
For more information on these applications, refer to the "Audio equipment and telematics" section.
 turn the navigator to move the selection,  press the navigator to confirm the selection, or
Displays in the screen

2
Multifunction screens69
"SETUP" menu (PEUGEOT Connect Navigation (RT6)) PEUGEOT Connect Navigation (RT6)) PEUGEOT
 Press the "SETUP" button for access to the "SETUP" menu. This allows you to select from the following functions: - "Languages", - "Date and time", - "Display", - " Vehicle parameters", - "Units", - "System".
"SETUP" menu (PEUGEOT Connect PEUGEOT Connect PEUGEOT
Media Navigation (NG4 3D))
Languages (PEUGEOT Connect Navigation (RT6))
This menu allows you to select the language
used by the display.
Languages and voice functions (PEUGEOT Connect Media Navigation (NG4 3D))
This menu allows you to: - select the language used by the display, - select the settings for voice recognition (on/off, instructions on use, personal voice training...), - adjust the volume of the voice synthesiser.
Display
This menu allows you to set the brightness of the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
Vehicle parameters (PEUGEOTConnect Navigation (RT6))
This menu allows you to activate or deactivate certain driving and comfort equipment * : - wiper linked with reverse gear (refer to the "Visibility" section), - selective unlocking (refer to the "Access" section), - guide-me-home and welcome lighting
(refer to the " Visibility" section), - interior mood lighting (refer to the "Visibility" section), - directional headlamps (refer to the "Visibility" section), - automatic or manual parking brake (refer to the "Driving" section), - ...
 Press the "SETUP" button for access to the "SETUP" menu. It allows you to adjust settings for the following functions: - "Languages and voice functions" - "Date and time", - "Display screen", - "Units", - "System parameters".
For safety reasons, configuration of the multifunction screen by the driver must only be done when stationary.
Date and time
 Press "SETUP".  Select "Display configuration" and confirm.  Select "Adjust date and time" and confirm. Select "Synchronise minutes with GPS" for the adjustment of minutes to be done automatically by satellite reception.  Select the setting to modify. Confirm by pressing "OK", then adjust the setting and confirm again.  Adjust the settings one by one.
 Select "OK" in the screen then confirm to save the settings.
Units
This menu allows you to select the units: temperature (°C or °F) and fuel consumption (km/l, l/100 or mpg).
System parameters
This menu allows you to restore the factory configuration, display the software version and activate scrolling text.
* According to country.

Multifunction screens
70
Access to the retractable screen
The screen opens automatically when the ignition is switched on. It closes automatically three seconds after switching off the ignition if the audio and telematics system is switched off.
Adjusting the angle of the screen
You can adjust the angle of the screen to one of four defined positions, by repeated presses on the front or back of the control B . The position of the screen is memorised on closing.
If you have closed the screen, it will open again automatically: - on switching on the audio and navigation system (unless it had been closed manually while the
system was in operation), - when an outgoing telephone call is made, - when a voice command is given, - when a warning message linked with the STOP warning lamp is displayed (PEUGEOT Connect Navigation (RT6)).
You can open or close the screen at any time, with the ignition on, using control A . - Press button A : the screen folds. - Press button A again: the screen opens again.
