2014 Peugeot 3008 Hybrid 4 Owner's Manual

3
Comfort79
The control button is located on the air conditioning system control panel.

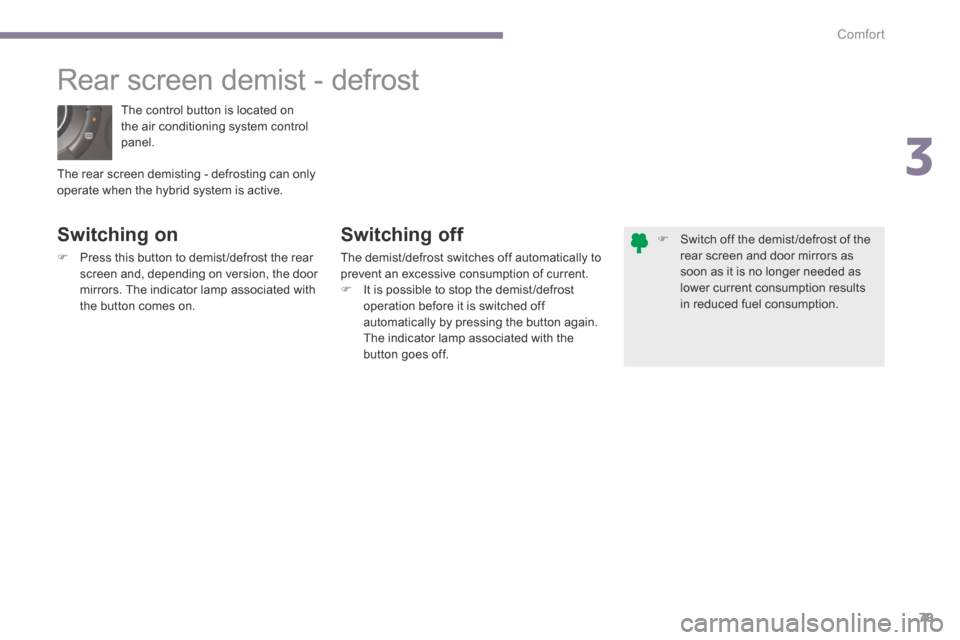

Rear screen demist - defrost
Switching on
 Press this button to demist /defrost the rear screen and, depending on version, the door mirrors. The indicator lamp associated with the button comes on.
Switching off
The demist /defrost switches off automatically to prevent an excessive consumption of current.  It is possible to stop the demist /defrost operation before it is switched off automatically by pressing the button again. The indicator lamp associated with the button goes off.
The rear screen demisting - defrosting can only operate when the hybrid system is active.
 Switch off the demist /defrost of the rear screen and door mirrors as soon as it is no longer needed as lower current consumption results in reduced fuel consumption.

Comfort
80

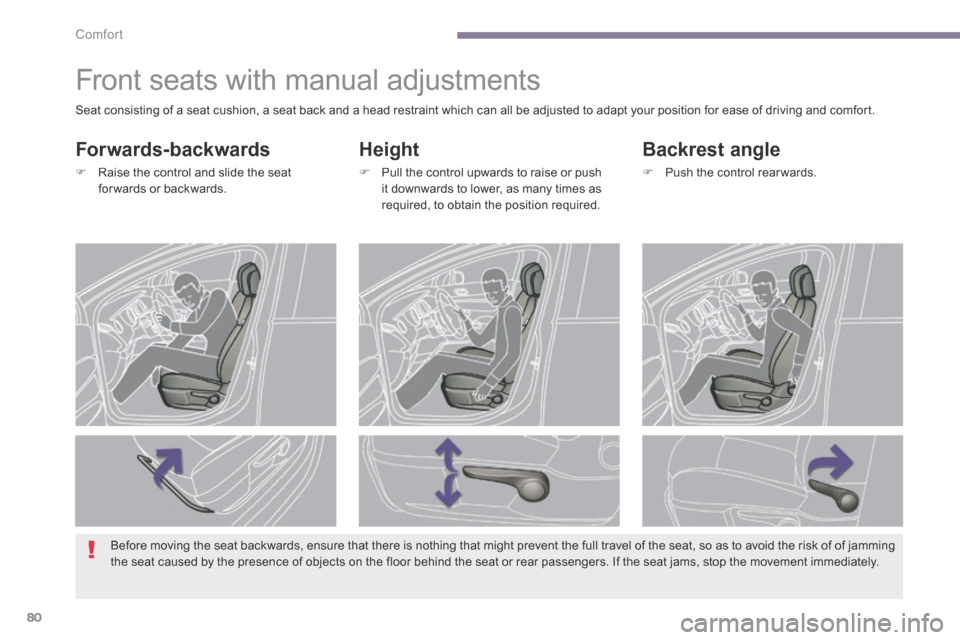

Front seats with manual adjustments
Height
 Pull the control upwards to raise or push it downwards to lower, as many times as required, to obtain the position required.
Backrest angle
 Push the control rear wards.
Forwards-backwards
 Raise the control and slide the seat for wards or backwards.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

3
Comfort81

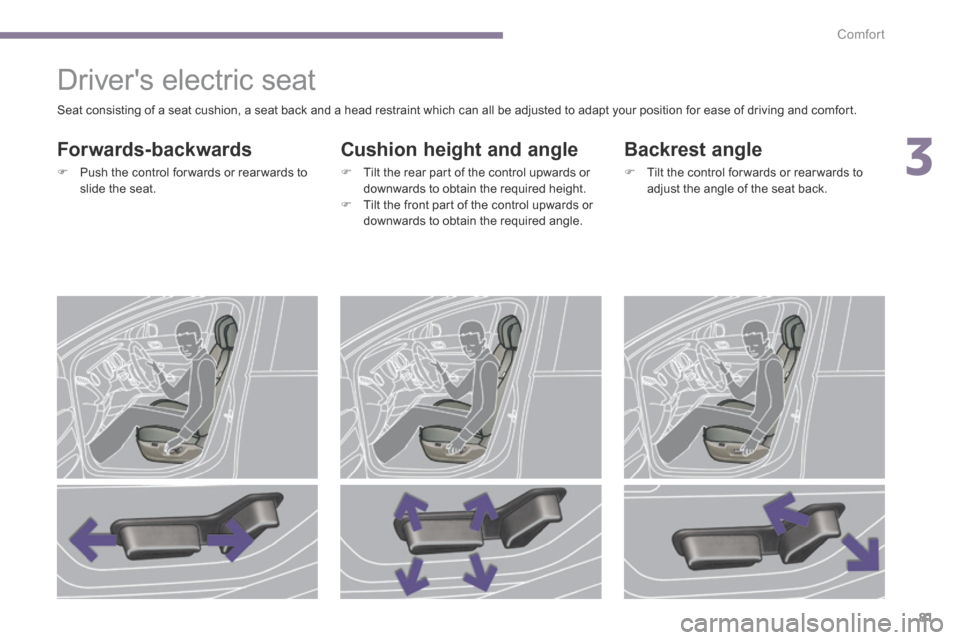

Driver's electric seat
Forwards-backwards
 Push the control for wards or rear wards to slide the seat.
Cushion height and angle
 Tilt the rear part of the control upwards or downwards to obtain the required height.  Tilt the front part of the control upwards or downwards to obtain the required angle.
Backrest angle
 Tilt the control for wards or rear wards to adjust the angle of the seat back.
Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Comfort
82
Head restraint height and
angle adjustment
 To raise the head restraint, pull it for wards and upwards at the same time.  To remove the head restraint, press the lug A and pull the head restraint upwards.  To put the head restraint back in place, engage the head restraint stems in the openings keeping them in line with the seat back.  To lower the head restraint, press the lug Aand the head restraint at the same time.  To adjust the angle of the head restraint, tilt its lower part forwards or rearwards.
The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the upper edge of the head restraint is level with the top of the head. Before moving off, check the adjustment of the head restraint; adjust it if the seat has been occupied by someone of different size. Never drive with the head restraints removed; they must be in place and adjusted correctly.
The electric functions of the driver's seat are active for approximately one minute after opening the front door. They are deactivated approximately one minute after the ignition is switched off and in economy mode. To reactivate them, switch on the ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

3
Comfort83

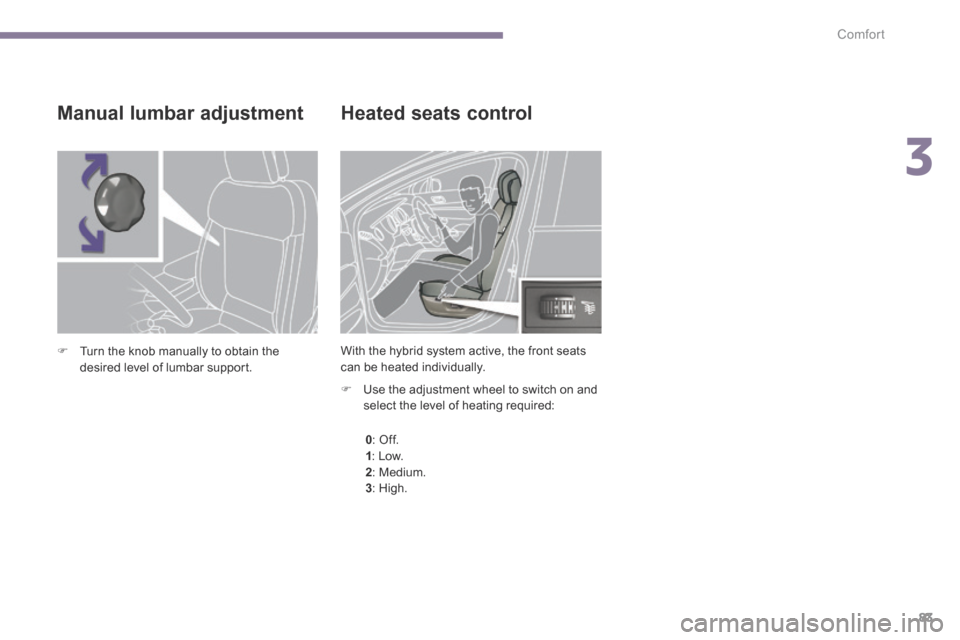

Heated seats control
 Use the adjustment wheel to switch on and select the level of heating required:
0 : Off. 1 : Low. 2 : Medium. 3 : High.
Manual lumbar adjustment
With the hybrid system active, the front seats can be heated individually.  Turn the knob manually to obtain the desired level of lumbar support.

Comfort
84
Folding the seat backrest
 Check that no object, either on or underneath the seat, could hinder its movement.  To make the operation easier, place the head restraint in the low position (if the seat is in the fully for ward position).  If your vehicle is fitted with the video pack, place the protective cover on the head restraint.  Lift the control, located behind the seat, then guide the seat backrest for wards.
When the seat backrest is in this position, the seat behind it and the centre rear seat must not be occupied. This position, associated with that of the rear seats, allows you to transport long objects inside the vehicle. The maximum weight on the seat is 30 kg.
Table position, front passenger seat
Returning the seat to the normal position
 Guide the seat backrest rear wards until it locks in place.

3
Comfort85
Folding the seat from the
boot
Each section of the bench seat (1/3 or 2/3) has its own control to release the seat back and its seat cushion from the boot.  Check that nothing is preventing the seat backrest from folding (head restraint, seat belts, ...).  Check also that no object on or under the seat could hinder its movement.  Pull the control from the boot.

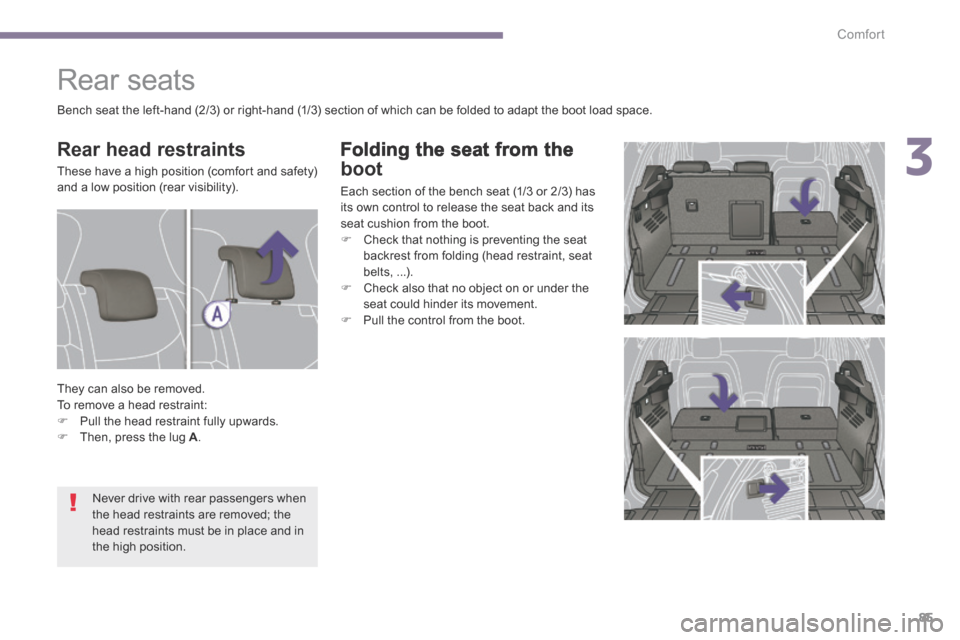

Rear seats
Rear head restraints
They can also be removed. To remove a head restraint:  Pull the head restraint fully upwards.  Then, press the lug A .
Bench seat the left-hand (2/3) or right-hand (1/3) section of which can be folded to adapt the boot load space.
These have a high position (comfort and safety) and a low position (rear visibility).
Never drive with rear passengers when the head restraints are removed; the head restraints must be in place and in the high position.

Comfort
86

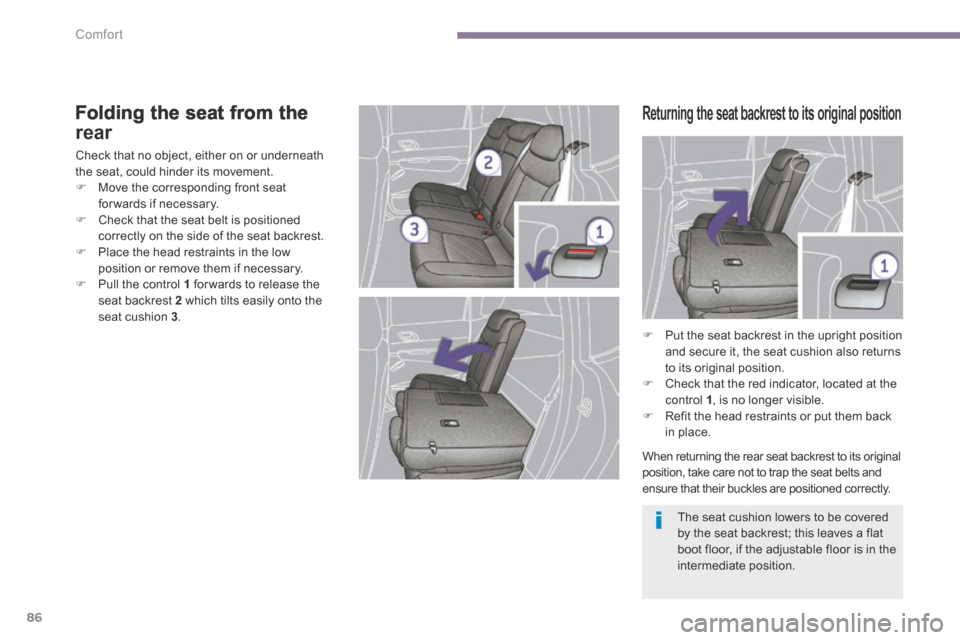

Folding the seat from the
rear
Check that no object, either on or underneath the seat, could hinder its movement.  Move the corresponding front seat for wards if necessary.  Check that the seat belt is positioned correctly on the side of the seat backrest.  Place the head restraints in the low position or remove them if necessary.  Pull the control 1 for wards to release the seat backrest 2 which tilts easily onto the seat cushion 3 .
Returning the seat backrest to its original position
When returning the rear seat backrest to its original position, take care not to trap the seat belts and ensure that their buckles are positioned correctly.
The seat cushion lowers to be covered by the seat backrest; this leaves a flat boot floor, if the adjustable floor is in the intermediate position.
 Put the seat backrest in the upright position and secure it, the seat cushion also returns to its original position.  Check that the red indicator, located at the control 1 , is no longer visible.  Refit the head restraints or put them back
in place.
