2013 SSANGYONG KORANDO Service Manual

Power seat Manual seat
Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.
Power seat Manual seat
Moving the slide switch upward/downward moves
the seat cushion upward/downward as the front &
rear up/down motors rotate the rail.Pulling the recliner knob upward/downward moves
the seat upward/downward.
Seat adjustment (height)
Driver seat lumbar support adjustment

7410-00
Driver seat ventilation
Driver seat heated wireDriver seat heated wire switch
(vehicle with heated wire function only)
Driver seat heated wire and ventilation
switch (vehicle with heated wire and
ventilation functions)
Seat back board

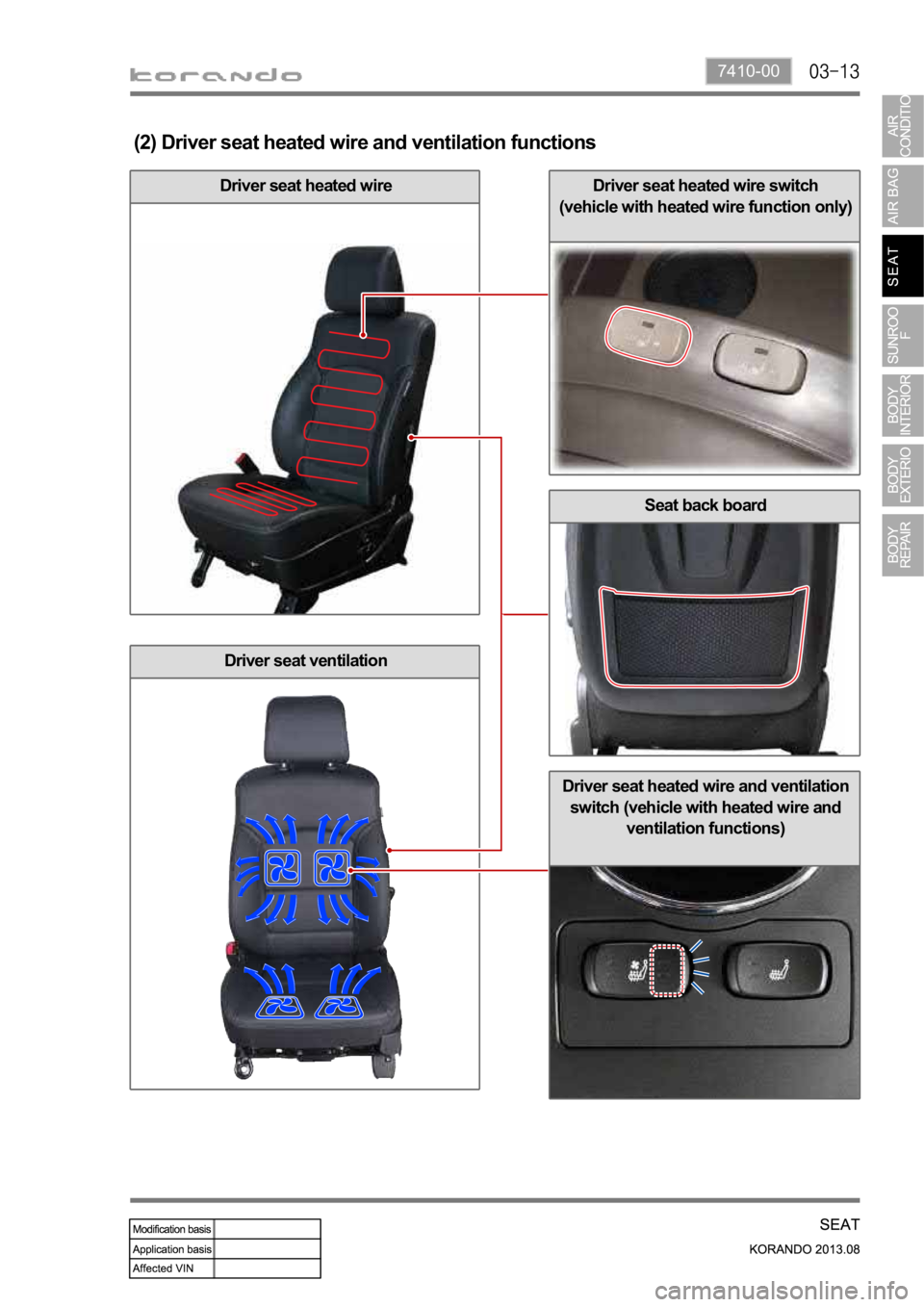

(2) Driver seat heated wire and ventilation functions

Seatback reclining adjustment
Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired
angle to lock the seatback.
Seat slide adjustment (forward/rearward)
To move the seat forward or backward, pull up
and hold the seat slide lever and move the seat
to the desired position.
Passenger seat heated wire switch
Heated wire and
ventilationHeated wirePassenger seat heated wire
(3) Passenger seat operation
Passenger seat
(4) Passenger seat heated wire and functions
Seat back board

7410-00
The front part of the active head restraint is separated and moved forward to protect the occupant's neck
in the event of a rear-end collision.
The active head restraints may be installed to both driver and passenger seats depending on the vehicle
specifications.
(1) System configuration
Active head restraint sensor
Active head restraint
(passenger seat)
Active head restraint
(driver seat)
2) Active Head Restraint

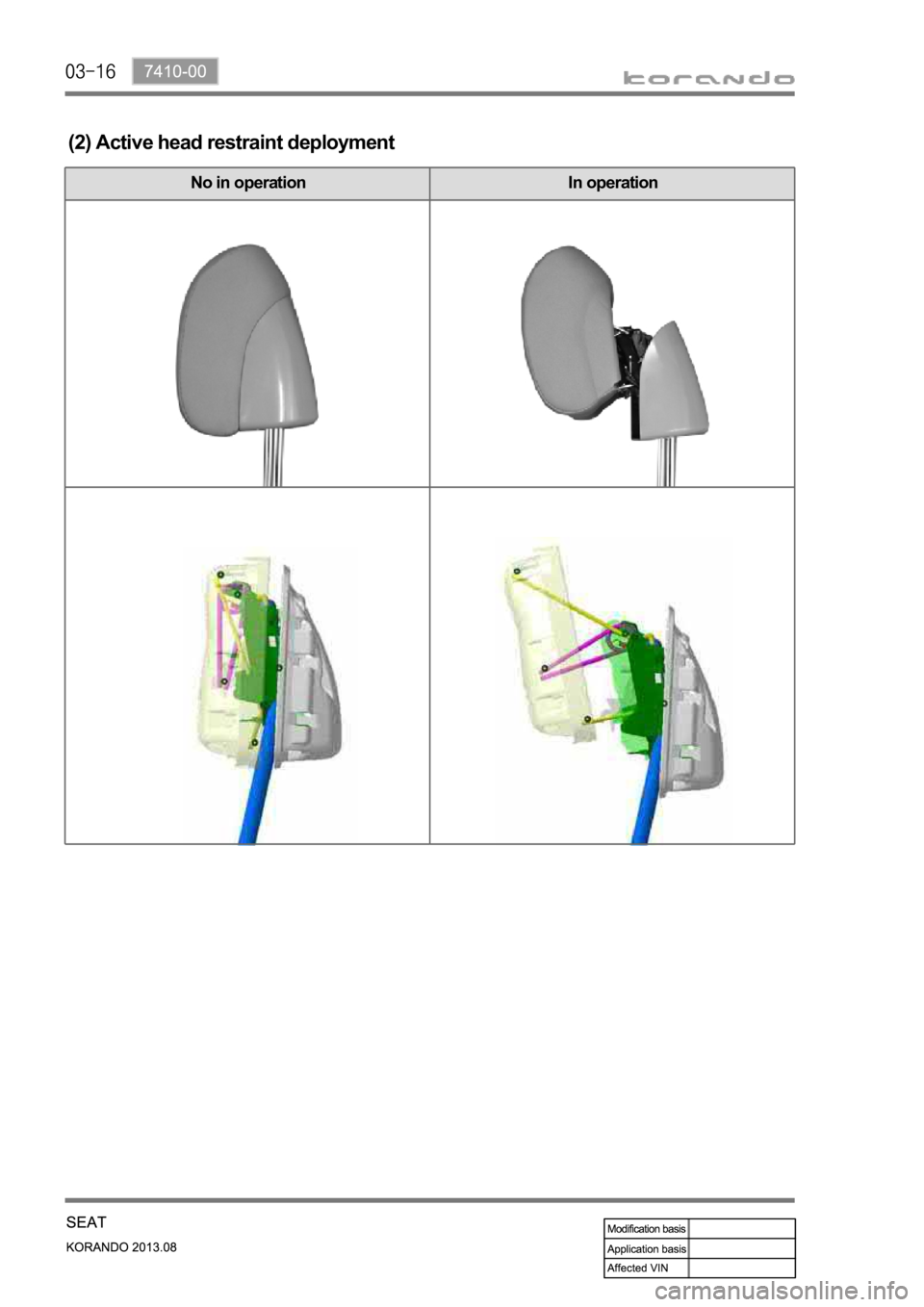

(2) Active head restraint deployment
No in operation In operation

7410-00
(3) Operating process
Driver seat
Passenger seat
For a vehicle with an active head restraint system, an active head restraint sensor is installed and its G
sensor is operated in the event of a rear-end collision. As the G sensor in the active head restraint
sensor is operated, the power is supplied to the driver's or passenger's active head restraint. Then, the
lock in the head restraint is disengaged and the front part of the head restraint is separated and moved
toward the neck of an occupant.

Head restraint adjustment (Height)
3) Rear Seat
(1) Rear seat operation
The rear seat is a 6:4 split seat and a manual seat that the angle of the head restraint and seatback of the
seat can be adjusted. And the heated wires in the rear seat cushion and seatback can be operated with
rear seat heated wire switches located on the LH/RH rear door trim.
The head restraint can be raised
without pressing the head
restraint sleeve (A) or lowered
with the sleeve (A) pressed.
Seatback reclining adjustment
To adjust the seatback angle,
pull the lock release lever on the
upper part of the seat to release
the lock.

7410-00
Seatback folding
Rear seat heated wire
Rear seat heated wire switch

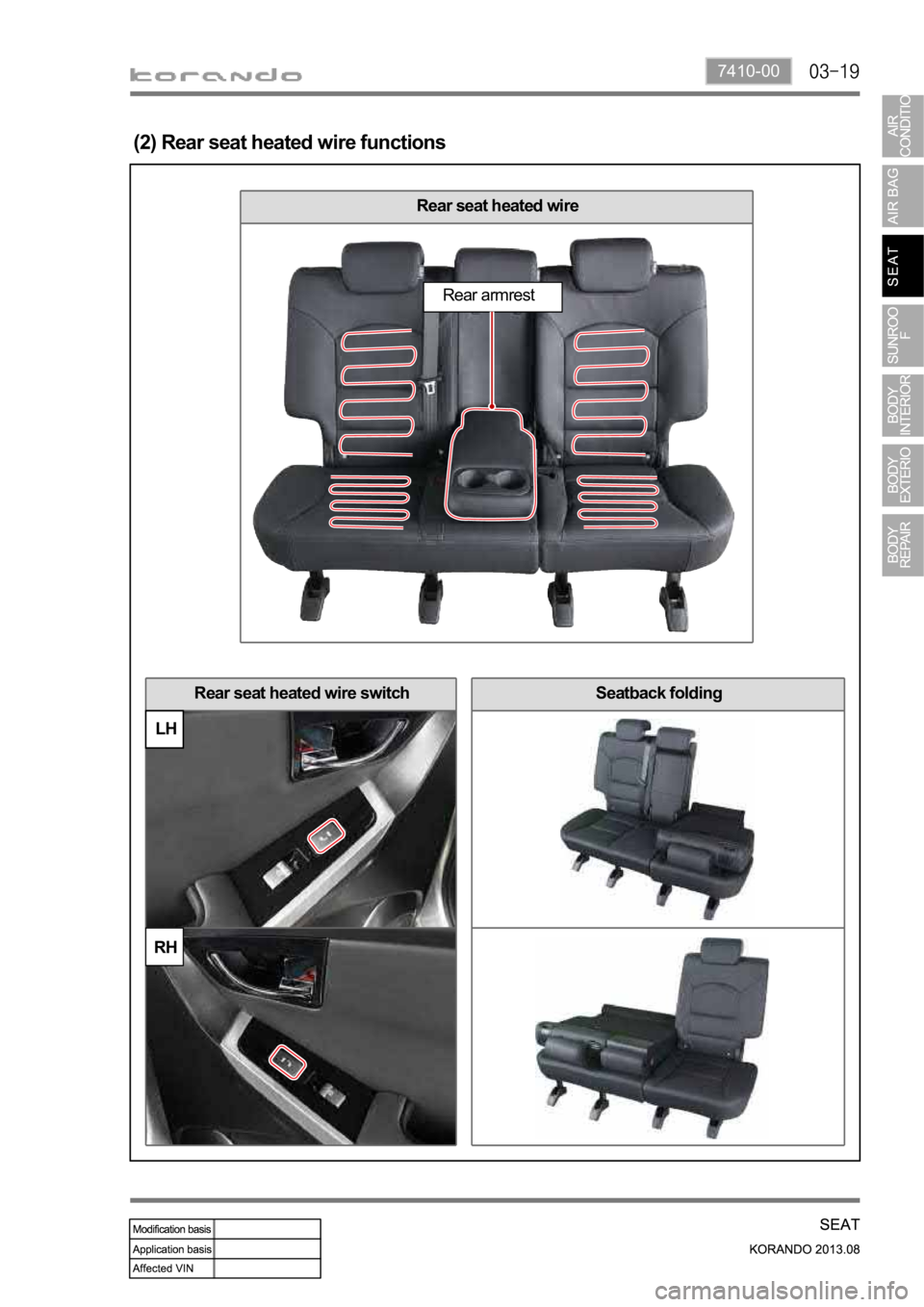

(2) Rear seat heated wire functions
Rear armrest
LH
RH
