2013 SSANGYONG KORANDO Service Manual

8910-05

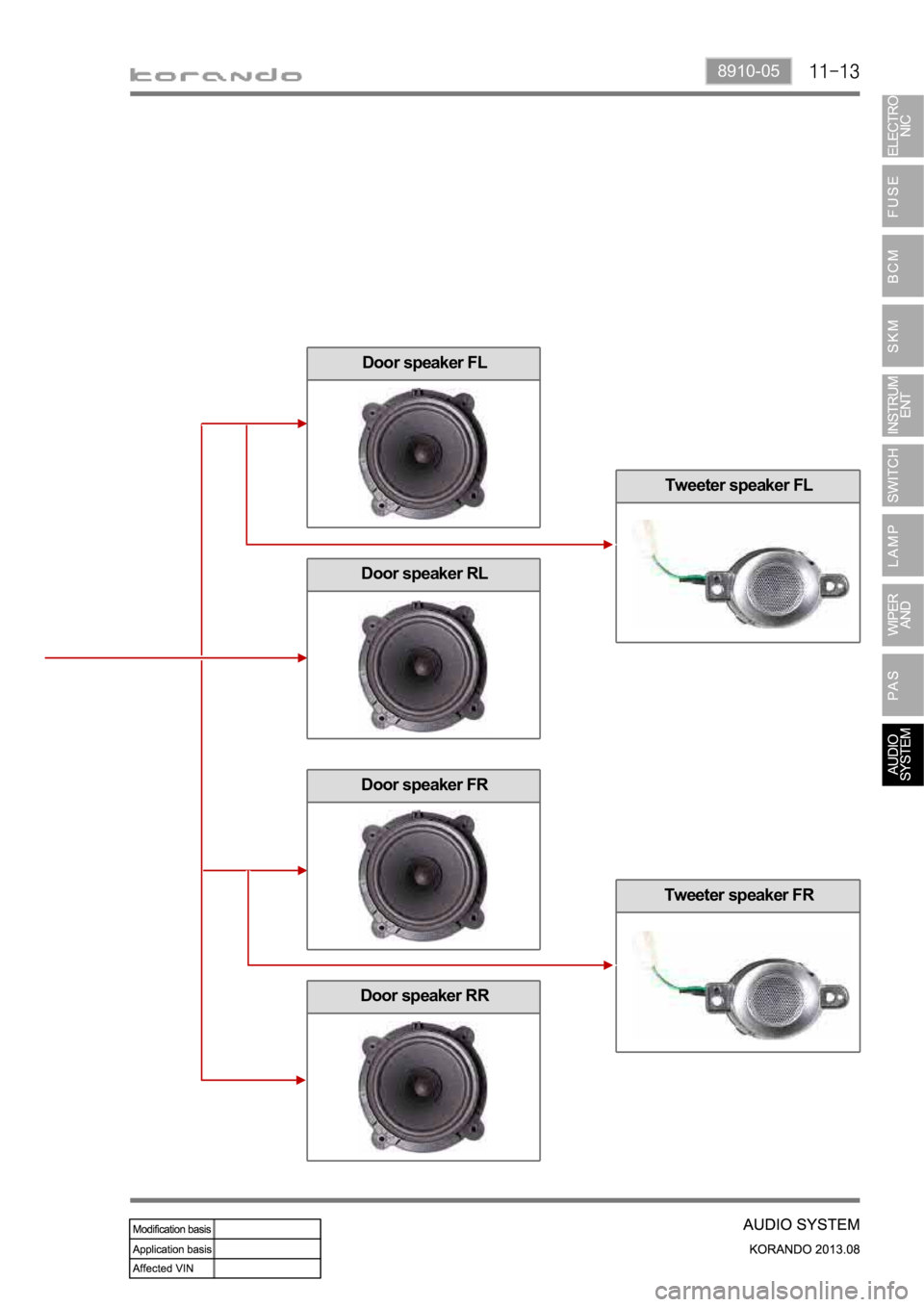

Door speaker FL
Door speaker RL
Door speaker FR
Door speaker RR
Tweeter speaker FL
Tweeter speaker FR

1) Audio Head Unit
4. SWITCH OPERATION AND FUNCTION
No. Name Description
1 Display window Displays operation status and various information
2 [BAND/AS] button Briefly press: Switching between AM and FM radio
Press and hold: Registering and storing station with good
reception automatically
3 [SCAN/INF] button Briefly press: Scanning receivable stations or displaying
other information of music currently playing
Press and hold: Displaying data table of music currently
playing
4 [MEDIA] button Playing connected external device such as
USB/iPod/Bluetooth/AUX
5 [SET] button Enter into setting mode
6 Adjustment button
7 Dial button Briefly press: Receive a phone call
Press and hold: Connect to Bluetooth phone
8 End button Briefly press: End a call
Press and hold: Disconnect Bluetooth phone
Radio mode
Briefly press: Search broadcasting frequency
Press and hold: Search receivable frequency
MP3/CD/USB/iPod mode
Briefly press: Move to previous/next song
Press and hold: Fast forwarding/rewarding -
-

8910-05
No. Name Description
9 Disc slot Insert or eject a disc to play
10 CD button Select CD/MP3 disc play function
11 Disc eject button Eject a disc
12 Station memory button
[1~6]
13 Power/mute button with
volume dialBriefly press: Switch the system on, activate/deactivate mute
Pause ON/OFF
Press and hold: Switch the system off
Turn dial: adjust volume
14 [ENTER] button,
[TUNE]/[FILE] dialTurn dial: change frequency, song or menu
Press dial: Change or select item or setting value
Press and hold dial: Turn off display window backlight (comes on
if any of buttons is pressed)
Radio mode
Briefly press: Select a stored station directly
Press and hold: Store the listening broadcasting frequency
MP3/CD mode -
-

RadioCD/MP3
2) Display Window
Radio station band: FM1/FM2/AM
FM stereo reception display
EQ: POP/ROCK/COUNTRY/VOICE/JAZZ/
CLASSIC
Receiving broadcasting frequency
Digital clock
Specified station number: P1~P6 1.
2.
3.
4.
5.
6.Disc insertion display
Play mode display
RDM (Random): Play folder in random
order RPT (Repeat): Play folder
repeatedly INT (Intro): Play folder intro
Current folder name
Play disc
Current playing song name
Other information of current playing song:
Play time/album/artist/genre 7.
8.
9.
10.
11.
12.
USB
USB connection
USB play 13.
14.
BT AUDIO
Bluetooth connection 15.

8910-05
Tone setup
When pressing the SET button, "Setup List" is displayed.
- "Setup List" screen is displayed only for 5 seconds.
Turn the [TUNE] dial to select a desired "Tone Setup" and press the [ENTER] button.
Turn the [TUNE] dial to select a desired setup item and press the [ENTER] button.
Turn the [TUNE] dial or press the [ENTER] button to select the desired setting value.
- Bass: setting the bass level (-7 ~ +7)
- Middle: setting the middle level (-7 ~ +7)
- Balance: setting LH/RH speaker balance (LEFT 15 ~ RIGHT 15)
- EQ (Equalizer): select EQ (sound effect) style.
- Default: initialize all the settings. 1.
2.
3.
4. Set the Bass/Middle/Treble, Balance and EQ (sound effect) for the sound of the output speaker.
5. SETTINGS

Turn the power off and set the displayed current time and date.
When pressing the SET button, "Setup List" is displayed.
- "Setup List" screen is displayed only for 5 seconds.
Turn the [TUNE] dial to select a desired "Time & Date" and press the [ENTER] button.
Turn the [TUNE] dial to select a desired setup item and press the [ENTER] button.
Clock On/Off
Turn the [TUNE] dial or press the [ENTER] button to select the desired setting value. Repeat these
steps if several items need to be set. (e.g. YY/MMDD in date setting)
- Set Time: Set the current time.
- Set Time Format: Set the time format to 12-hour or 24-hour system.
- Set Date: Set the date.
- Display Digital Clock On/Off: Set whether the digital clock is displayed or not. 1.
2.
3.

4.
6. CURRENT TIME/DATE SETTING

8910-05
Listening radio station
Press the [BAND] button repeatedly to select the desired broadcasting band.
- Select one of FM1, FM2 or AM.
- Broadcasting is received from the broadcasting frequency which has been listening previously. 1.
Searching for broadcasting manually
Turn the [TUNE] dial or press the <> button repeatedly to select the desired broadcasting
frequency.
2.
Searching for broadcasting automatically
Press the <> button more than 2 seconds and release it so that the system searches for one
broadcasting frequency with good reception and receives it automatically.
3.
Selecting broadcasting with automatic search
When pressing the [SCAN] button, the system searches for the broadcasting with good reception
one by one within the receiving frequency range and gives a hearing about for 5 seconds. If you hear
the desired broadcasting, press the [SCAN] button briefly to keep listening it.
4.
Registering broadcasting frequency manually
Select the broadcasting frequency to register.
the beep sounds to indicate the registration is completed. 1.
2.
Registering broadcasting frequency automatically
Press the [BAND] button repeatedly to select the desired broadcasting band.
- Select one of FM1, FM2 or AM.
- The system shows the selected frequency previously in the selected broadcasting band
and receives it.
Press the [AS] button for more than 2 seconds.
- "AST Scanning" is displayed, and the system searches for 6 stations with good reception 1.
2.
Listening registered station
Press the [BAND] button repeatedly to select the desired broadcasting band.
- Select one of FM1, FM2 or AM.
- The system shows the selected frequency previously in the selected broadcasting band
and receives it.1.
2.
7. RADIO SETTINGS

Press the [4INT] button repeatedly to select the intro play mode.
- INT: Play the intro of all the songs in the current folder in order for about 10 seconds (applies
only to MP3/WMA disc)
- INT: Play the intro of all the song in the disc in order for about 10 seconds
- OFF: Deactivates playing intro 2.To change play mode
Press the [2RPT] button repeatedly to select the repeat mode.
- RPT: Repeat all the songs in the current folder in order (applies only to MP3/WMA disc)
- RPT: Repeat the playing song consecutively
- OFF: Deactivates repeat mode 1.
Search for song and play it
When [MENU] button is pressed after turning the [TUNE] dial to select the song number or name to
play, the system begins playing the song. 1.
MP3[WMA] song information view
If you press the [INF] button briefly and repeatedly when a song is playing, other information
(artist/album/genre/play time) for the song is displayed for 3 seconds.
If you press and hold the [INF] button when a song is playing, the data table for the song is displayed
for 5 seconds. 1.
2.
To set scroll function
When pressing the [SET] button, "Setup List" is displayed.
Turn the [TUNE] dial to select the desired "Scroll On/Off" and press the [ENTER] button to select ON
or OFF. 1.
2.Press the [5RDM] button repeatedly to select the random play mode.
- RDM: Play all the songs in the current folder in random order
(applies only to MP3/WMA disc)
- RDM: Play all the song in the disc in random order
- OFF: Deactivates random play mode 3.
8. MP3 [WMA]/CD PLAYER
