2013 SSANGYONG KORANDO Service Manual

2) Seat Heated Wire and Ventilation Unit
Item Specifications
Seat heated
wire and
ventilation unitRated voltage DC 12 V
Operating voltage DC 9 V to 16 V
Operating temperature
Rated loadHeated wire
(driver & passenger
seats)
Ventilation
(driver seat)DC 12 V - max. 0.9 A
Cut off over-
currentHeated wire
(driver & passenger
seats)
Ventilation
(driver seat)
Ventilation
motorOperating currentLevel 1
Level 2
Ventilation motor
revolutions
(rpm)Seat
cushionLevel 1 Level 2
Seat
backLevel 1
Level 2

7410-00
2. WARNINGS FOR POWER SEAT
Adjust the driver seat before driving.
Make sure that the seat is firmly secured after adjusting.
Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, you
r
neck, spine or other parts of the body can be severely injured in the event of an accident.
If you recline the seatback excessively, you could slide under the seat belt and be injured severely
in a collision.
Do not put any object that could damage the seat on the seat.
The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat
warmer system excessively may cause minor burns. The following occupants should exercise
special care when using the heated wire seat.
Infants, children, old or handicapped persons
Persons with sensitive skin
Exhausted persons
Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold
tablets, etc. -
-
-
-
Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.
Make sure that the head restraints are in place and secured properly. Never drive the vehicle with
the head restraint removed.
To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright
position before driving. If the seatback is reclined too much, the occupant could slide under the seat
belt in a collision or an abrupt stop and cannot be protected properly by the air bag system.
3. CAUTIONS FOR POWER SEAT
You can operate the power seat with the ignition switch OFF. However, frequent operation of the
seat switch with the engine stopped can result in battery becoming discharged.
Operating more than one seat adjustment switch at the same time can cause damage to the seat
motor. Therefore, operate the seat switch only one at a time.
Do not use organic solvents such as benzene, thinner, alcohol or gasoline to prevent the seat cove
r
from being damaged while cleaning.
Do not operate the seat position adjustment switch forcefully when the seat does not move or it
contacts an object.
If the power seat is not operated, check and correct the problem before driving off.

Front seat heated wire and ventilation unit
The front seat heated wire and ventilation unit has been added.
- Driver seat (heated wire and ventilation), passenger seat (heated wire)
- The heated wire and ventilation unit is not applied to a vehicle with heated wire only.
Mounting location for
ventilation motor

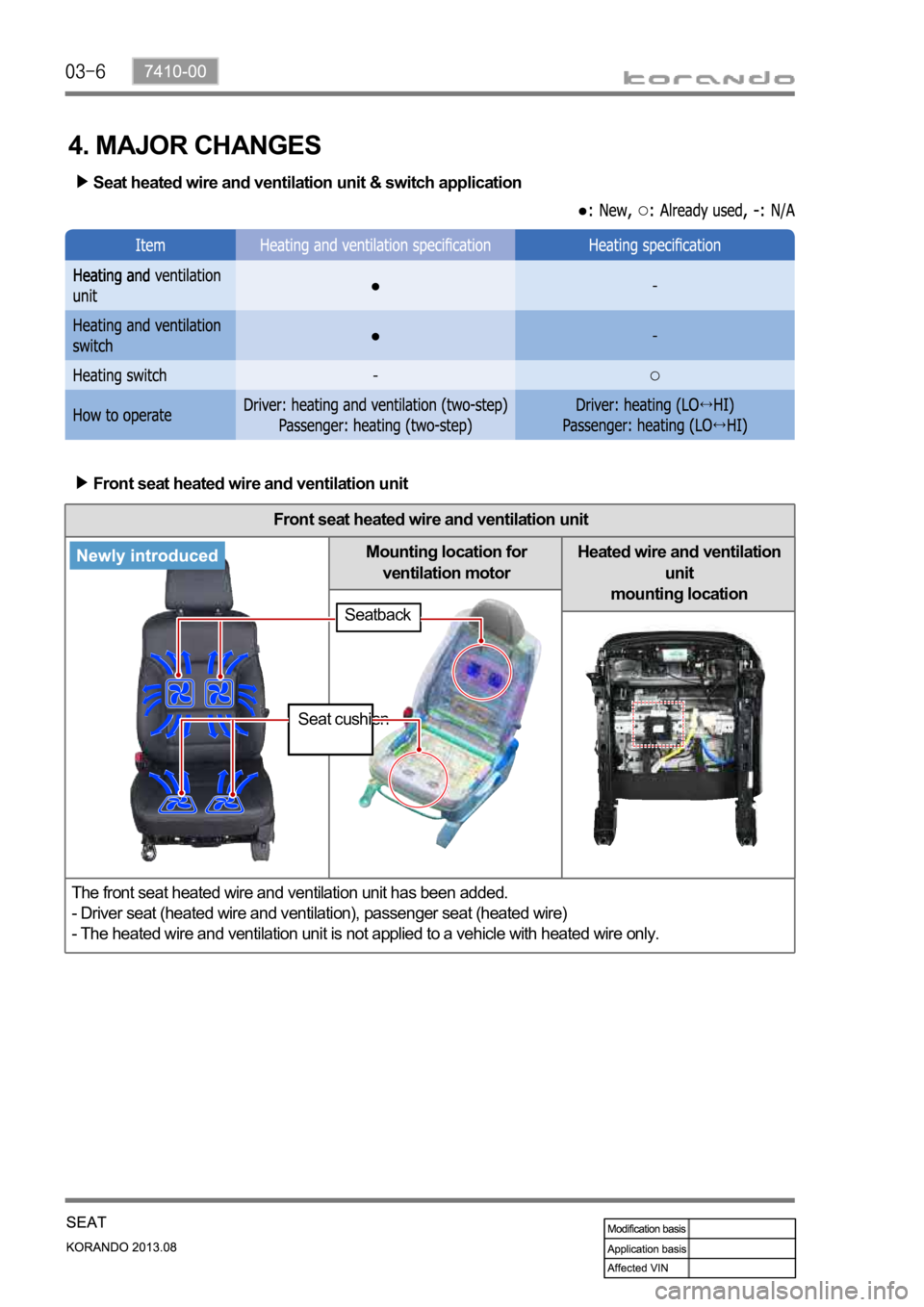

4. MAJOR CHANGES
Front seat heated wire and ventilation unit
Heated wire and ventilation
unit
mounting location
Seatback
Seat cushion
Seat heated wire and ventilation unit & switch application

7410-00
Head restraint
warning label
Rear seat head restraint
Rear seat head restraint
- Head restraint warning label has been attached to the side of rear seat head restraint.

Front seat heated wire and ventilation switch
Heated wire Heated wire and
ventilation
Front seat belt (3-point type)Front seat and seat switch
1. SEAT/SEAT BELT OVERVIEW
The seat is divided into front seat (driver & passenger) and rear seat.
The front seat has the heated wire in the seat cushion and seatback and the rear seat has it in the seat
cushion. The ventilation function is only applied to the driver seat. The seat belts of all seats are 3-point
type.
2. SEAT/SEAT BELT LAYOUT
Driver seat heated
wire switch
Passenger seat
heated wire switchDriver seat heated
wire switch
Driver seat
ventilation
switchPassenger
seat heated
wire switch

7410-00
Rear seat belt (3-point type)
Rear LH, center Rear RH
Rear seat
Rear seat heated wire switch
LH RH
Rear seat belt - LH
Rear center
seat beltRear seat
belt - RH
Rear double buckle
- 1st rowRear buckle -
1st row

Head restraint adjustment (Height)
To raise the head restraint, pull upward on
the head restraint. To lower the head
restraint, push downward on the head
restraint with the head restraint sleeve (A)
pressed.
Head restraint adjustment (Tilting)
The head restraint can be moved
forward/backward.
3. SEAT ADJUSTMENT AND OPERATION
1) Front Seat
There are 2 types of front seats: a) power seat that uses electric motor to move the seat and adjust the
seatback and seat cushion; b) manual seat that a user has to operate the lever manually to adjust the
seat.
However the head restraint and driver seat lumber support should be adjusted manually for both types of
seats. Heated wire is installed in the seatback and seat cushion, and ventilation function may be added
to driver seat depending on vehicle specifications. The switch for the front seat heated wire and
ventilation is located on the TGS lever side.
The front part of the active head restraint is separated and moved forward to protect the occupant's neck
in the event of a rear-end collision. The active head restraints may be installed to both driver and
passenger seats depending on the vehicle specifications.
Head restraint adjustment

7410-00
Power seat Manual seat
Moving the upper part of the recliner knob
forward/backward adjusts the seatback angle by
activating the recliner motor. Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired angle
to lock the seatback.
Power seat Manual seat
Moving the slide knob forward/backward moves
the seat forward/backward by activating the slide
motor.To move the seat forward or backward, pull up and
hold the seat slide lever and move the seat to the
desired position.
(1) Driver seat operation
Seat slide adjustment (forward/rearward)
Seatback reclining adjustment
