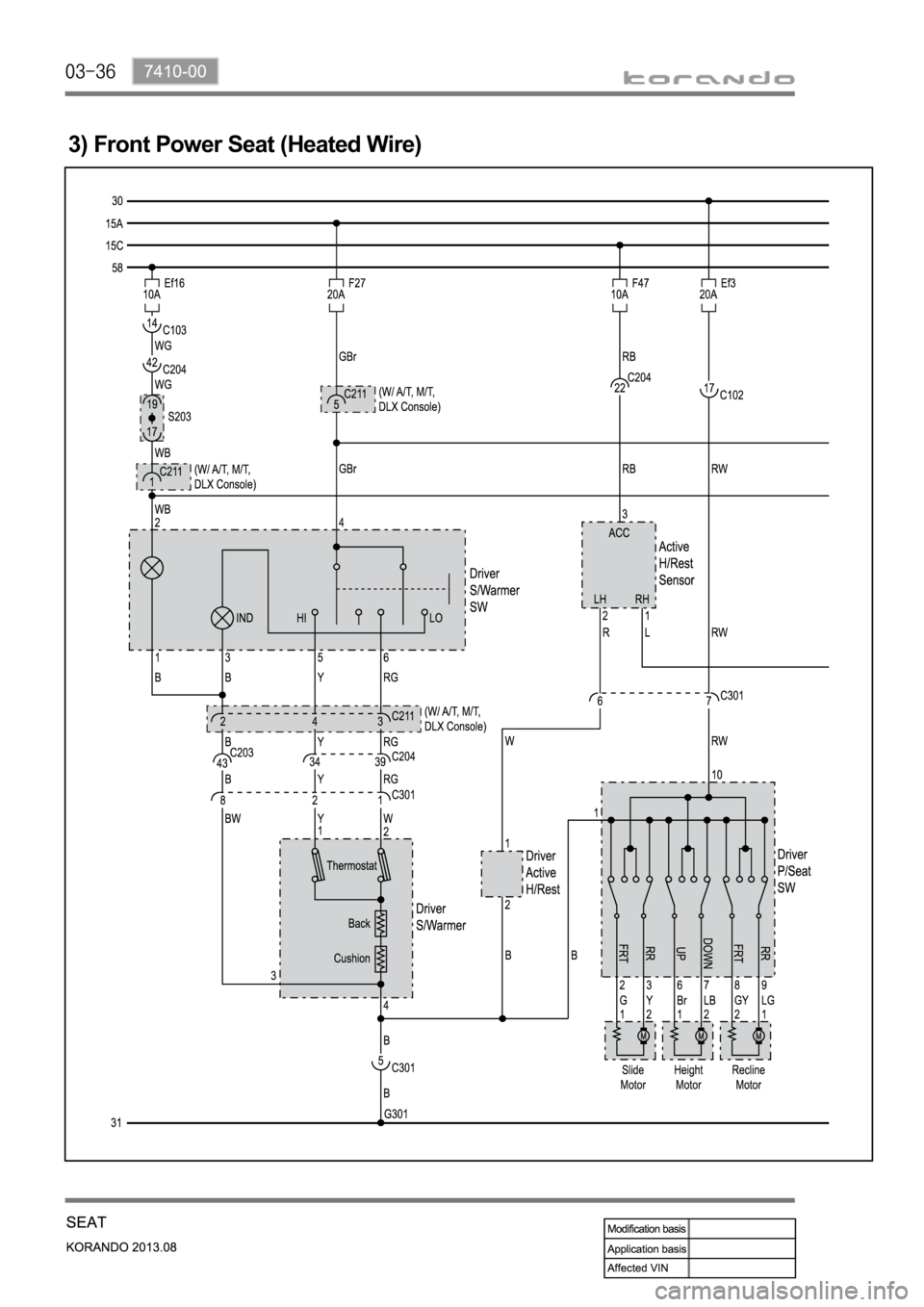

3) Front Power Seat (Heated Wire)

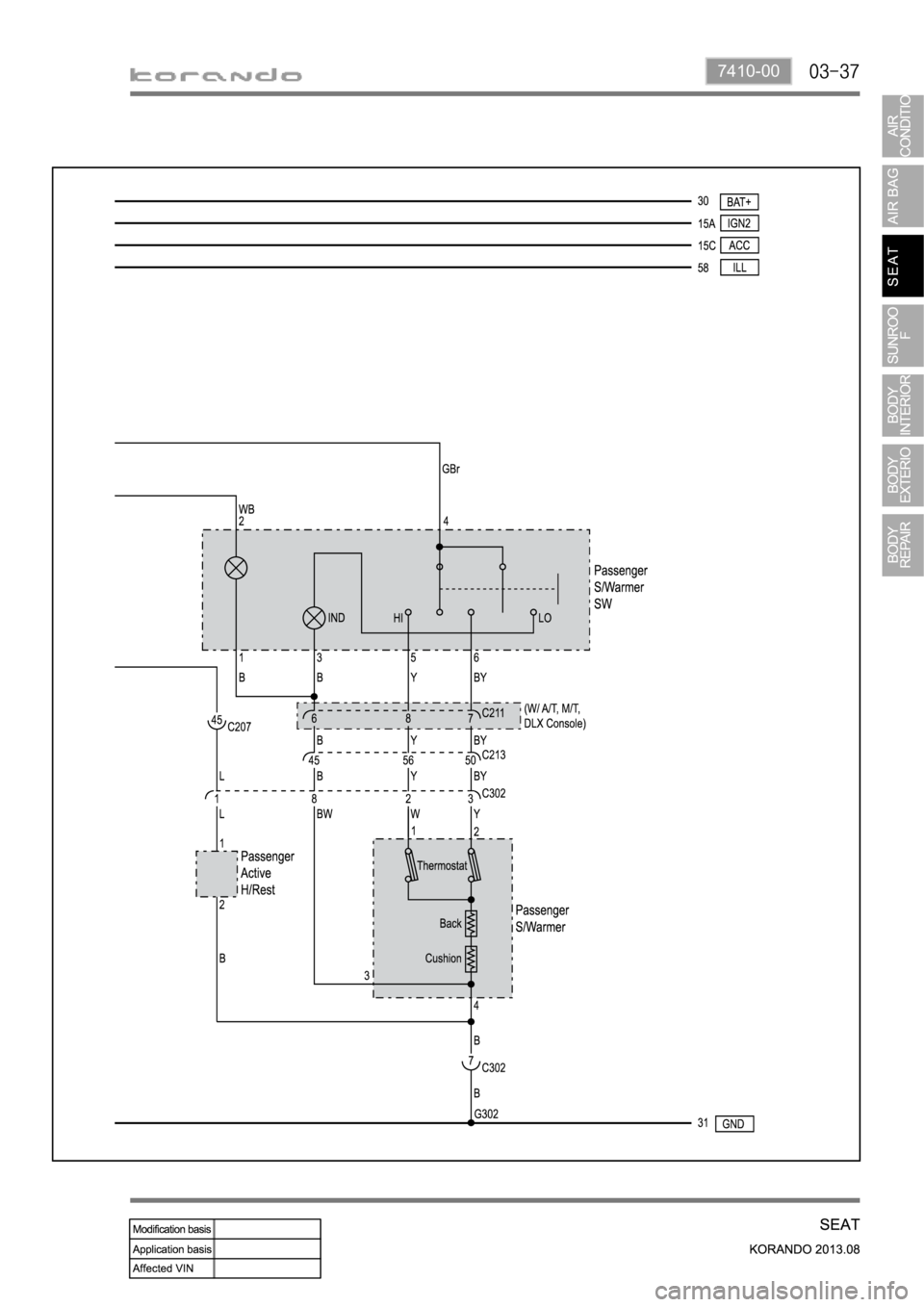

Page 1290 of 1336

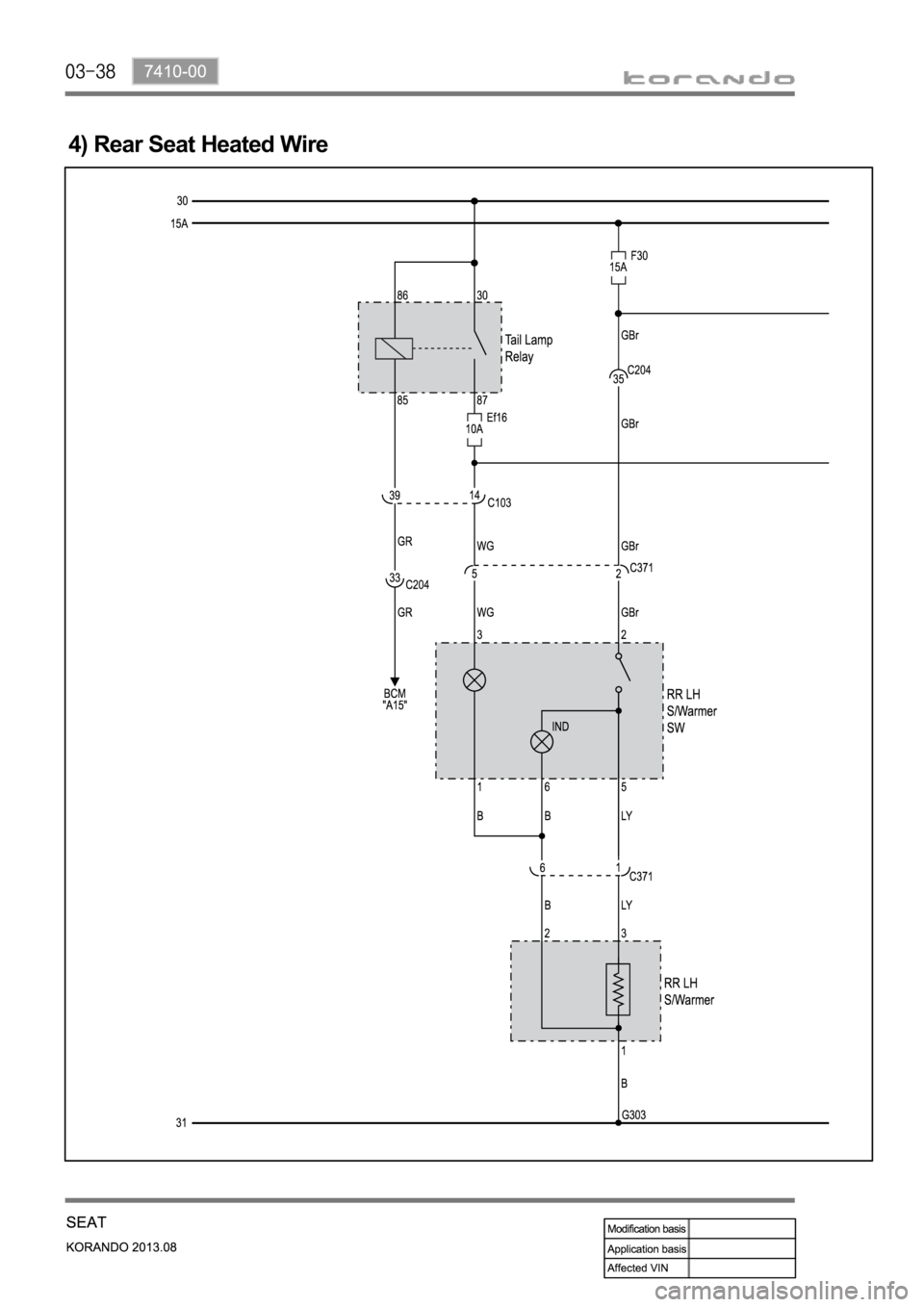

Page 1291 of 1336

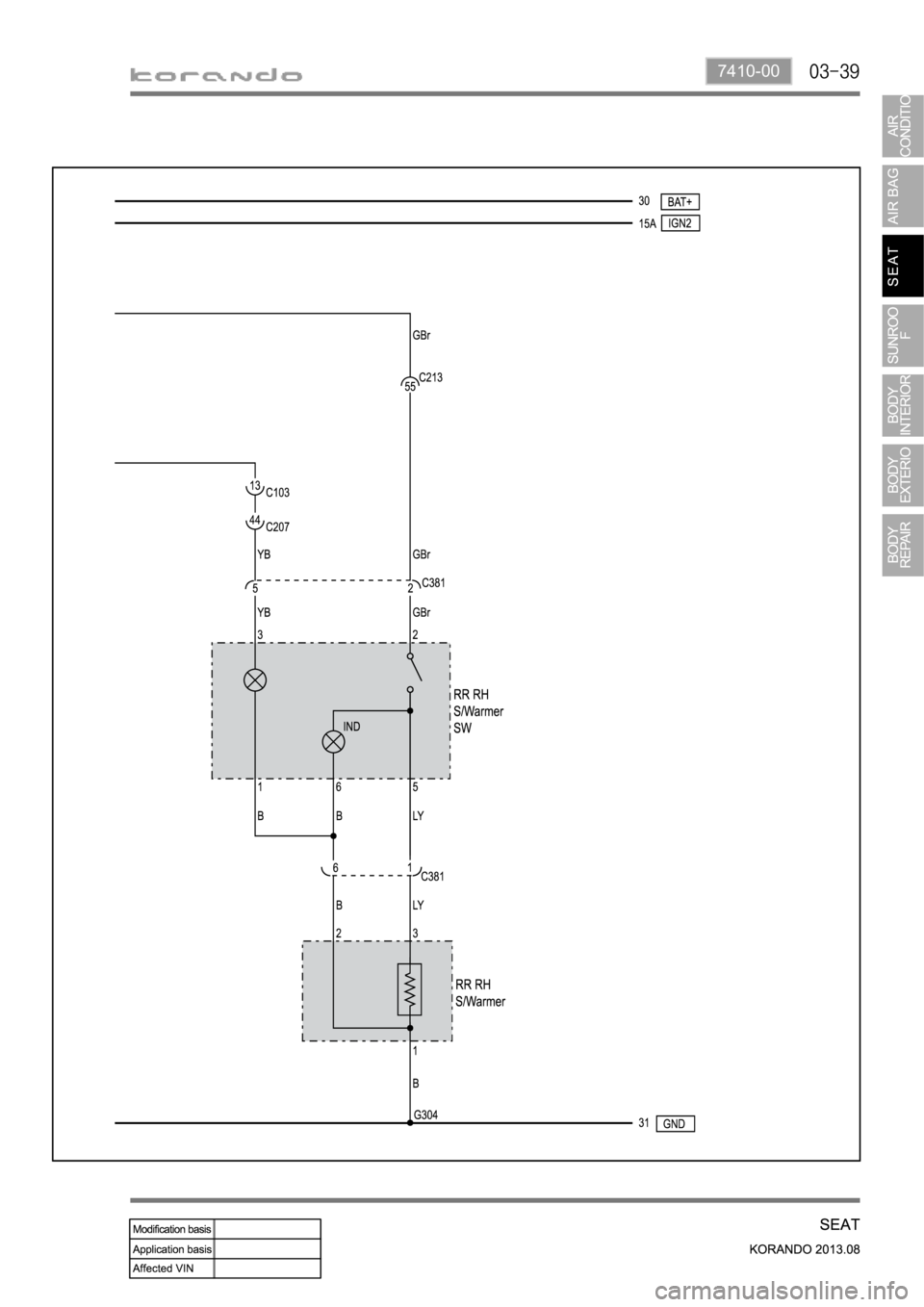

Page 1292 of 1336
Page 1293 of 1336
7340-01
1. SPECIFICATIONS
2. CAUTIONS
Operating voltage 9 ~ 16V
Operating current (open & close) Max. 6 A
At no load Approx. 3 A
Leakage current Max. 1 mA or less
Roof motor operating speed
(at opening and closing)
Motor overload stop conditionsCurrent for 25 A or higher and torque (load) for 7.5
Nm or above
2-step opening amount
Vertical/horizontal tolerance for sunroof glass
panel
Cautions during work
Wear a clean work clothes and gloves.
Any unauthorized modification or operational test is not allowed since the sunroof motor and
control unit are preset at the factory.
Take care not to drop or stack vertically when removing the sunroof. This may cause the moving
parts to be damaged. -
-
-
Page 1294 of 1336
OPEN
Sunroof switch
1. SYSTEM LAYOUT
Sunroof assembly
TILT
Sunroof motor &
control unit
Page 1295 of 1336
7340-00
2. OPERATING PROCESS
1) Sunroof Switch
This can be closed or open manually to block sunlight when the sunroof function is not in use. The sunroof glass can be open in two steps and can be tilted by the switch operation. The sunroof switches are included in the overhead console switches and consists of the TILT,
CLOSE and OPEN switches.
TILT
CLOSE
OPEN
Sun shade panel Sunroof glass Sunroof switch
Opens only rear section of the sunroof.
Closes the sunroof.
Opens the sunroof.
Sunroof glass
Sun shade panel
Page 1296 of 1336
Closing sunroof (Sliding close)
Open: 2-step open
2) Sunroof Sliding Opening/Closing
Pull down the switch briefly: auto sliding close
When pulling down the switch briefly, the sunroof is automatically closed. To stop the closing
sunroof, operate the switch to either direction. -
Pull down and hold the switch: manual sliding close
The sunroof is closed as long as pulling down the switch. -Pull down the switch -Push up the switch -
Push up the switch briefly: 2-step auto sliding open
When pushing up the switch briefly, the sunroof is automatically opened. Opening is carried out in 2
steps. In first step, the area 5 cm behind the sunroof is not opened. Push up the switch once again
in order to open the sunroof completely. The sunroof operation stops if you operate the switch
during its operation. -
Push up and hold the switch: manual sliding open
The sunroof is opened as long as pushing up the switch. -
