2013 SSANGYONG KORANDO Service Manual

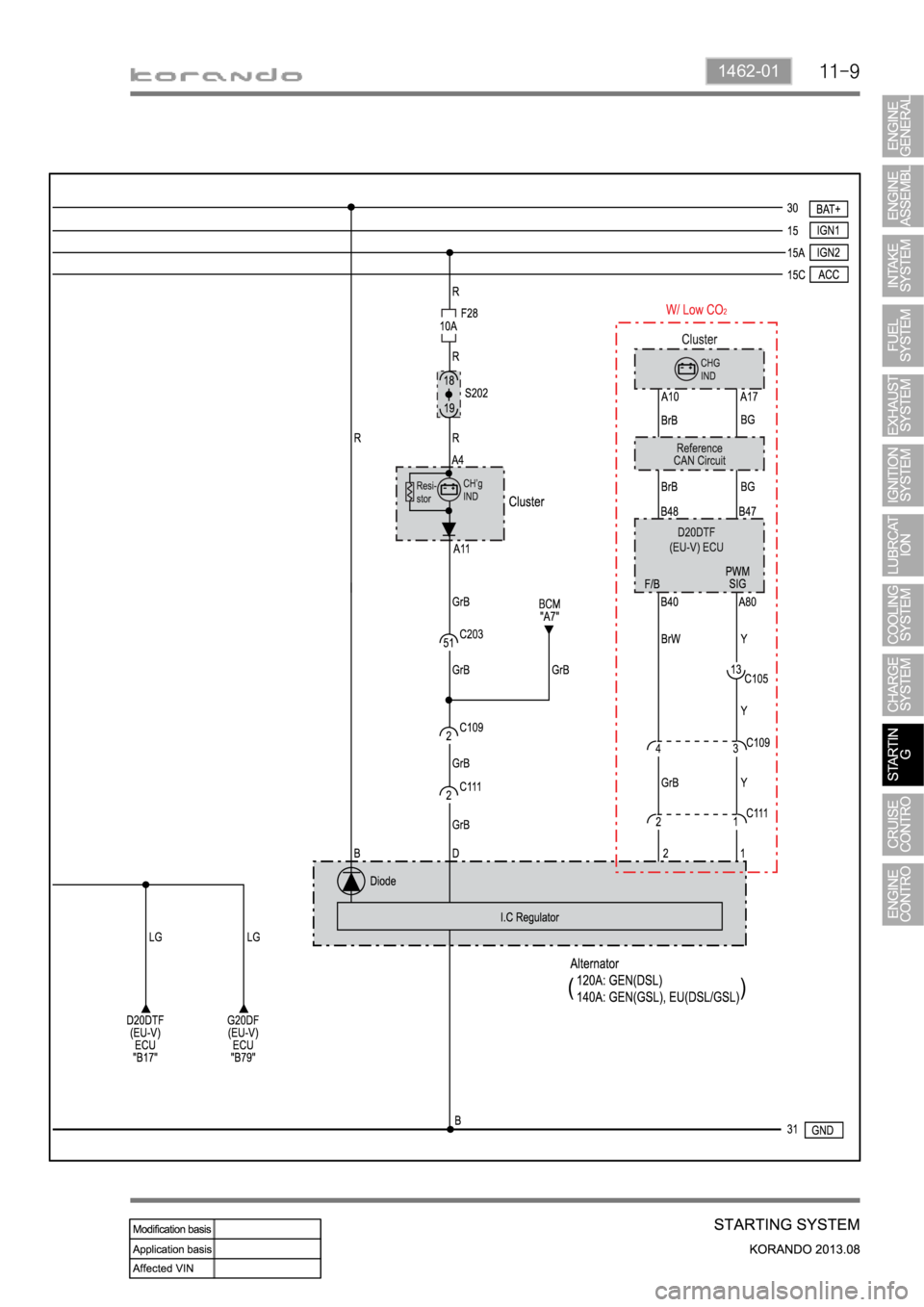

1462-01

8530-00
1. OVERVIEW
1) System Description
The cruise control is an automatic speed control system that maintains a desired driving speed without
using the accelerator pedal. The cruise control switch is under the right side of steering wheel and
The vehicle speed must be greater than 38 km/h to engage the cruise control. This feature is especially
useful for motorway driving.
The cruise control system is a supplementary system, which helps the driver to drive the vehicle at a
desired speed without using the accelerator pedal under the traffic condition where the vehicle-to-
vehicle distance meets the legal requirement.
Auto cruise
operatedECO cruise
operated

2) Traffic Conditions for Using Cruise Control
Use the cruise control system only when the traffic is not jammed, driving on motorways or highways
where there is no sudden change in the driving condition due to traffic lights, pedestrian, etc.
Improper use of the cruise control could be dangerous.
Do not use on winding roads.yy
Do not use in heavy traffic.yy
Do not use on slippery, wet roads. -
-
-
This could result in a loss of control, collision, and/or personal injuries.
The described speed value may vary slightly depending on the road conditions.

8530-00
2. CONFIGURATION
1) Circuit Diagram
The engine ECU detects the operating conditions of cruise control system, and monitors the braking
performance, vehicle speed, road conditions and ESP system operation. If the engine ECU determines
that there are not any problem to drive in cruise control mode, the vehicle can be operated by cruise
switch signals (decelerating, accelerating, cruising).

2) Components
Test voltage(VCC 5V)
FUNCTION KEY VOLUE REMARK
MAIN 0.15 ~ 0.55V -
DES/RES 0.7 ~ 1.1V -
ACC/SET 1.6 ~ 2.0V -
CANCEL 2.52 ~ 2.92V -
ECO 4.22 ~ 4.82V -

8530-00
3. OPERATION
1) Setting a Desired Speed
To operate the cruise control, accelerate to the desired speed, which must be more than 38 km/h (24
MPH) and less than 150 km/h (90 MPH). In the vehicle equipped with manual transaxle, the gear shift
lever should be in 3rd (GSL: 2nd) or higher gear position.
Diesel engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch of
cruise control lever.
Gasoline engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch
of cruise control lever. The system is readyreadyreadyready to activate the cruise control function. To
activate the cruise control function, push up (1) the ACCEL switch of the cruise control lever.
Now, the vehicle is cruised by this system with the set speed.
And you can set to other vehicle speeds again with above steps after an accelerator pedal intervention
during the cruise control running. 1.
2.
3.
4.
Never use the cruise control system until you get used to it.
Improper use or not fully aware of this function could result in collision and/or personal injuries.

2) Accelerating with the Cruise Control System
(1) While the cruise control system is running
Push up the ACCEL switch of the cruise control lever and hold it until the desired speed is reached
without an accelerator pedal intervention.
When the desired speed is reached, release the lever. 1.
2.
(2) While the cruise control system is not running
Accelerate using the accelerator pedal over 38 km/h.
Push up the ACCEL switch of the cruise control lever and hold it.
And then release the accelerator pedal slowly.
When the desired speed is reached, release the lever. 1.
2.
3.
4.
(3) Tap-up while the cruise control system is running
Push up the ACCEL switch of the cruise control lever less than 0.5 second per one switching while the
cruise control system is running. This is a tap-up switching.
When you operate a tap-up switching, the vehicle is accelerated by 1.0 km/h over the previous set
speed.
If you want to accelerate to 10 km/h, operate the tap-up switching ten times without accelerating with
the cruise control system. 1.
2.
3.

8530-00
3) Decelerating with the Cruise Control System
(1) While the cruise control system is running
Push down the DECEL switch of the cruise control lever and hold it until the desired speed is reached
without a brake pedal intervention. But the cruise control system cannot maintain the cruise function at
less than 38 km/h.
When the desired speed is reached, release the lever. 1.
2.
(2) When the cruise control system is not running
Push down the DECEL switch of the cruise control lever and hold it.
And then release the accelerator pedal slowly.
When the desired speed is reached, release the lever. But the cruise control system cannot maintain
the cruise function at less than 38 km/h.1.
2.
3.
4.
(3) Tap-down while the cruise control system is running
Push down the DECEL switch of the cruise control lever less than 0.5 second per one switching while
the cruise control system is running. This is a tap-down switching.
When you operate a tap-down switching, the vehicle is decelerated by 1 km/h below the previous set
speed.
If you want to decelerate to 10 km/h, operate the tap-down switching ten times without the brake
pedal intervention. 1.
2.
3.
