2013 SSANGYONG KORANDO Service Manual

5110-00
Front impact
sensor mounting
Front end upper panel
Headlamp
aiming holeFront bumper bracket
Front bumper
bracket
Headlamp
bracket
Front bumper
- The appearance of the front bumper has been changed.
- The front end upper panel has been newly applied.
Front end upper member
The front bumper bracket has been newly applied.
Headlamp member
- Aiming hole has been added because of the changed
headlamp
- The install location of front impact sensor has been
changed.
- The appearances of the front bumper bracket and
headlamp bracket have been changed.

Rear quarter panel
The outline of the rear combination lamp mounting has been changed.

5110-01
Top view
Side view
Front side Rear view

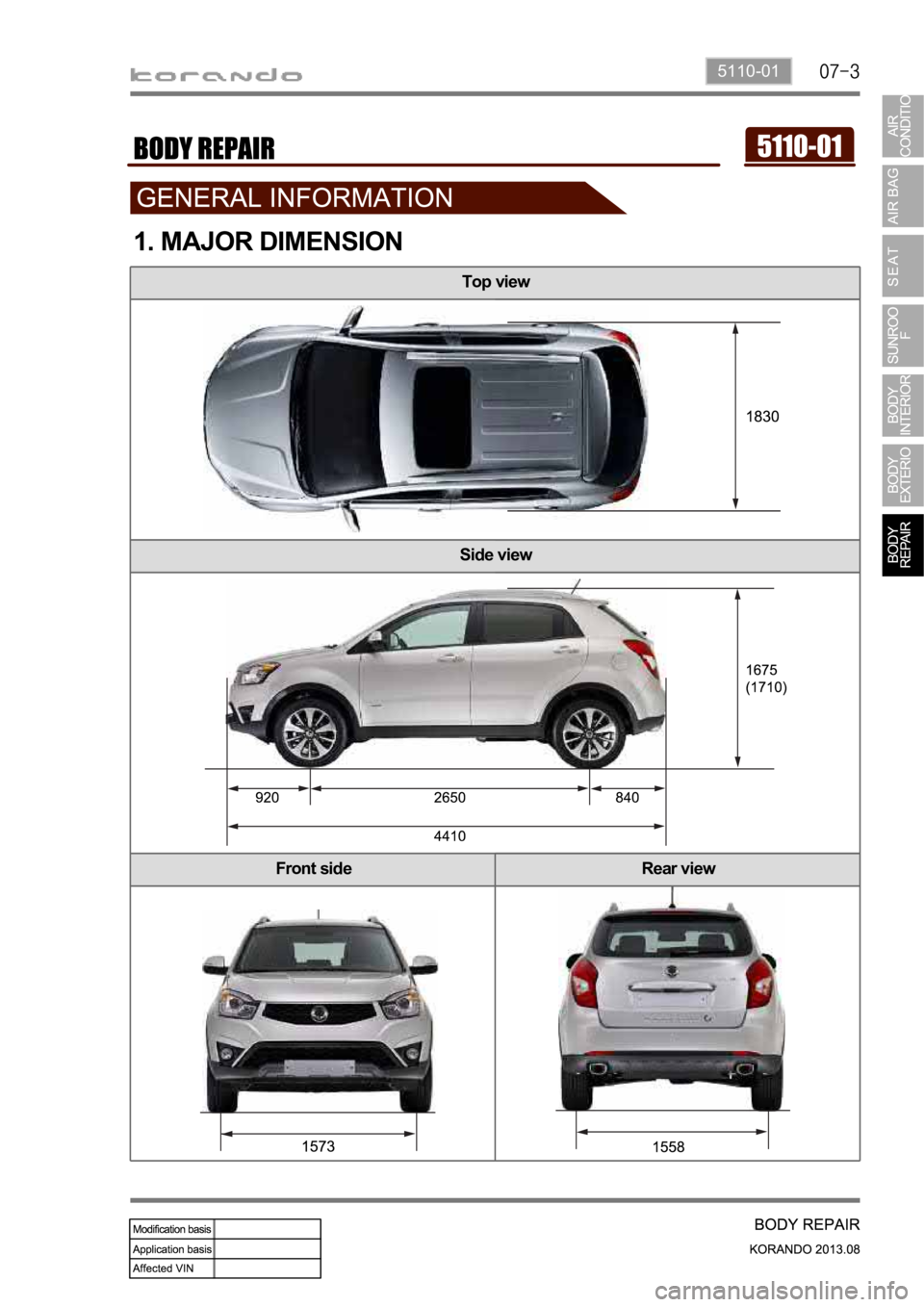

1. MAJOR DIMENSION

2. JACK POINTS
1) 2WD

5110-01
2) 4WD

3. SEALING APPLICATION POINTS
1) Dash Panel, Engine Tunnel, Floor, Etc.

5110-01
2) White Body

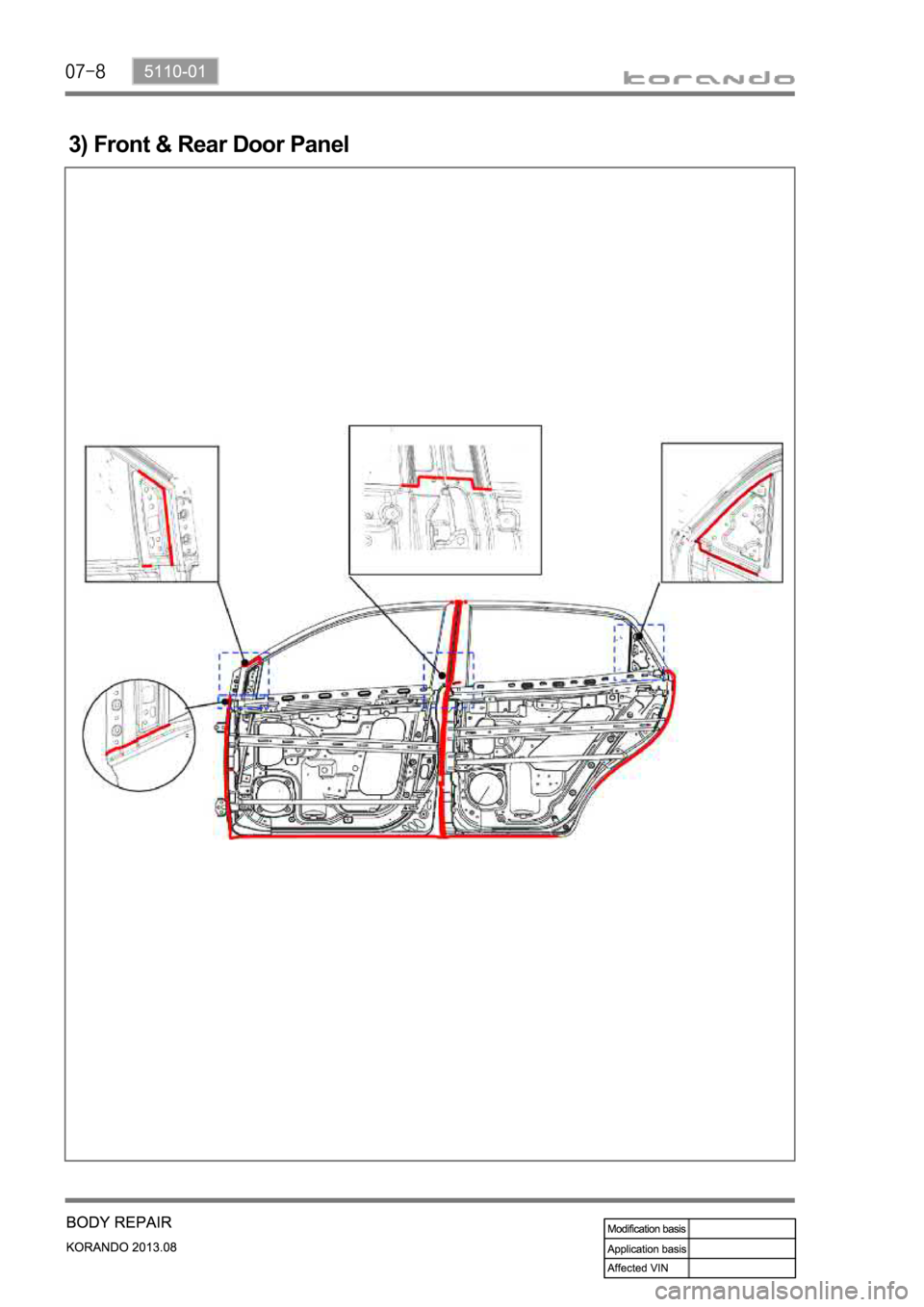

3) Front & Rear Door Panel
