2013 SSANGYONG KORANDO glove box

Front room lamp
Glove box lamp
Sun visor lamp
2. INTERIOR LAMP SYSTEM LAYOUT

8310-00
1. LAMP SPECIFICATIONS
1) Exterior Lamps
2) Interior Lamps
Description Numbers Specification
Front room lamp 2 10W
Glove box lamp 1 5W
Center room lamp 1 10W
Luggage lamp 1 10W
Door courtesy lamp 2 5W
Description Numbers Specification
Headlamp High beam 2 H1-55W
Low beam 2 H7-55W
Turn signal lamp 2 P21W
Position lamp - LED
Front fog light 2 H16-19W
Rear fog light 2 21W
Side repeater - LED
Rear combination lamp Tail lamp - LED
Turn signal lamp 2 PY21W
Back-up lamp 2 W16W
Stop lamp 2 P21W
License plate lamp 2 W5W
High mounted stop lamp - LED
Puddle lamp 2 LED

Front room lamp
Glove box lamp
Sun visor lamp
1) Layout
2. INTERIOR LAMPS

8310-00
Sun visor lamp
Glove box lamp
(2) Luggage lamp
Luggage lampThe luggage lamp is turned on when the tailgate is opened
with the switch operated.
This lamp is not controlled by the BCM, unlike the
front/center room lamp.
(3) Glove box lamp
The glove box lamp comes on when the glove box is
opened after the tail lamp is illuminated.
The sun visor lamp comes on when the sun visor vanity
mirror cover is opened. Luggage lamp control by coupled operation switch when opening/closing tailgate
The luggage lamp comes on when the tailgate is open.
The luggage lamp goes off as soon as the tailgate is closed. 1.
2.
(4) Sun visor lamp

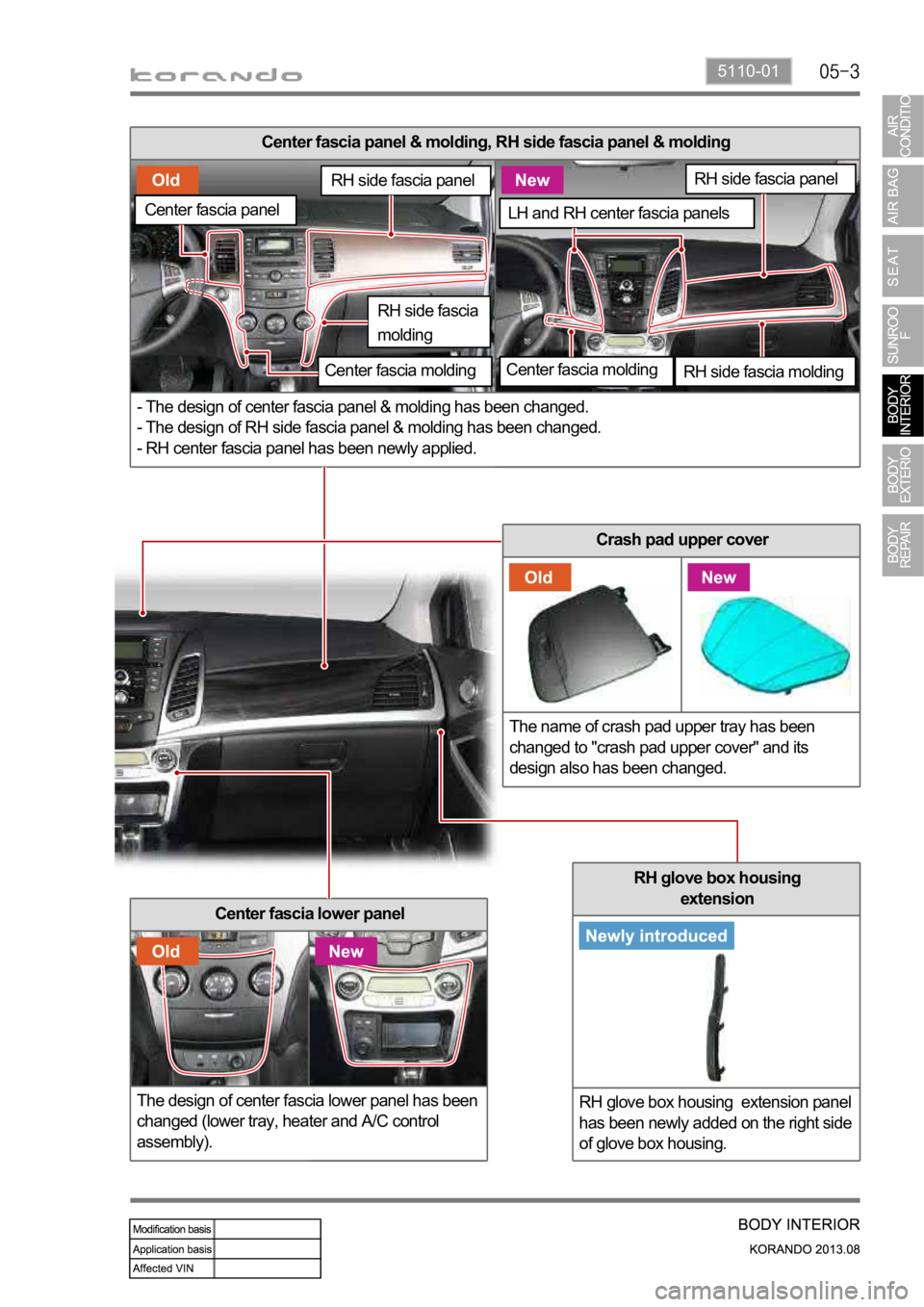

5110-01
Center fascia lower panel
The design of center fascia lower panel has been
changed (lower tray, heater and A/C control
assembly).
Center fascia panel & molding, RH side fascia panel & molding
- The design of center fascia panel & molding has been changed.
- The design of RH side fascia panel & molding has been changed.
- RH center fascia panel has been newly applied.
RH glove box housing
extension
RH glove box housing extension panel
has been newly added on the right side
of glove box housing.
Center fascia panel
RH side fascia panel
Center fascia molding
RH side fascia
molding
LH and RH center fascia panels
RH side fascia panel
Center fascia moldingRH side fascia molding
Crash pad upper cover
The name of crash pad upper tray has been
changed to "crash pad upper cover" and its
design also has been changed.
