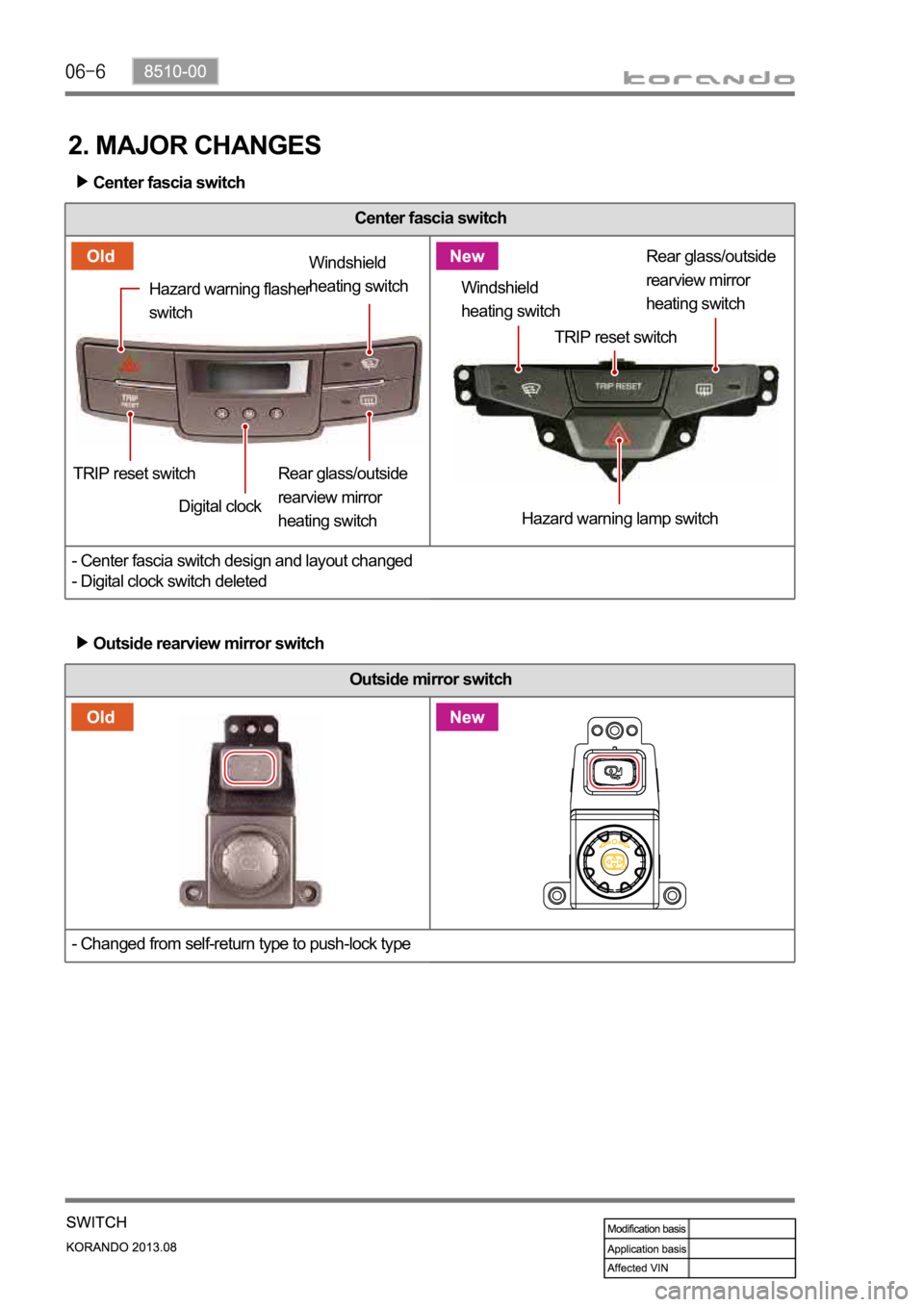

2. MAJOR CHANGES
Center fascia switch
Center fascia switch
- Center fascia switch design and layout changed
- Digital clock switch deleted
Outside rearview mirror switch
Outside mirror switch
- Changed from self-return type to push-lock type
Hazard warning flasher
switch
TRIP reset switch
Digital clock
Windshield
heating switch
Rear glass/outside
rearview mirror
heating switch
Windshield
heating switch
TRIP reset switchRear glass/outside
rearview mirror
heating switch
Hazard warning lamp switch
Turn the power off and set the displayed current time and date.
When pressing the SET button, "Setup List" is displayed.
- "Setup List" screen is displayed only for 5 seconds.
Turn the [TUNE] dial to select a desired "Time & Date" and press the [ENTER] button.
Turn the [TUNE] dial to select a desired setup item and press the [ENTER] button.
Clock On/Off
Turn the [TUNE] dial or press the [ENTER] button to select the desired setting value. Repeat these
steps if several items need to be set. (e.g. YY/MMDD in date setting)
- Set Time: Set the current time.
- Set Time Format: Set the time format to 12-hour or 24-hour system.
- Set Date: Set the date.
- Display Digital Clock On/Off: Set whether the digital clock is displayed or not. 1.
2.
3.
4.
6. CURRENT TIME/DATE SETTING
